Description

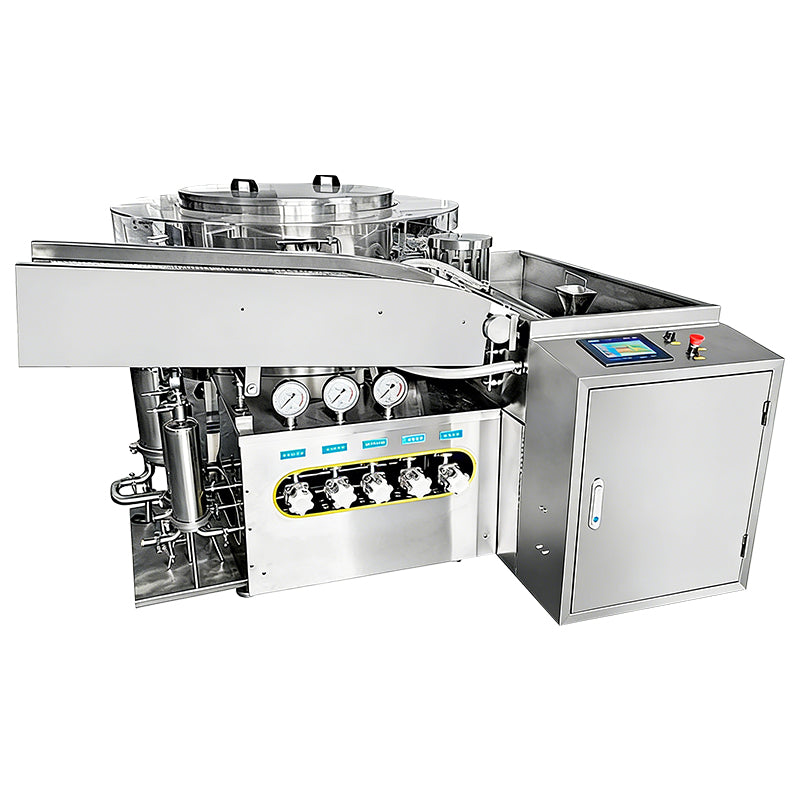

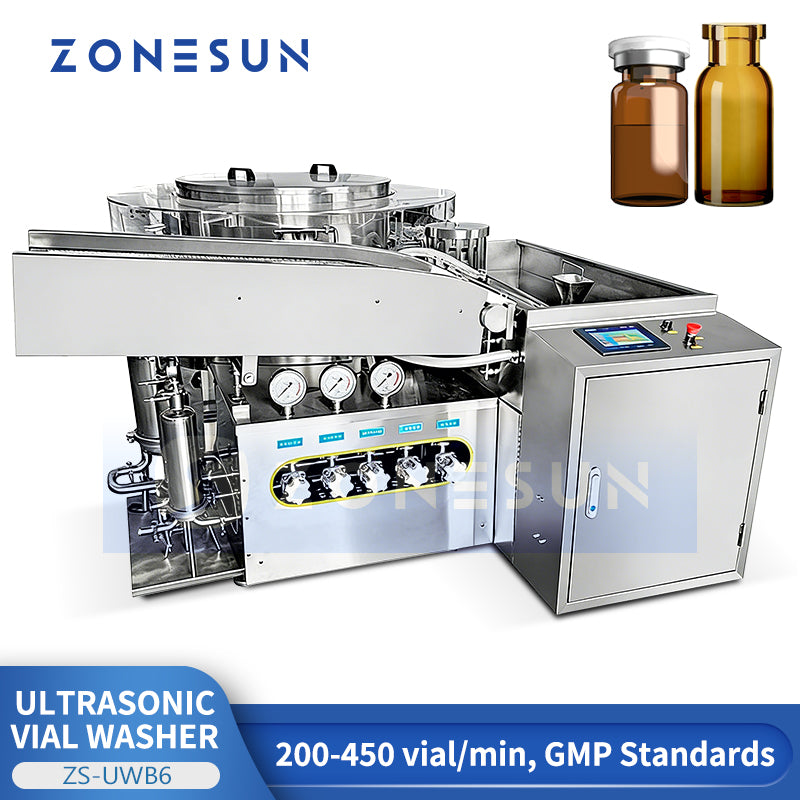

The ZONESUN ZS-UWB6 is an automatic ultrasonic vial washing machine designed for pharmaceutical-grade cleaning of 3–10 ml vials. Operating at 200–450 vials per minute, it integrates multi-stage rinsing, ultrasonic cleaning, PW/WFI high-purity rinsing, drying, sterilization, unloading, and inspection into a continuous GMP-compliant process. With its precision bottle loading system, stable conveyor transfer, and controlled water/air distribution panel, the machine ensures consistent cleanliness, high efficiency, and reliable performance for injectable, diagnostic, and laboratory vial production lines.
Parameter
- Model: ZS‑UWB6
- Applicable Volume: 3 / 5 / 7 / 10 ml (mold change required)
- Working Heads: 32 / 64 / 100 heads
- Capacity: 200–450 bottles/min
- Installed Power: 12.35 kW
- Water Consumption: 1 m³/h
- Water Pressure: 0.25–0.35 MPa
- Compressed Air Consumption: 60 m³/h
- Air Pressure: 0.25–0.35 MPa
- Ultrasonic Power: 2 kW
- Machine Dimensions: 2400 × 2100 × 1200 mm (L x W x H)
- Machine Weight: 400 kg

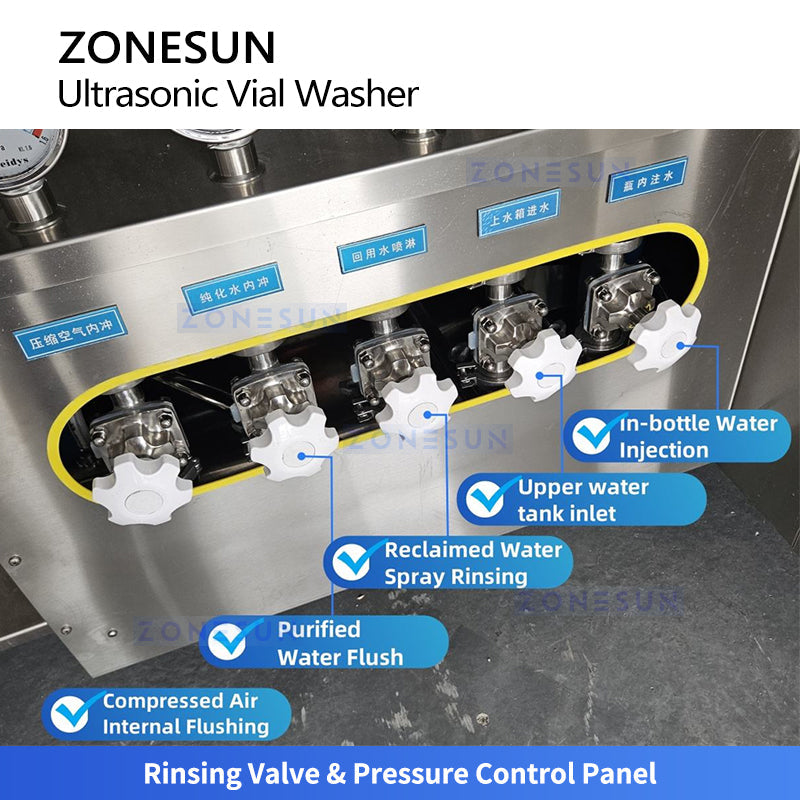

VALVE & PRESSURE
Controls purified water, reclaimed water, and compressed air distribution for each rinsing step, ensuring stable pressure and accurate flushing.

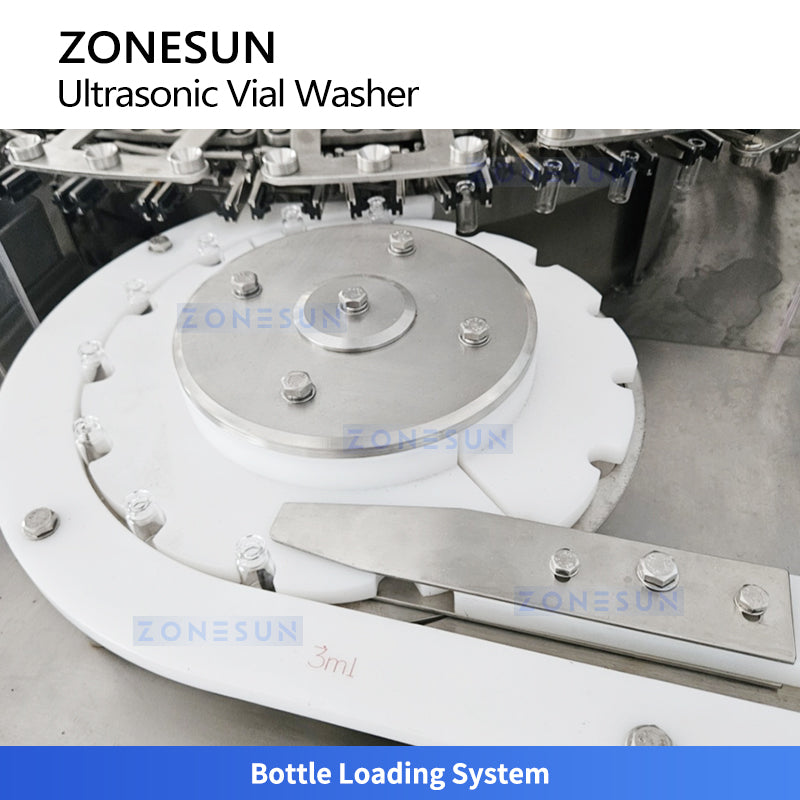

BOTTLE LOADING
Feeds bottles into the washing section in a continuous, accurately aligned manner, ensuring stable positioning and smooth transfer before ultrasonic cleaning.

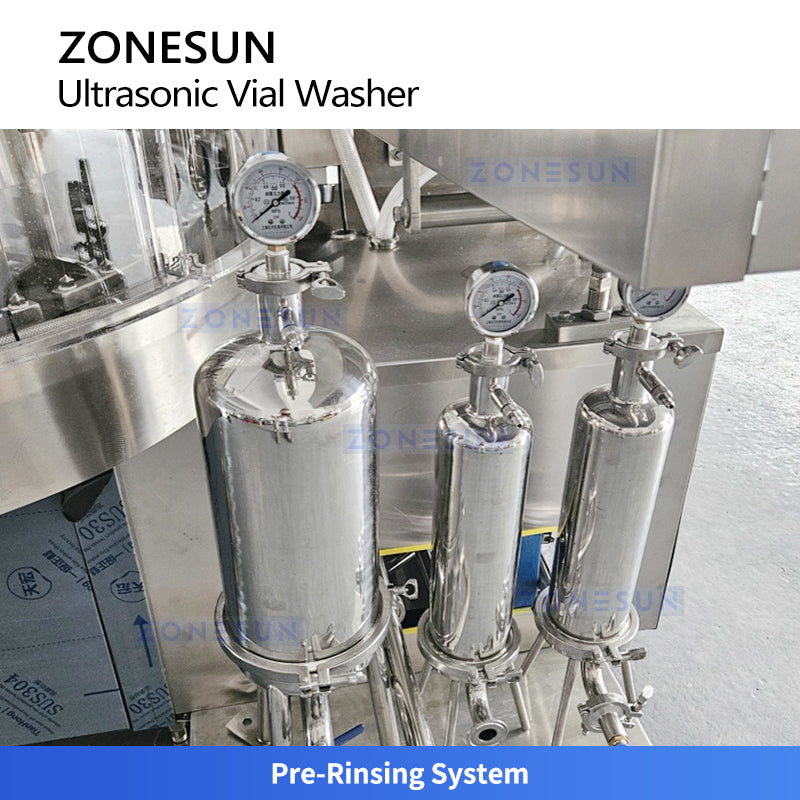

PRE-RINSING SYSTEM
Performs initial rinsing to remove loose particles and surface contaminants, ensuring bottles enter the ultrasonic cleaning stage in a cleaner, more stable condition.

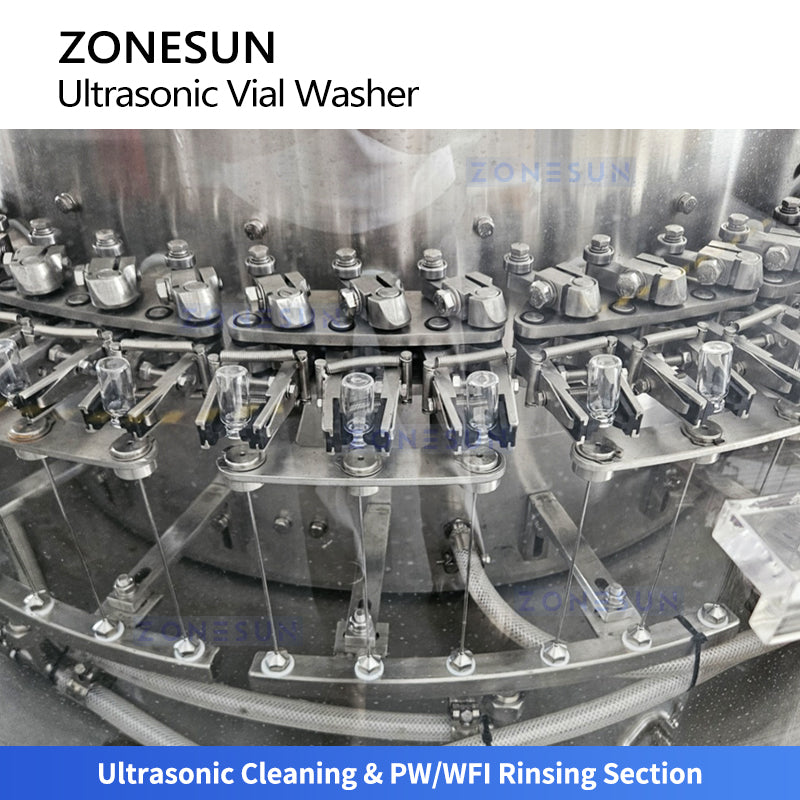

PW/WFI RINSING
Removes particles and residues through ultrasonic cleaning and high-purity PW/WFI rinsing, ensuring bottles meet pharmaceutical-grade cleanliness.

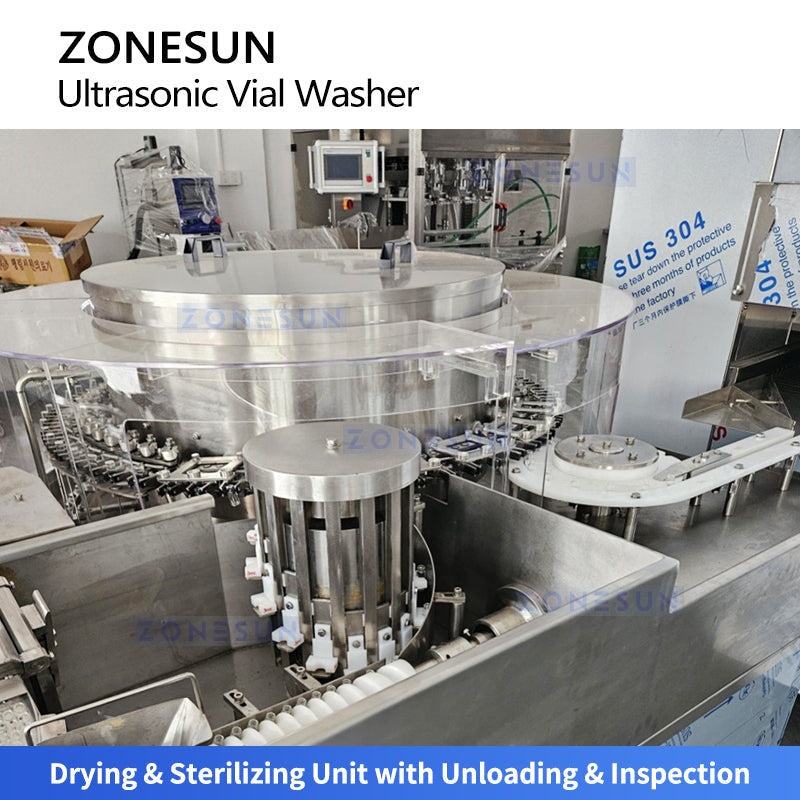

DRYING & STERILIZING
Dries and sterilizes bottles after washing, then unloads and inspects them to ensure they meet cleanliness and quality requirements before entering downstream processes.
