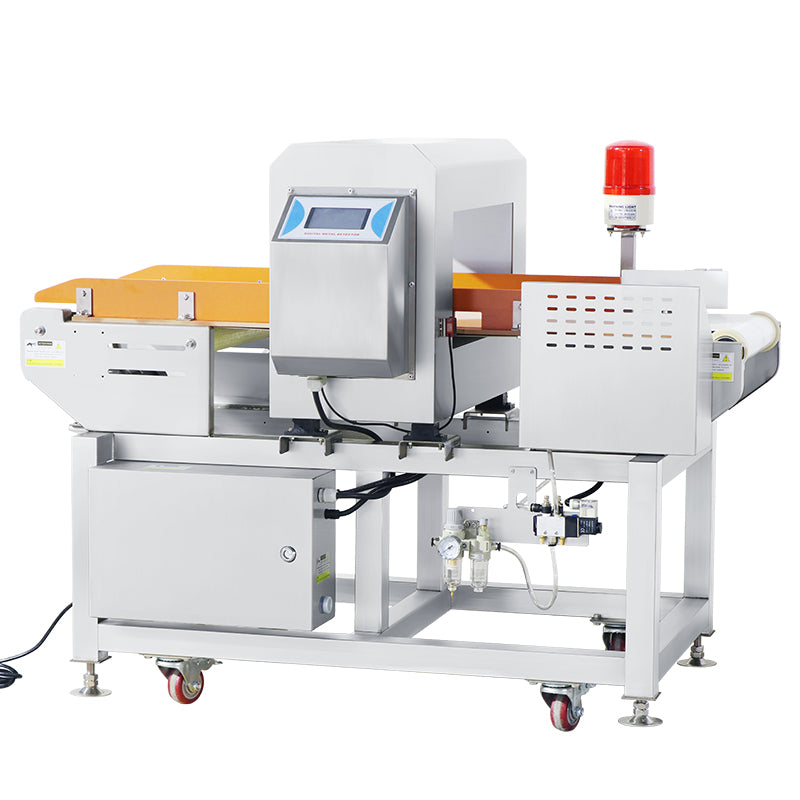

ZONESUN ZS-MD1 Conveyor Belt Metal Detector for Production Lines
- Price
- $3,700
Please click "Buy It Now". Shipping will be calculated at checkout.
Shipping Information
Shipping methods and costs vary depending on the machine model, package size, destination, and delivery method. ZONESUN offers multiple shipping options, including express delivery, air freight, sea freight, and other available logistics services. Large machines and production lines are typically packed in export-standard wooden cases for safer transportation.
To check available shipping options and estimated shipping costs, add the product to your cart and enter your delivery address during checkout. The available shipping methods for your destination will be displayed automatically.
DDP (Delivered Duty Paid) shipping options may also be available for selected destinations. Where DDP is available and selected, the applicable duties, taxes, customs clearance, and delivery arrangements will be handled according to the terms of the quoted DDP shipping service. Please contact us if you would like to confirm DDP availability for your destination before ordering.
For large machines, customized equipment, or complete production lines, we recommend contacting us before placing an order so our team can confirm the most suitable shipping method, packaging requirements, estimated freight cost, and delivery schedule.
For non-DDP shipping methods, import duties, customs clearance fees, local taxes, and other destination charges may apply and are generally determined by local customs authorities.
About Us
ZONESUN specializes in automated packaging machinery and integrated production line solutions, including filling, capping, labeling and sealing equipment. We provide standalone machines and customized packaging lines for different products, containers and production requirements.
ZONESUN is operated by Guangdong Shanghang Technology Limited, with engineering, manufacturing and technical support capabilities for global customers.
The ZS-MD1 metal detector is designed to detect and reject metal contaminants during production. Ideal for food, cosmetics, and chemical industries, it identifies both magnetic and non-magnetic metals—even those sealed inside products. By integrating with automatic rejection systems, it protects downstream equipment, ensures product quality, and minimizes costly downtime. A smart investment for any high-integrity production line.
Parameter Details
Model ZS-MD1
Voltage 220V, 50–60Hz
Power 90W
Conveyor Width 400 mm (customizable)
Maximum Load 15 kg
Detection Height 200 mm (customizable)
Applicable Metals • Ferrous: ≥φ1.2 mm <br> • Non-ferrous: ≥φ1.8 mm <br> • Stainless steel: ≥φ2.3 mm
Detection Speed 25–30 m/min
Machine Weight Approx. 220 kg
Machine Dimensions Approx. 133 × 72 × 100 cm




Metal Contaminant Detection
The detection tunnel identifies magnetic and non-magnetic metal contaminants, including metal sealed inside a product.
Metal Detection and Rejection: The detector identifies metal contaminants in passing products, then activates the warning light and automatic rejection mechanism to divert affected items.

PLC Touchscreen Control Panel
The color touchscreen displays operating information and records traceable data. The machine requires an air compressor, which is sold separately.
Touchscreen Control: The PLC touchscreen records traceable operating data. The pneumatic system requires an external air compressor, sold separately.
