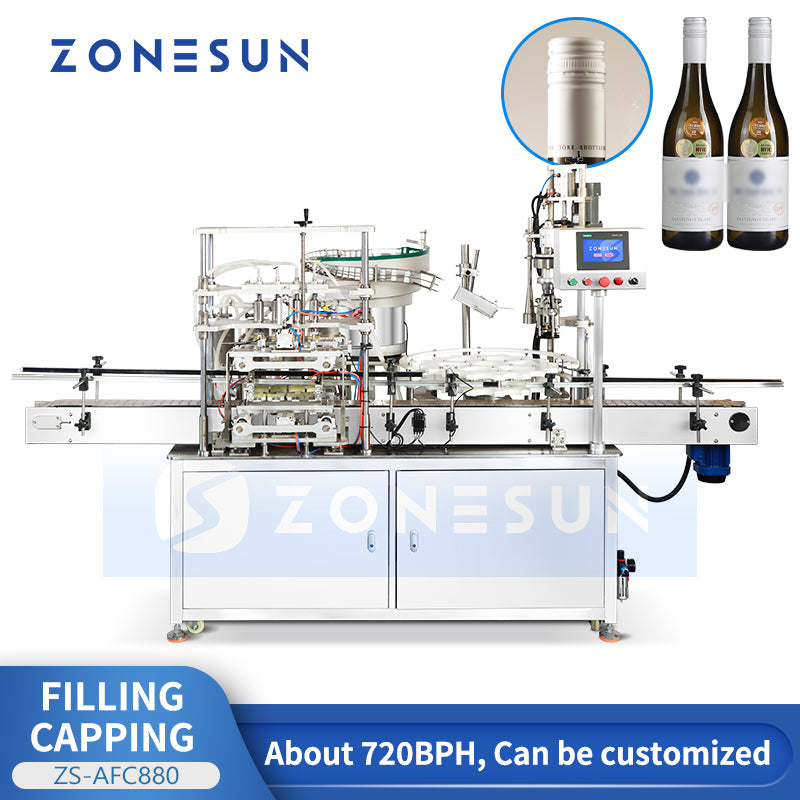

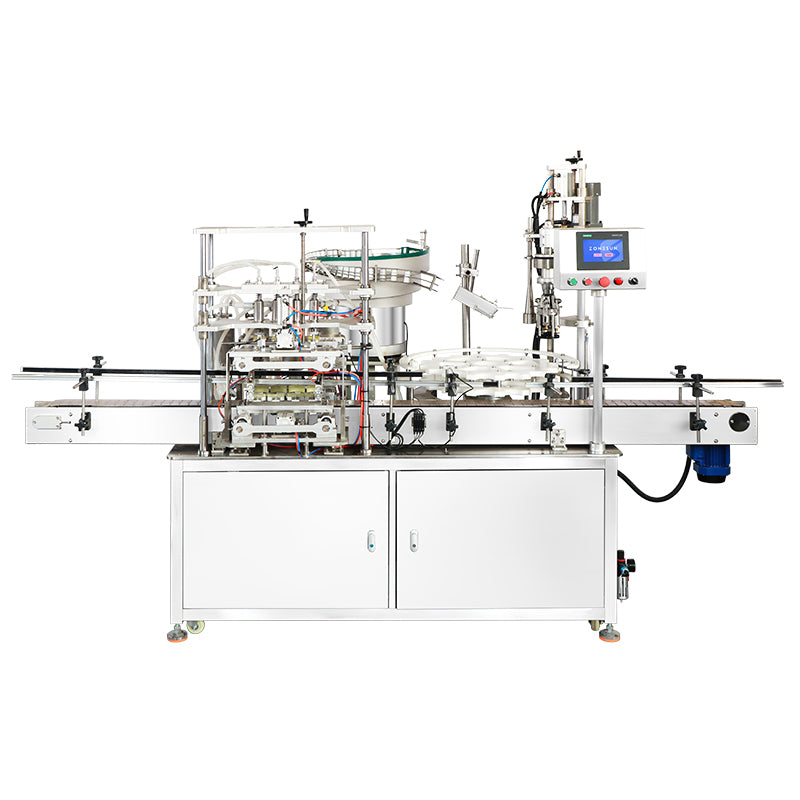

The ZONESUN ZS-AFC880 is a high-efficiency wine bottling monoblock designed for wineries and beverage producers. It features a 4-head vacuum filling system and a single-head ROPP capping unit, ideal for bottling wine, spirits, and similar liquids. With smooth cap delivery via its integrated bowl feeder, this machine ensures consistent filling and sealing for glass bottles ranging from 500ml to 1000ml. A practical solution for streamlining mid-scale production lines.
Parameter
- Model: ZS-AFC880
- Voltage: 220V / 110V, 50–60Hz
- Power: About 1.5kW
- Working speed: About 720BPH (based on 740ml)
- Filling range: 500–1000ml
- Filling accuracy: ±1%
- Filling method: Vacuum filling
- Bottle diameter: Customizable
- Air pressure: 0.5–0.8MPa
- Machine size (L×W×H): About 3280×2050×2070mm
- Machine weight: About 600kg

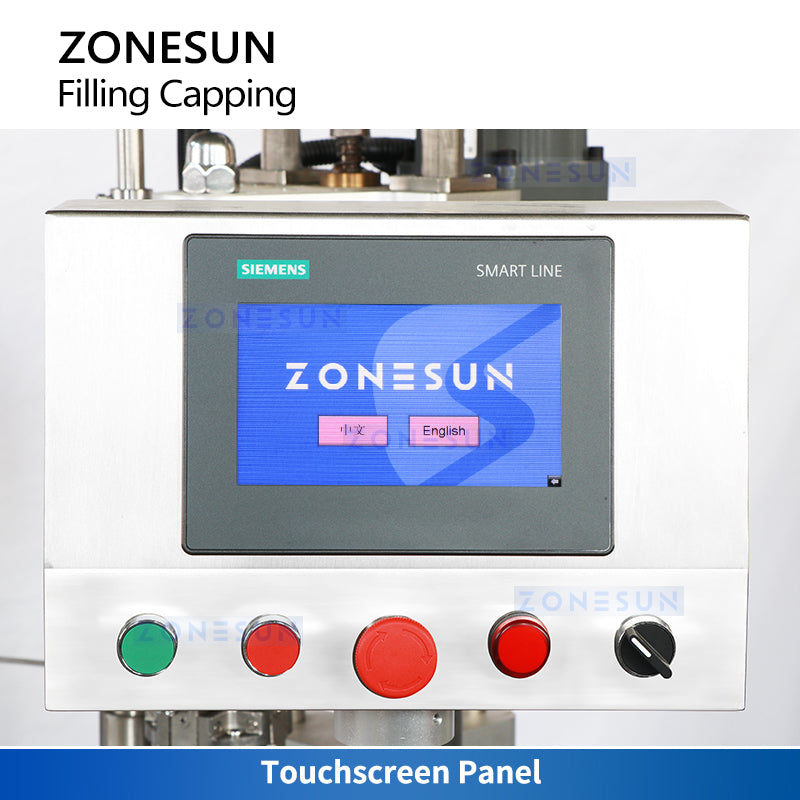

Control Panel
The touchscreen interface supports convenient operation and can be customized for different languages.

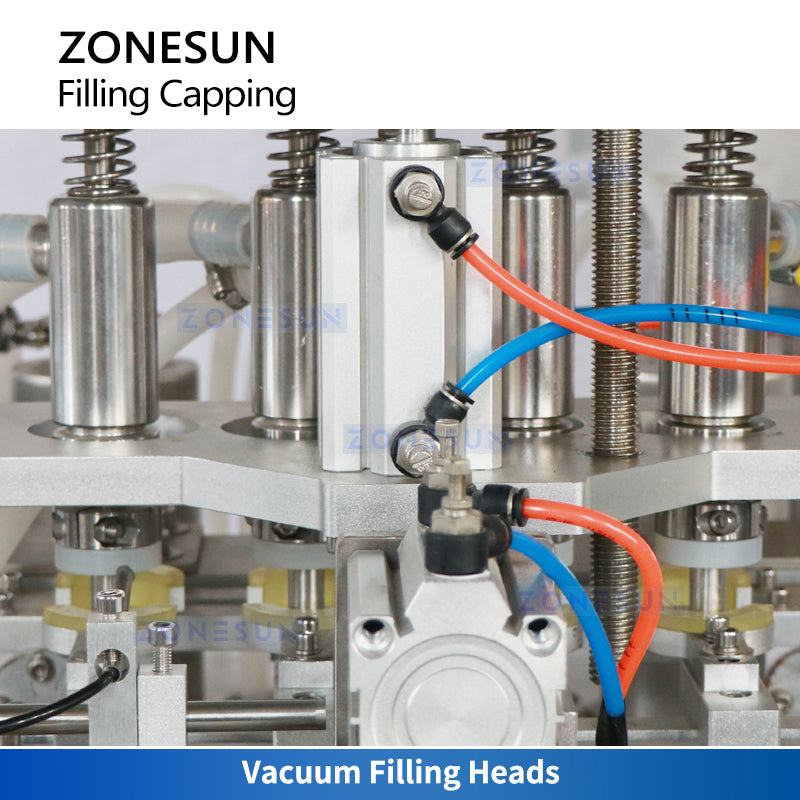

Vacuum Filling Heads
The vacuum filling heads support consistent wine filling, and the number of heads can be customized.

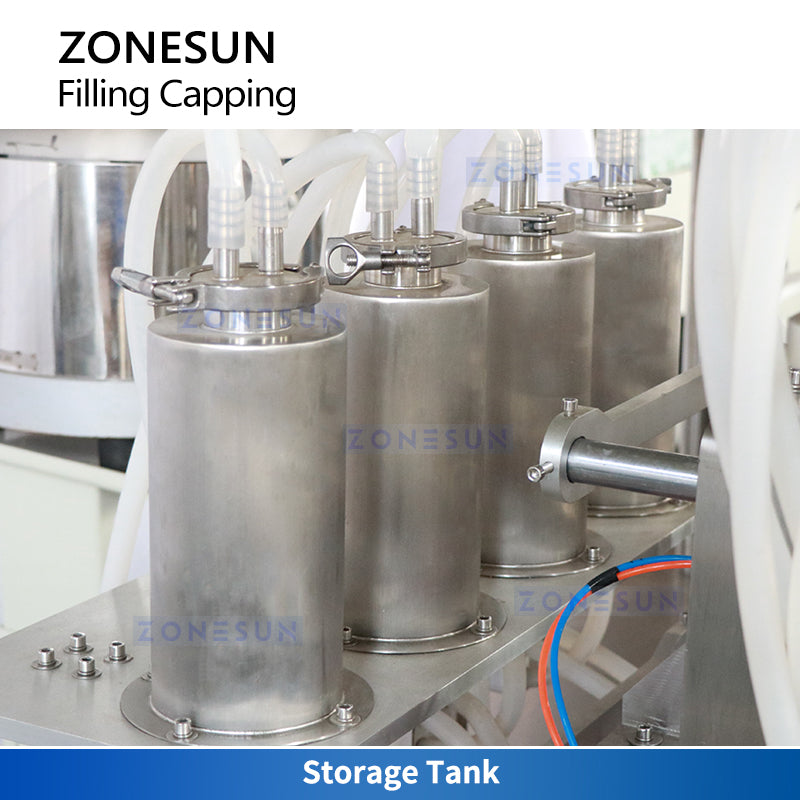

Storage Tank
Excess liquid flows back to the tanks, helping keep the liquid level in each bottle consistent.

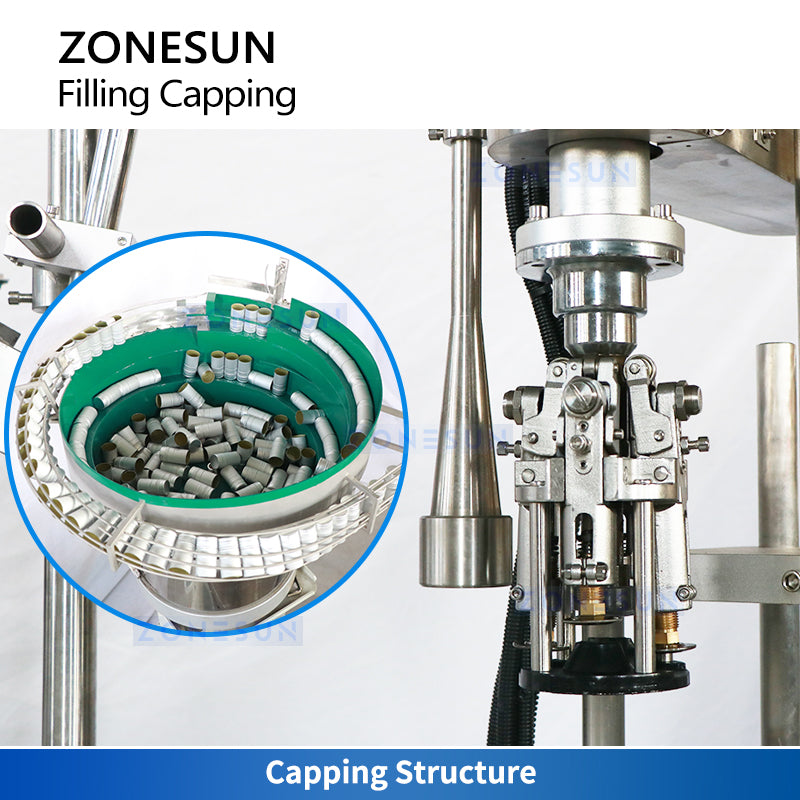

ROPP Capping Structure
The system feeds and tightens ROPP caps automatically, with adjustable height for different bottle sizes.

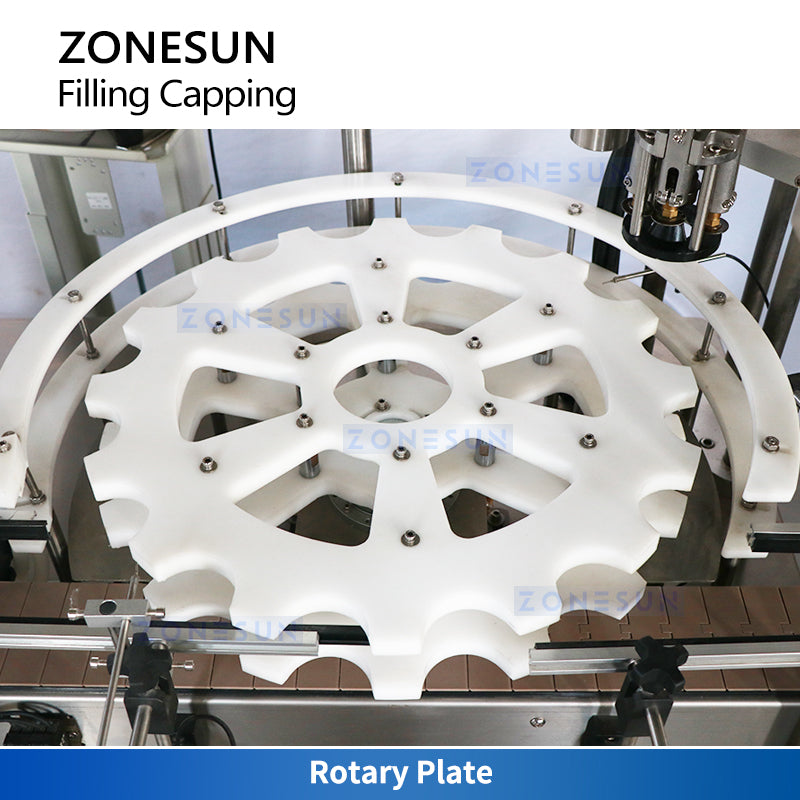

Customizable Rotary Plate
The rotary plate can be changed or customized to accommodate different bottle formats.
