ZONESUN ZS-DTDP2 Desktop Liquid Filling Machine with Conveyor

Pris
$1,800

Please click "Buy It Now". Shipping will be calculated at checkout.


Voltage:110V
Shipping Information

Shipping methods and costs vary depending on the machine model, package size, destination, and delivery method. ZONESUN offers multiple shipping options, including express delivery, air freight, sea freight, and other available logistics services. Large machines and production lines are typically packed in export-standard wooden cases for safer transportation.

To check available shipping options and estimated shipping costs, add the product to your cart and enter your delivery address during checkout. The available shipping methods for your destination will be displayed automatically.

DDP (Delivered Duty Paid) shipping options may also be available for selected destinations. Where DDP is available and selected, the applicable duties, taxes, customs clearance, and delivery arrangements will be handled according to the terms of the quoted DDP shipping service. Please contact us if you would like to confirm DDP availability for your destination before ordering.

For large machines, customized equipment, or complete production lines, we recommend contacting us before placing an order so our team can confirm the most suitable shipping method, packaging requirements, estimated freight cost, and delivery schedule.

For non-DDP shipping methods, import duties, customs clearance fees, local taxes, and other destination charges may apply and are generally determined by local customs authorities.

About Us

ZONESUN specializes in automated packaging machinery and integrated production line solutions, including filling, capping, labeling and sealing equipment. We provide standalone machines and customized packaging lines for different products, containers and production requirements.

ZONESUN is operated by Guangdong Shanghang Technology Limited, with engineering, manufacturing and technical support capabilities for global customers.

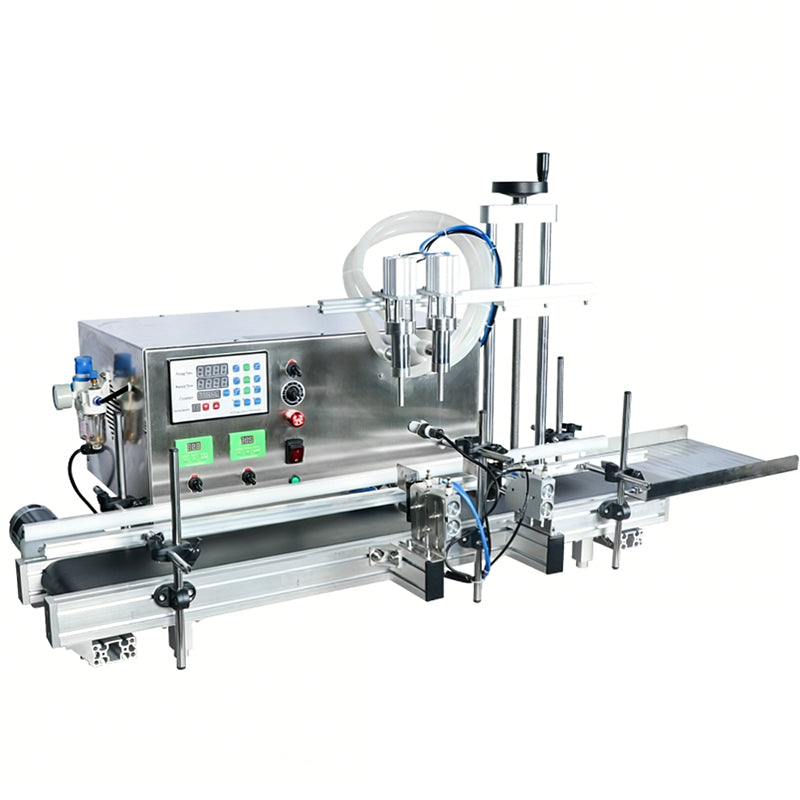

The ZONESUN ZS-DTDP2 Desktop CNC Diaphragm Pump Liquid Filling Machine with Conveyor is designed for efficient, precise, and automated liquid filling. Equipped with an infrared sensor, it automatically stops when no bottles are detected, ensuring accuracy and reducing waste. The adjustable conveyor speed allows smooth bottle transfer, while the stainless steel body ensures durability and hygiene. With a digital control panel, intelligent fault detection, and customizable nozzles, this compact machine is ideal for short-run production or integration into a production line. Suitable for filling mineral water, beverages, edible oils, condiments, and daily chemical liquids.

Parameter

Power Supply Voltage
110/220V 50-60HZ
Power
250W
Maximum flow velocity
4000m/min (base on water)
Working speed
1500-3000 bottles/hour(depends on botle size and liquid)
Air pressure
0.3-0.4MPa
Filling accuracy
≤+1% (For water)
Diameter of Flling Nozzle
6/8mm
Delay Range
0.01-999.9s
Count Range
1-99999 Times
Machine Size
1350x710x600mm
Machine Weight
About 50kg
Filling Volume
3-1000ml(220V)3- 500ml(110V)since the power of 110v machine is not large, so we recommend 3-500ml for each nozzle

ZONESUN Desktop CNC Diaphragm Pump Liquid Filling Machine With Conveyor
ZONESUN Desktop CNC Diaphragm Pump Liquid Filling Machine With Conveyor

Liquid Filling Applications

The machine fills compatible free-flowing liquids such as juice, condiments, wine, milk, water, and carbonated drinks.

ZONESUN Desktop CNC Diaphragm Pump Liquid Filling Machine With Conveyor
ZONESUN Desktop CNC Diaphragm Pump Liquid Filling Machine With Conveyor
ZONESUN Desktop CNC Diaphragm Pump Liquid Filling Machine With Conveyor

Automatic Filling Controls

The control panel adjusts operating settings, the anti-drip nozzles fill bottles independently, and the electric eye detects bottles to reduce missed filling. Conveyor speed is adjustable.

About ZONESUN

ZONESUN is a China-based manufacturer specializing in custom packaging machinery solutions.

We offer fully tailored OEM & ODM services — from production capacity and automation level to branding and machine design — engineered precisely to your requirements.

Contact us today to discuss your custom project and explore the best solution for your production needs.
