Description

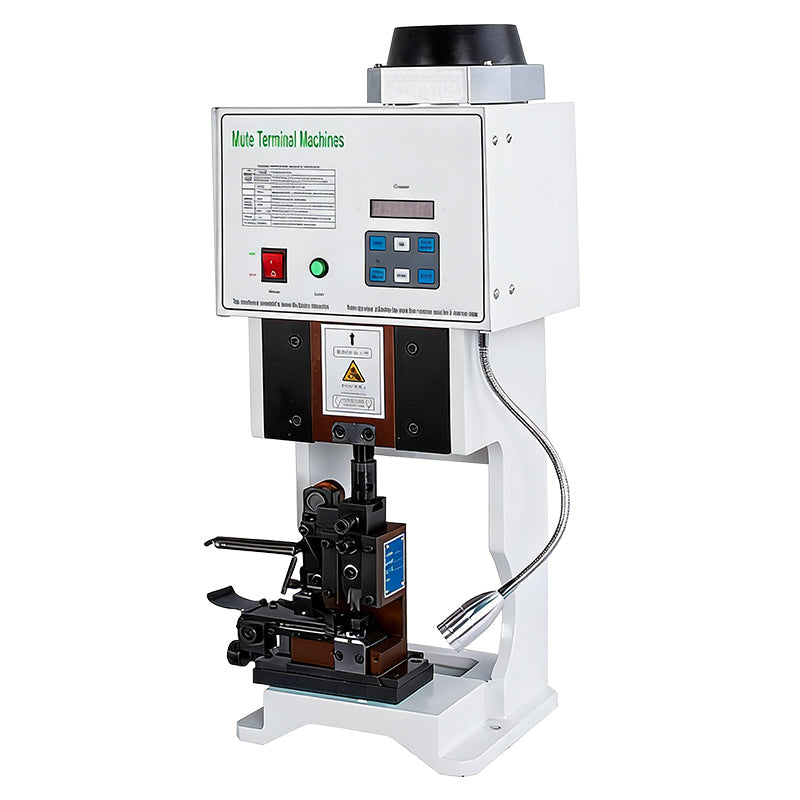

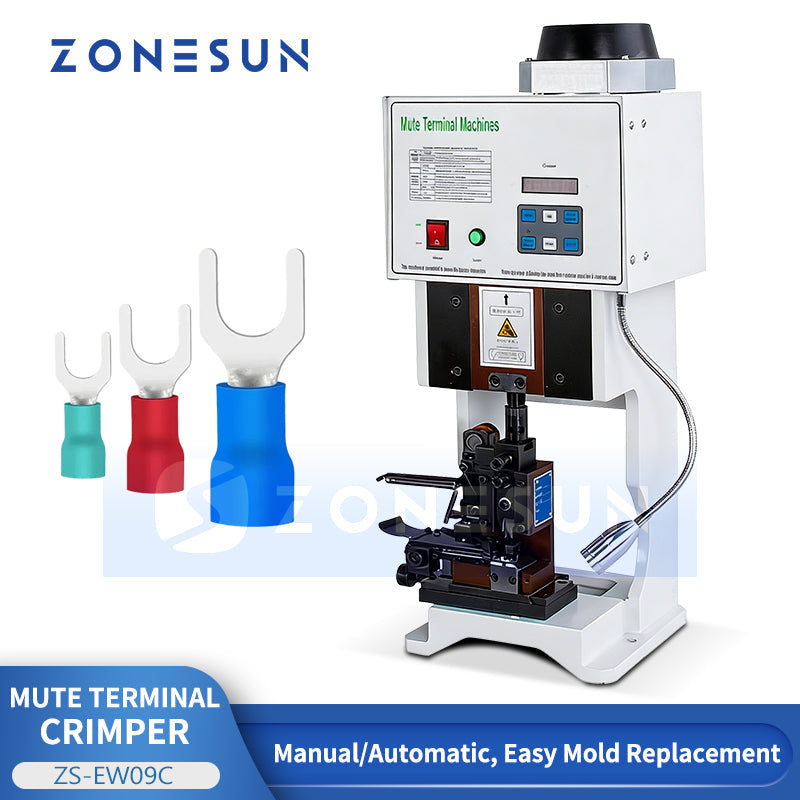

The ZONESUN ZS-EW09C is a semi-automatic mute terminal crimping machine designed for efficient wire harness processing. Its ultra-quiet frequency-conversion system activates the motor only during crimping — significantly reducing noise and energy consumption compared with traditional clutch-type machines.

With 2T crimping force, stable voltage, fast speed, and high precision, it ensures firm and consistent terminal connections. The quick-change mold system supports OTP transverse, straight/reverse, single-grain, and U-shaped dies, making it compatible with DC, AC, computer, single-grain, and continuous terminals. Compact, easy to operate, and available in manual or automatic modes, it delivers reliable performance for industrial production.

Technical Specifications

  • Model: ZS-EW09C
  • Voltage: 110V / 220V, 50–60Hz

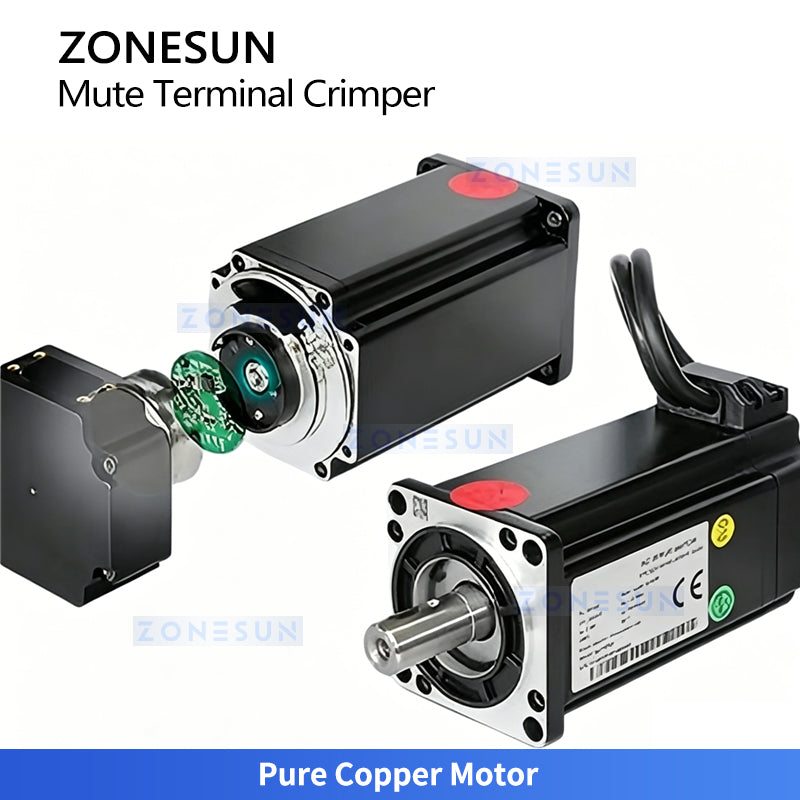

  • Motor Power: 0.55 kW
  • Crimping Force: 2 T
  • Stroke: 30mm (optional 40mm)
  • Machine Dimensions (L×W×H): 220 × 240 × 640mm
  • Machine Weight: 48 kg
  • Compatible Dies: OTP transverse / Straight / Reverse / Single-grain / U-shaped
  • Compatible Terminals: DC / AC / Computer / Single-grain / Continuous
  • Operation Modes: Manual / Automatic
ZONESUN ZS-EW09C Semi-Automatic Mute Terminal Crimping Machine for Wire Harness Processing
ZONESUN ZS-EW09C Frequency Conversion Mute Crimping Machine
ZONESUN ZS-EW09C Quick-Change Die Terminal Crimper
ZONESUN ZS-EW09C OTP U-Shaped Die Crimping Machine
ZONESUN ZS-EW09C 2T Crimping Force Wire Harness Machine
ZONESUN ZS-EW09C DC AC Computer Terminal Crimping
ZONESUN ZS-EW09C Semi-Auto Terminal Press Manual Automatic Mode
ZONESUN ZS-EW09C Compact Terminal Crimping Machine Industrial
ZONESUN ZS-EW09C Wire Harness Processing Terminal Crimper

Why Choose the ZS-EW09C?

  • Ultra-Quiet Operation: Frequency-conversion system activates motor only during crimping — significantly lower noise than clutch-type machines

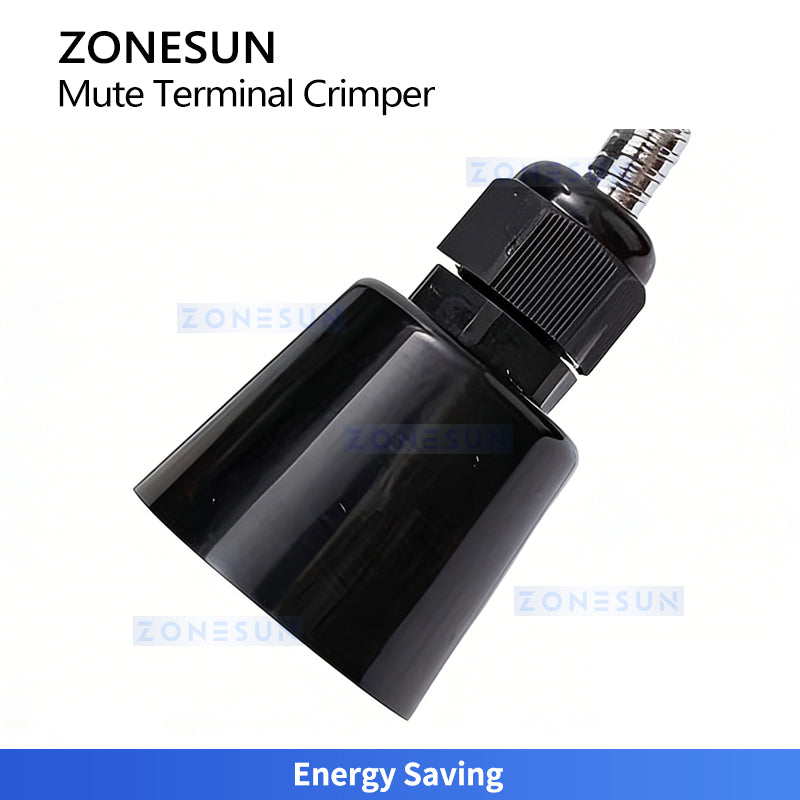

  • Energy Saving: Motor idles silently between cycles, reducing power consumption
  • 2T Crimping Force: Firm, consistent terminal connections for reliable wire harness quality

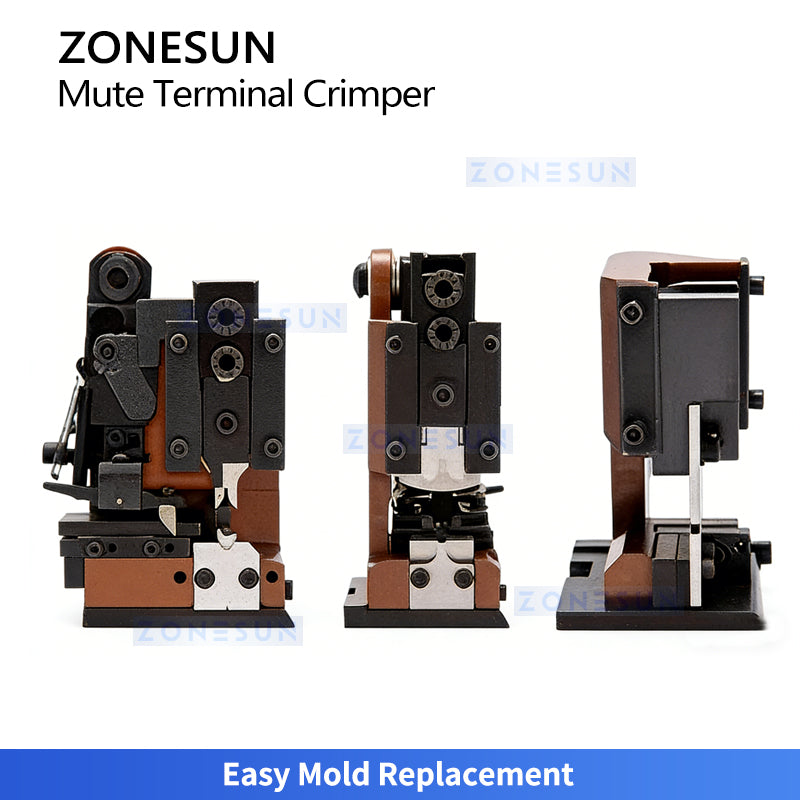

  • Quick-Change Die System: Supports OTP transverse, straight/reverse, single-grain, and U-shaped dies for fast tooling changeover

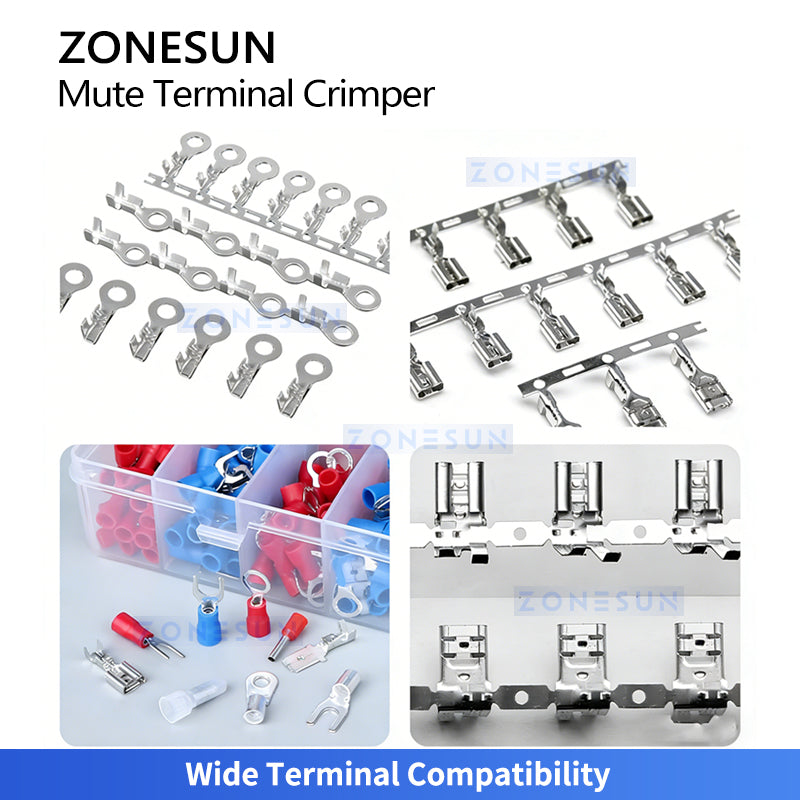

  • Wide Terminal Compatibility: DC, AC, computer, single-grain, and continuous terminals
  • Dual Operation Modes: Manual and automatic modes for flexible production requirements
  • Compact & Lightweight: 48 kg, 220×240×640mm — easy to position on any workbench
  • Worldwide Voltage: 110V / 220V, 50–60Hz compatible

Ideal Applications

  • Wire Harness Manufacturing: Automotive wiring, electrical harness assembly, connector crimping
  • Electronics: Computer cables, PCB connectors, consumer electronics wiring
  • Industrial Production: Control panel wiring, machine cable assembly, industrial connectors
  • Electrical Engineering: AC/DC terminal crimping for switchgear, distribution boards
  • Automotive: Vehicle wiring harness production, connector assembly lines
