ZONESUN ZS-FKC5040X Automatic Carton Sealer with Sensor Control

Pris
$2,299

Please click "Buy It Now". Shipping will be calculated at checkout.


Voltage:110V
Shipping Information

Shipping methods and costs vary depending on the machine model, package size, destination, and delivery method. ZONESUN offers multiple shipping options, including express delivery, air freight, sea freight, and other available logistics services. Large machines and production lines are typically packed in export-standard wooden cases for safer transportation.

To check available shipping options and estimated shipping costs, add the product to your cart and enter your delivery address during checkout. The available shipping methods for your destination will be displayed automatically.

DDP (Delivered Duty Paid) shipping options may also be available for selected destinations. Where DDP is available and selected, the applicable duties, taxes, customs clearance, and delivery arrangements will be handled according to the terms of the quoted DDP shipping service. Please contact us if you would like to confirm DDP availability for your destination before ordering.

For large machines, customized equipment, or complete production lines, we recommend contacting us before placing an order so our team can confirm the most suitable shipping method, packaging requirements, estimated freight cost, and delivery schedule.

For non-DDP shipping methods, import duties, customs clearance fees, local taxes, and other destination charges may apply and are generally determined by local customs authorities.

About Us

ZONESUN specializes in automated packaging machinery and integrated production line solutions, including filling, capping, labeling and sealing equipment. We provide standalone machines and customized packaging lines for different products, containers and production requirements.

ZONESUN is operated by Guangdong Shanghang Technology Limited, with engineering, manufacturing and technical support capabilities for global customers.

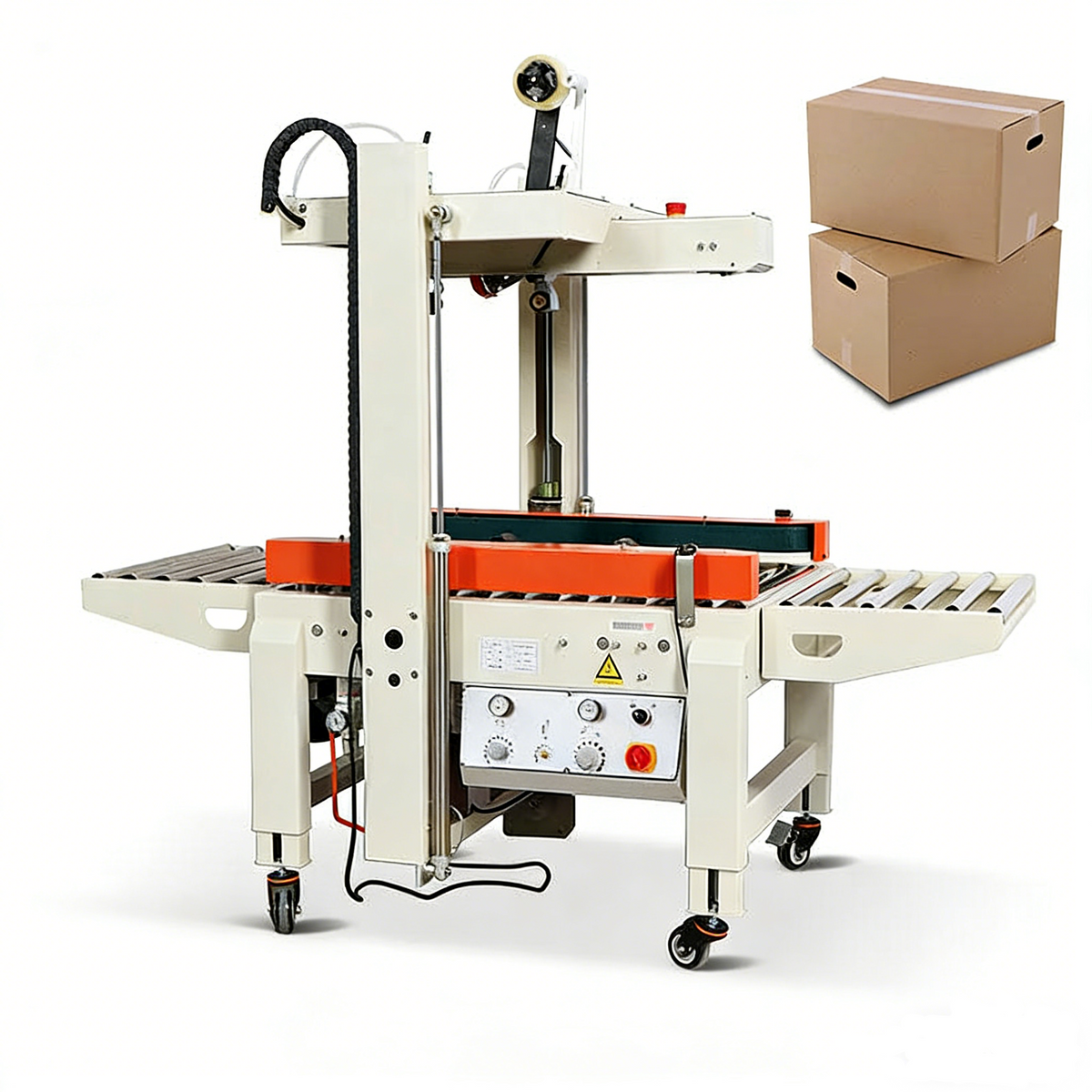

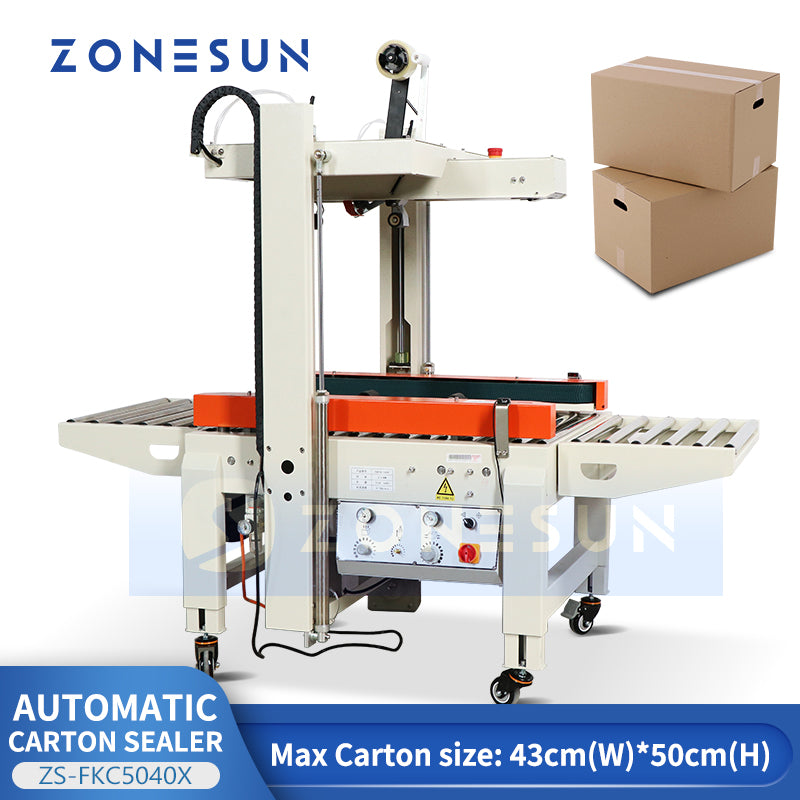

The ZONESUN ZS-FKC5040X is a fully automatic carton sealing machine designed for high-efficiency packaging operations. Featuring pneumatic clamping and photoelectric sensors, it detects incoming cartons and adjusts side and top clamps without manual intervention. Its dual-side conveyor belt transmission ensures smooth, stable sealing at speeds up to 18 meters per minute. Compatible with a wide range of carton sizes, this machine is ideal for streamlining packaging lines in warehouses, factories, and logistics centers.

ZS-FKC5040X Carton Sealing Machine – Technical Specifications
Parameter Details
Model ZS-FKC5040X
Power Supply 110V / 220V, 50–60Hz, 240W
Conveyor Speed 18 meters/min
Tape Width ≤60mm
Transmission Mode Dual-side conveyor belt transmission

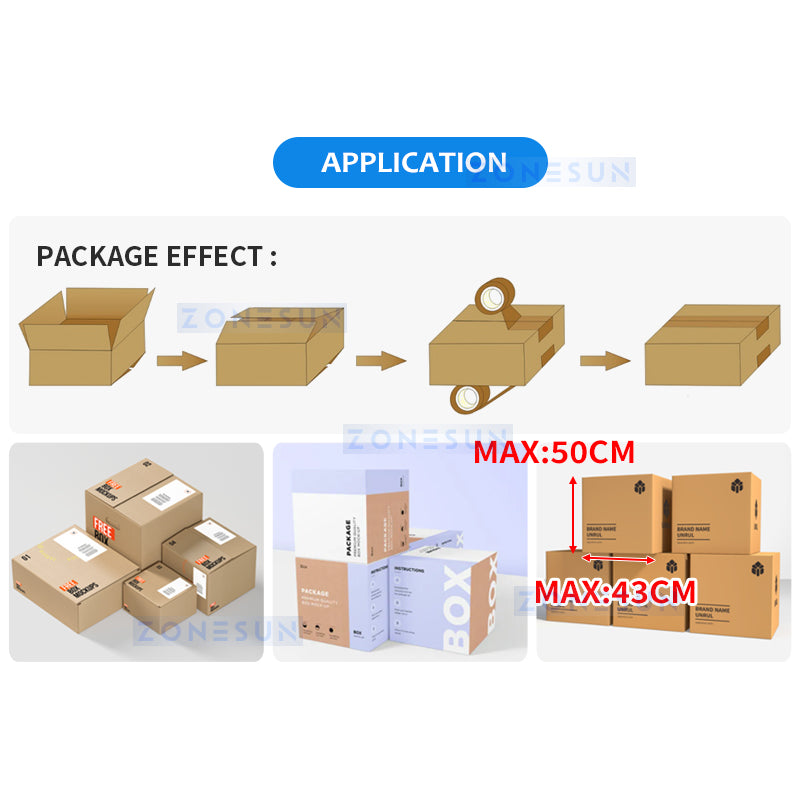

Max Carton Size 432 × 508mm (Width × Height)
Min Carton Size 355 × 305 × 127mm (Length × Width × Height)
Package Dimensions Approx. 110 × 100 × 172mm
Package Weight Approx. 252kg

Automatic Carton Clamping and Detection

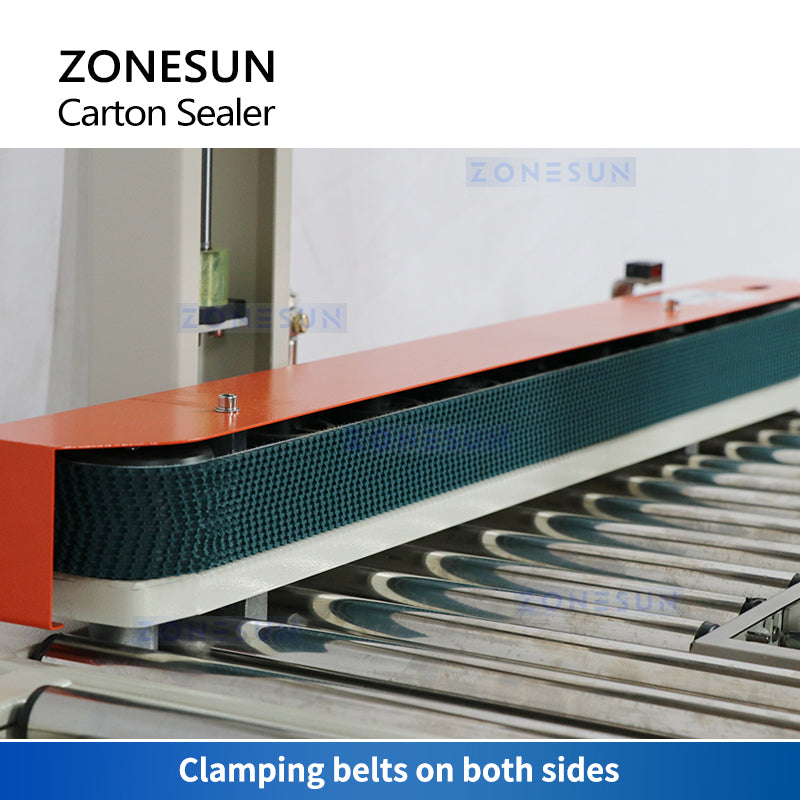

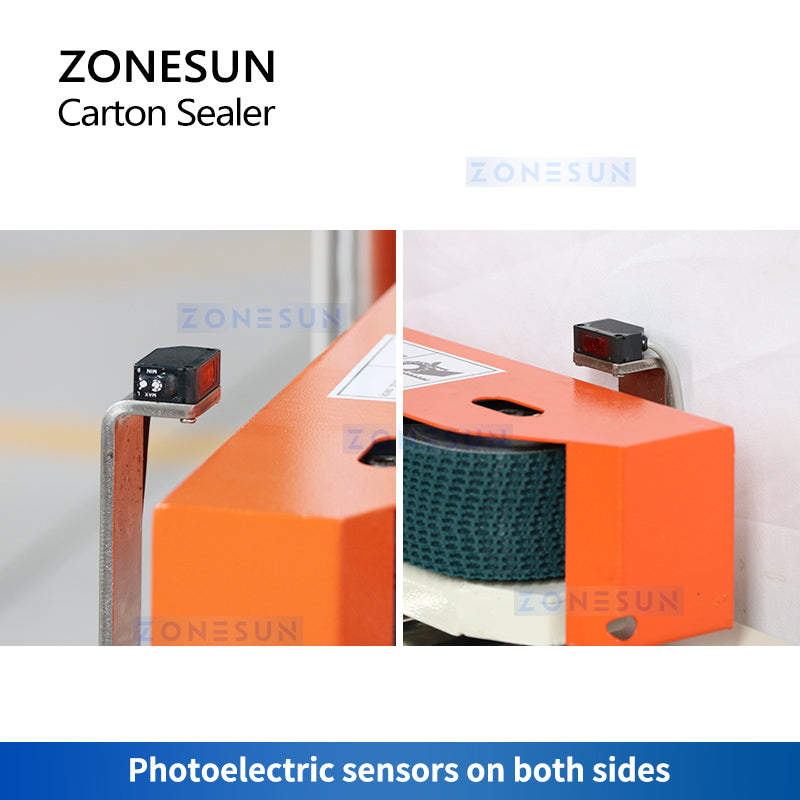

Side belts hold and move cartons through the machine. Photoelectric sensors detect incoming cartons and trigger the sealing cycle.

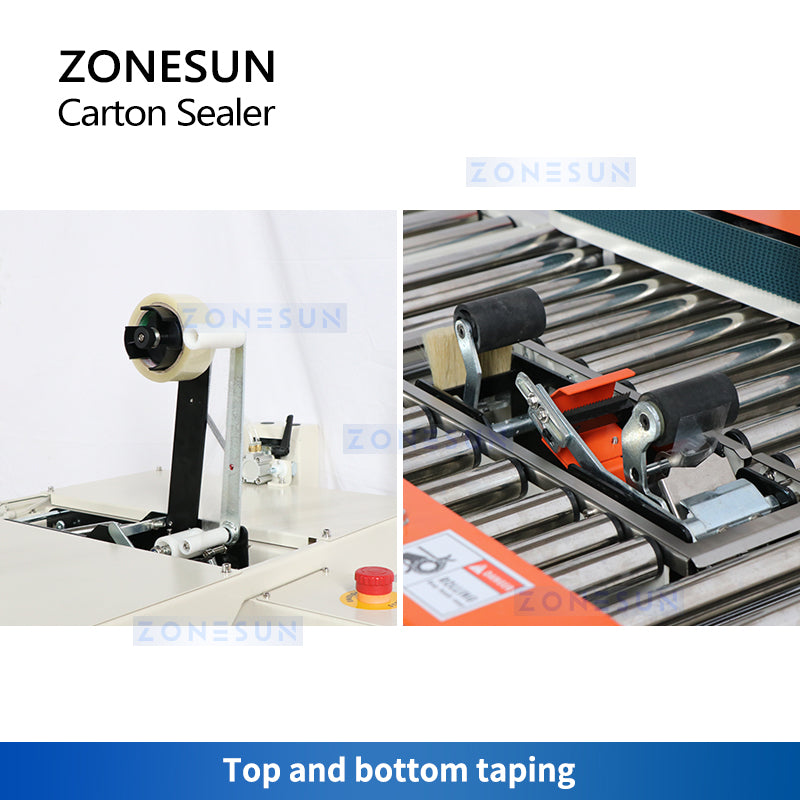

Top and Bottom Tape Sealing

The taping mechanism applies adhesive tape to the carton flaps to seal the top and bottom during conveyor movement.

Pneumatic Control System

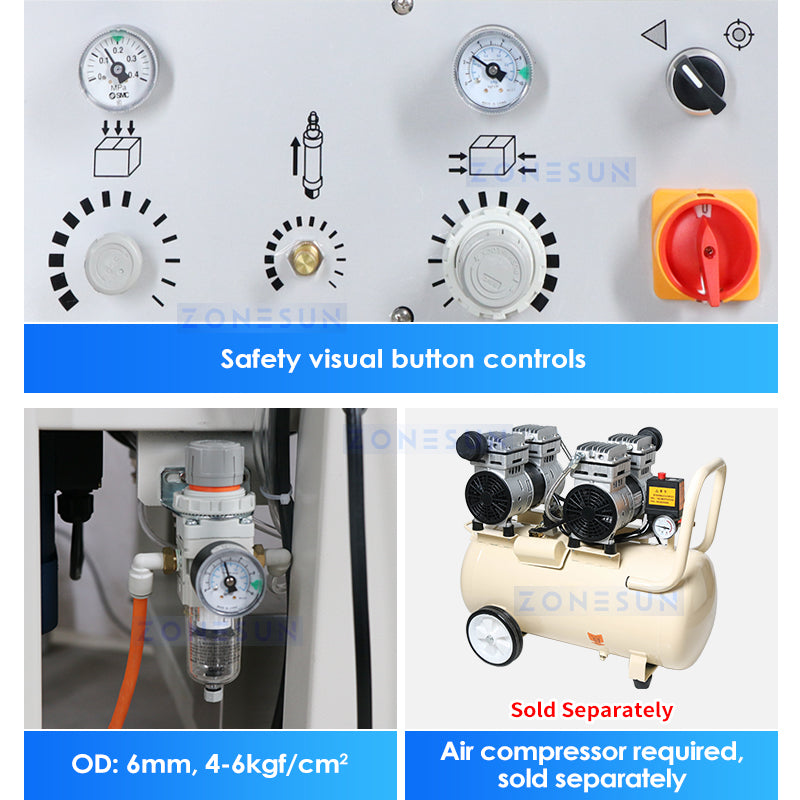

Visual control knobs allow operating adjustments, while the pneumatic system requires an external air compressor, sold separately.

About ZONESUN

ZONESUN is a China-based manufacturer specializing in custom packaging machinery solutions.

We offer fully tailored OEM & ODM services — from production capacity and automation level to branding and machine design — engineered precisely to your requirements.

Contact us today to discuss your custom project and explore the best solution for your production needs.
