Description

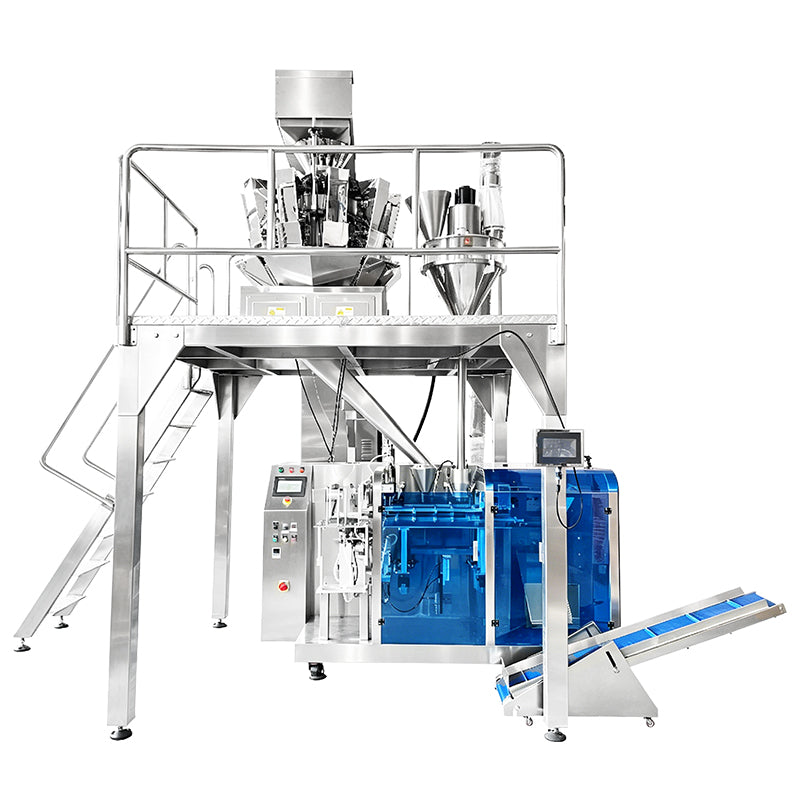

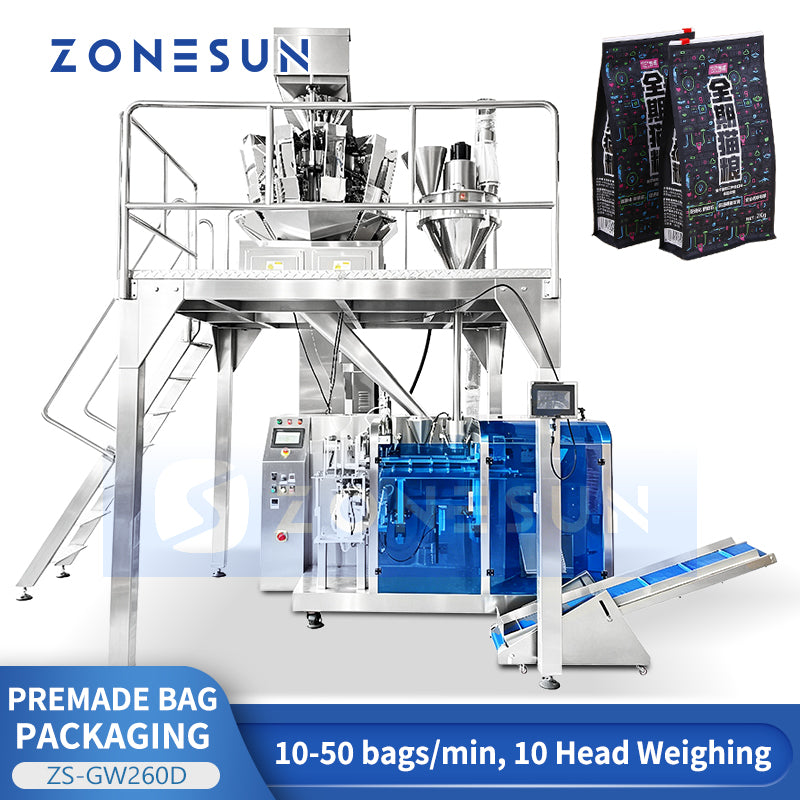

The ZONESUN ZS-GW260D is an automatic bag-feeding packaging machine equipped with a high-precision 10-head combination weigher. Running at 10–50 bags per minute, it handles 50g to 5kg of powders and ultra-fine powder materials such as milk powder, feed, rice flour, sugar, MSG, solid beverages, and glucose.

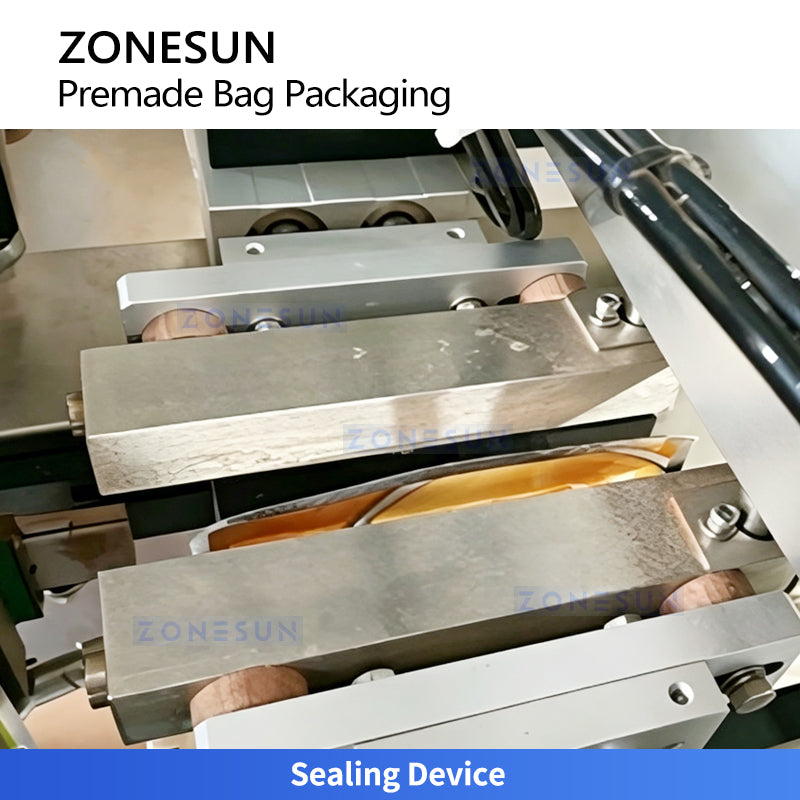

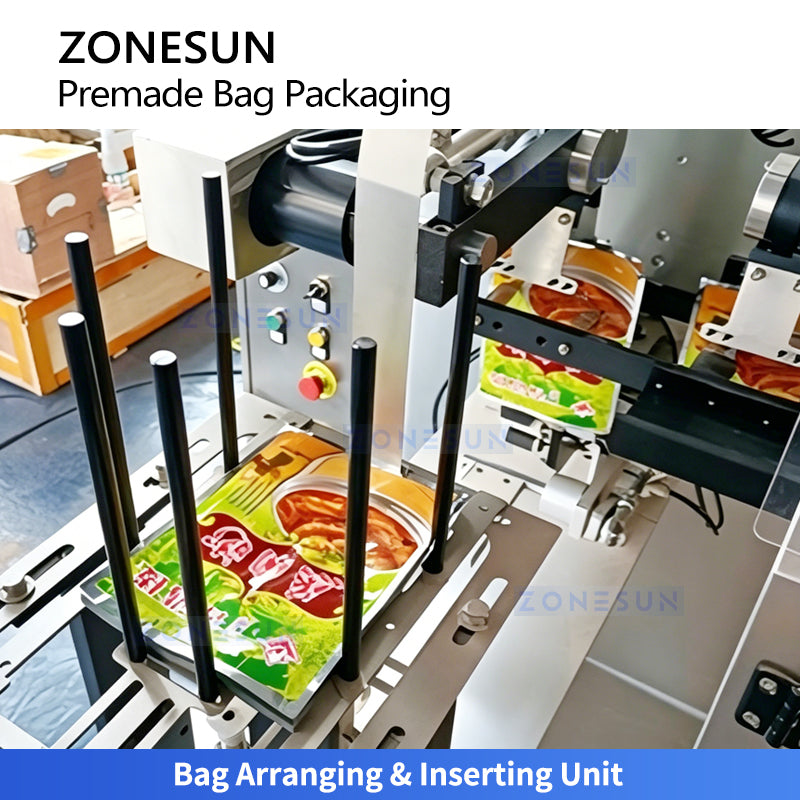

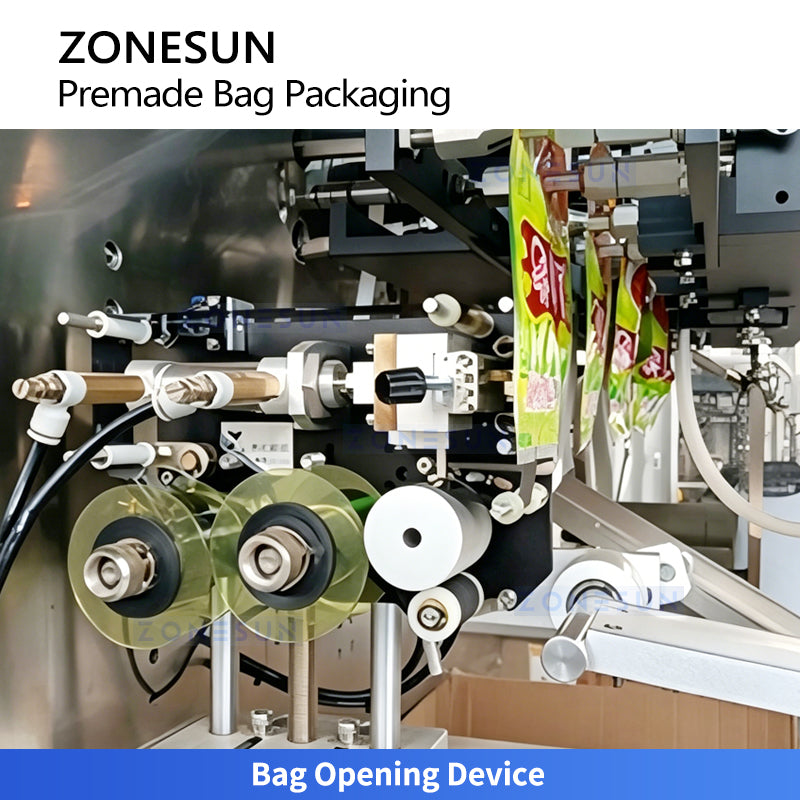

With a horizontal linear layout and Siemens PLC control, it ensures stable operation, accurate weighing, and efficient bag handling across pickup, opening, filling, sealing, and outfeed. The machine offers excellent format flexibility — adapting to irregular bag shapes and allowing quick changeover without additional accessories.
Technical Specifications
Bag-Feeding Packaging Machine (ZS-GW260D)
- Model： ZS-GW260D
- Voltage： 220 V / 380 V ±10%, 50/60 Hz
- Filling Speed： 10–50 bags/min
- Weighing Range： 50 g–5 kg
- Weighing Accuracy： ±0.3–1.5%

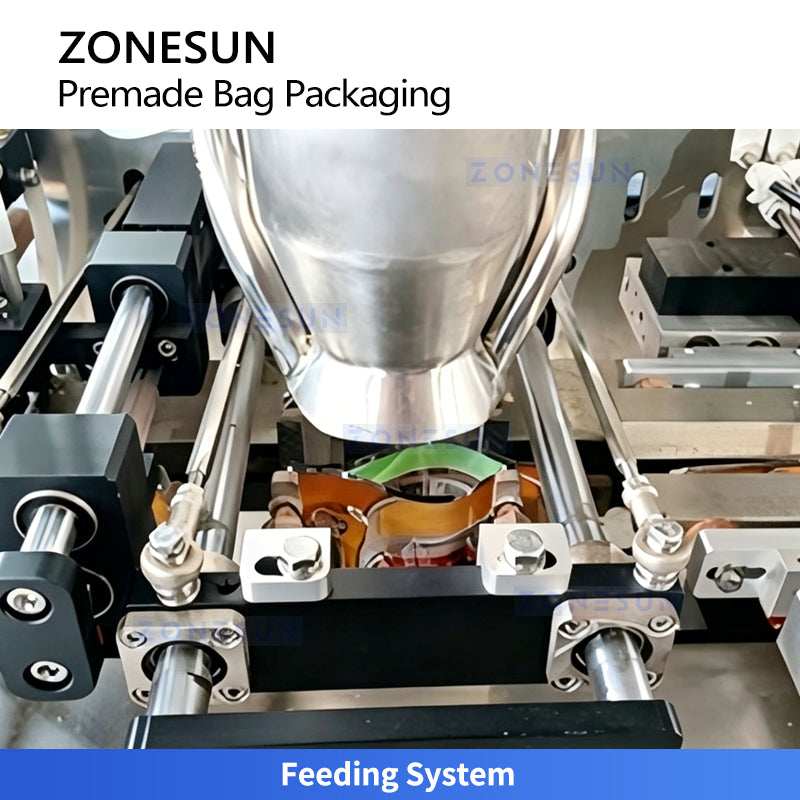

- Filling Method： Auger (screw‑type rotary filling)
- Hopper Capacity： 10–100 L (customizable)
- Max Packaging Volume： 2500 mL
- Bag Size (W × L)： 100–260 mm × 110–500 mm
- Sealing Temperature： 100–190 °C
- Main Machine Power： 3.5 kW
- Filler Power： 2.5 kW
- Air Pressure： 0.6 MPa
- Air Consumption： 0.7 m³/min
- Machine Material： 304 stainless steel
- Main Machine Dimensions (L × W × H)： 2450 × 1200 × 1200 mm
- Main Machine Weight： 1100 kg
- Hopper Size：
- 10L： 600 × 560 × 770 mm，55 kg
- 30L： 520 × 580 × 950 mm，100 kg
- 50L： 540 × 795 × 1030 mm，130 kg
10-Head Combination Weigher
- Weighing Range: 10g – 1kg
- Weighing Accuracy: 0.1g – 1.5g (depending on material)
- Max Speed: Up to 120 bags/min
- Hopper Capacity: 1.6L
- Mixing Capability: Up to 4 types of materials
- Material: 304 Stainless Steel
- Touch Screen: 7 / 9.7 inches
- Power: 1.5 kW
- Voltage: AC 220V ±10%, 50/60Hz
- Dimensions (L×W×H): 1720 × 1100 × 1100mm
- Weight: 450 kg
Why Choose the ZS-GW260D?
- ✅ 10-Head Combination Weigher: High-precision multi-head weighing ensures ±0.1–1.5g accuracy for powders and fine powders
- ✅ Wide Weight Range: Handles 50g to 5kg per bag — suitable for small sachets to large pouches
- ✅ Fast Production Speed: 10–50 bags/min on the packaging machine; weigher supports up to 120 bags/min
- ✅ Siemens PLC Control: Reliable, stable automation with intuitive touch screen operation
- ✅ Flexible Bag Compatibility: Stand-up pouches, flat bags, zipper bags, and irregular shapes — no extra accessories needed for changeover
- ✅ Multi-Material Mixing: Weigher supports blending up to 4 material types in a single fill
- ✅ 304 Stainless Steel Construction: Food-grade, corrosion-resistant, easy to clean
- ✅ Dual Voltage: AC 220V / 380V compatible for global deployment
Ideal Applications
- Food & Dairy: Milk powder, glucose, solid beverages, protein powder, coffee powder
- Grain & Starch: Rice flour, wheat flour, corn starch, tapioca starch, sugar
- Seasoning & Condiments: MSG, salt, spice blends, seasoning powder, soup base
- Animal Feed: Feed powder, premix, nutritional supplements for livestock
- Chemical & Industrial: Fine chemical powders, detergent powder, agricultural inputs
