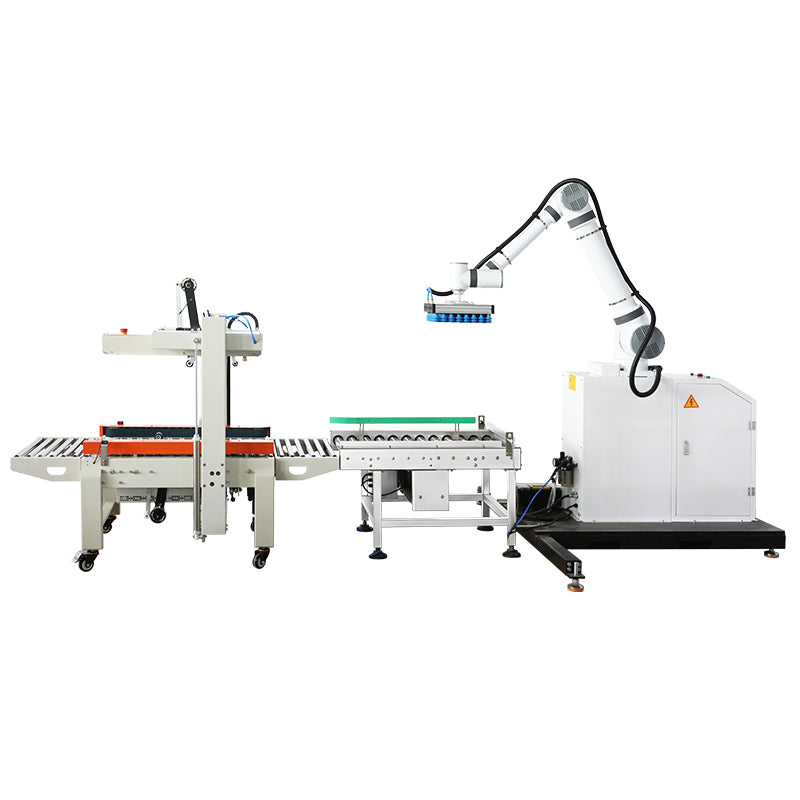

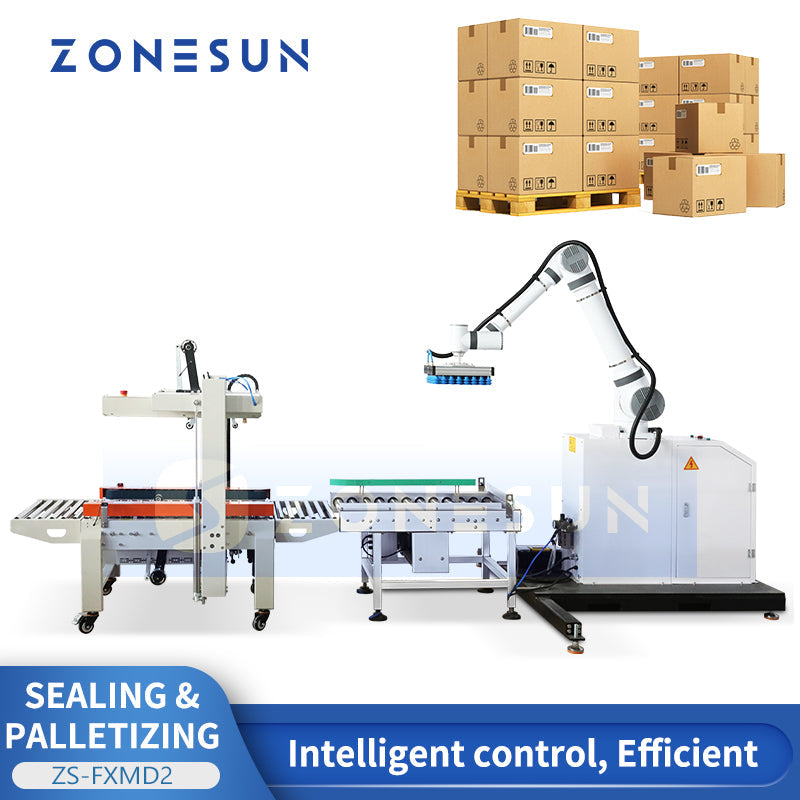

Automated Case Sealing and Palletizing Production Line
This production line integrates an automatic case sealing machine with a robotic palletizer, offering a fully automated end-of-line packaging solution. After products are packed into cartons, the case sealer automatically seals the carton flaps with high efficiency and consistency. The sealed cartons are then conveyed to the palletizer, which systematically stacks them onto pallets based on a preset pattern, ensuring stable and space-efficient loads.
PLC control system with user-friendly touchscreen interface
Ideal for industries such as food & beverage, daily chemicals, pharmaceuticals, and logistics
This automated solution significantly reduces labor costs, increases packaging speed, and enhances overall production efficiency.
PARAMETER
Model : ZS-FKC5040X Cartoning Machine
- Machine Power : 110/220V, 50-60Hz, 240W
- Conveyor Speed : 18m/min
- Tape Width : ≤60m
- Transmission mode : Conveyor belt transmission on both sides
- Max Carton Size : 432*508mm (W*H)
- Min Carton Size : 355*305*127mm (L*W*H)
- Package Size : About 110*100*172mm
Model : ZS-MD20A Palletizing System
- Power : 220V
- permissible load : 20kg
- working radius : 1525mm
- Maximum arm exhibition : 1730mm
- Work speed : 1.0m/s
- Repeat positioning accuracy : ±0.1mm
- Weight : 85kg

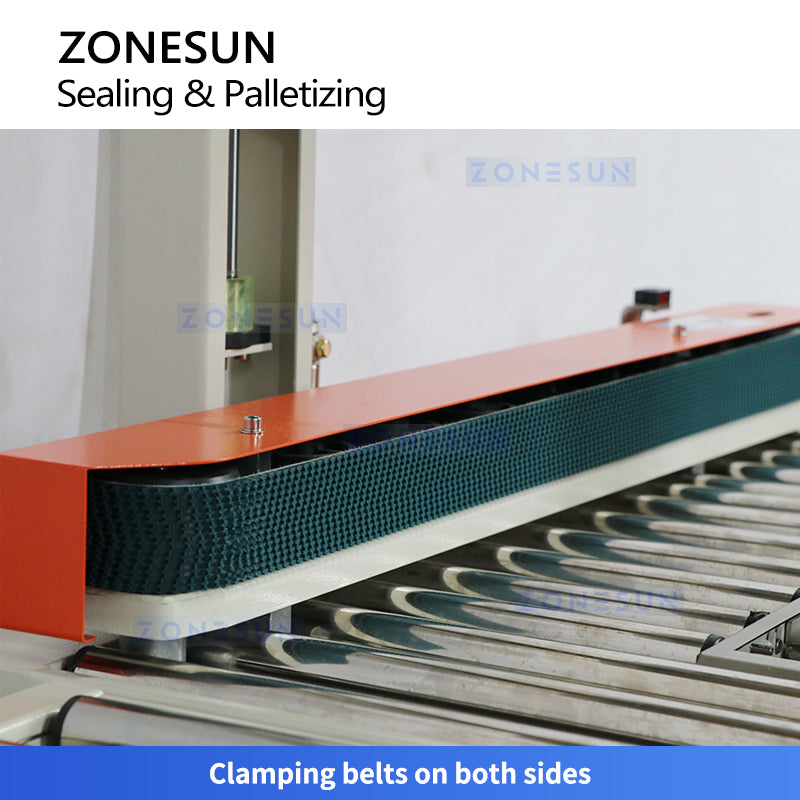

Clamping Belt

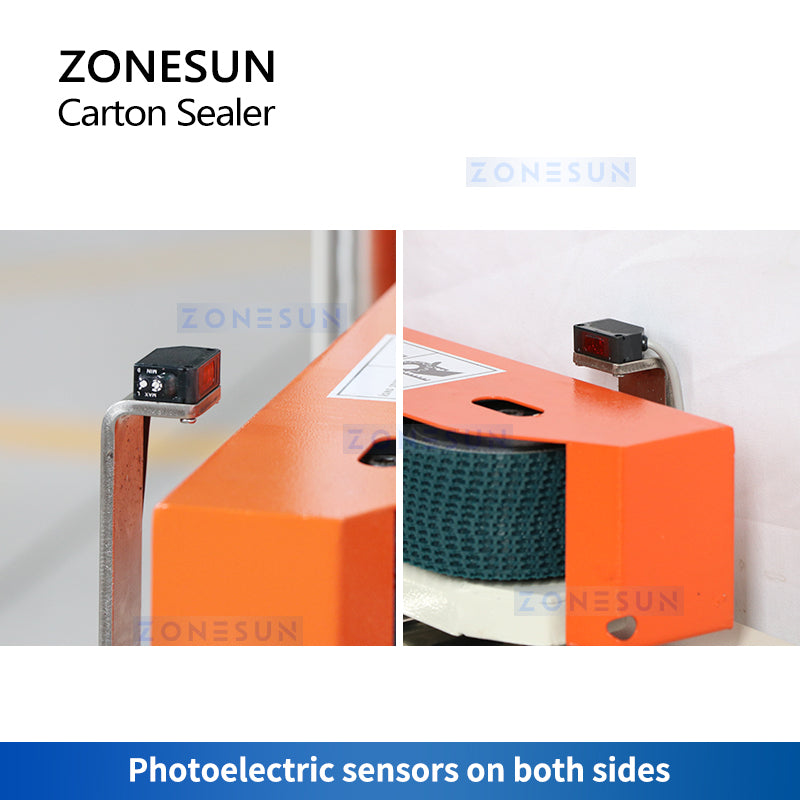

Sealing

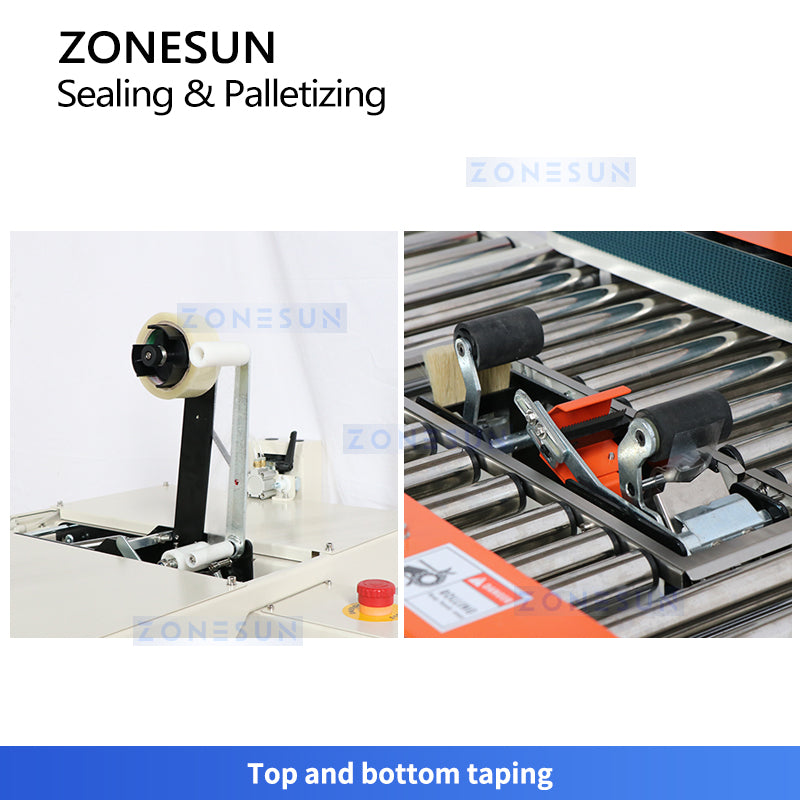

Taping Mechanism

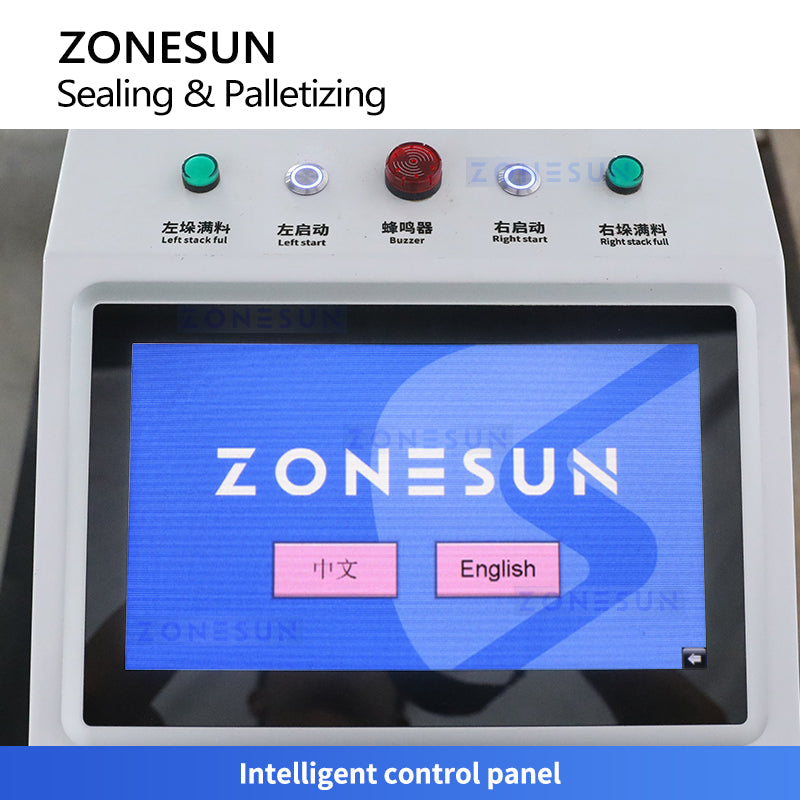

Intelligent control panel
Equipped with a user-friendly PLC touchscreen interface for intuitive operation, precise settings, and efficient workflow management.

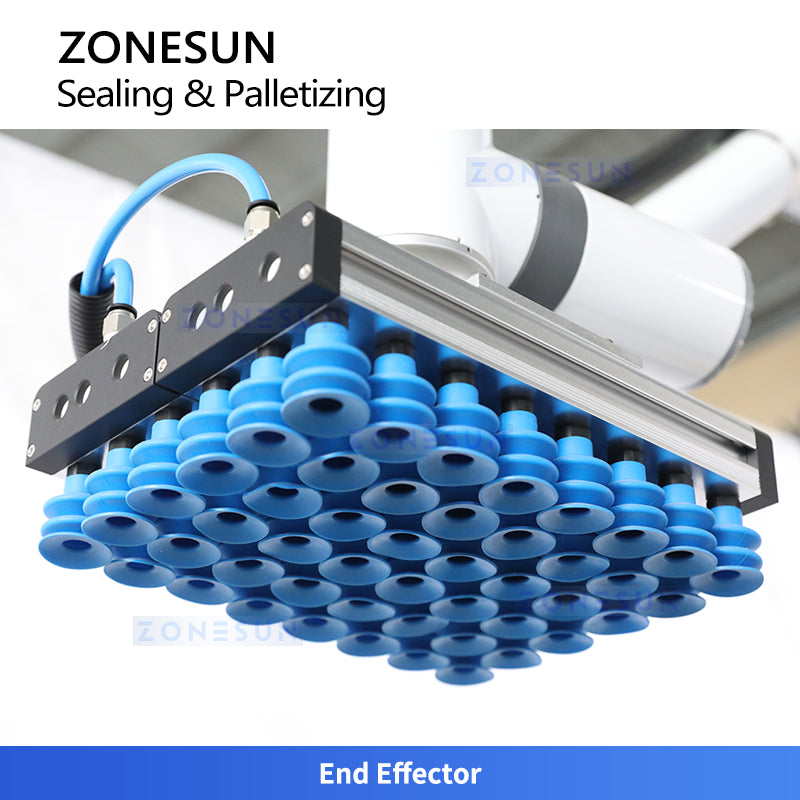

End Effector
ZS-MD20A Instruction & Installation Video
ZS-FKC5040X Instruction Video
