Description

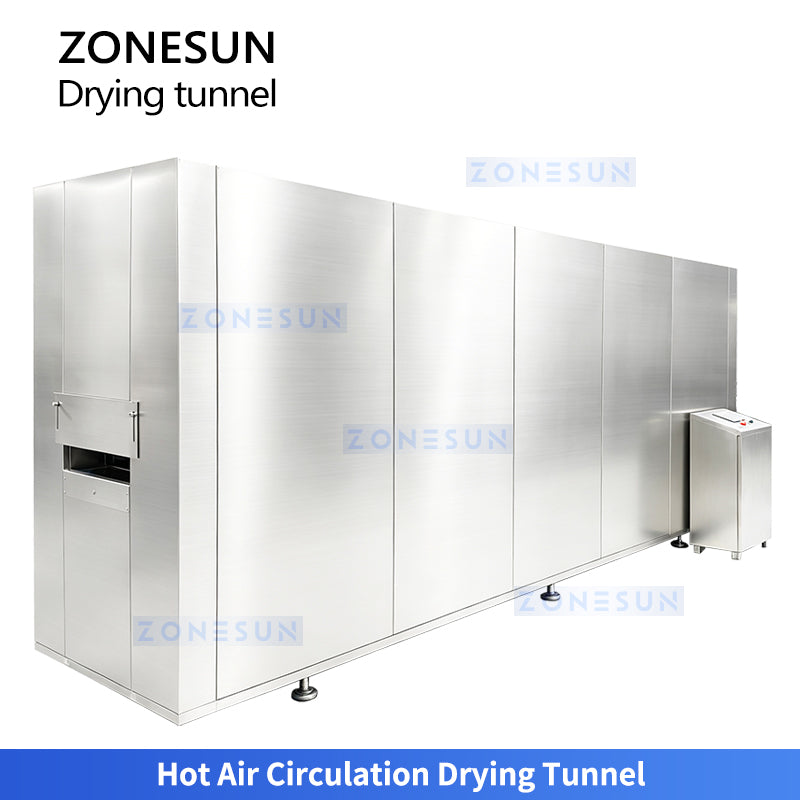

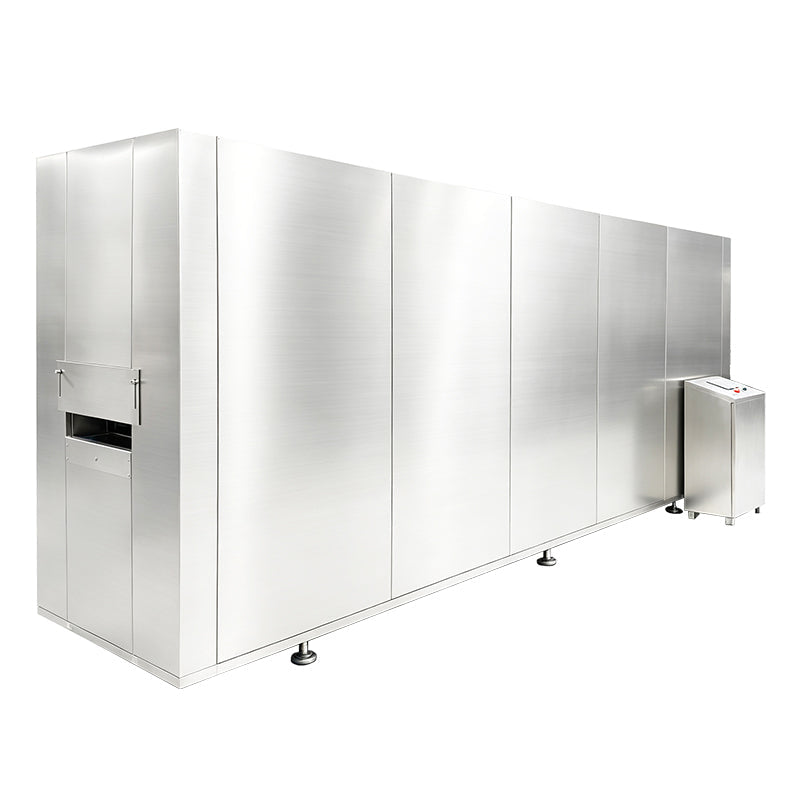

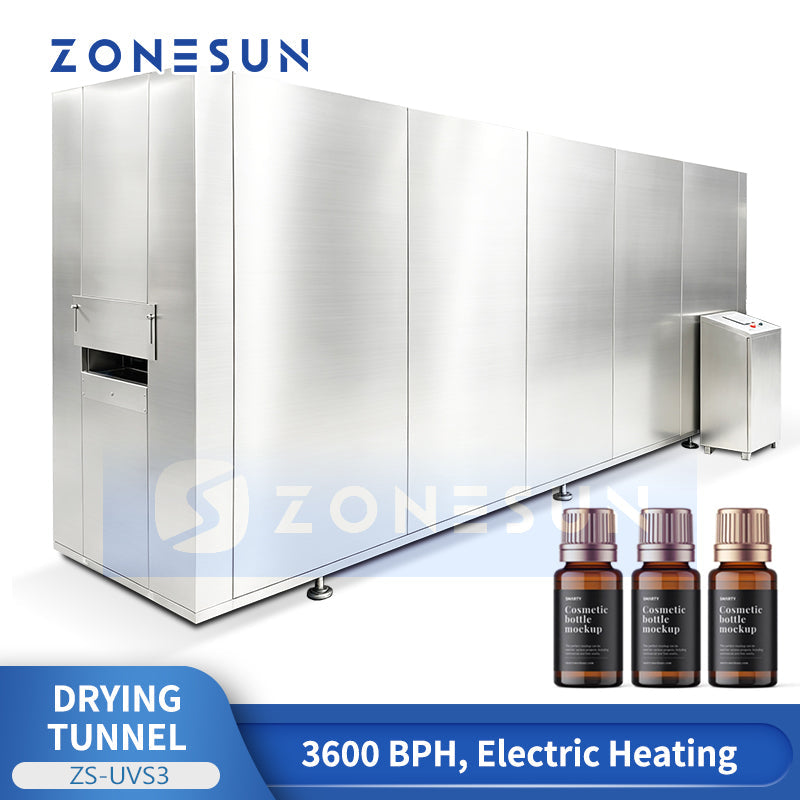

The ZONESUN ZS-UVS3 Infrared Quartz Heating & Hot Air Bottle Drying Tunnel is designed for continuous drying and controlled cooling of compatible glass vials and bottles after washing. The 4.5-meter system combines infrared quartz heating, hot-air circulation, adjustable mesh-belt conveying and a vertical laminar-flow cooling section.
It can be connected between upstream bottle washing equipment and downstream filling/capping machinery. The stated temperature range and airflow configuration describe the machine hardware; any sterilization, depyrogenation, cleanroom or regulated-process claim requires validation for the customer's specific process and should not be assumed from the base machine alone.
Technical Specifications
| Machine Model | ZS-UVS3 |
|---|---|
| Heating Section Length | 1900 mm |
| Cooling Section Length | 1650 mm |
| Mesh Belt Width | 400 mm |
| Production Capacity | 2600–3600 Bottles/Hour |
| Total Power | 25 kW |
| Voltage | 380 V |
| Operating Temperature | Room Temperature – 260°C |
| Heating Method | Electric Heating |
| Machine Weight | 2 Tons |
| Machine Dimensions (L × W × H) | 4500 × 960 × 2000 mm |
| Drying System | Infrared Quartz Heating + Hot Air Circulation |
| Cooling System | Class 100 Vertical Laminar Flow |
| Conveyor | Adjustable Mesh Belt |
Performance note: Actual drying time, bottle temperature, output and cooling performance depend on bottle size, glass thickness, incoming moisture, conveyor speed, temperature settings, airflow and line conditions.

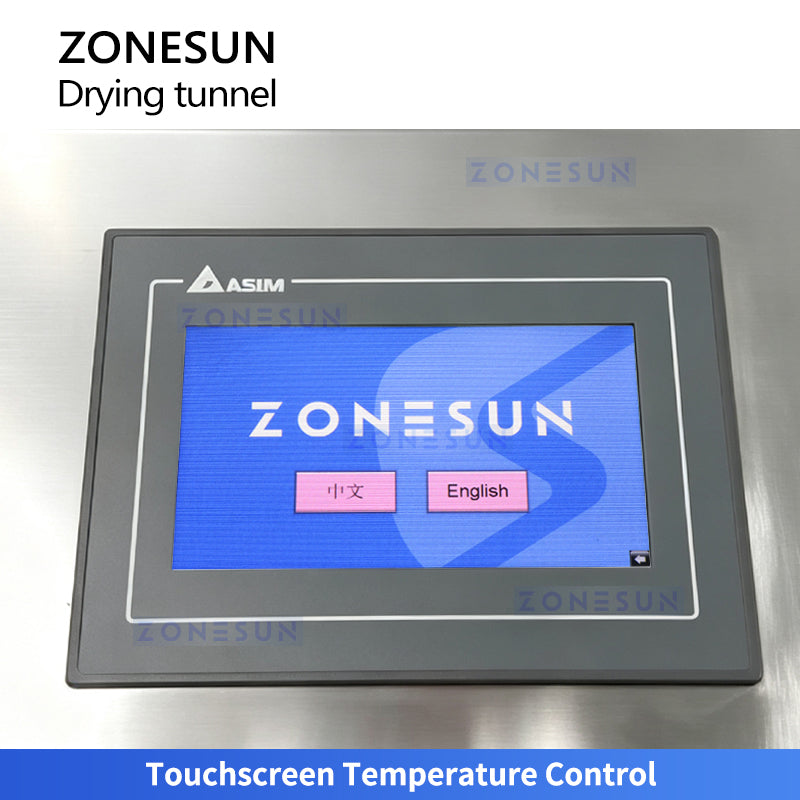

Touchscreen Temperature Control
Displays and controls operating temperature and supports production monitoring.

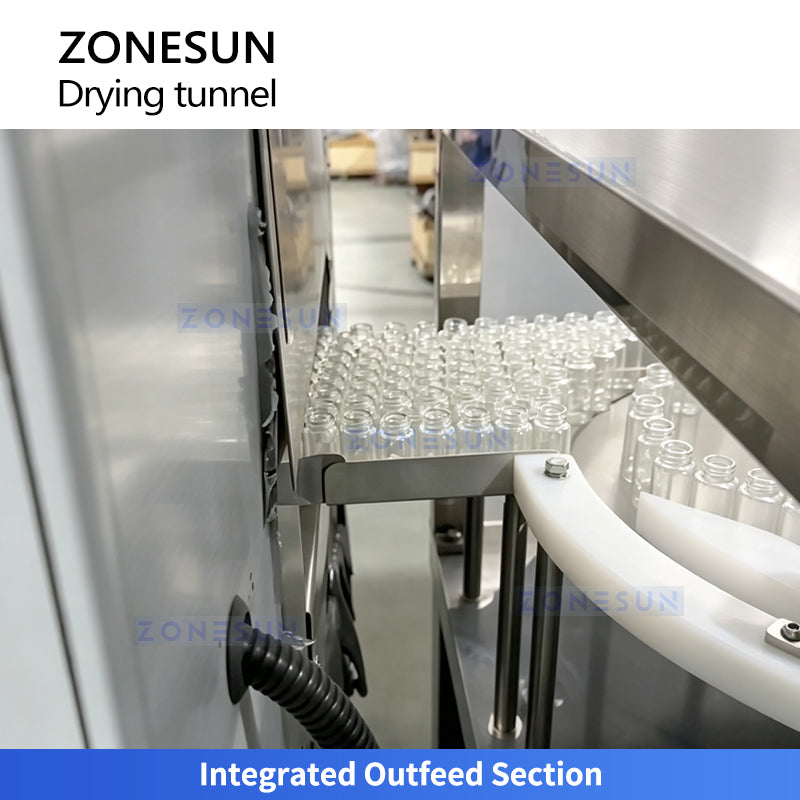

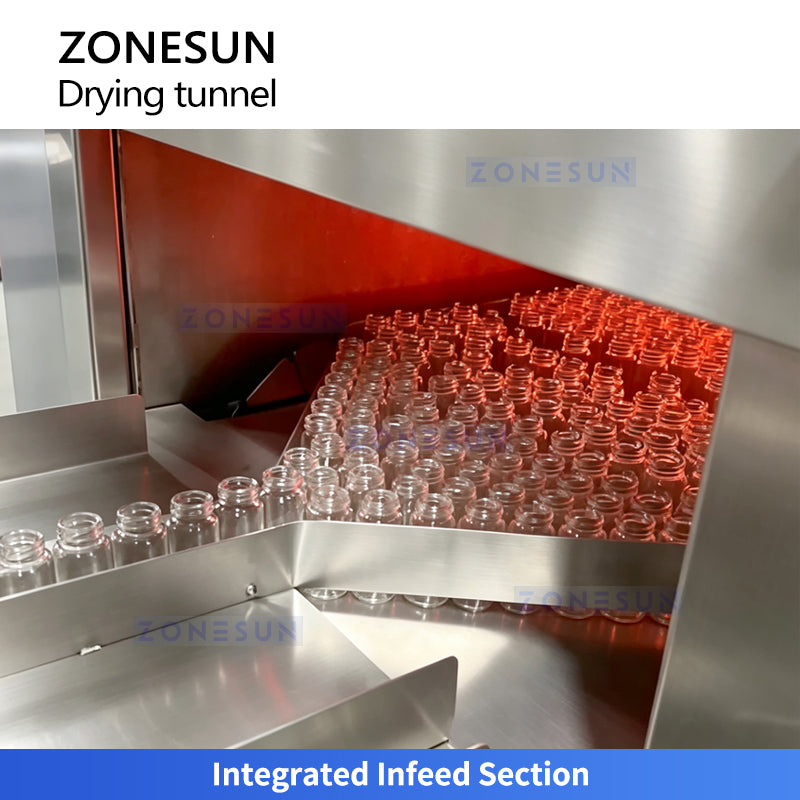

Integrated Infeed & Outfeed
The infeed can receive bottles from compatible washing equipment, while the outfeed transfers dried and cooled bottles toward downstream machinery.

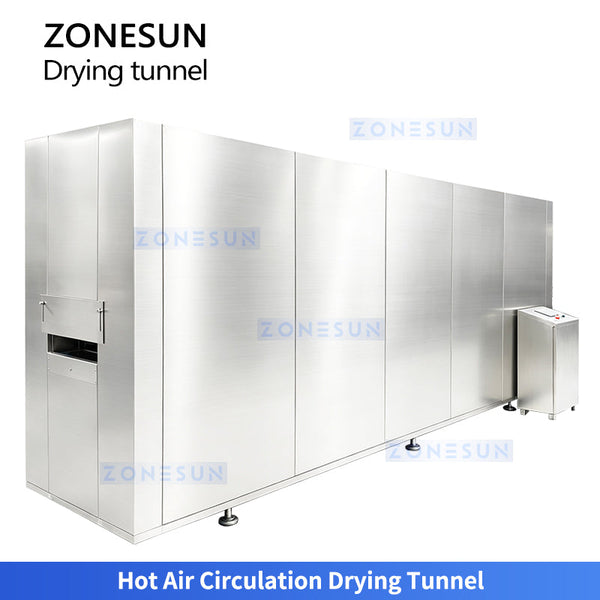

Infrared Quartz + Hot Air Drying
Infrared heating and circulating hot air provide continuous thermal drying as bottles travel through the tunnel on the adjustable mesh belt.

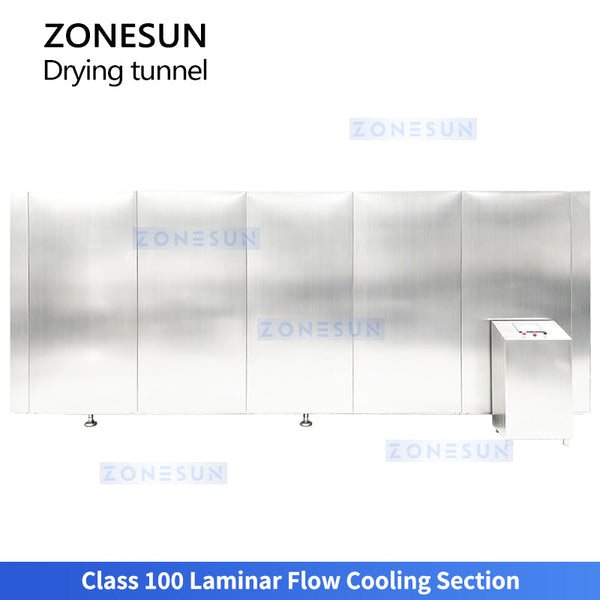

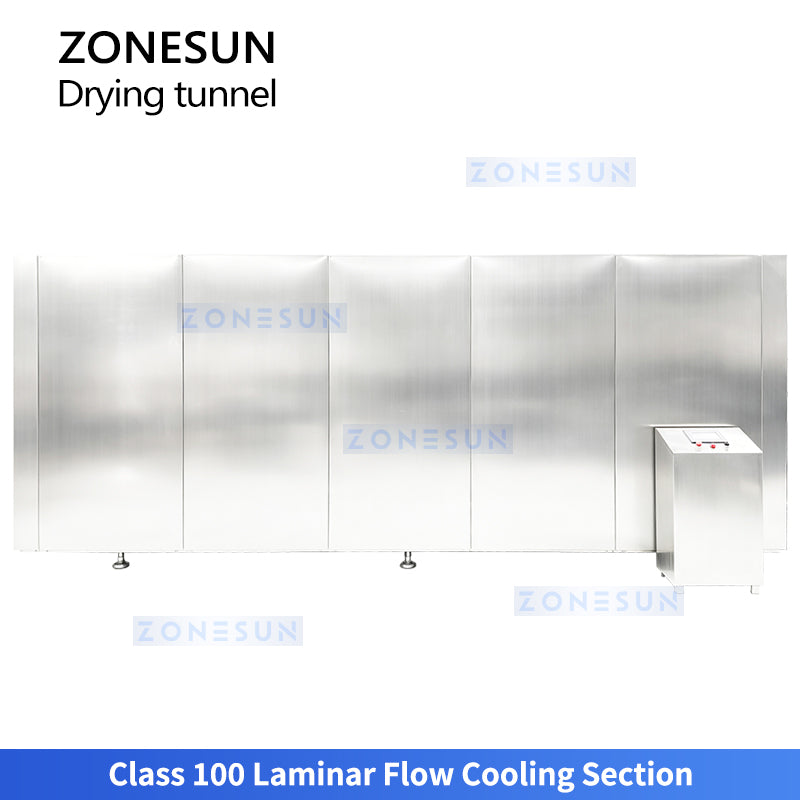

Vertical Laminar-Flow Cooling
The listed configuration uses a Class 100 vertical laminar-flow cooling section after heating. Site installation, filtration verification and process qualification should be confirmed separately.
Best-Suited Applications
Suitable for compatible glass vials, oral-liquid bottles and other heat-resistant glass containers that require drying after washing and controlled cooling before downstream filling.
Needs separate evaluation: plastic containers, heat-sensitive packaging, containers with coatings or components that cannot tolerate the configured temperature, or regulated processes requiring validated sterilization/depyrogenation performance.
Drying vs Sterilization / Depyrogenation
| Bottle Drying | Removes residual moisture using controlled heat, airflow and conveyor residence time. |
|---|---|
| Sterilization / Depyrogenation | Requires validated time-temperature performance, process qualification and application-specific acceptance criteria; it should not be inferred solely from the tunnel's maximum temperature. |
Before Ordering
- Bottle material, dimensions and wall thickness
- Incoming bottle temperature and residual moisture
- Required bottles/hour
- Required outlet temperature
- Upstream washer dimensions and conveyor height
- Downstream filling-line interface
- Available 380V power and site ventilation
- Any validation or clean-process requirements
Frequently Asked Questions
Can the ZS-UVS3 connect to a bottle washer?
Yes. The infeed is intended for integration with compatible upstream washing equipment.
Does 260°C automatically mean the machine is a validated depyrogenation tunnel?
No. The listed maximum operating temperature is a hardware specification; validated depyrogenation requires a defined and qualified process.
Can it dry plastic bottles?
Heat-sensitive materials require separate evaluation because the tunnel can operate at elevated temperatures.
