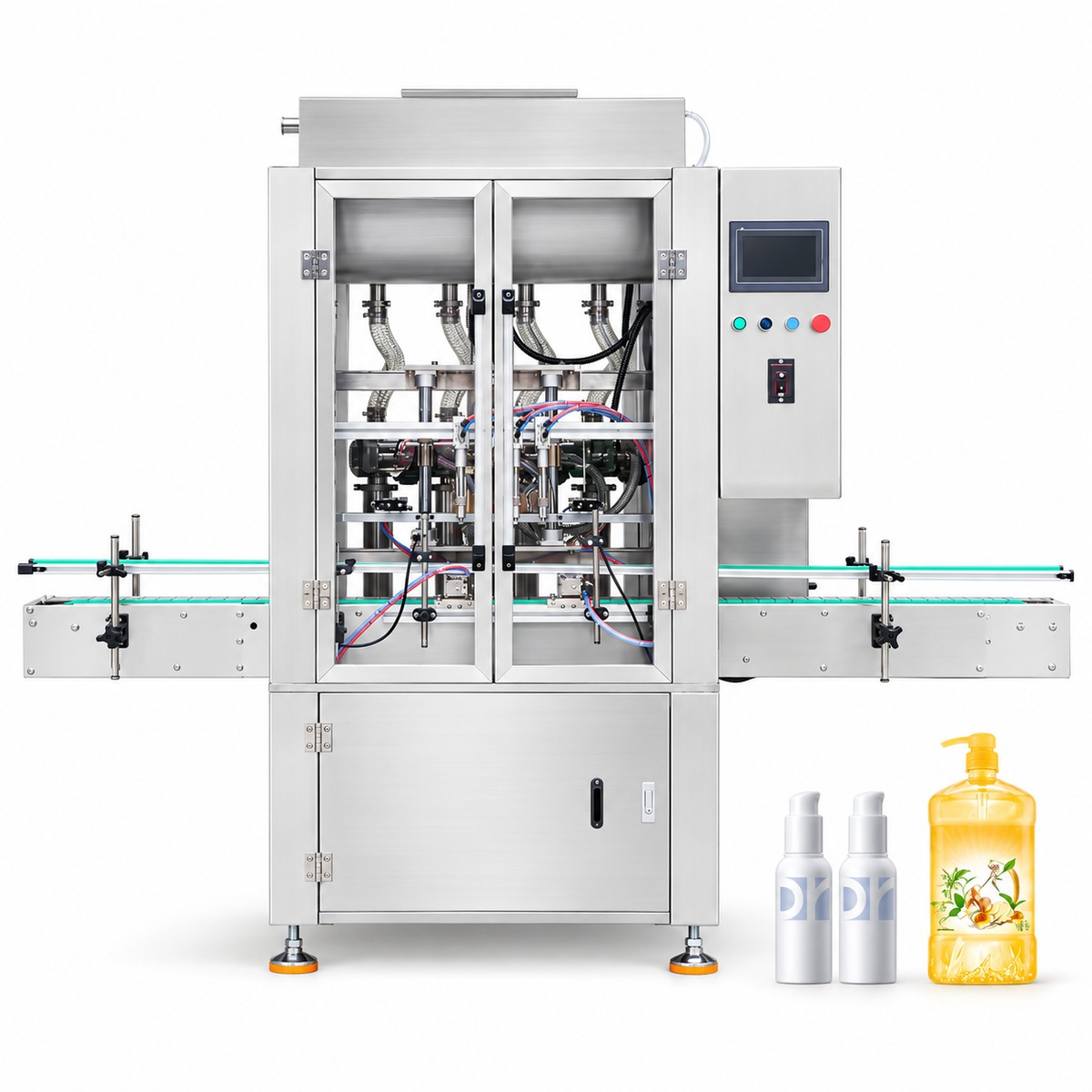

ZONESUN ZS-SV4P Servo Paste Filling Machine with 4 Nozzles
- Price
- $8,299
Please click "Buy It Now". Shipping will be calculated at checkout.
Shipping Information
Shipping methods and costs vary depending on the machine model, package size, destination, and delivery method. ZONESUN offers multiple shipping options, including express delivery, air freight, sea freight, and other available logistics services. Large machines and production lines are typically packed in export-standard wooden cases for safer transportation.
To check available shipping options and estimated shipping costs, add the product to your cart and enter your delivery address during checkout. The available shipping methods for your destination will be displayed automatically.
DDP (Delivered Duty Paid) shipping options may also be available for selected destinations. Where DDP is available and selected, the applicable duties, taxes, customs clearance, and delivery arrangements will be handled according to the terms of the quoted DDP shipping service. Please contact us if you would like to confirm DDP availability for your destination before ordering.
For large machines, customized equipment, or complete production lines, we recommend contacting us before placing an order so our team can confirm the most suitable shipping method, packaging requirements, estimated freight cost, and delivery schedule.
For non-DDP shipping methods, import duties, customs clearance fees, local taxes, and other destination charges may apply and are generally determined by local customs authorities.
About Us
ZONESUN specializes in automated packaging machinery and integrated production line solutions, including filling, capping, labeling and sealing equipment. We provide standalone machines and customized packaging lines for different products, containers and production requirements.
ZONESUN is operated by Guangdong Shanghang Technology Limited, with engineering, manufacturing and technical support capabilities for global customers.
The ZS-SV4P is a high-precision filling machine designed for viscous liquids like honey, syrup, lotion, and cream. Equipped with a servo motor, it allows users to set exact filling volumes for consistent, efficient operation. Ideal for small to medium-scale production, this machine combines speed, accuracy, and versatility in one compact system.
ZONESUN ZS-SV4P Liquid Filling Machine – Technical Specifications
Parameter Details
Model ZS-SV4P
Machine Voltage 110V / 220V, 50–60Hz
Power Consumption Approx. 3000W
Filling Heads 4 Heads (customizable)
Filling Speed Approx. 24 bottles/min (based on 290ml water)
Filling Range Options 100–1000ml / 500–3000ml / 1000–5000ml
Suitable Bottle Diameter 40–110mm
Suitable Bottle Height ≤230mm
Filling Accuracy ≤ ±2%
Conveyor Belt Size Approx. 2450 × 112mm (L × W)
Package Weight Approx. 586.5kg
Package Dimensions Approx. 2450 × 900 × 2190mm




Touchscreen Control
The touchscreen provides access to machine settings and operating controls.
Four Filling Heads
Four filling heads operate together, with nozzle quantity customizable for the production requirement.

Adjustable Conveyor Speed
The conveyor speed is adjustable for the production line.
Material Hopper
The hopper stores material for delivery to the filling system.
