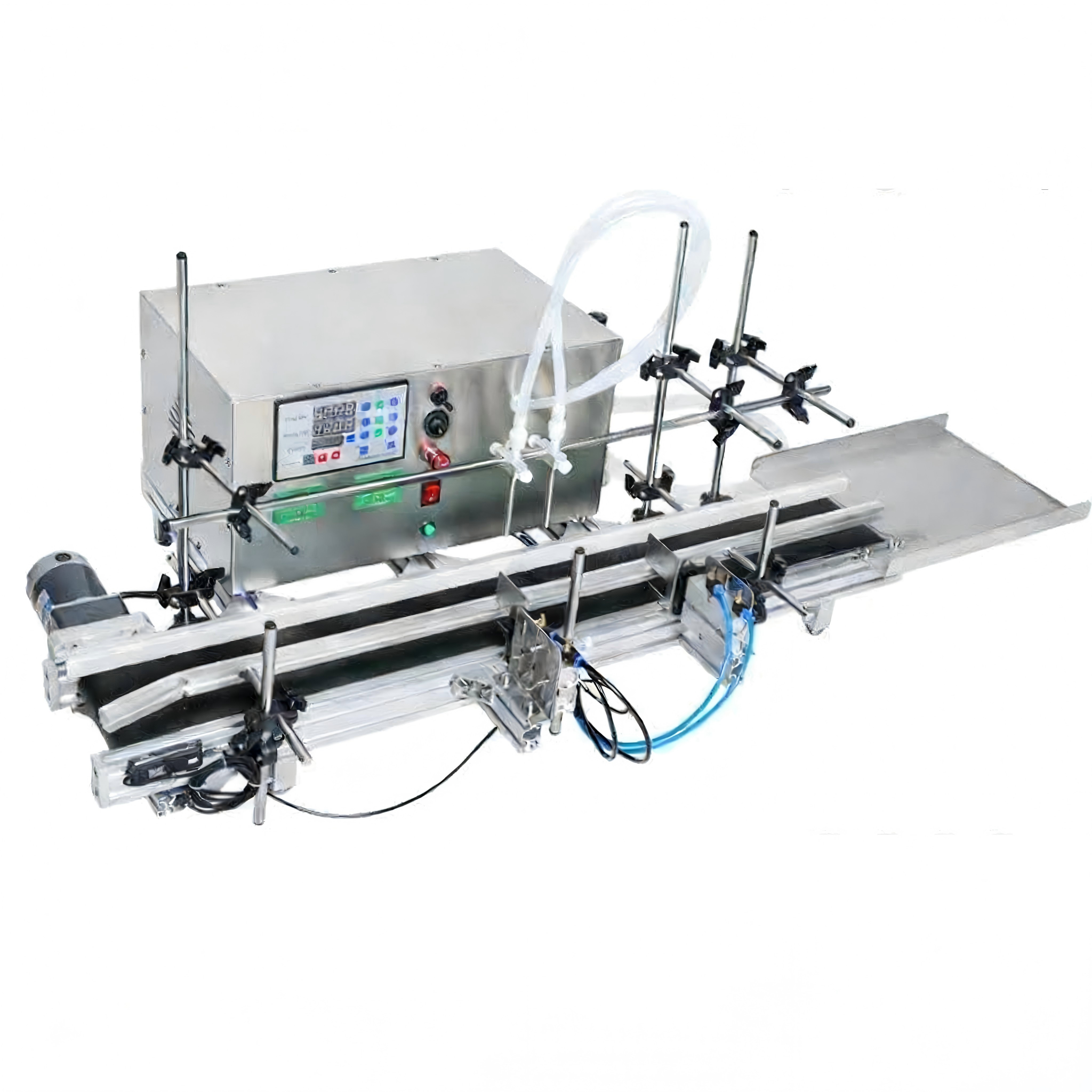

The ZONESUN ZS-DTDP2 Desktop CNC Diaphragm Pump Liquid Filling Machine with Conveyor is designed for efficient, precise, and automated liquid filling. Equipped with an infrared sensor, it automatically stops when no bottles are detected, ensuring accuracy and reducing waste. The adjustable conveyor speed allows smooth bottle transfer, while the stainless steel body ensures durability and hygiene. With a digital control panel, intelligent fault detection, and customizable nozzles, this compact machine is ideal for short-run production or integration into a production line. Suitable for filling mineral water, beverages, edible oils, condiments, and daily chemical liquids.
Parameter
|
Power Supply Voltage
|
110/220V 50-60HZ
|
|||
|
Power
|
250W
|
|||
|
Maximum flow velocity
|
4000m/min (base on water)
|
|||
|
Working speed
|
1500-3000 bottles/hour(depends on botle size and liquid)
|
|||
|

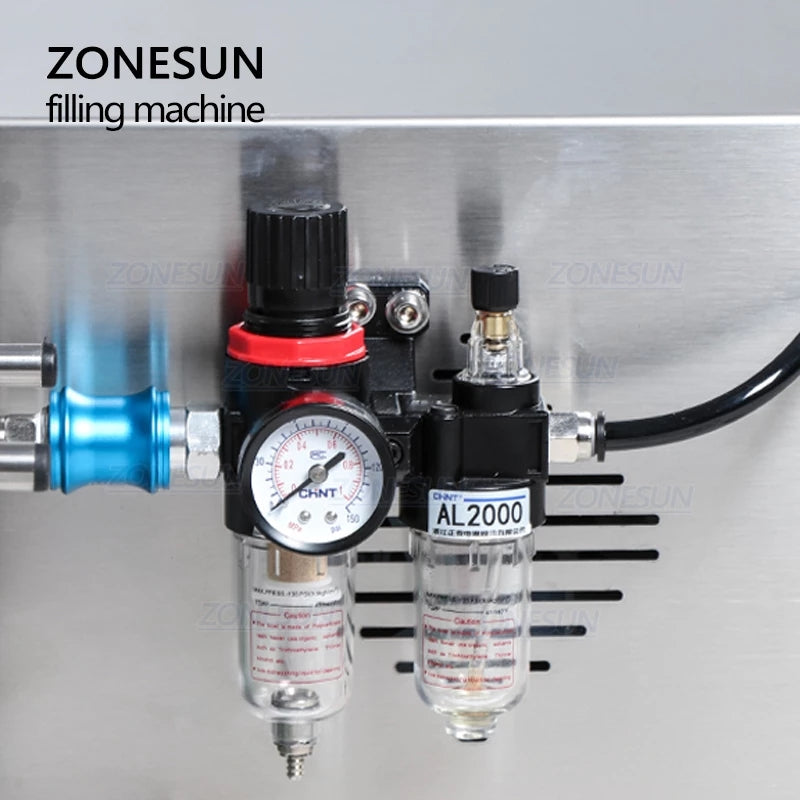

Air pressure
|
0.3-0.4MPa
|
|||
|
Filling accuracy
|
≤+1% (For water)
|
|||
|
Diameter of Flling Nozzle
|
6/8mm
|
|||
|
Delay Range
|
0.01-999.9s
|
|||
|
Count Range
|
1-99999 Times
|
|||
|
Machine Size
|
1350x710x600mm
|
|||
|
Machine Weight
|
About 50kg
|
|||
|
Filling Volume
|
3-1000ml(220V)3- 500ml(110V)since the power of 110v machine is not large, so we recommend 3-500ml for each nozzle
|
|||
Liquid Filling Applications
The machine fills compatible free-flowing liquids such as juice, condiments, wine, milk, water, and carbonated drinks.

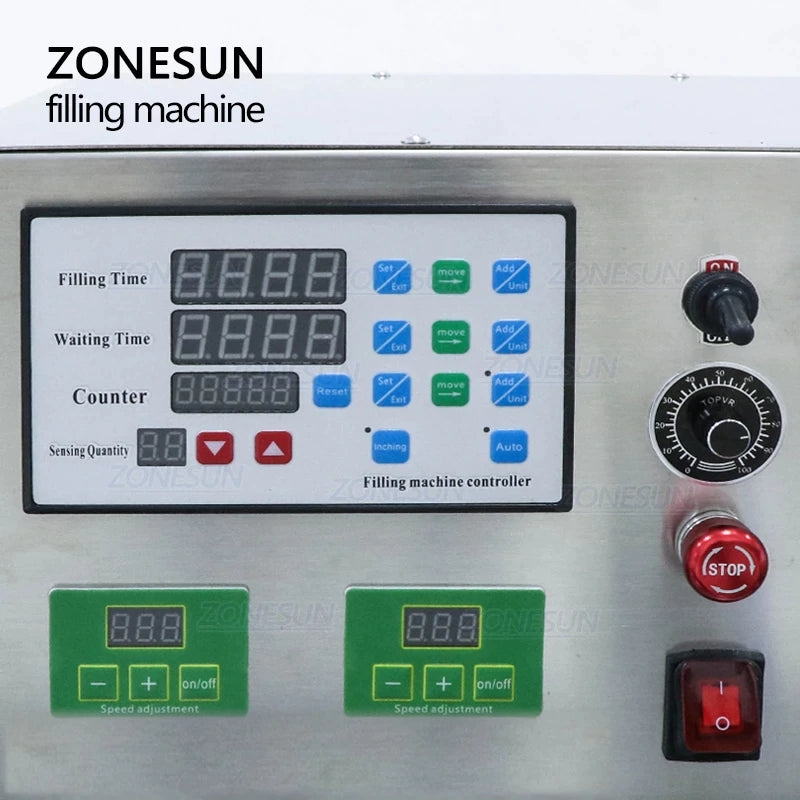

Automatic Filling Controls
The control panel adjusts operating settings, the anti-drip nozzles fill bottles independently, and the electric eye detects bottles to reduce missed filling. Conveyor speed is adjustable.
