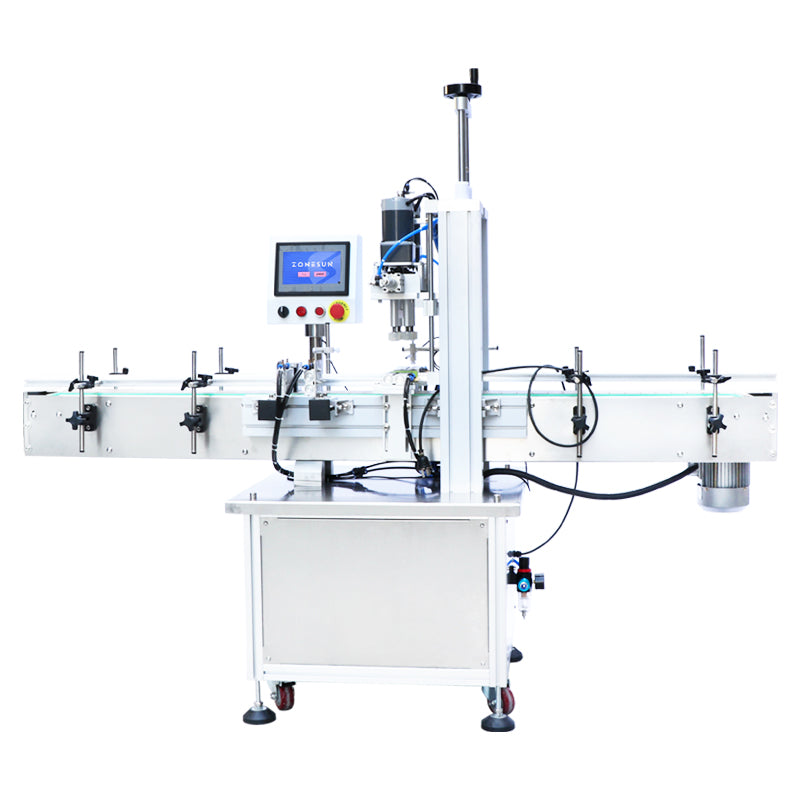

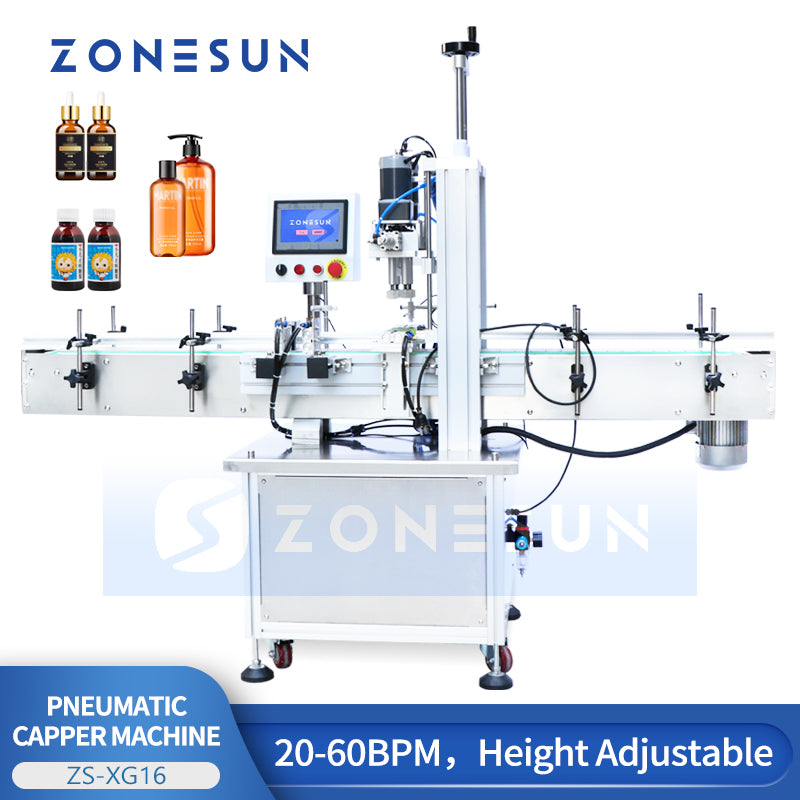

ZONESUN ZS-XG16 Automatic Pneumatic Bottle Capping Machine
The ZONESUN ZS-XG16 automatic pneumatic capping machine is designed for tightening compatible caps on plastic and glass bottles. It serves bottle packaging applications in cosmetics, food and beverages, pesticides, fertilizers, and the chemical industry, with bottle and cap suitability confirmed for each project.
The listed working speed is 20–60 bottles/min, depending on bottle and cap size and shape. It accommodates bottle heights of 30–300 mm, bottle diameters of 20–160 mm, and cap diameters of 18–70 mm. Adjustable working height, conveyor speed, capping time, pressing time, and bottle-detection sensitivity help match the machine to the production setup.
Technical Specifications
| Machine Model | ZS-XG16 |
|---|---|
| Working Voltage | AC 220V/110V 50–60Hz |
| Bottle Height | 30–300 mm |
| Cap Diameter | 18–70 mm |
| Bottle Diameter | 20–160 mm |
| Working Speed | 20–60 bottles/min (depending on bottle and cap size and shape) |
| Working Pressure | 0.4–0.6 MPa |
| Machine Dimension | About 1930×740×1600 mm |
| Packing Size | About 2000×820×1760 mm |
| Machine Weight | About 150 kg |
Applications
- Cosmetic bottle capping: Tightening compatible caps on plastic or glass containers.
- Food and beverage packaging: Bottle cap tightening within the listed container and cap ranges.
- Pesticide, fertilizer, and chemical packaging: Capping compatible containers after confirming product, bottle, and cap requirements.
- Bottle packaging lines: Conveyor-based cap tightening, with upstream feeding and downstream handling confirmed for the layout.
Product Images and Machine Details

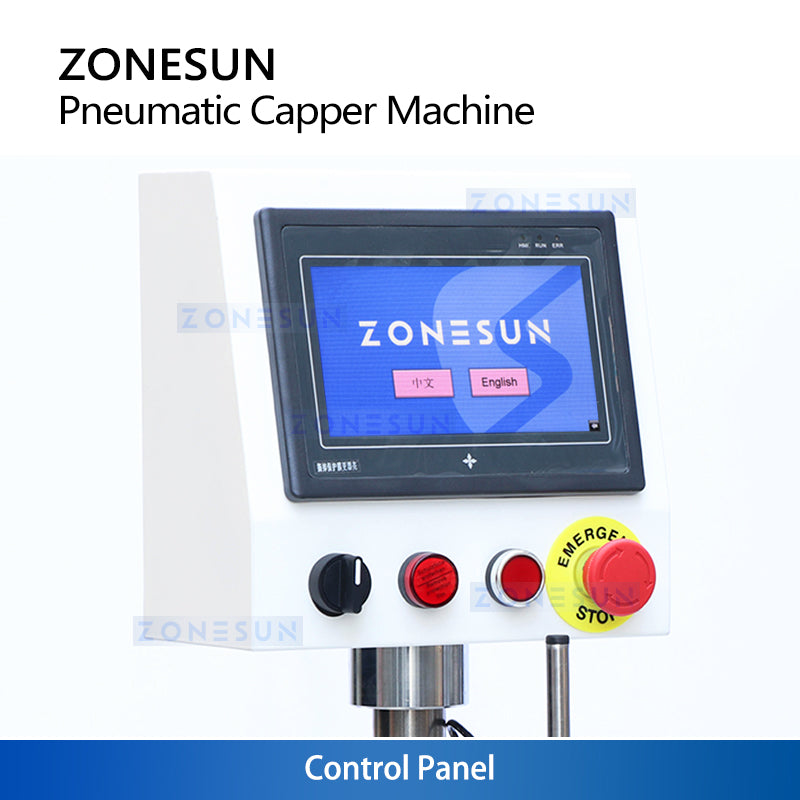

Control Panel
The multilingual control panel provides monitoring, operating mode and time settings, and an emergency-stop control.

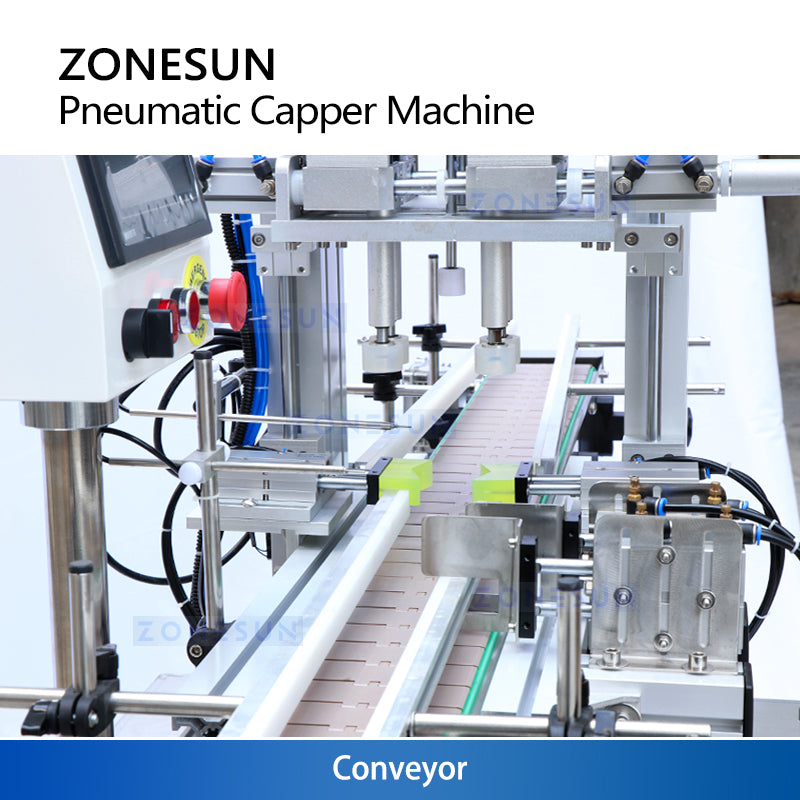

Conveyor
The conveyor transfer speed is preset and can be adjusted to suit the production setup.
Capping Chuck
The capping assembly accommodates compatible bottle caps. Capping time and pressing time can be adjusted through the operation panel.

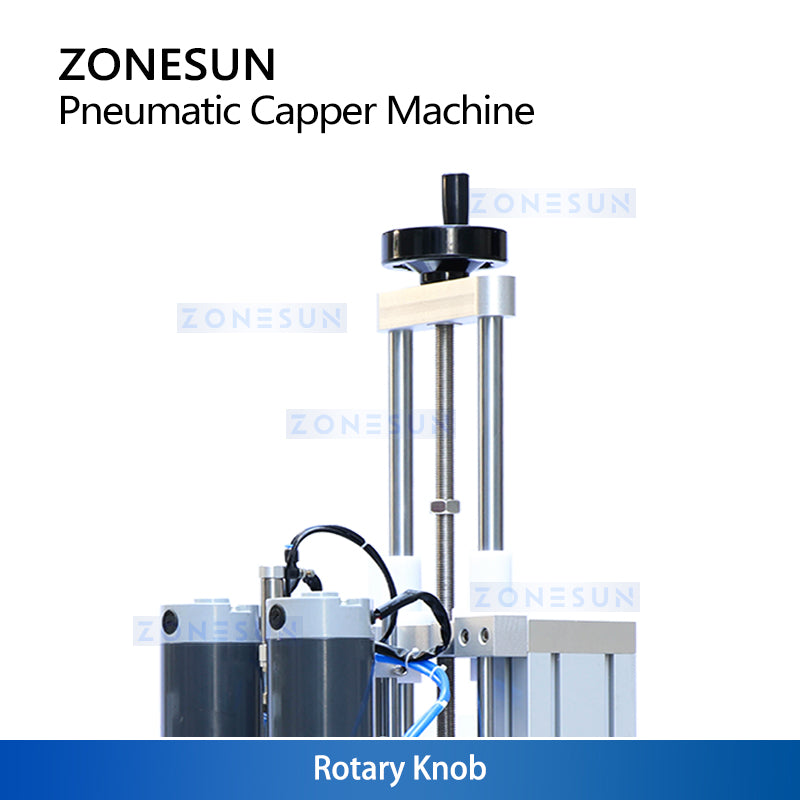

Height Adjustment Knob
The rotary knob adjusts the working height according to the bottle height.

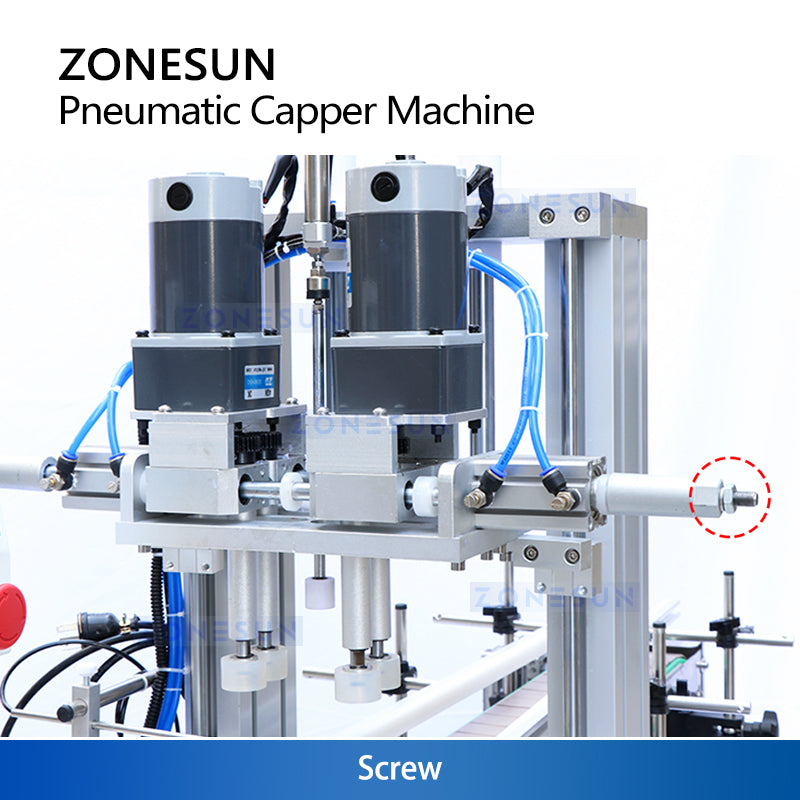

Capping Assembly Adjustment Screw
The screw allows the capping assembly to be loosened or tightened as required for setup.
Bottle Detection Sensor
The electric eye detects bottles, with adjustable sensitivity to suit the application.
Key Features
- Pneumatic automatic capping: Supports compatible plastic and glass bottle applications.
- Adjustable working height: A rotary knob adapts the setup to the selected bottle height.
- Conveyor speed adjustment: Transfer speed can be set for the production conditions.
- Panel-adjusted process times: Capping and pressing times can be configured for the intended closure.
- Multilingual operation panel: Provides monitoring, mode and time settings, and an emergency-stop control.
- Adjustable bottle detection: Electric-eye sensitivity can be set to suit the containers.
Operating Process
- Confirm the bottle and cap format, selected voltage, and 0.4–0.6 MPa compressed-air supply.
- Set the working height and capping assembly for the selected container and cap.
- Adjust conveyor speed, detection sensitivity, capping time, and pressing time using sample trials.
- Present bottles with caps in the position required by the confirmed feeding arrangement.
- The conveyor transfers bottles through detection and capping.
- Collect the capped bottles and check the closure result before continuing production.
Selection and Configuration
Provide bottle and cap samples or drawings, including overall bottle height, body diameter, cap diameter, cap shape, and closure design. Share the required output and how caps will be supplied before tightening. Confirm the selected AC 110V or 220V, 50–60 Hz version, compressed-air supply, and compatibility with the approximately 1930 × 740 × 1600 mm machine footprint. The listed packing size is approximately 2000 × 820 × 1760 mm and machine weight is approximately 150 kg. Discuss line interfaces and verify capping results using the proposed samples.
Frequently Asked Questions
What is the ZONESUN ZS-XG16 used for?
The ZS-XG16 automatically tightens compatible bottle caps on plastic and glass bottles. The described applications include cosmetics, food and beverages, pesticides, fertilizers, and chemical products, subject to bottle and cap compatibility.
What bottle and cap sizes are listed?
The specified bottle height is 30–300 mm, bottle diameter is 20–160 mm, and cap diameter is 18–70 mm. Confirm the actual bottle shape, cap profile, and handling setup using samples or drawings.
What is the working speed?
The listed speed is 20–60 bottles per minute, depending on bottle and cap size and shape. Confirm the achievable output with the intended containers and caps.
Does the ZS-XG16 require compressed air?
Yes. The listed working pressure is 0.4–0.6 MPa. It also requires the selected AC 110V or 220V, 50–60 Hz electrical supply.
Which settings can be adjusted?
The description specifies adjustable capping time, pressing time, conveyor speed, working height, and bottle-detection sensitivity. Setup should be matched to the actual bottle and cap.
Does the machine include automatic cap feeding and placement?
Automatic cap sorting, feeding, and placement are not established in the supplied description. Confirm how caps are presented before tightening and whether any additional feeding equipment is required.
