ZONESUN ZS-AFCL8 Automatic Roll-on Bottle Filling Capping Cartoning Equipment

Cena
$37,899

Please click "Buy It Now". Shipping will be calculated at checkout.


voltage:110V
Shipping Information

Shipping methods and costs vary depending on the machine model, package size, destination, and delivery method. ZONESUN offers multiple shipping options, including express delivery, air freight, sea freight, and other available logistics services. Large machines and production lines are typically packed in export-standard wooden cases for safer transportation.

To check available shipping options and estimated shipping costs, add the product to your cart and enter your delivery address during checkout. The available shipping methods for your destination will be displayed automatically.

DDP (Delivered Duty Paid) shipping options may also be available for selected destinations. Where DDP is available and selected, the applicable duties, taxes, customs clearance, and delivery arrangements will be handled according to the terms of the quoted DDP shipping service. Please contact us if you would like to confirm DDP availability for your destination before ordering.

For large machines, customized equipment, or complete production lines, we recommend contacting us before placing an order so our team can confirm the most suitable shipping method, packaging requirements, estimated freight cost, and delivery schedule.

For non-DDP shipping methods, import duties, customs clearance fees, local taxes, and other destination charges may apply and are generally determined by local customs authorities.

About Us

ZONESUN specializes in automated packaging machinery and integrated production line solutions, including filling, capping, labeling and sealing equipment. We provide standalone machines and customized packaging lines for different products, containers and production requirements.

ZONESUN is operated by Guangdong Shanghang Technology Limited, with engineering, manufacturing and technical support capabilities for global customers.

DESCRIPTION

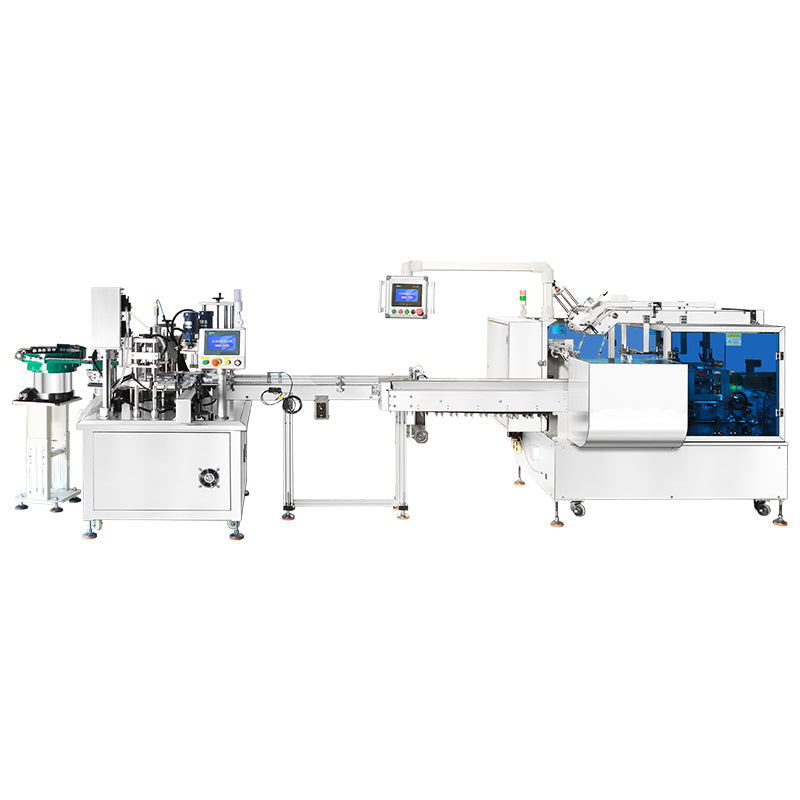

The ZONESUN ZS-AFCL8 is a compact, fully automated line for roll-on bottles like deodorant, essential oils, and serums. It integrates liquid filling, cap feeding, servo capping, and cartoning into one streamlined system. Contact-free filling ensures hygiene, while starwheel positioning enhances bottle stability. Suitable for small to medium batches, it's ideal for cosmetics, pharmaceuticals, and personal care products—improving packaging speed, accuracy, and labor efficiency.

Monoblock Filling Capping Machine Parameter

Machine Model: ZS-AFC11
Voltage: 220V/110V 50-60Hz
Power: 2500W
Filling Pump: Peristaltic pump
Working Speed: 20-25 Bottles/min(depending on bottle size and liquid)
Max Flow Rate: 4L/min*2(based on water)
Suitable Bottle Size: Customized
Bottle Cap Diameter: Customized
Package Size: About 2040*1660*1650 mm
Package Weight: About 535 kg

Cartoning Machine Parameter

Machine model: ZS-MSZH50
Power supply: 110V/220V/380V
Power: About 1.5KW
Work efficiency: About 30-50 pieces/min
Paper box quality requirements: 300-450g/m³(350g/m³ will be best), carton indentation is not less than 0.4MM, with pre-folding effect, no glue leakage in the box
Suitable box specifications:About 90-200*30-80*20-50 mm(L*W*H) (Can be ordered according to customer requirements)
Optional Functions: Leaflet placing/gluing/date coding
Air pressure: 0.6-0.8 Mpa
Air consumption: 130 L/H
Machine size: About 2800*1360*1600 mm
Package size: About 3080*1690*1820 mm
Package weight: About 1095 kg

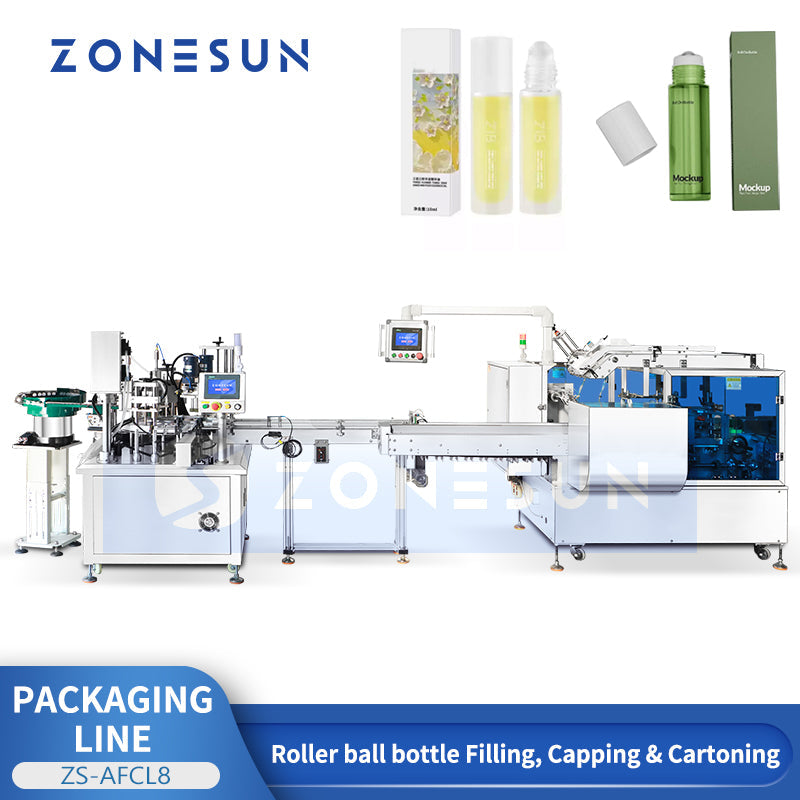

Automatic Roll-on Bottle Filling Capping Cartoning Machine
Automatic Roll-on Bottle Filling Capping Cartoning Machine
Automatic Roll-on Bottle Filling Capping Cartoning Machine
Automatic Roll-on Bottle Filling Capping Cartoning Machine
Automatic Roll-on Bottle Filling Capping Cartoning Machine

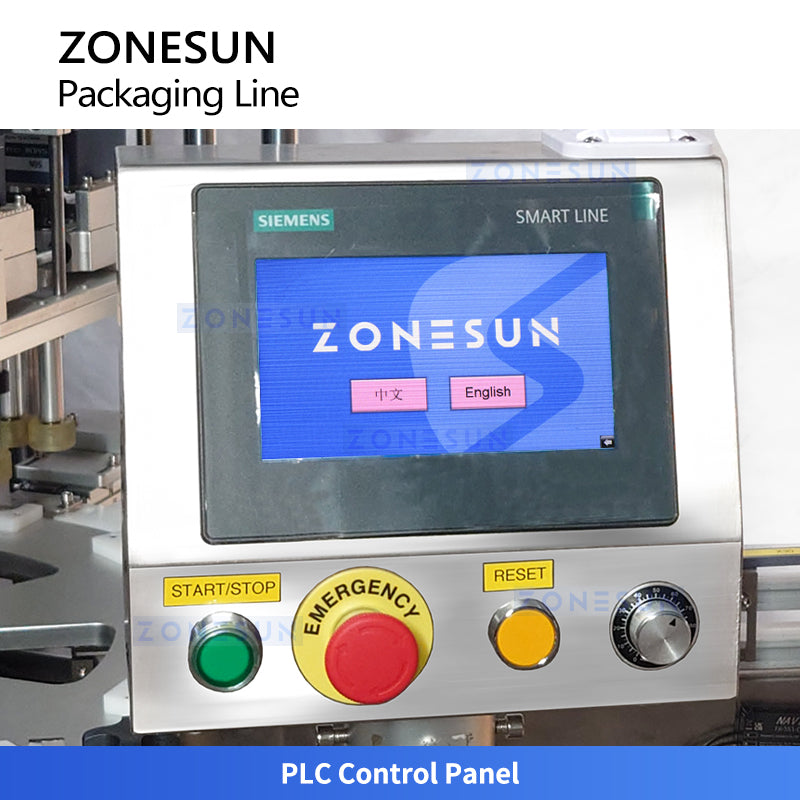

Automatic Roll-on Bottle Filling Capping Cartoning MachineCONTROL PANEL
More convenient to set and adjust parameters. Customizable interface simplifies machine operation.

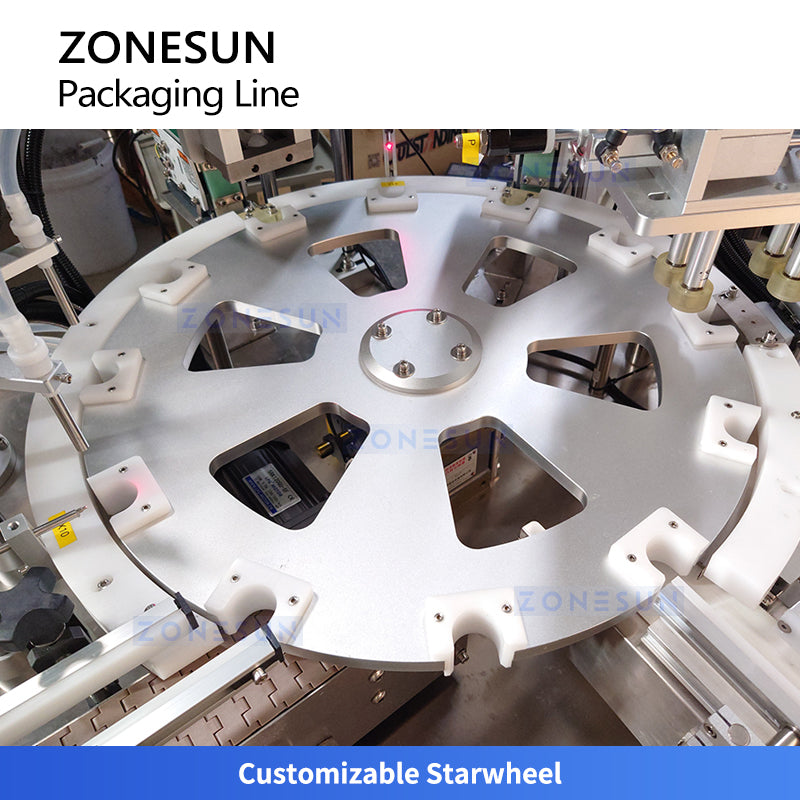

STARWHEEL
Capable of filling, roller ball & cap feeding, capping at one machine. The starwheel can be customized as needed.

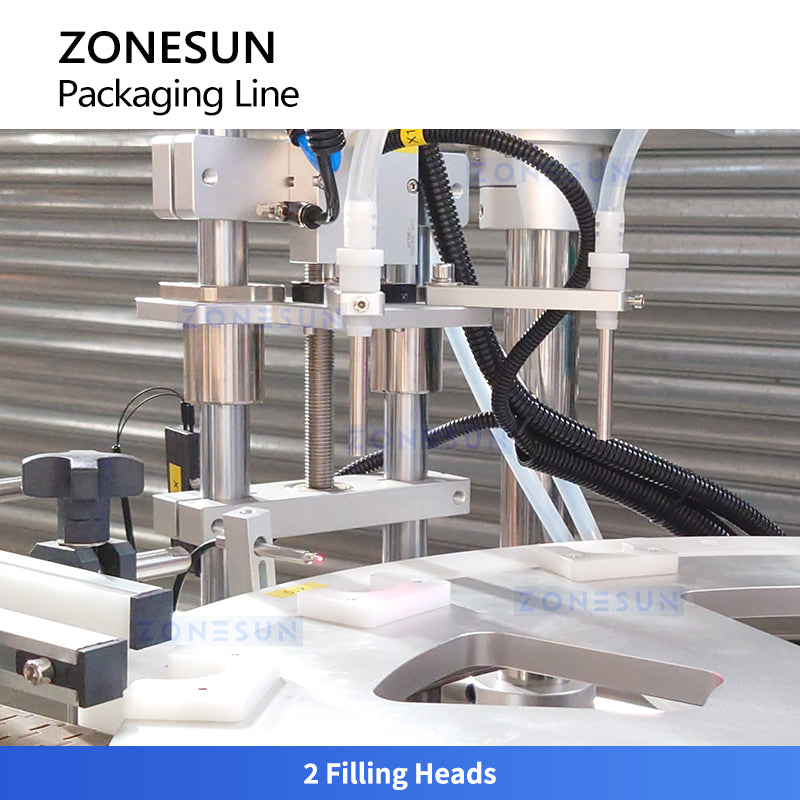

Automatic Roll-on Bottle Filling Capping Cartoning Machine2 FILLING HEADS
With peristaltic pumps, liquid only passes through tubing, avoiding contamination.
VIBRATORY BOWL
It can feed roller balls and outer caps automatically. The sorters are customized according to your product size.

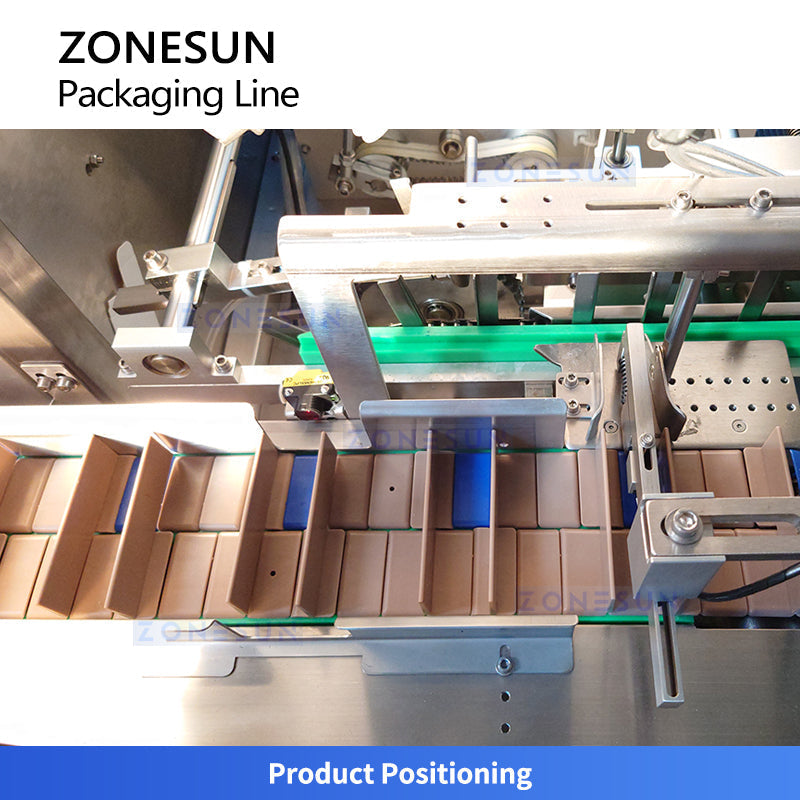

Automatic Roll-on Bottle Filling Capping Cartoning MachinePRODUCT POSITIONING
It can fix products in a certain position to avoid displacement.

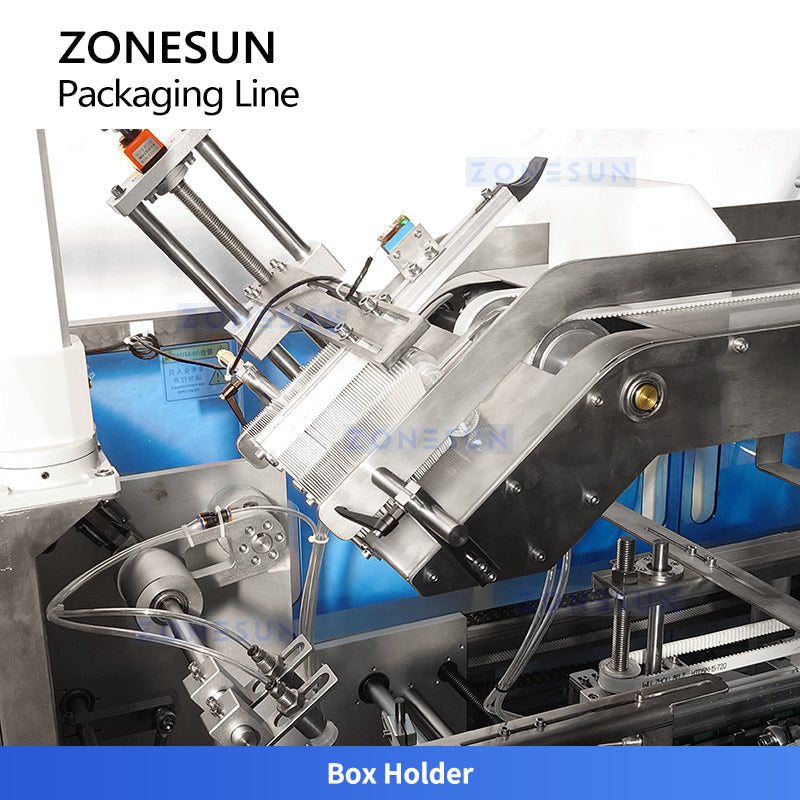

BOX HOLDER
It can be adjusted according to box size. Air nozzles help to erect folded boxes and realize automated work.
Automatic Roll-on Bottle Filling Capping Cartoning Machine

About ZONESUN

ZONESUN is a China-based manufacturer specializing in custom packaging machinery solutions.

We offer fully tailored OEM & ODM services — from production capacity and automation level to branding and machine design — engineered precisely to your requirements.

Contact us today to discuss your custom project and explore the best solution for your production needs.
