DESCRIPTION

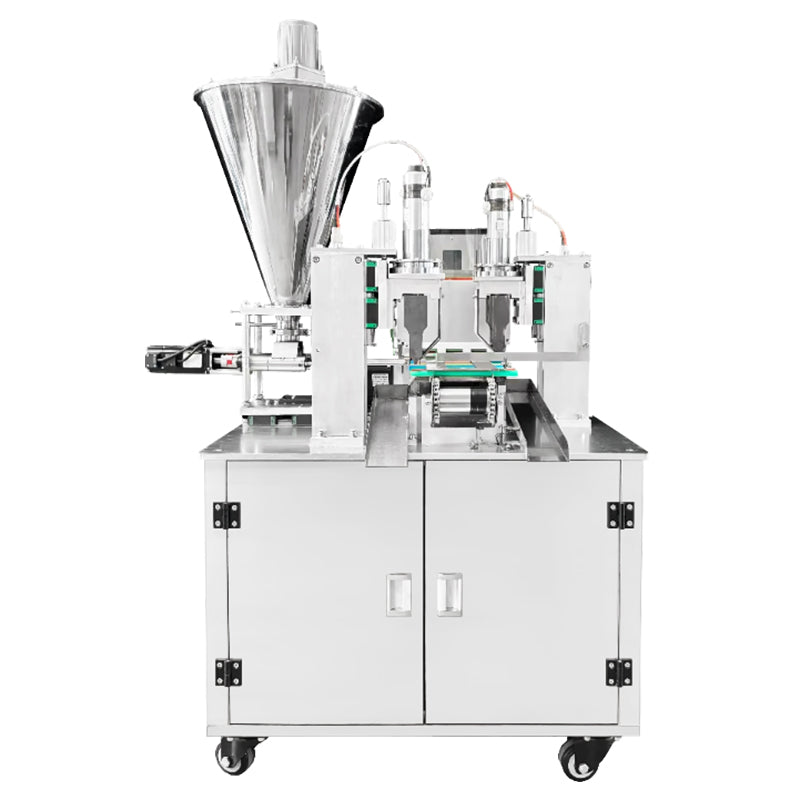

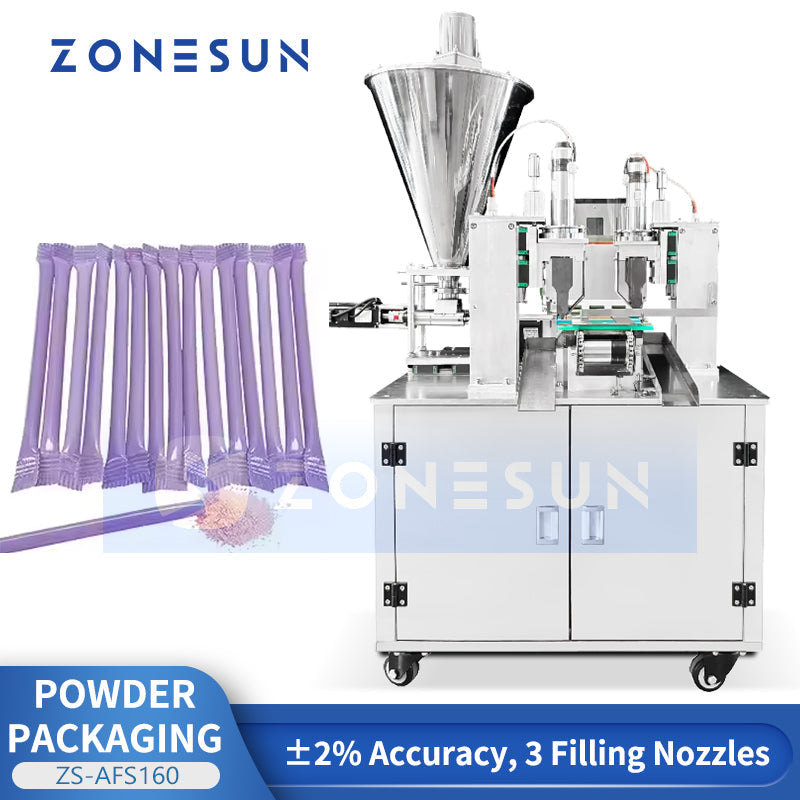

The ZONESUN ZS-AFS160 is a compact, high-efficiency packaging machine designed for straw powder used in food, cosmetics, and chemical applications. It features a stainless steel conical hopper, synchronized powder filling assembly, and an automatic sealing module for leak-proof, high-speed packaging. Supporting up to 3 filling nozzles with ±2% accuracy, it ensures consistent dosing and clean output. Integrated with a sprocket roller conveyor, the system provides stable straw transport—ideal for small to medium-scale production lines requiring precision, speed, and reliability.
Parameter
- Model: ZS-AFS160
- Voltage: 220V, 50–60Hz
- Machine Dimensions: 100 × 92 × 160 cm
- Package Dimensions: 100 × 96 × 160 cm
- Machine Weight: Approx. 250 kg
- Filling Nozzles: 3 pcs
- Filling Accuracy: ±2%
- Hopper Capacity: 15–25 L (Stainless steel cone hopper)
- Conveyor Type: Belt conveyor
- Applicable Material: Powder, Fine granules
- Application: Food, Cosmetics, Chemicals

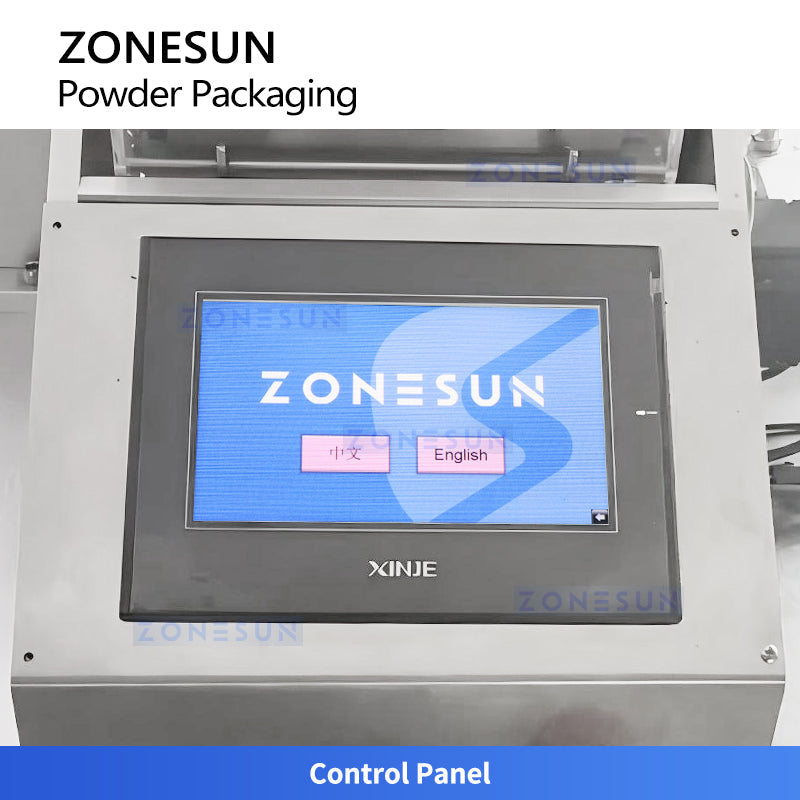

CONTROL PANEL
Central unit controls and monitors feeding, dosing, and sealing with precision and safety alerts.

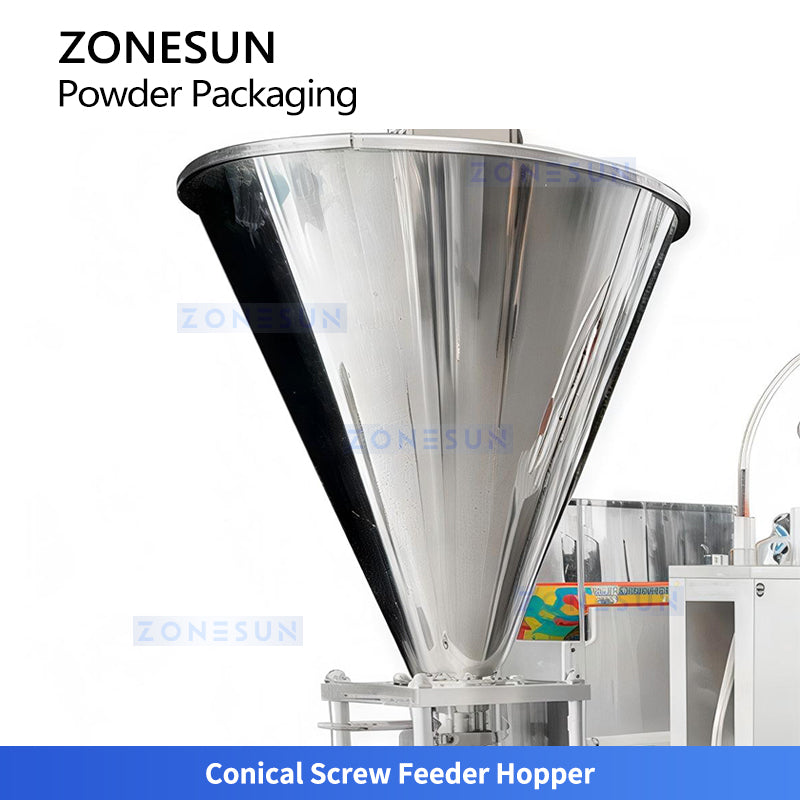

HOPPER
Stores powder and ensures stable feeding with motor-driven agitation to prevent clumping. Conical design aids smooth discharge and dosing precision.

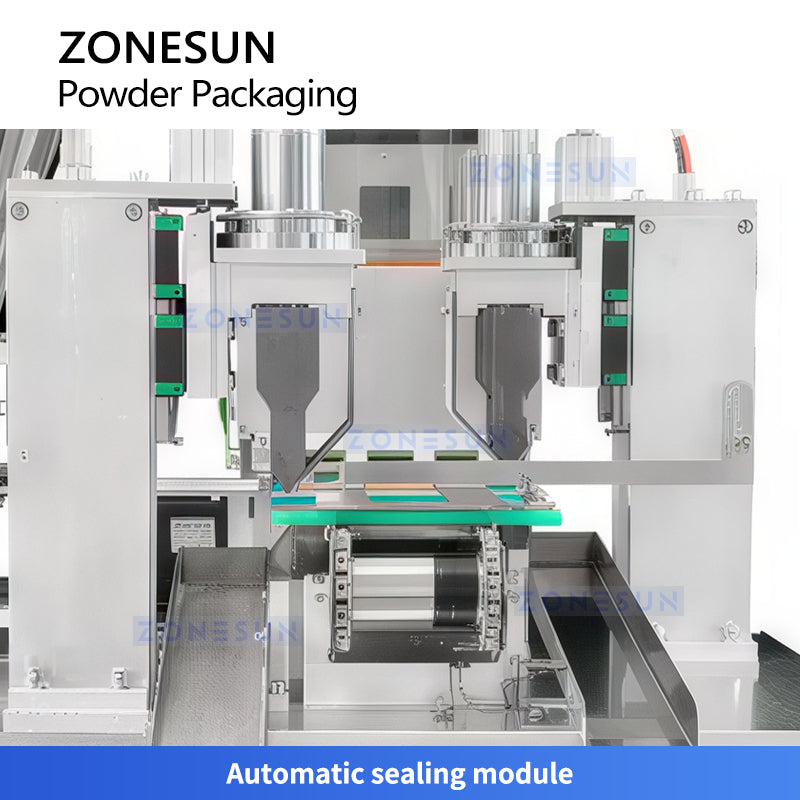

SEALING MODULE
Heat-seals both ends to prevent leakage, with conveyor-based high-speed sealing. Adjustable temperature and timing suit various materials.

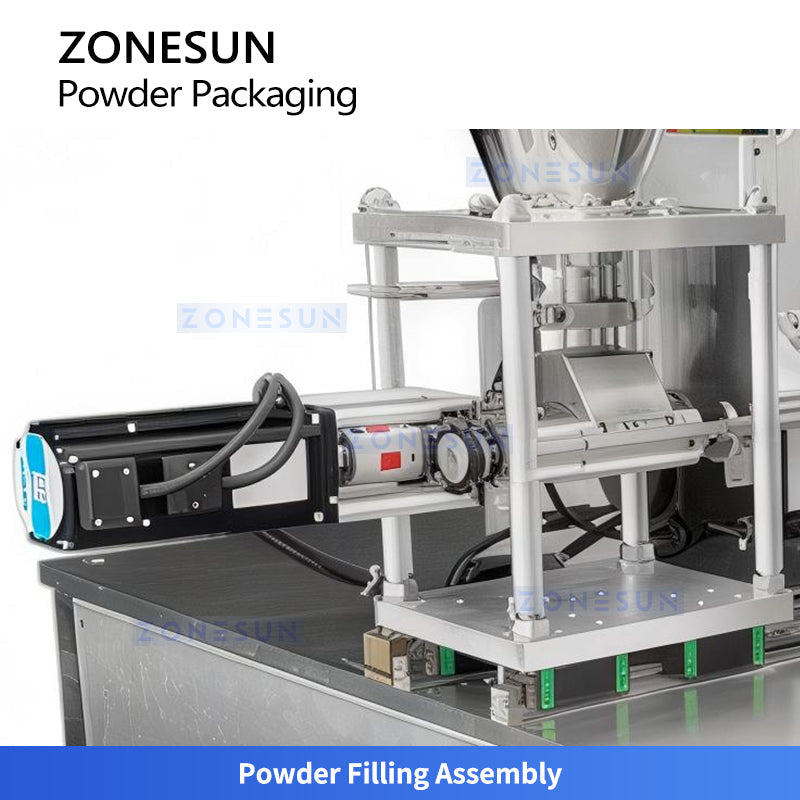

FILLING ASSEMBLY
Dispenses powder into straws with synchronized motion for precise, efficient filling. Supports multi-straw and automated dosing.

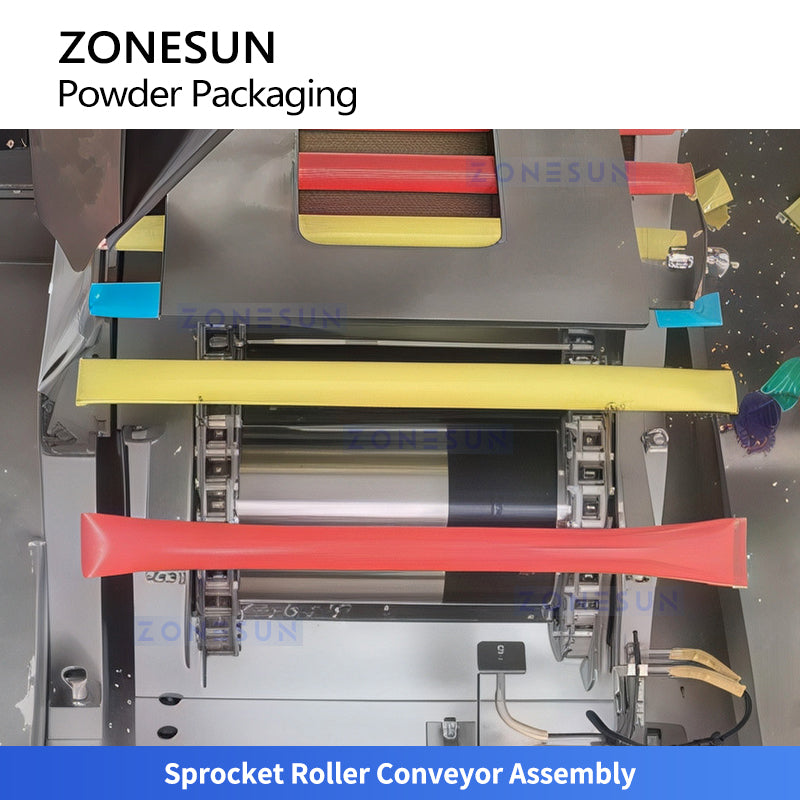

ROLLER CONVEYOR
Ensures stable straw transport via synchronized rollers, sprockets, and guide rails for precise alignment and smooth high-speed flow.
