Description

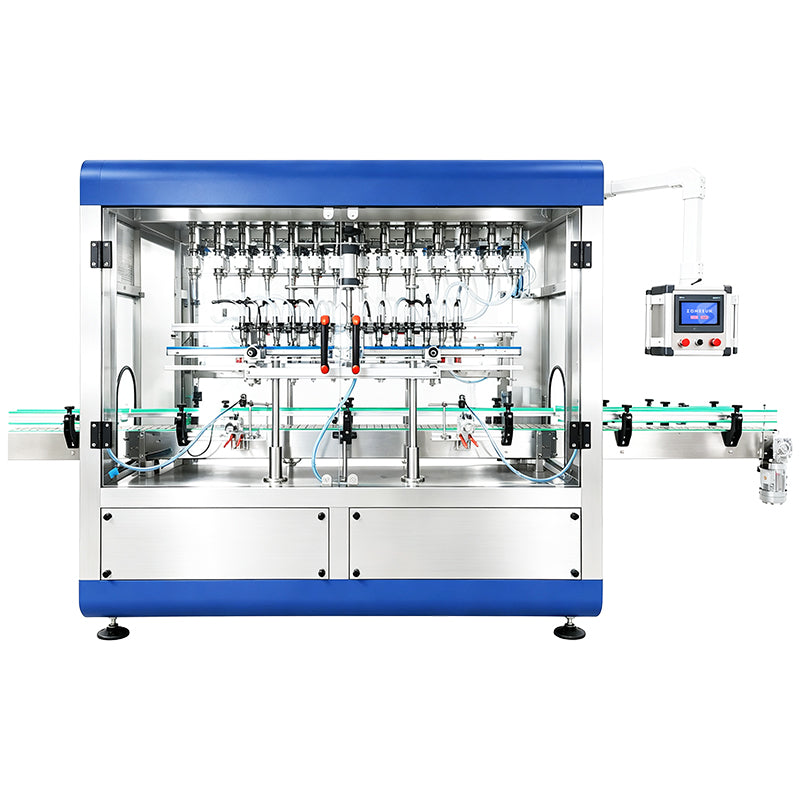

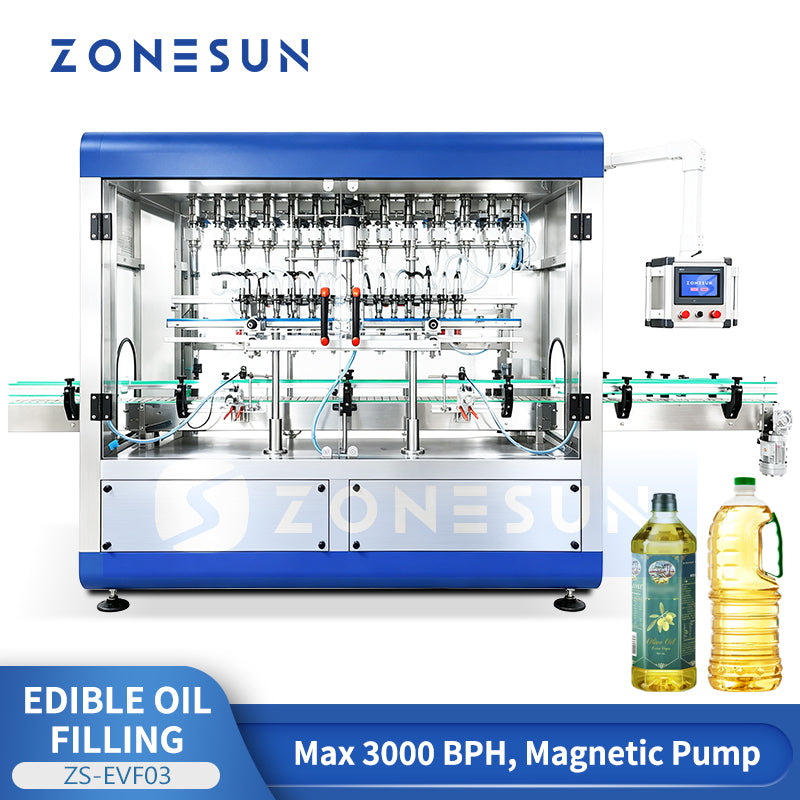

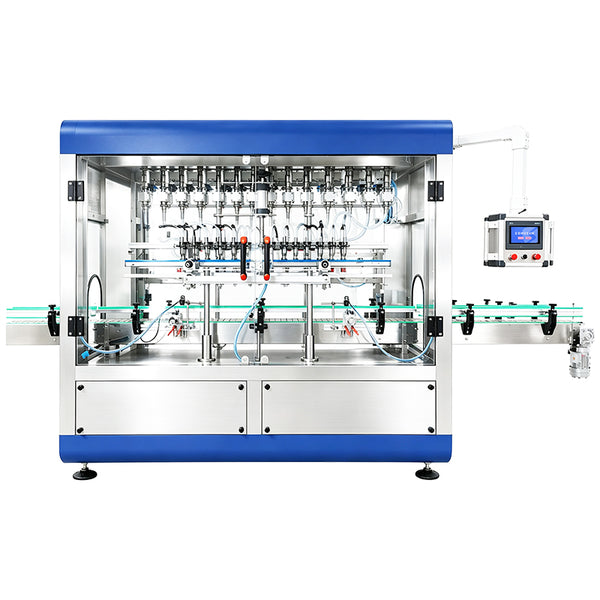

The ZONESUN ZS-EVF03 is a fully automatic 14-head servo magnetic pump edible oil filling machine designed for high-speed, precision filling of cooking oil, vegetable oil, olive oil, sunflower oil, and other compatible liquid oil products. Fourteen servo-controlled magnetic pumps provide accurate and responsive liquid dosing with a filling accuracy of ≤0.5% across 500ml–1L filling volumes.
The machine delivers a production capacity of 2800–3000 bottles/hour and features anti-drip filling nozzles, a bottle neck positioning system, and an enclosed hygienic filling area meeting food-grade hygiene standards. PLC touchscreen control supports filling volume adjustment, real-time monitoring, and operating instructions. The ZS-EVF03 can be integrated with downstream capping, labeling, and inspection equipment for a complete oil packaging line.
Technical Specifications
- Model: ZS-EVF03
- Number of Filling Heads: 14
- Filling System: Servo-controlled magnetic pump
- Filling Range: 500ml–1L
- Filling Accuracy: ≤0.5%
- Production Capacity: 2800–3000 bottles/hour
- Power Supply: 3-phase 380V ±10%, 50/60Hz
- Power Consumption: 12 kW
- Required Air Pressure: 0.5–0.8 MPa
- Working Air Pressure: 0.6–0.7 MPa
- Machine Dimensions (L×W×H): 2400 × 1200 × 2200mm

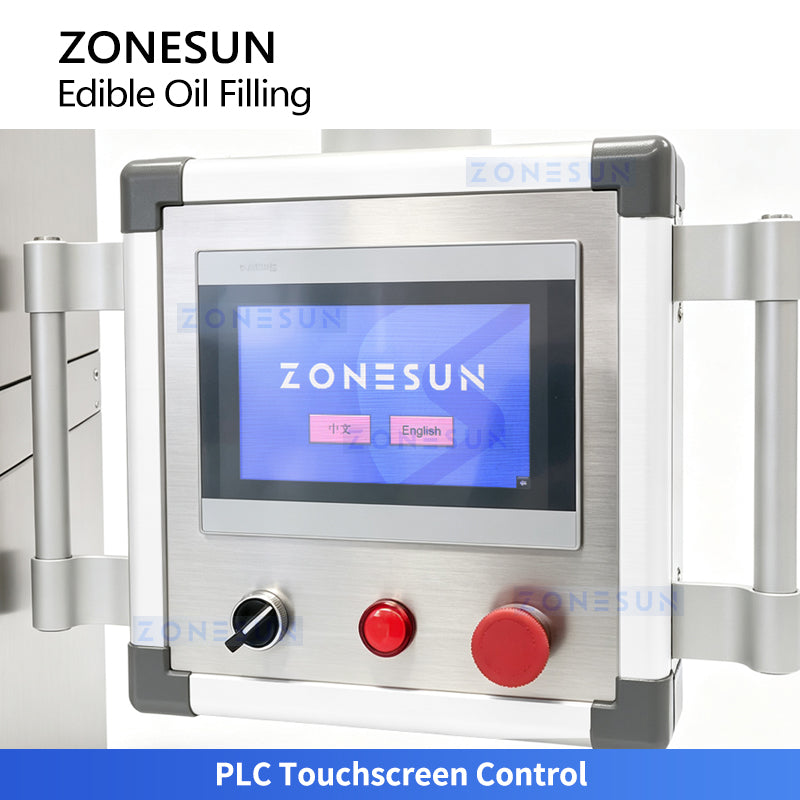

PLC Touchscreen Control
Automatically adjusts the filling volume to reach the preset target, while supporting operation control, real-time monitoring, and operating instructions.

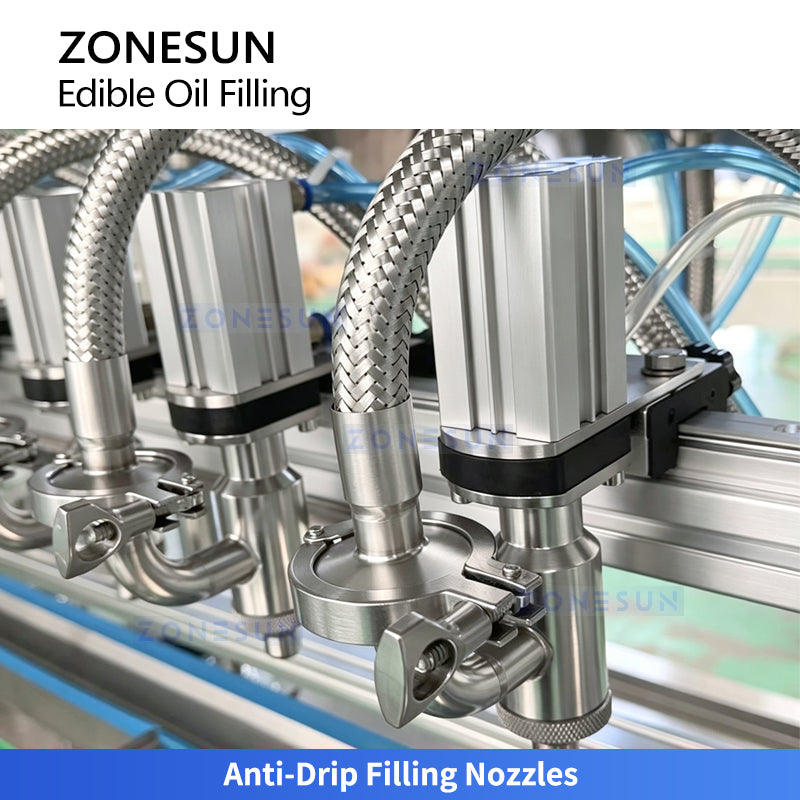

Anti-Drip Filling Nozzles
Specially designed nozzles control product flow during filling and refilling, helping prevent dripping for cleaner, more stable operation.

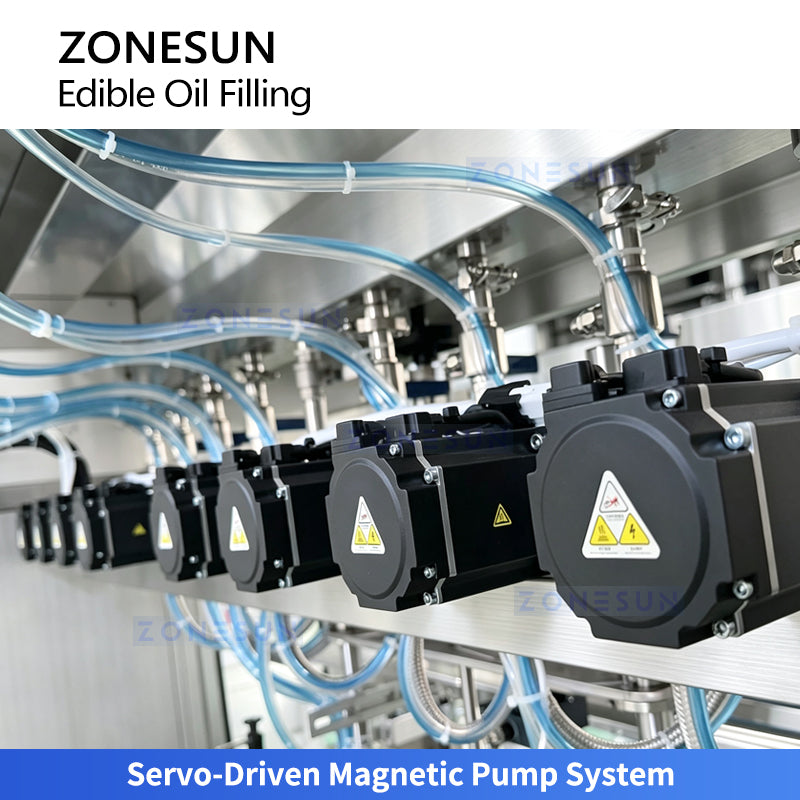

Servo-Driven Magnetic Pump System
Servo-controlled magnetic pumps provide accurate, responsive liquid dosing for efficient multi-head edible oil filling.

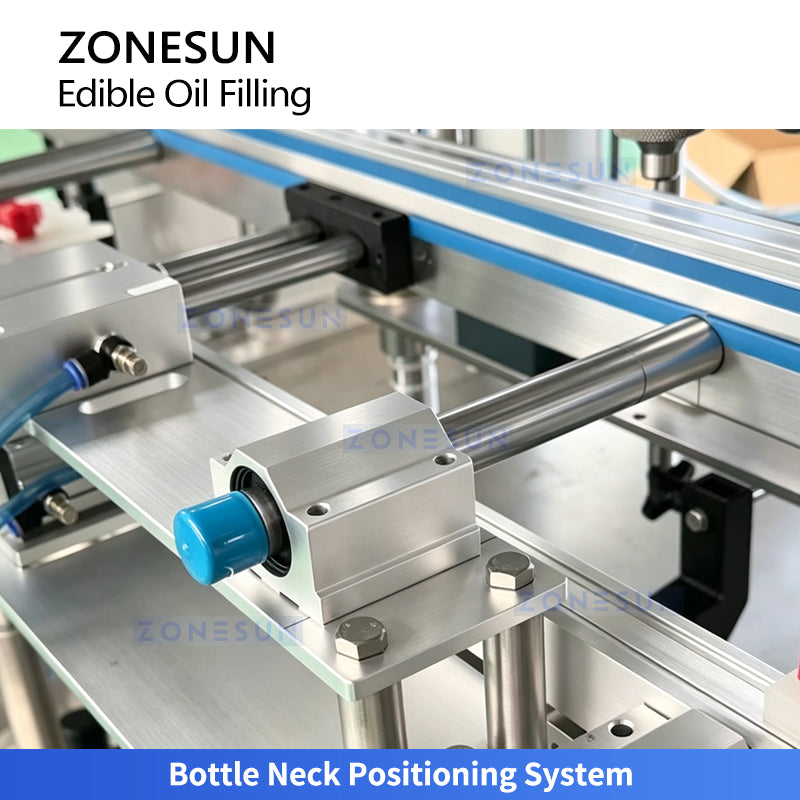

Bottle Neck Positioning System
Precisely positions the bottle neck beneath the filling nozzle for accurate alignment during filling, with convenient adjustment for different containers.

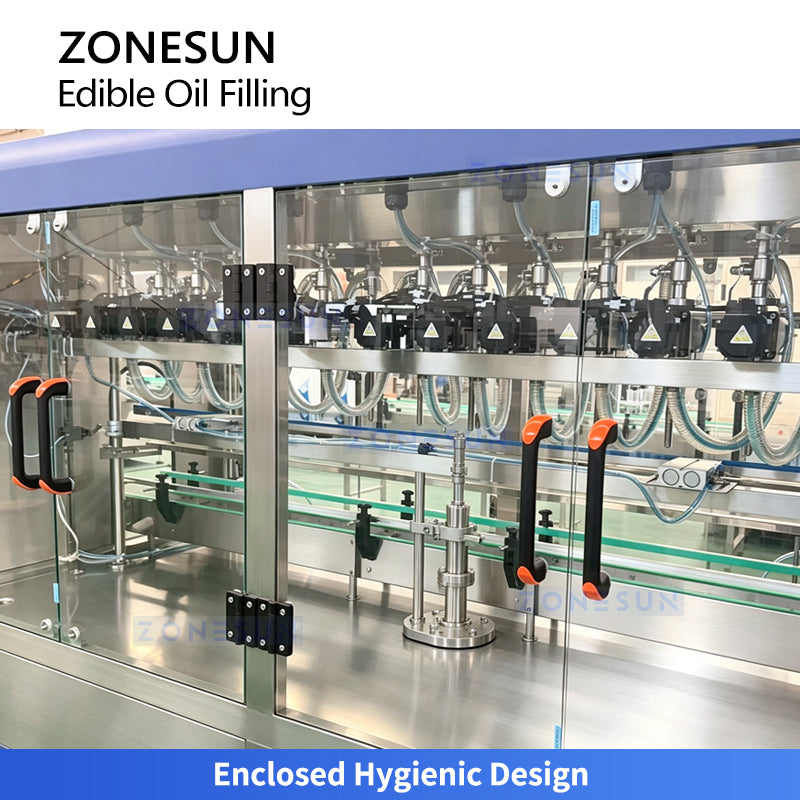

Enclosed Hygienic Design
The enclosed filling area helps prevent external contamination while providing clear visibility, meeting hygiene standards for clean and hygienic filling.
Why Choose the ZS-EVF03?
✅ 14 Independent Servo Magnetic Pumps — Precise Individual Head Control: Fourteen independently servo-controlled magnetic pumps allow each filling head to be individually calibrated and controlled, providing ≤0.5% filling accuracy across all 14 heads simultaneously — enabling consistent net content dosing for cooking oil, olive oil, and other edible oil products across the full 2800–3000 bottles/hour production run
✅ ≤0.5% Filling Accuracy — High-Precision Oil Dosing: Servo-driven magnetic pump control delivers ≤0.5% filling accuracy for 500ml–1L edible oil volumes, providing reliable net content compliance for food-grade oil bottling and reducing overfill product waste on high-speed 14-head automated oil filling lines
✅ 2800–3000 Bottles/Hour — High-Speed Production Output: 14 simultaneous servo magnetic pump filling heads deliver 2800–3000 bottles per hour throughput for 500ml–1L oil bottles, making the ZS-EVF03 suitable for medium to high-volume commercial cooking oil, vegetable oil, and olive oil bottling operations requiring sustained high-speed automated output
✅ Anti-Drip Filling Nozzles — Cleaner Filling & Reduced Product Waste: Specially designed anti-drip nozzles control oil flow during and after each filling cycle, preventing nozzle dripping between fills — reducing product waste, keeping the filling area and bottle exteriors clean, and supporting hygienic edible oil packaging line operation at high production speeds
✅ Bottle Neck Positioning System — Accurate Container Alignment: Bottle neck positioning system precisely aligns each bottle under its corresponding filling nozzle before the filling cycle begins, ensuring consistent fill accuracy and reducing misaligned-fill rejects — with convenient adjustment to accommodate different bottle neck diameters and container formats within the 500ml–1L filling range
✅ Enclosed Hygienic Design — Food-Grade Contamination Prevention: Enclosed filling area with clear visibility panels prevents external contamination of oil products during filling, meeting food-grade hygiene standards for edible oil packaging and supporting clean, compliant production on automated cooking oil and vegetable oil bottling lines
✅ Complete Line Integration — Capping, Labeling & Inspection Compatible: Designed for integration with downstream capping machines, labeling machines, and inspection equipment, allowing the ZS-EVF03 to serve as the high-speed filling station within a complete automated edible oil packaging line from bottle feeding through filled, capped, and labeled output
Ideal Applications
High-Speed Cooking Oil & Vegetable Oil Bottling: Automatic 14-head servo magnetic pump filling of cooking oil, soybean oil, palm oil, rapeseed oil, corn oil, and blended vegetable oil into 500ml–1L PET and glass bottles at 2800–3000 bottles/hour — suitable for commercial cooking oil producers and vegetable oil packagers requiring high-speed, food-grade automated oil bottle filling
Olive Oil & Premium Edible Oil Precision Filling: High-accuracy ≤0.5% servo magnetic pump filling of premium olive oil, avocado oil, flaxseed oil, and other specialty edible oils into 500ml–1L glass and PET bottles, providing consistent net content compliance for premium retail oil packaging requiring precise volumetric filling at high production speeds
Sunflower Oil & Canola Oil Production Lines: 14-head automatic magnetic pump filling of sunflower oil, canola oil, and other common edible oils into standard 500ml–1L plastic and glass bottles at 2800–3000 bottles/hour, suitable for mid-to-large scale sunflower oil and canola oil packaging facilities requiring continuous high-speed automated filling output
Complete Edible Oil Packaging Line — Filling Station: Integration with upstream bottle conveying and downstream capping, labeling, and inspection equipment as the 14-head servo magnetic pump filling station of a complete automated edible oil bottling line — supporting full-line automation from empty bottle input through filled, capped, labeled, and inspected finished product output
Food-Grade Oil Bottling Requiring Hygienic Enclosed Filling: High-speed enclosed hygienic 14-head servo magnetic pump filling for edible oil producers requiring food-grade contamination prevention during bottling — with anti-drip nozzles, bottle neck positioning, and enclosed design supporting clean, consistent, and compliant oil filling at 2800–3000 bottles/hour production rates
