Description

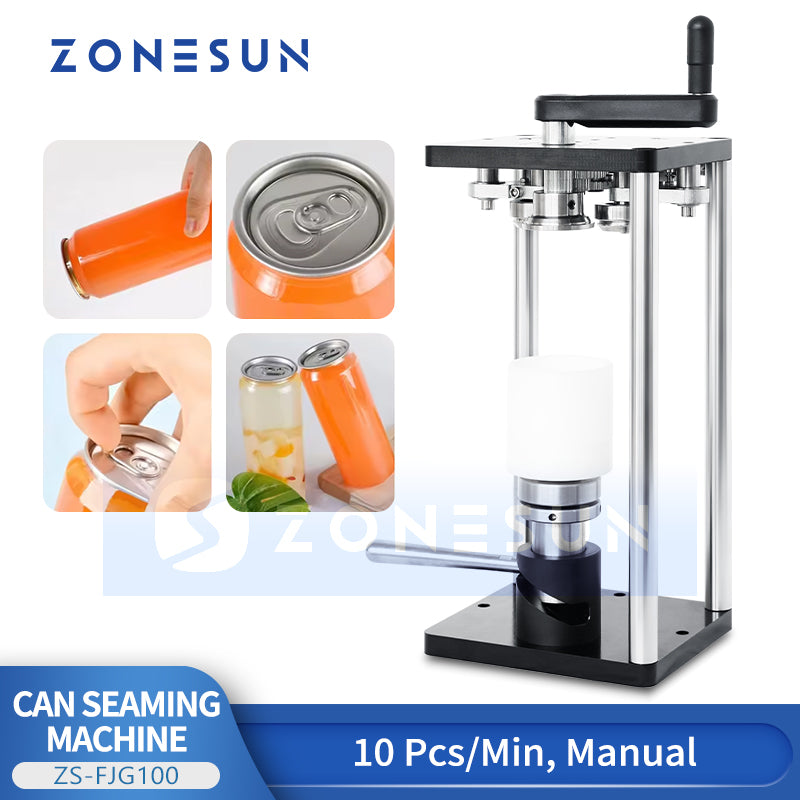

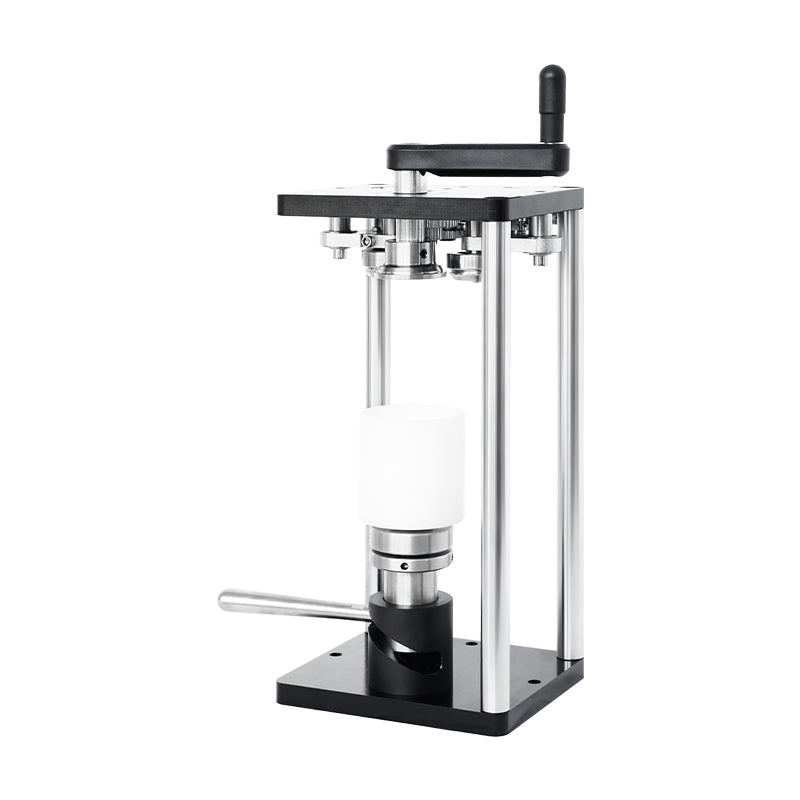

The ZONESUN ZS-FJG100 is a manual tabletop can seamer for compatible PET cans and configured aluminum-can applications. A hand crank drives the seaming mechanism, while the holder supports the container during lid attachment. It operates without electrical power and suits small-batch packaging and trial production.
The listed maximum speed is 10 cans per minute, depending on manual loading and operation. Each machine is configured for one can-mouth diameter. Custom holders and seaming components require physical can and lid samples, allowing the setup to be matched to the actual container rather than assuming universal size compatibility.
Technical Specifications
| Model | ZS-FJG100 |
|---|---|
| Maximum speed | 10 cans/min |
| Container type | Compatible PET cans / customized aluminum-can setup |
| Container heights | 115 mm / 168 mm |
| Standard sealing diameter | 55 mm |
| Holder size | 66 mm |
| Dimensions | 180 × 153 × 490 mm |
| Net weight | 10.3 kg |
| Packing size | 21 × 26 × 48 cm |
| Gross weight | 11 kg |
Applications
- Small-batch PET can closing for samples and retail packaging.
- Aluminum-can packaging with matching custom tooling.
- Low-volume food and beverage packaging with separately evaluated preservation processes.
Product Details
Customization
The described configuration includes two molds for one can-mouth diameter. Other formats require matching components and physical can and lid samples.

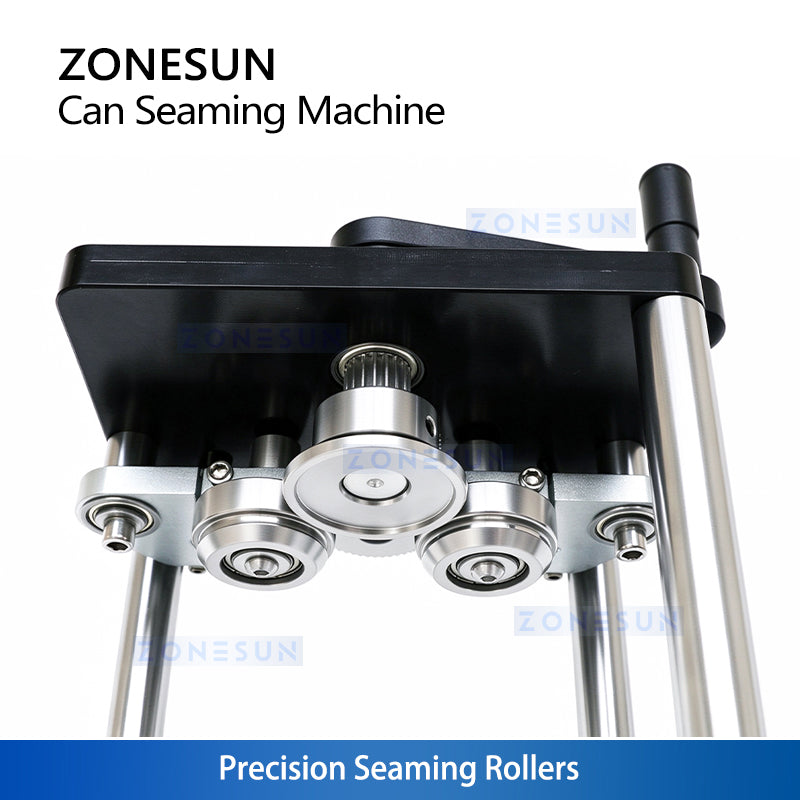

Seaming Rollers
Form the seam between the compatible can and lid.

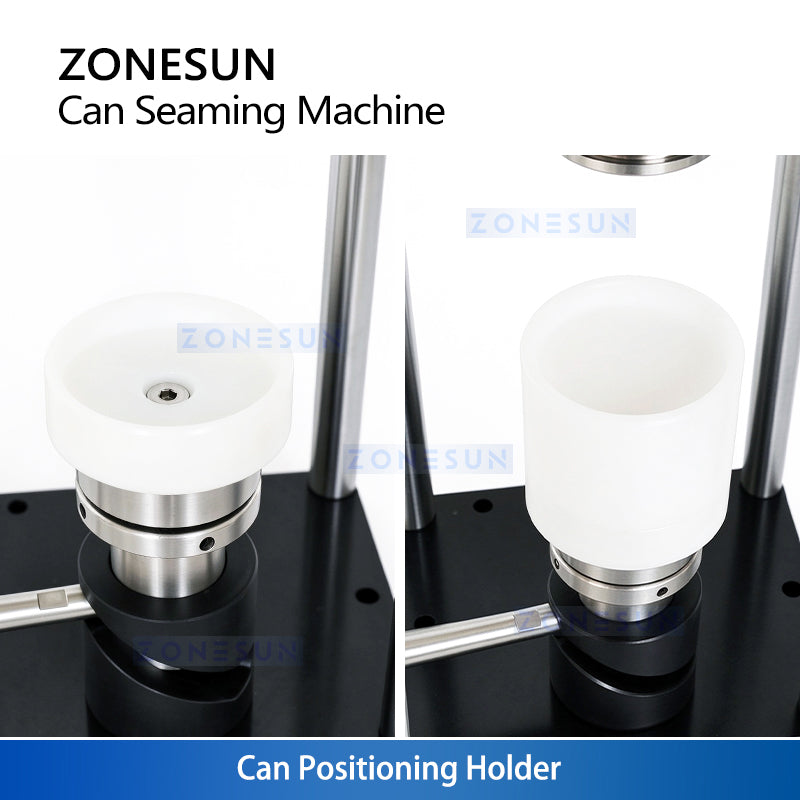

Can Holder
Supports and positions the container during seaming.

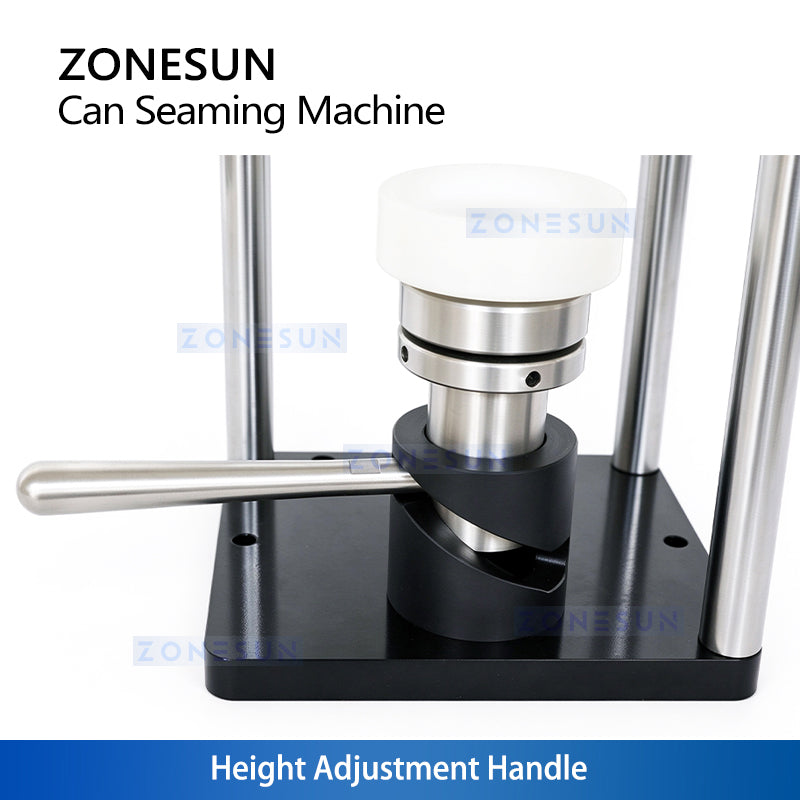

Height Adjustment
Adjusts holder height for the specified container.

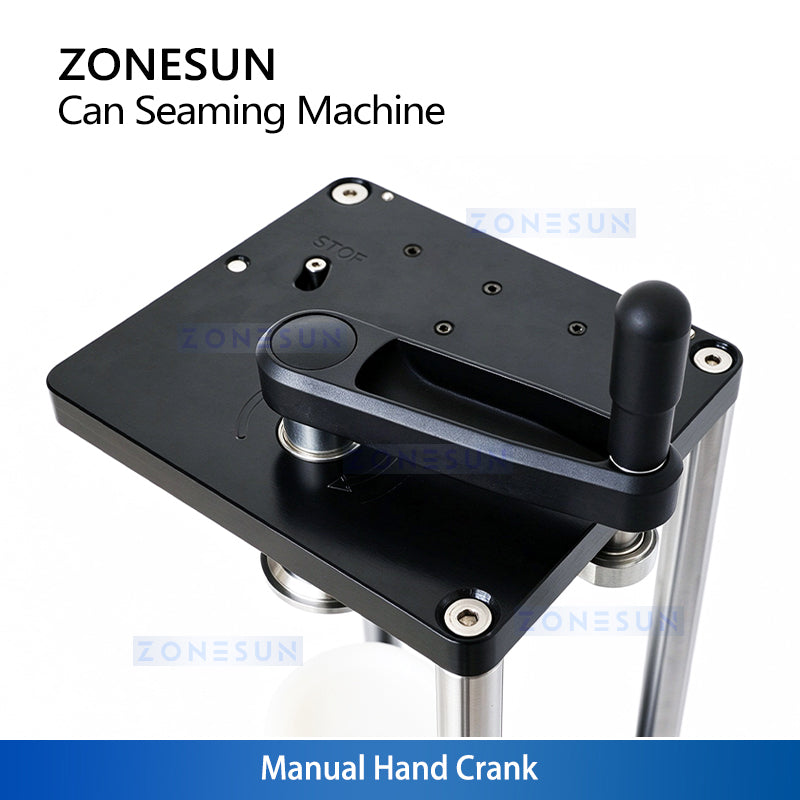

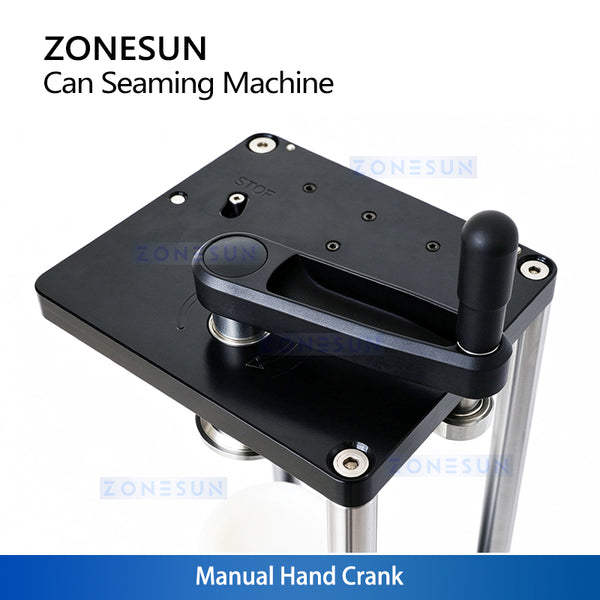

Hand Crank
Manually drives the mechanism without electricity.

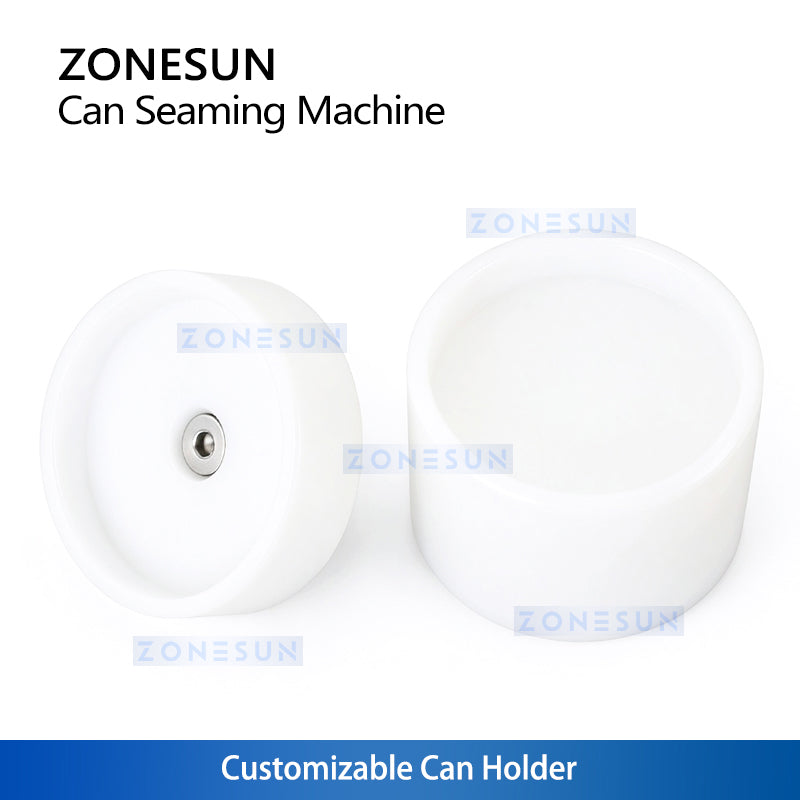

Custom Holder
Can be configured for the container dimensions.
Key Features
- Manual hand-crank operation without an electrical connection.
- Compact tabletop footprint for low-volume workstations.
- Positioning holder and height adjustment for compatible containers.
- Format-specific seaming components selected for the can and lid.
How It Works
- Install the matching holder and seaming components.
- Position the filled can and compatible lid.
- Adjust the holder for alignment and support.
- Operate the crank according to the machine instructions.
- Remove the can and inspect the seam.
Selection Guide
Send can and lid samples, mouth diameter, body diameter, height and material. The 55 mm sealing diameter and 66 mm holder size describe different dimensions. Select the tooling based on the actual container and lid combination.
Frequently Asked Questions
Does it need electricity?
No. The hand crank manually drives the seaming mechanism.
Can one machine handle multiple mouth diameters?
Each machine is configured for one can-mouth diameter. Other formats require suitable holder and seaming components.
Are 55 mm and 66 mm both sealing diameters?
The parameter list identifies 55 mm as the standard sealing diameter and 66 mm as the holder size. Match purchase-option sizes to physical can and lid samples.
Can the PET setup seam aluminum cans?
Aluminum cans require the appropriate configured tooling; the PET setup should not be assumed interchangeable.
Does seaming make food shelf-stable?
Seaming closes the container. It does not sterilize the product or establish shelf life. Preservation and seam integrity require evaluation for the intended product.
Is 10 cans per minute guaranteed?
It is the listed maximum speed. Manual loading, operation and inspection affect practical output.
Discuss Your Can Format
Use the chat window on this page to share can and lid photos, dimensions and required output. Our team can help evaluate the matching holder and seaming setup.
