Description

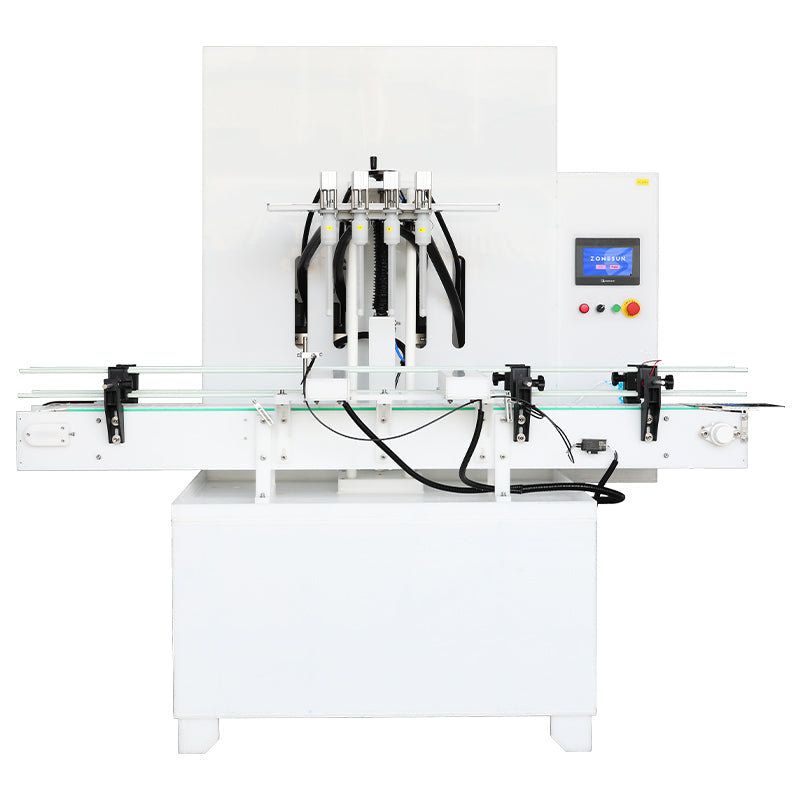

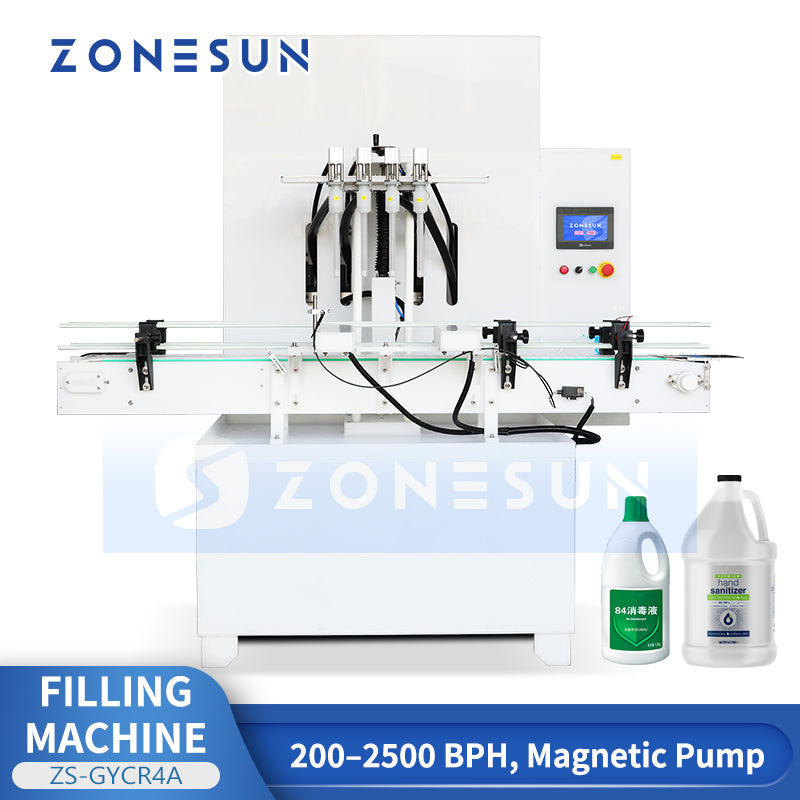

The ZONESUN ZS-GYCR4A is an automatic 4-head servo-driven filling machine designed for corrosive liquids. Running at 200–2500 bottles per hour, it uses a corrosion-resistant PVDF magnetic pump for precise, stable, and leak-free filling. With adjustable filling heads, customizable anti-drip nozzles, a storage tank, a PP machine housing, and a corrosion-resistant conveyor system, it performs reliably in harsh chemical environments. Ideal for small to medium-scale production lines, it is suitable for filling acids, alkalis, bleach, disinfectants, detergents, fertilizer solutions, automotive chemicals, and other corrosive liquids.
Parameter
- Machine Model: ZS-GYCR4A
- Voltage / Power: 110V / 220V, 50–60 Hz, 5000 W
- Air Pressure Requirement: 0.4–0.7 MPa
- Suitable Bottle Diameter: φ60–φ120 mm
- Suitable Bottle Height: 60–300 mm
- Hopper Capacity: About 120 L
- Filling Range: 300 ml – 20 L
- Filling Speed: 200–2500 BPH (based on filling volume)
- Machine Dimensions (L×W×H): About 2000 × 1300 × 1900 mm
- Machine Weight: About 280 kg

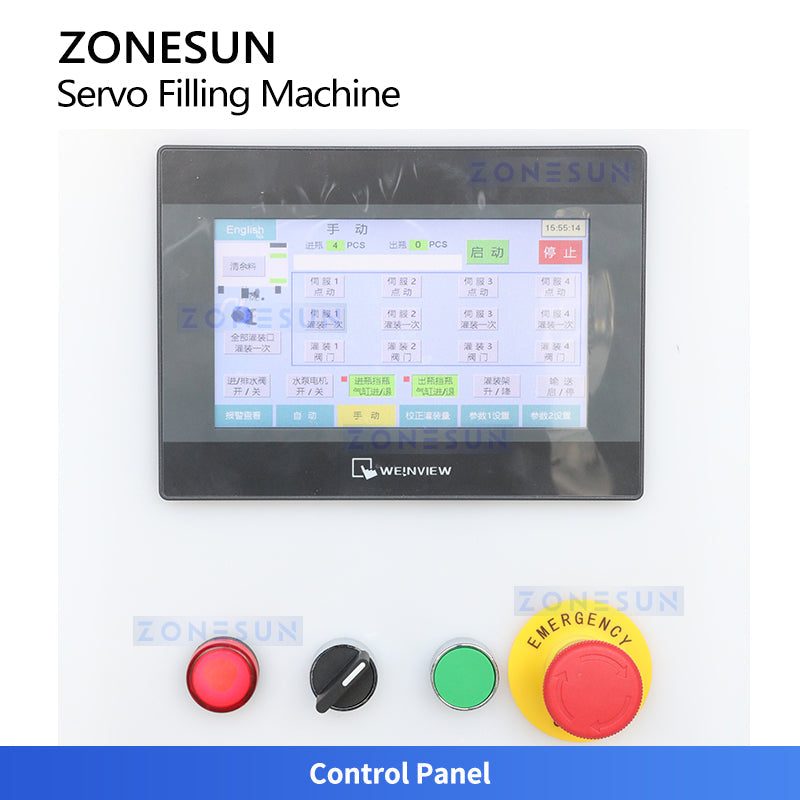

CONTROL PANEL
Provides operation control, start/stop filling, parameter adjustment, monitoring, safety protection, and bottle count display.![]()

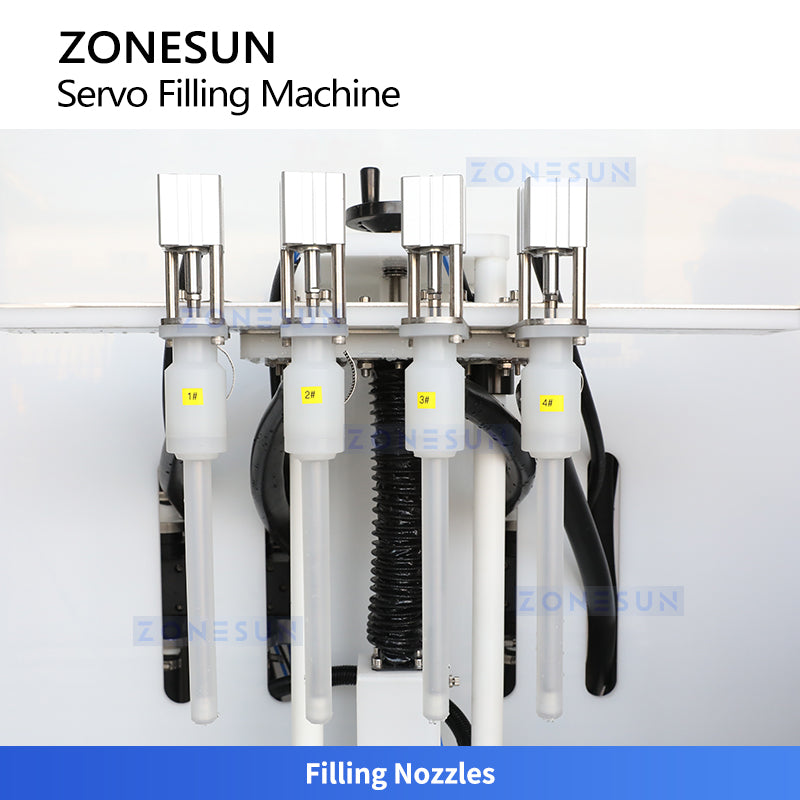

FILLING NOZZLES
Dispenses corrosive liquid accurately, with hand-wheel height adjustment and customizable corrosion-resistant nozzles for drip-free filling.

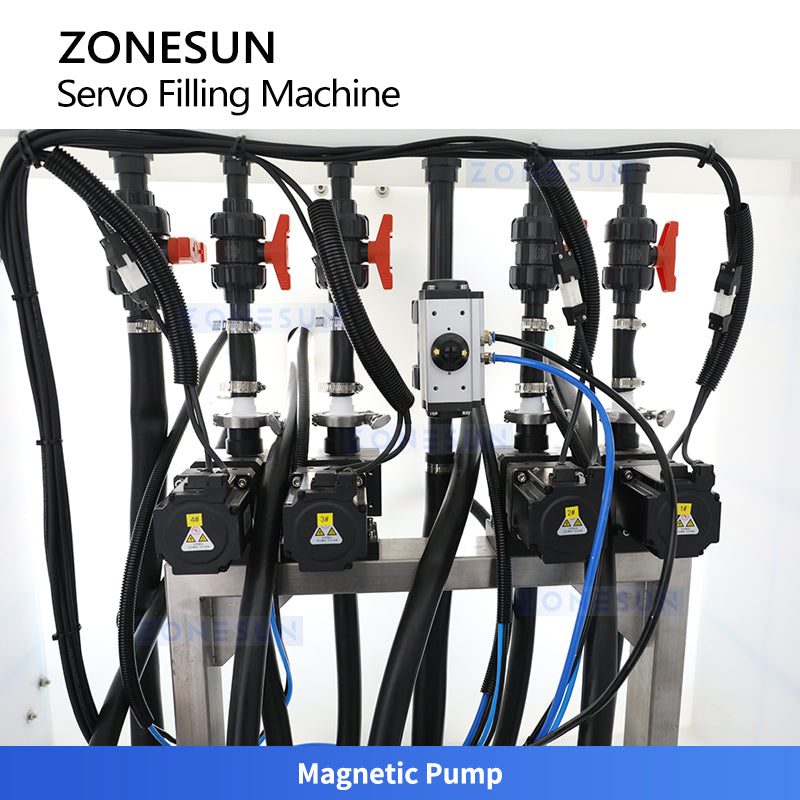

MAGNETIC PUMP
Transfers corrosive liquid with suction-controlled intake for precise, leak-free operation using a PVDF magnetic pump.

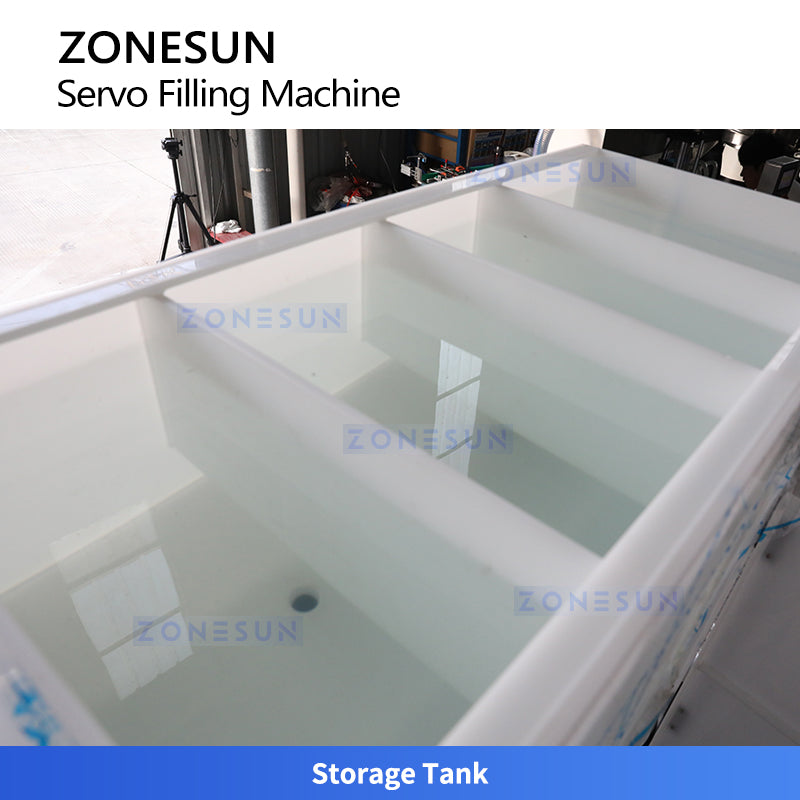

STORAGE TANK
Stores corrosive liquid for filling, provides stable supply, strengthens structure with partitions, ensures safety with corrosion-resistant PP material.

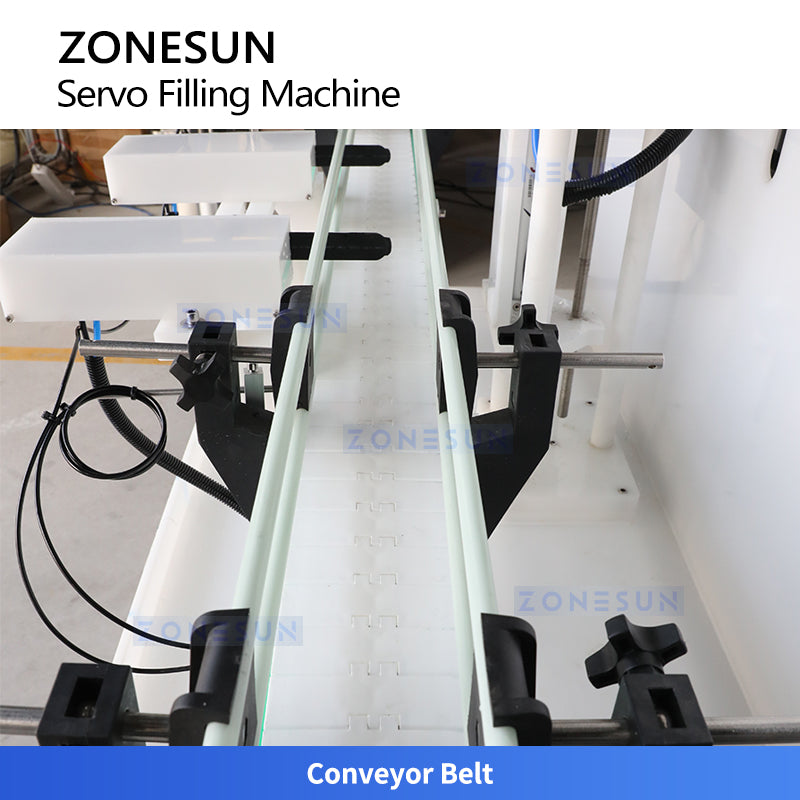

CONVEYOR BELT
Transports and positions bottles, synchronizes with filling, resists corrosion, and works with sensors and holders to ensure stable, accurate filling.
SENSOR & HOLDER
Bottle sensor controls filling by detecting bottle position, while bottle holder secures and aligns bottles for safe, accurate filling.
MOTOR
Powers and controls the conveyor, ensuring stable, synchronized operation for accurate bottle filling.
