ZONESUN ZS‑XG1870G Automatic Cap Pressing Machine with Cap Feeder
- Cena
- $4,899
Please click "Buy It Now". Shipping will be calculated at checkout.
Shipping Information
Shipping methods and costs vary depending on the machine model, package size, destination, and delivery method. ZONESUN offers multiple shipping options, including express delivery, air freight, sea freight, and other available logistics services. Large machines and production lines are typically packed in export-standard wooden cases for safer transportation.
To check available shipping options and estimated shipping costs, add the product to your cart and enter your delivery address during checkout. The available shipping methods for your destination will be displayed automatically.
DDP (Delivered Duty Paid) shipping options may also be available for selected destinations. Where DDP is available and selected, the applicable duties, taxes, customs clearance, and delivery arrangements will be handled according to the terms of the quoted DDP shipping service. Please contact us if you would like to confirm DDP availability for your destination before ordering.
For large machines, customized equipment, or complete production lines, we recommend contacting us before placing an order so our team can confirm the most suitable shipping method, packaging requirements, estimated freight cost, and delivery schedule.
For non-DDP shipping methods, import duties, customs clearance fees, local taxes, and other destination charges may apply and are generally determined by local customs authorities.
About Us
ZONESUN specializes in automated packaging machinery and integrated production line solutions, including filling, capping, labeling and sealing equipment. We provide standalone machines and customized packaging lines for different products, containers and production requirements.
ZONESUN is operated by Guangdong Shanghang Technology Limited, with engineering, manufacturing and technical support capabilities for global customers.

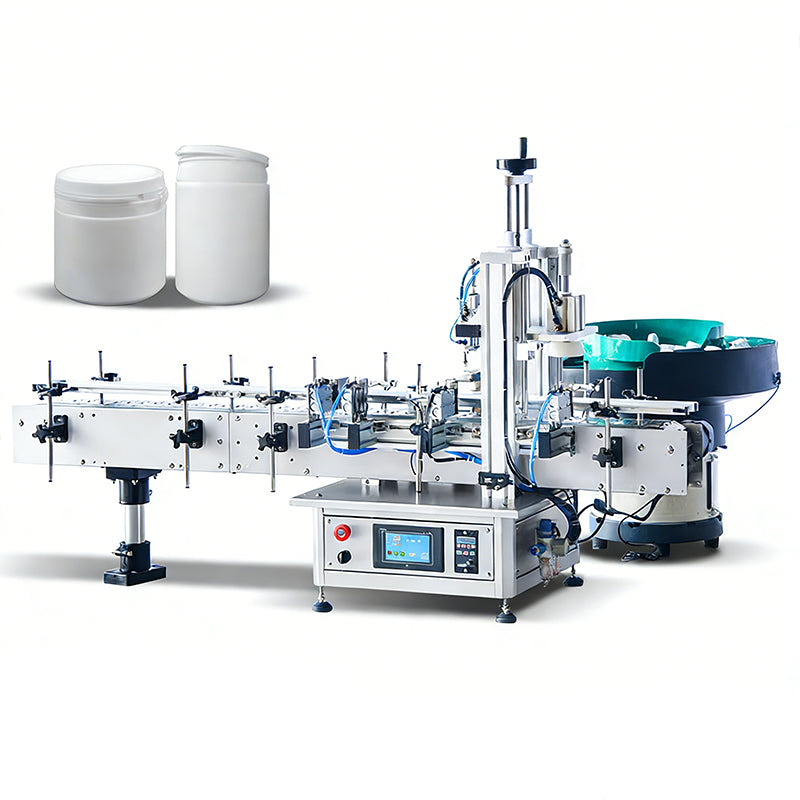

The ZONESUN ZS‑XG1870G is an automatic cap pressing machine equipped with a vibratory cap feeder for handling irregular caps, such as tear‑off flip tops. Using suction to pick caps and a precision pressing system, it streamlines the capping process for improved efficiency. Built for versatility, it accommodates bottle heights from 60 mm to 270 mm and supports customized cap diameters. With a speed of 20‑40 bottles per minute, it is widely used in the food, cosmetics, and daily chemical industries, delivering consistent results and reducing manual labor.
ZONESUN ZS‑XG1870G — Specifications
Parameter Details
Machine Model ZS‑XG1870G
Working Voltage AC 220 V / 110 V, 50–60 Hz
Working Pressure 0.4 – 0.6 MPa
Bottle Height 60 – 270 mm
Bottle Cap Diameter Customized
Working Speed 20 – 40 bottles/min (depending on bottle & cap)
Conveyor Size (L×W) Approx. 1780 × 115 mm
Machine Size Approx. 1780 × 580 × 1140 mm (Machine) + 650 × 650 × 560 mm (Vibratory Bowl)
Machine Weight Approx. 83 kg (Machine) + 72 kg (Vibratory Bowl)
Package Size Approx. 1220 × 790 × 1250 mm (Machine) + 700 × 700 × 780 mm (Vibratory Bowl)
Package Weight Approx. 123 kg (Machine) + 92 kg (Vibratory Bowl)




PLC Control Panel
The touchscreen provides access to machine settings and operating controls.
Vibratory Bowl Cap Feeder
The vibratory bowl arranges caps for orderly automatic feeding.

Suction Cap Feeder
The suction mechanism picks up caps and places them onto bottles automatically.
Adjustable Cap Pressing Head
The cap-pressing head secures caps and can be adjusted for different bottle heights.

Adjustable Chain Conveyor
The chain conveyor provides high load capacity, with adjustable width and conveying speed.
