ZONESUN ZS-YTMP9C 9-Nozzle Magnetic Pump Liquid Filling Machine

Cena
$2,780

Please click "Buy It Now". Shipping will be calculated at checkout.


Voltage:110V
Shipping Information

Shipping methods and costs vary depending on the machine model, package size, destination, and delivery method. ZONESUN offers multiple shipping options, including express delivery, air freight, sea freight, and other available logistics services. Large machines and production lines are typically packed in export-standard wooden cases for safer transportation.

To check available shipping options and estimated shipping costs, add the product to your cart and enter your delivery address during checkout. The available shipping methods for your destination will be displayed automatically.

DDP (Delivered Duty Paid) shipping options may also be available for selected destinations. Where DDP is available and selected, the applicable duties, taxes, customs clearance, and delivery arrangements will be handled according to the terms of the quoted DDP shipping service. Please contact us if you would like to confirm DDP availability for your destination before ordering.

For large machines, customized equipment, or complete production lines, we recommend contacting us before placing an order so our team can confirm the most suitable shipping method, packaging requirements, estimated freight cost, and delivery schedule.

For non-DDP shipping methods, import duties, customs clearance fees, local taxes, and other destination charges may apply and are generally determined by local customs authorities.

About Us

ZONESUN specializes in automated packaging machinery and integrated production line solutions, including filling, capping, labeling and sealing equipment. We provide standalone machines and customized packaging lines for different products, containers and production requirements.

ZONESUN is operated by Guangdong Shanghang Technology Limited, with engineering, manufacturing and technical support capabilities for global customers.

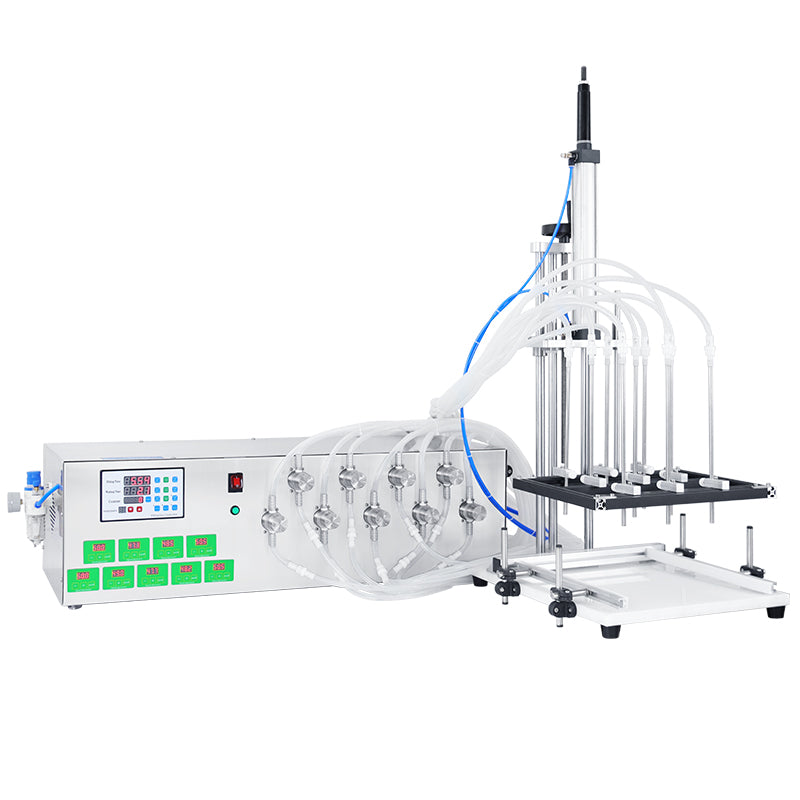

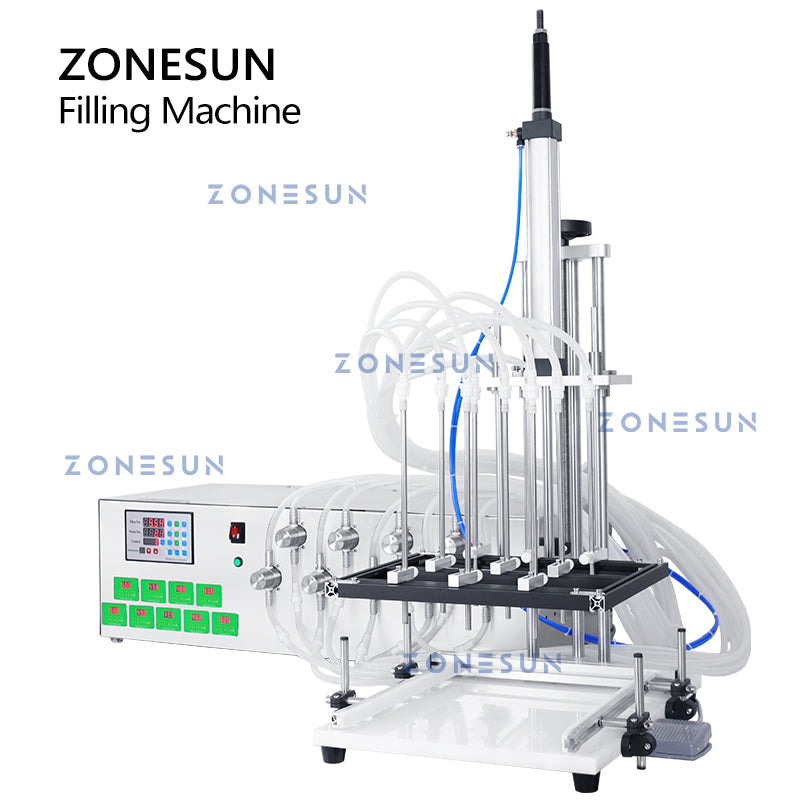

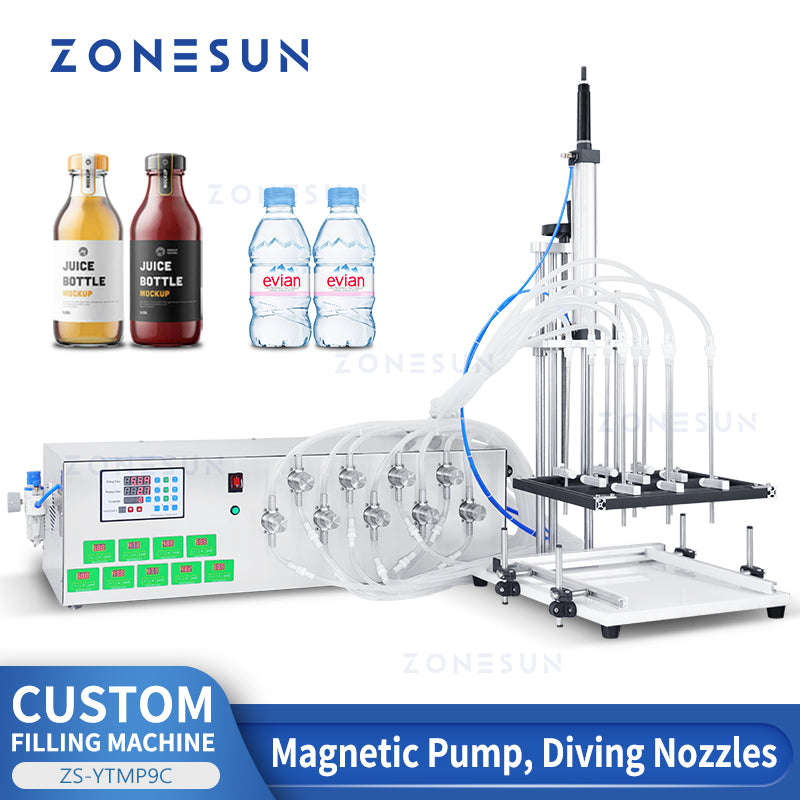

The ZONESUN ZS-YTMP9C is a high-performance liquid filling machine equipped with 9 magnetic pumps and 9 diving nozzles for precise, splash-free filling. Designed for versatility, it supports a wide range of bottle sizes and filling volumes from 3ml to 1000ml. Each pump delivers up to 5500ml/min, enabling a working speed of 45 bottles per minute (based on 250ml). The 316 stainless steel magnetic pumps ensure durability and hygiene, making it ideal for cosmetics, pharmaceuticals, chemicals, and food-grade liquids. Customizable lifting devices are available to match your specific bottle requirements—ZONESUN delivers reliable solutions for every packaging need.

Machine Specifications

Model: ZS-YTMP9C
Power Supply: 110/220V, 50–60Hz
Maximum Flow: Velocity 5500ml/min (per pump)
Working Speed:45 bottles/min (based on 250ml volume)
Pump Type:316 Stainless Steel Magnetic Pump
Filling Nozzle:Diameter 6mm / 8mm
Delay Range:0.01–999.9 seconds
Count Range:1–99,999 times
Filling Volume:3–1000ml
Air Compressor Connector Outer Diameter: 8mm

ZONESUN ZS-YTMP9C Pneumatic 9 Diving Nozzles Magnetic Pump Liquid Filling MachineZONESUN ZS-YTMP9C Pneumatic 9 Diving Nozzles Magnetic Pump Liquid Filling MachineZONESUN ZS-YTMP9C Pneumatic 9 Diving Nozzles Magnetic Pump Liquid Filling MachineZONESUN ZS-YTMP9C Pneumatic 9 Diving Nozzles Magnetic Pump Liquid Filling Machine

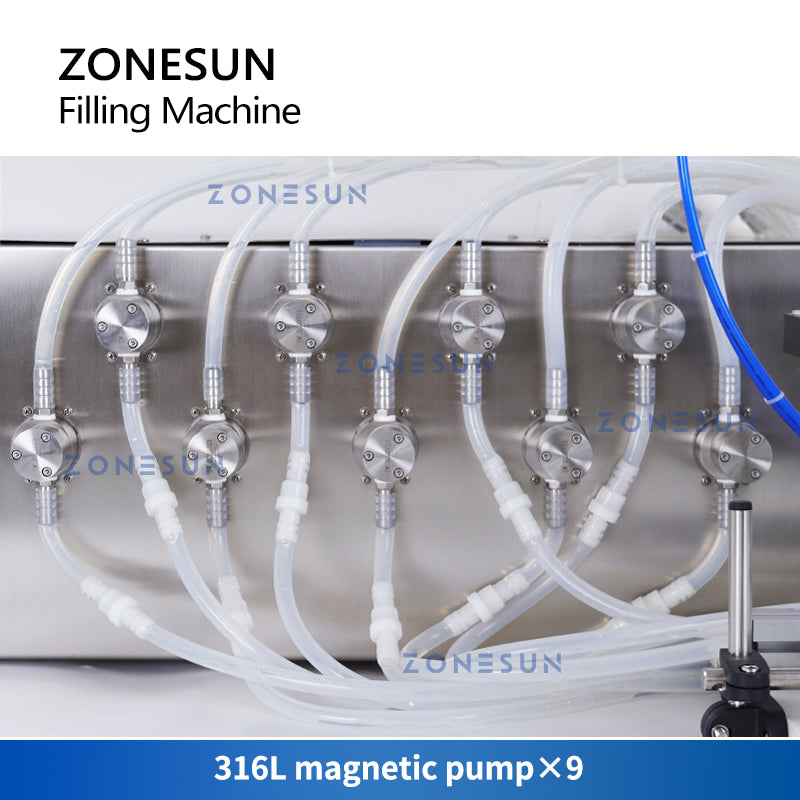

Nine 316 Stainless-Steel Magnetic Pumps

Nine corrosion-resistant magnetic pumps provide separate liquid-filling channels.

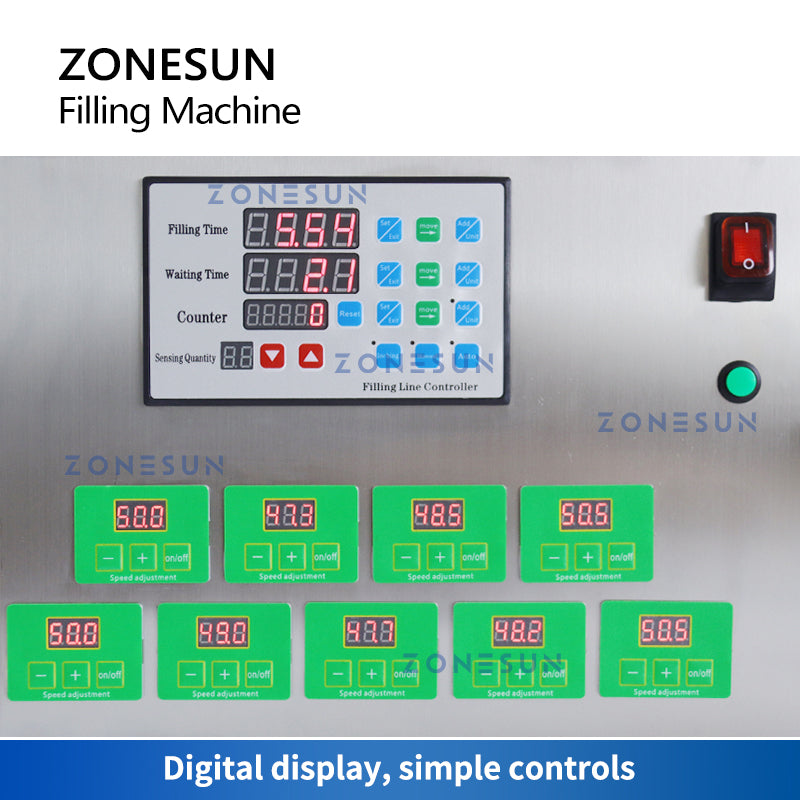

Independent Digital Controls

The control panel provides individual digital settings for the filling channels.

ZONESUN ZS-YTMP9C Pneumatic 9 Diving Nozzles Magnetic Pump Liquid Filling Machine

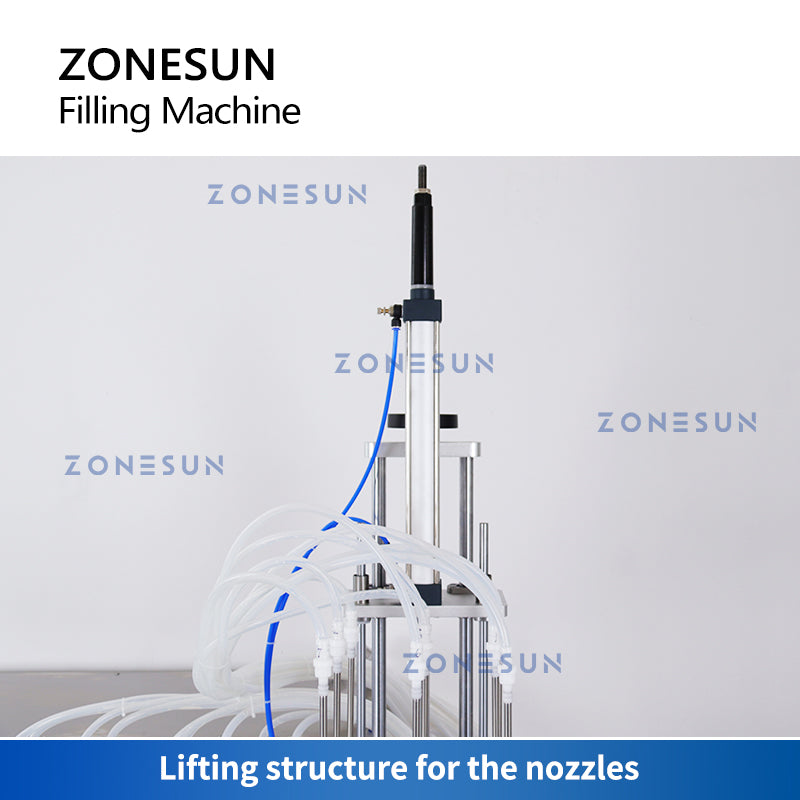

Height-Adjustable Diving Nozzles

The diving nozzles lower during filling and can be adjusted to suit the container height.

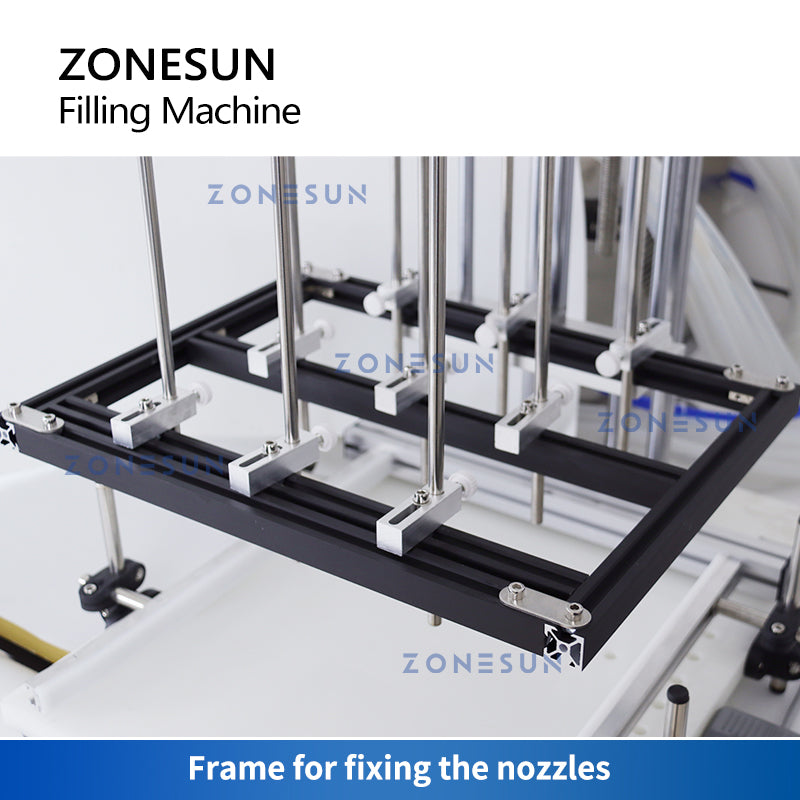

Individually Adjustable Bottle Positions

Each bottle position on the working table can be adjusted separately to align containers with the nozzles.

ZONESUN ZS-YTMP9C Pneumatic 9 Diving Nozzles Magnetic Pump Liquid Filling MachineZONESUN ZS-YTMP9C Pneumatic 9 Diving Nozzles Magnetic Pump Liquid Filling MachineZONESUN ZS-YTMP9C Pneumatic 9 Diving Nozzles Magnetic Pump Liquid Filling Machine
