Máquina flejadora de soldadura por fricción neumática ZONESUN B19 19mm 25mm

Precio
$189.90

Please click "Buy It Now". Shipping will be calculated at checkout.


Tamaño:correa con 19MM
Shipping Information

Shipping methods and costs vary depending on the machine model, package size, destination, and delivery method. ZONESUN offers multiple shipping options, including express delivery, air freight, sea freight, and other available logistics services. Large machines and production lines are typically packed in export-standard wooden cases for safer transportation.

To check available shipping options and estimated shipping costs, add the product to your cart and enter your delivery address during checkout. The available shipping methods for your destination will be displayed automatically.

DDP (Delivered Duty Paid) shipping options may also be available for selected destinations. Where DDP is available and selected, the applicable duties, taxes, customs clearance, and delivery arrangements will be handled according to the terms of the quoted DDP shipping service. Please contact us if you would like to confirm DDP availability for your destination before ordering.

For large machines, customized equipment, or complete production lines, we recommend contacting us before placing an order so our team can confirm the most suitable shipping method, packaging requirements, estimated freight cost, and delivery schedule.

For non-DDP shipping methods, import duties, customs clearance fees, local taxes, and other destination charges may apply and are generally determined by local customs authorities.

About Us

ZONESUN specializes in automated packaging machinery and integrated production line solutions, including filling, capping, labeling and sealing equipment. We provide standalone machines and customized packaging lines for different products, containers and production requirements.

ZONESUN is operated by Guangdong Shanghang Technology Limited, with engineering, manufacturing and technical support capabilities for global customers.

Parámetro
Modo: B19.B25
Fuerza de tensión de la banda de unión (cuando la presión del aire de entrada es de 0,63 Mpa): 3500 N
máx. presión de trabajo permitida: 0.8Mpa
Alcance requerido de presión de trabajo: 0,5 ~ 0,7 Mpa (72 ~ 100 psi)
Prensa de trabajo ideal:seguro: 0.63Mpa
Peso del embalaje miachine: 3,65 kg.
Longitud total: 300 mm (base 70 mm)
Ancho: 149,5 mm Alto: 173 mm .
Material de la cinta de embalaje: PET
Ancho de la cinta de embalaje: menor de 19 mm/ menos de 25 milímetro
Grosor de la cinta de embalaje: 0,5-1,5 mm
Cantidad de vibración: cumple con los requisitos de ISO5349
Consumo de aire comprimido: 0.3L/Min
Tiempo de fusión: 2-5s

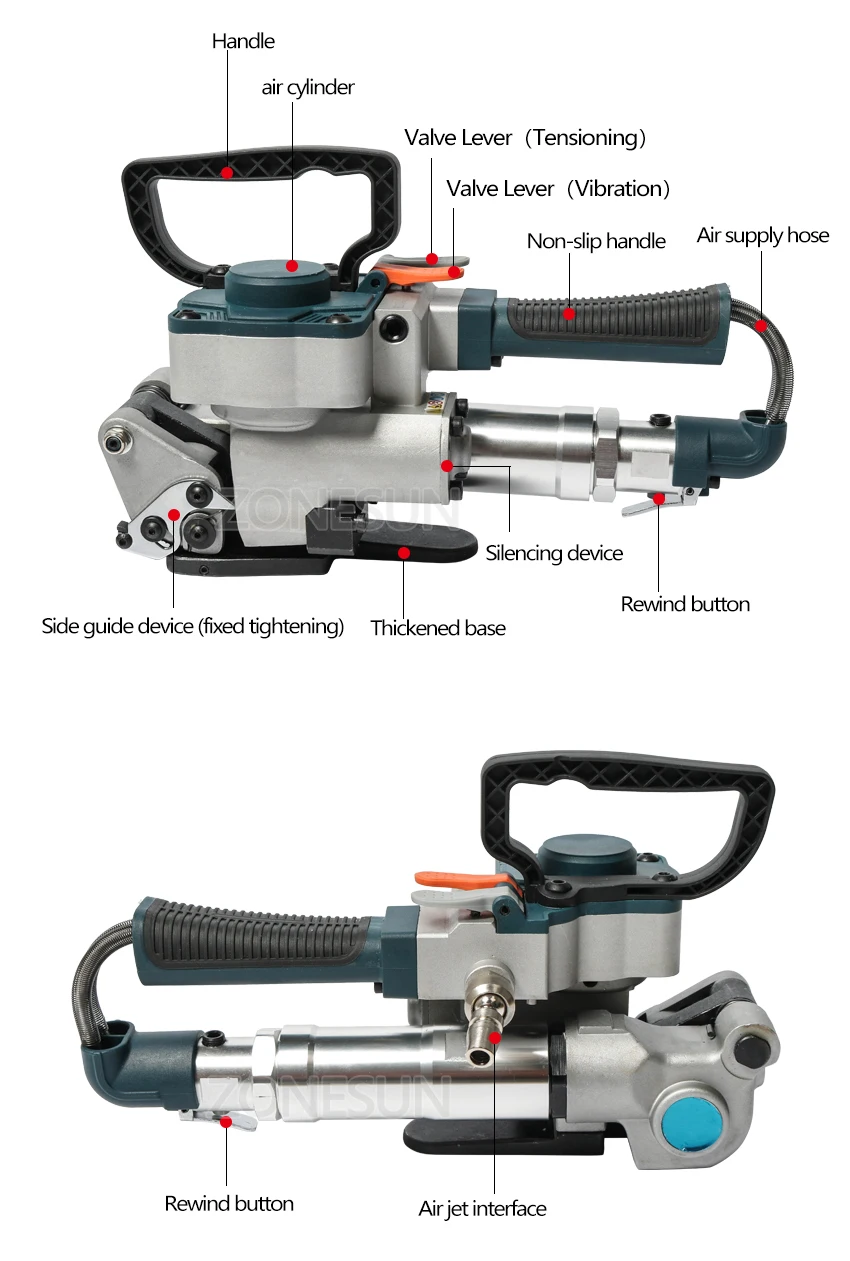

Partes
(1) Tensor: 3500 N (cuando 0,63 Mpa)
(2) dispositivo de corte
dispositivo de corte pesado
El dispositivo de corte pesado está compuesto por un portacuchillas y una cuchilla y se utiliza para cortar una cinta de embalaje de 0,5-1,5 mm de espesor.
Dispositivo de corte por fricción
El dispositivo de corte por fricción se utiliza para cortar correas de embalaje de PET ligeras de 0,5 a 0,7 mm de espesor.
Suspensión
Los ganchos B19, B25 adecuados pueden suspenderse en diferentes posiciones (sellado superior, sellado vertical y sellado horizontal).
B19_01B19_02B19_03B19_04B19_05B19_06B19_07
B19_07
B19_08B19_09
