Description

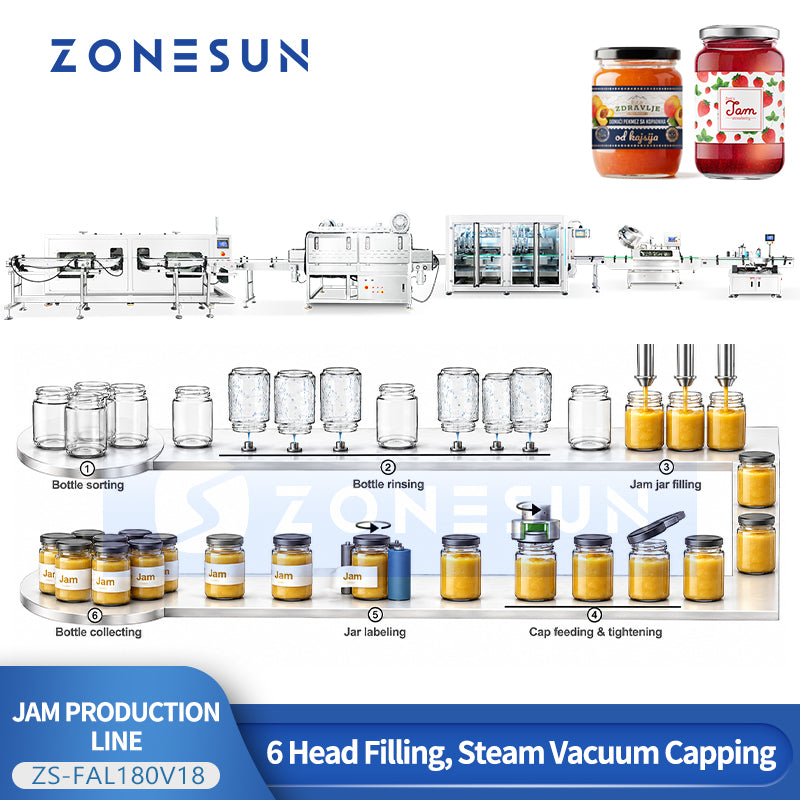

The ZONESUN ZS-FAL180V18 Automatic Kaya Jam & Sauce Glass Jar Packaging Line integrates jar rinsing, high-temperature drying, servo piston filling, steam vacuum twist-off capping, cap sealing and labeling into one continuous process for compatible viscous food products.
The filling section uses 6 servo piston filling heads with SUS316 product-contact components. The standard filling range is 100–1000ml, while the steam-vacuum capping section is intended for compatible twist-off glass jars and lids.
Key Line Specifications
| Model | ZS-FAL180V18 |
|---|---|
| Filling Heads | 6 |
| Filling Method | Servo piston filling |
| Filling Range | 100–1000ml |
| Filling Accuracy | ±1% |
| Reference Filling Output | 2000–5000 bottles/hour |
| Product-Contact Material | SUS316 stainless steel |
| Closure Method | Steam vacuum twist-off capping + differential belt sealing |
| Labeling Method | Star-wheel positioning with self-adhesive labeling |
Performance note: The parameter values above are retained from the existing product information. Actual line output depends on filling volume, product viscosity, jar size, cap format, heating/rinsing conditions and coordination between each station.
Water & Air Jar Rinsing
Internal rinsing nozzles work with jar gripping and inversion to prepare compatible glass jars before filling.
High-Temperature Drying Tunnel
Hot-air circulation removes residual moisture after rinsing before jars enter the filling section.
6-Head Servo Piston Filling
The filling section is designed for compatible viscous foods such as kaya jam, fruit jam, sauces and pastes. Nozzle quantity and configuration can be evaluated for the project.
Steam Vacuum Twist-Off Capping
The capping process uses steam-vacuum treatment with compatible twist-off closures, followed by differential-belt sealing.
Star-Wheel Labeling
Star-wheel positioning helps maintain jar spacing and stability through the self-adhesive labeling station.
Best-Suited Products
Suitable for compatible viscous food products such as kaya jam, fruit jam, tomato sauce, chili sauce, peanut butter, sesame paste and similar products packed in twist-off glass jars.
Needs separate evaluation: products with large particles, extremely high viscosity, hot-fill requirements outside the configured process, non-glass containers or closures that are not compatible with steam-vacuum twist-off capping.
Before Ordering
- Product name, viscosity and filling temperature
- Particle size if the product contains solids
- Target fill volume
- Glass jar dimensions and samples
- Twist-off cap dimensions and samples
- Required bottles/hour
- Rinsing-water and drying requirements
- Label dimensions and position
- Required line layout and utilities
Frequently Asked Questions
Can it fill products other than kaya jam?
Yes, other compatible viscous foods can be evaluated according to viscosity, particles and filling temperature.
Is 2000–5000 BPH guaranteed for every product?
No. It is the existing reference output and varies with fill volume, viscosity and line conditions.
Can it use non-twist-off caps?
This configuration is built around steam-vacuum twist-off capping; other closure types require a different capping solution.
