Description

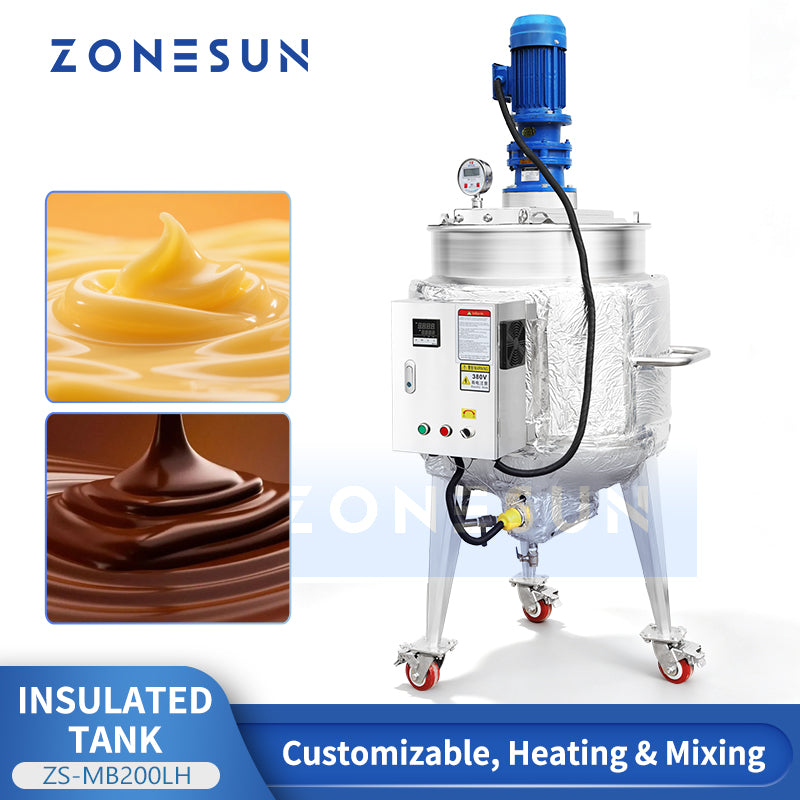

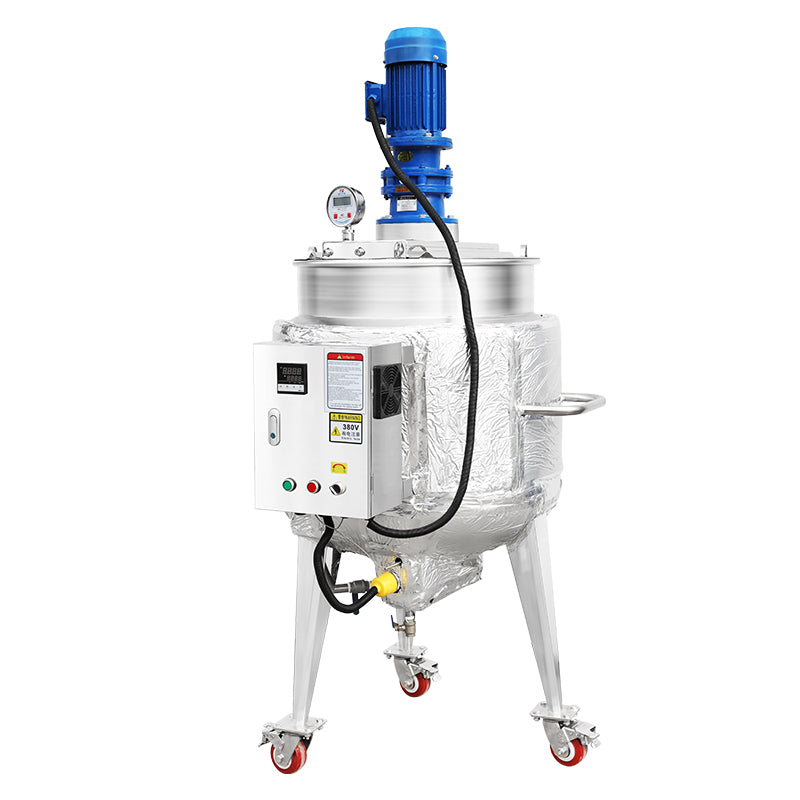

The ZONESUN ZS-MB200LH is an insulated electric heating and mixing tank built from SUS304 brushed stainless steel, designed for liquid preparation, premixing, heating, and temperature maintenance. It is suitable for compatible materials in food, cosmetics, daily chemical, and related industries.
The electric stirring system (40 r/min, customizable 0–80 r/min) promotes consistent blending, while the sponge insulation layer minimizes heat loss and maintains stable material temperature. A 25mm bottom outlet enables controlled discharge and direct connection to compatible filling equipment. Three heavy-duty swivel casters provide mobility for easy repositioning on the production floor.
Key Specifications
- Power Supply: 380V / 50Hz
- Heating Power: 6 kW | Stirring Power: 1.1 kW
- Rotating Speed: 40 r/min (customizable 0–80 r/min)
- Tank Material: SUS304 stainless steel, brushed finish, 2mm wall
- Outlet Diameter: 25mm | Ground Clearance: 400mm
- Mobility: 3 heavy-duty swivel casters

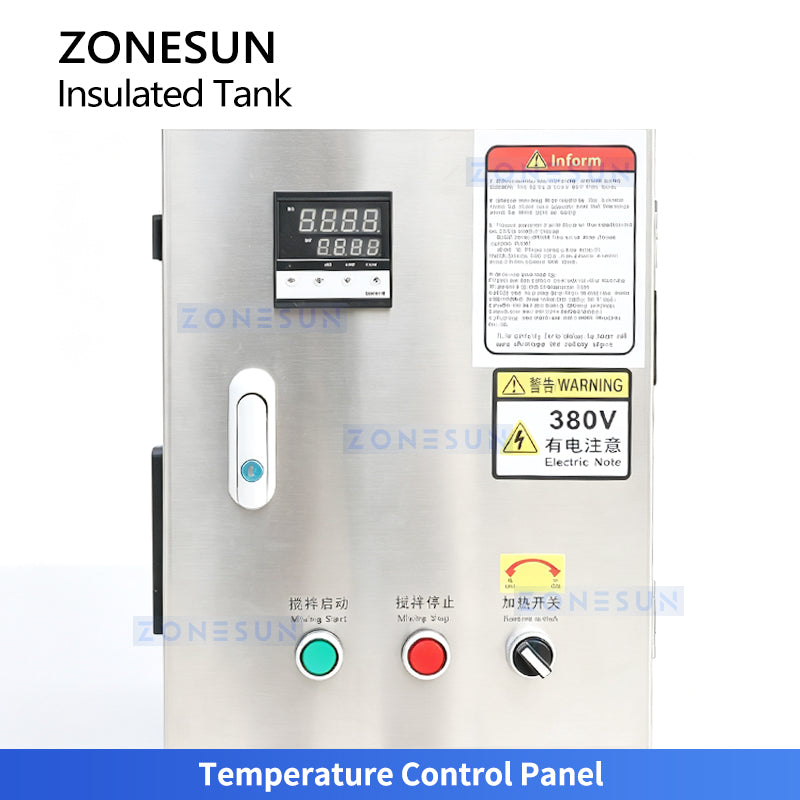

Temperature Control Panel
Provides convenient control of heating and mixing, with temperature setting and real-time monitoring.

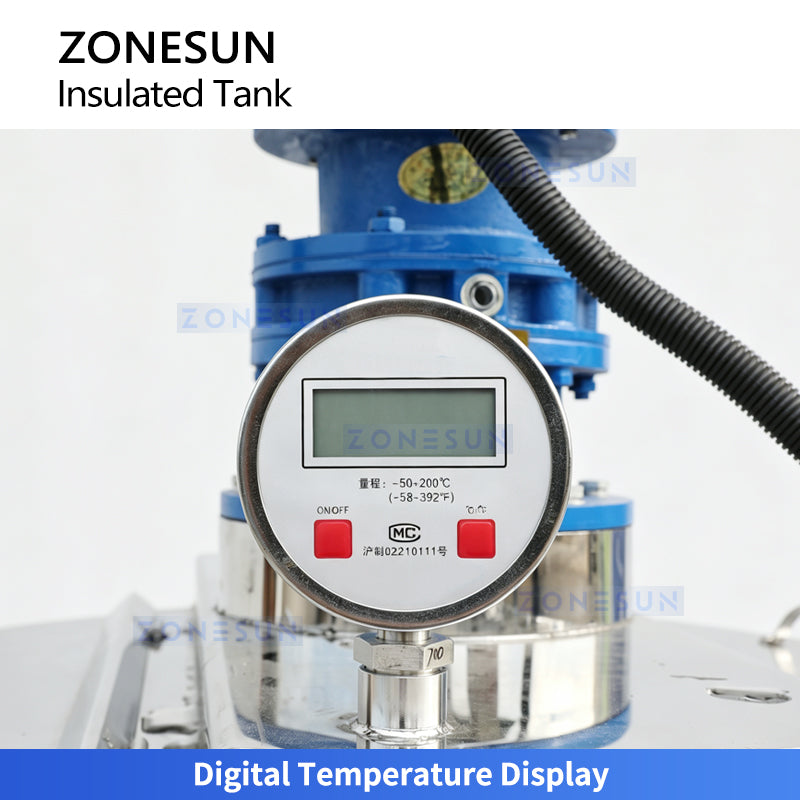

Digital Temperature Display
Provides real-time temperature monitoring for better control of the heating and mixing process.

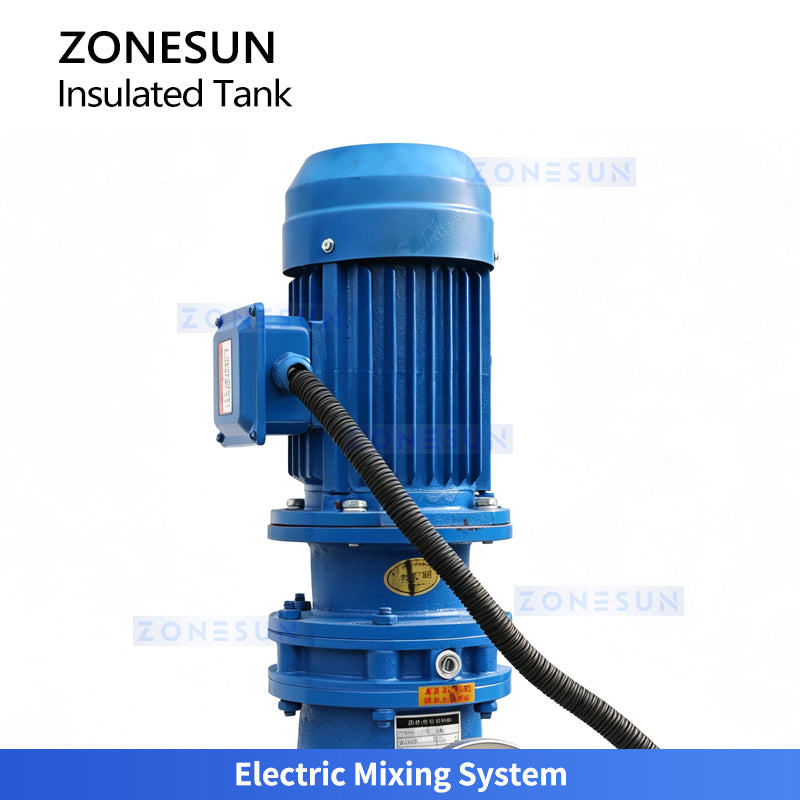

Electric Mixing System
Drives continuous mixing to keep materials evenly blended and maintain uniform consistency during heating.

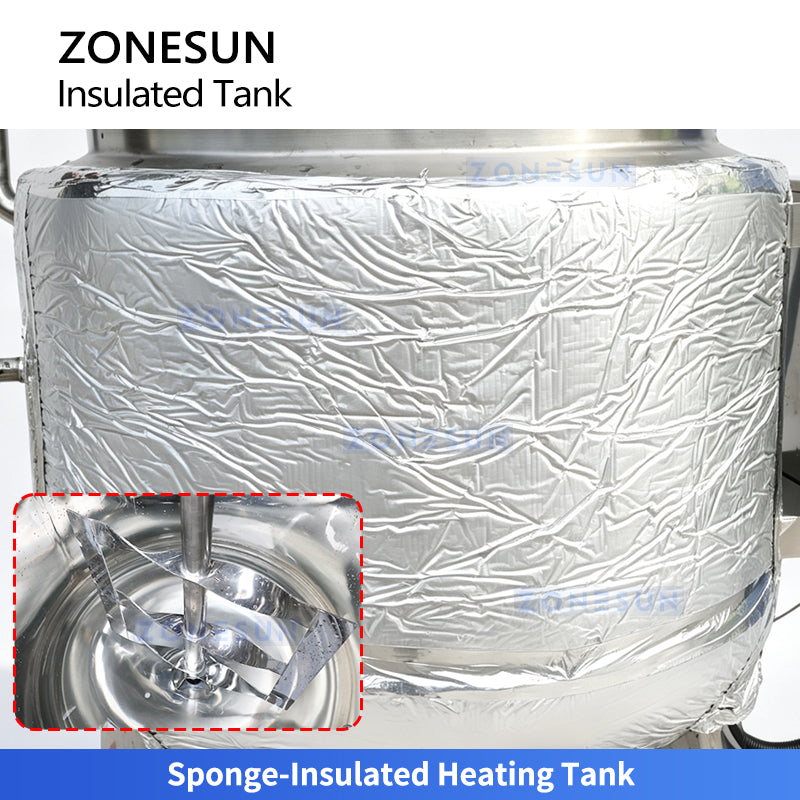

Sponge-Insulated Heating Tank
The sponge insulation layer helps reduce heat loss and maintain a stable material temperature during heating and mixing.

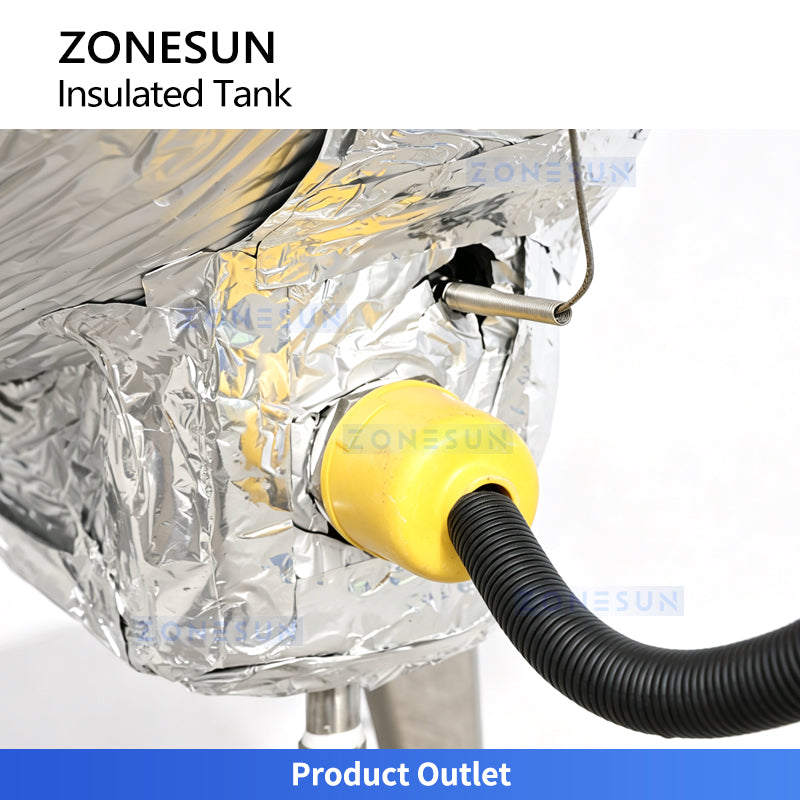

Product Outlet
Bottom-mounted outlet enables convenient and controlled material discharge after mixing.
Key Features
- Electric Heating and Mixing: 6kW heating and 1.1kW stirring support temperature-controlled batch preparation.
- SUS304 Tank: Brushed SUS304 stainless steel with a specified 2mm wall is used for the tank structure.
- Adjustable Stirring: Standard speed is 40 r/min and can be customized within 0–80 r/min.
- Insulated Structure: The sponge insulation layer helps reduce heat loss during heating and temperature holding.
- 25mm Bottom Outlet: Supports controlled discharge and connection to compatible downstream equipment.
How Does the ZS-MB200LH Work?
- Add the compatible liquid ingredients to the tank.
- Set the required heating temperature and mixing conditions.
- The electric heater raises the material temperature while the agitator circulates the batch.
- Maintain mixing until the required process condition is reached.
- Discharge or transfer the material through the 25mm bottom outlet.
Suitable Applications
Typical uses include heated preparation of compatible sauces, syrups, honey, edible oils, shampoo, body wash, detergent bases, and other liquid formulations that require mixing and temperature control.
Choosing the Right Heated Mixing Tank
Before confirming the configuration, provide the material type, viscosity, target temperature, batch volume, required mixing speed, and downstream transfer method. These factors determine whether the standard setup or a customized configuration is more suitable.
Frequently Asked Questions
What are the heating and stirring powers?
The specified heating power is 6kW and stirring power is 1.1kW.
Can the stirring speed be adjusted?
Yes. The standard speed is 40 r/min and the machine can be customized within 0–80 r/min.
Can it connect to a filling machine?
Yes. The 25mm bottom outlet can support connection to compatible transfer or filling equipment, subject to the production-line configuration.
Can the tank be moved?
Yes. It is equipped with three heavy-duty swivel casters.
