DESCRIPTION

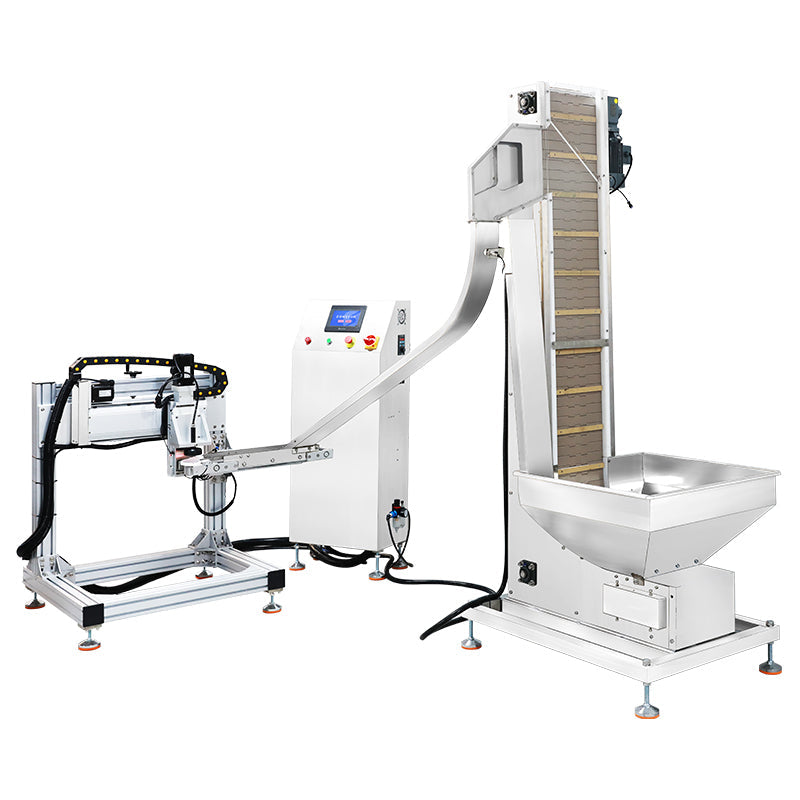

Upgrade your cup packaging line with the ZONESUN Automatic Cup Lid Pressing Machine — designed for efficiently placing and pressing plastic lids onto yogurt, ice cream, and sundae cups. Equipped with a smart cap elevator and PLC touchscreen control, this machine ensures high-speed and precise capping while supporting a wide range of lid sizes.
Parameters
- Model: ZS-SGYG01
- Machine Voltage: 110/220V, 50–60Hz, 500W
- Suitable Bottle Height: Customizable
- Suitable Bottle Cap Diameter: Customizable
- Working Speed: 20–30 BPM (depends on bottles and caps)
- Working Pressure: 0.5 MPa
- Machine Size: Approx. 1750 × 2600 × 2170 mm (L × W × H, total)
- Package Size: – Cap Elevator: Approx. 2220 × 960 × 1210 mm – Capping Structure: Approx. 1330 × 1090 × 1410 mm
- Package Weight: – Cap Elevator: Approx. 180 kg – Capping Structure: Approx. 175 kg

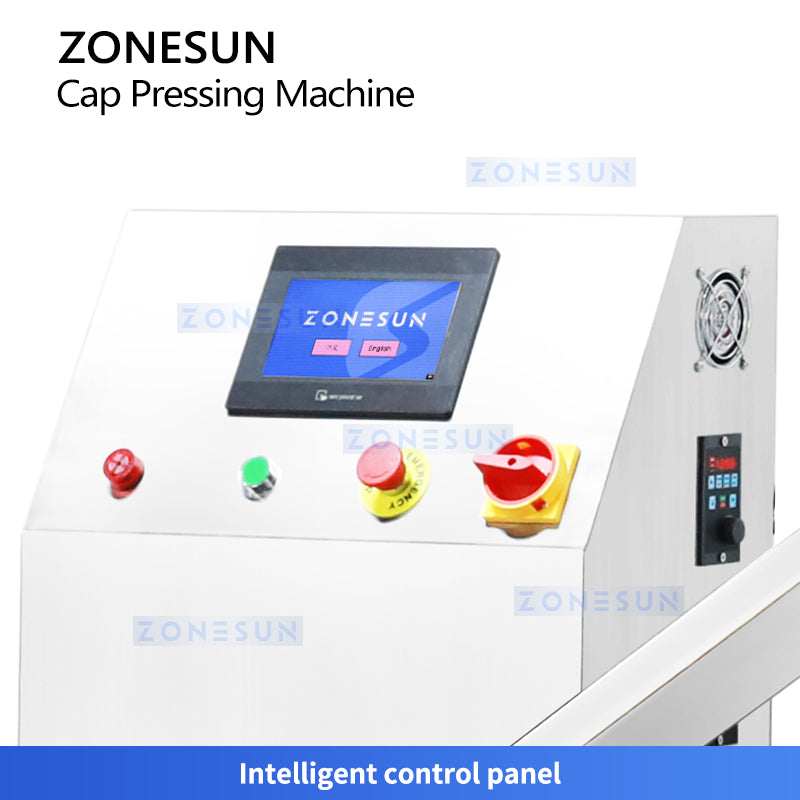

CONTROL PANEL
Makes parameter setting more intuitively, multi kinds of language are customizable.
CAP ELEVATOR
Designed for feeding caps in time, it saves working labor. Customizable as needed.

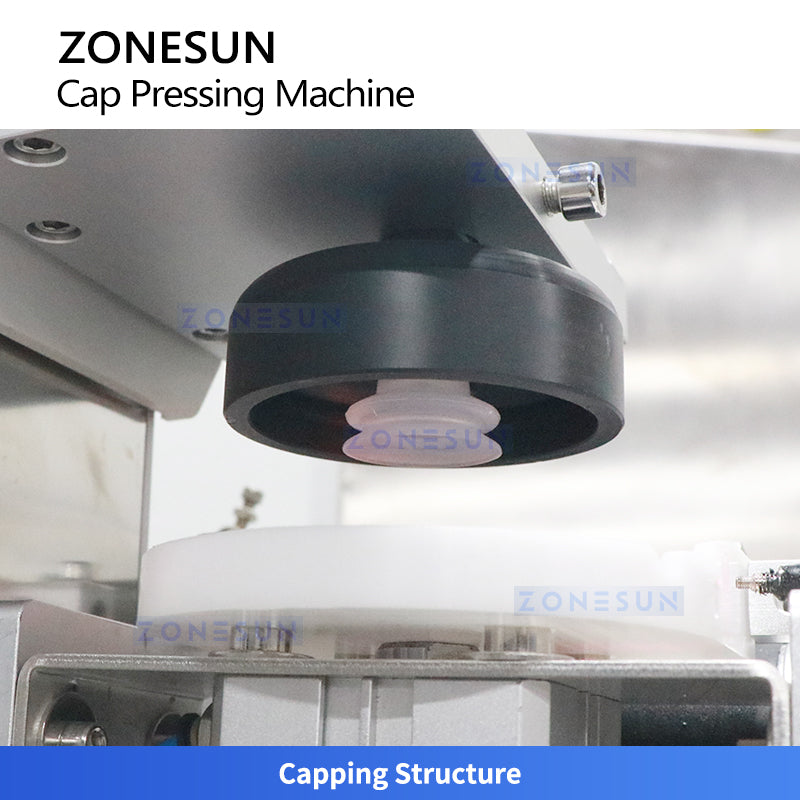

CAPPING STRUCTURE
Using suction cups to pass covers and press it onto cups, ensures capping accuracy.

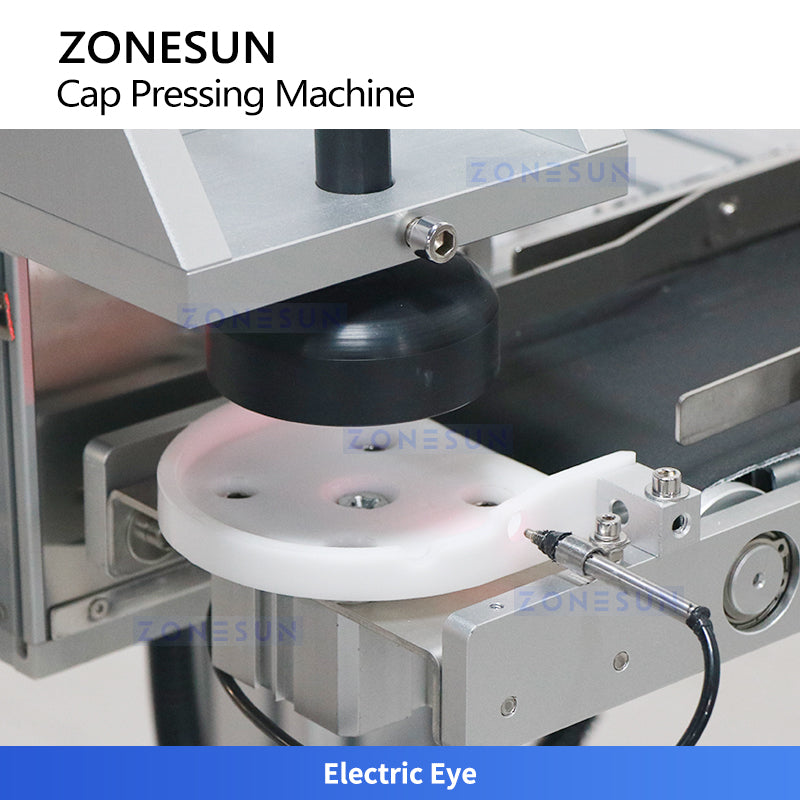

ELECTRIC EYE
Can detect passing by cups and finished cap pressing work, it can integrate with filling lines.
ELECTRIC BOX
This helps maintain machine stability for precise operation & easier maintenance.
