DESCRIPTION
The system uses a multi‑stage water treatment process, including quartz sand filtration, activated carbon adsorption, water softening, precision pre‑filtration, and reverse osmosis membrane separation, to ensure stable and safe water quality. It achieves a permeate water conductivity of ≤ 10 µS/cm, effectively reducing dissolved solids and contaminants for dependable output water.
This RO purifier is available in multiple capacities — ranging from 500 L/H to 2000 L/H — making it adaptable to diverse production scales.
PARAMETER

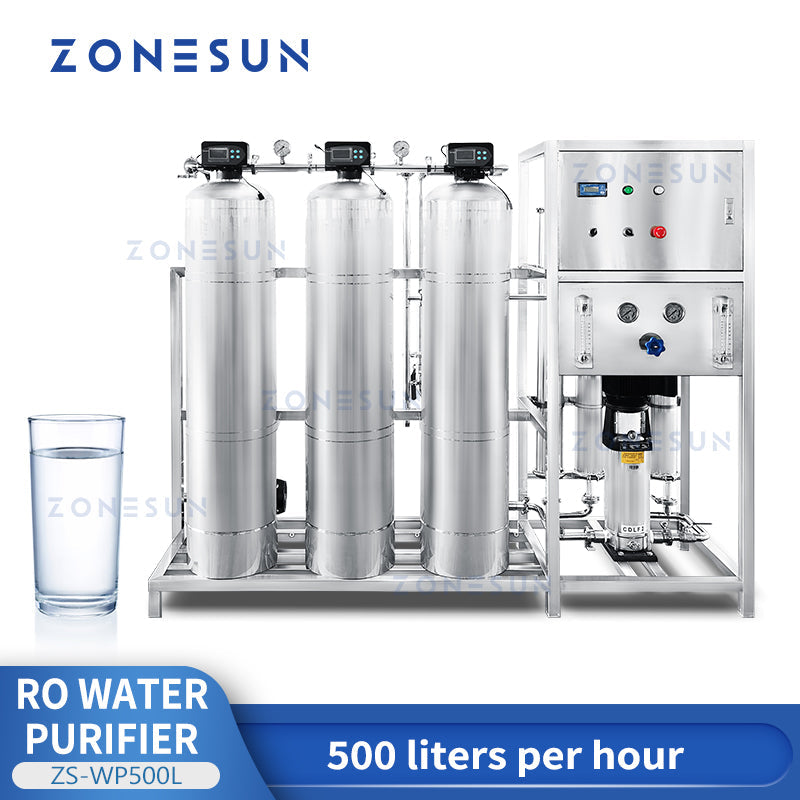

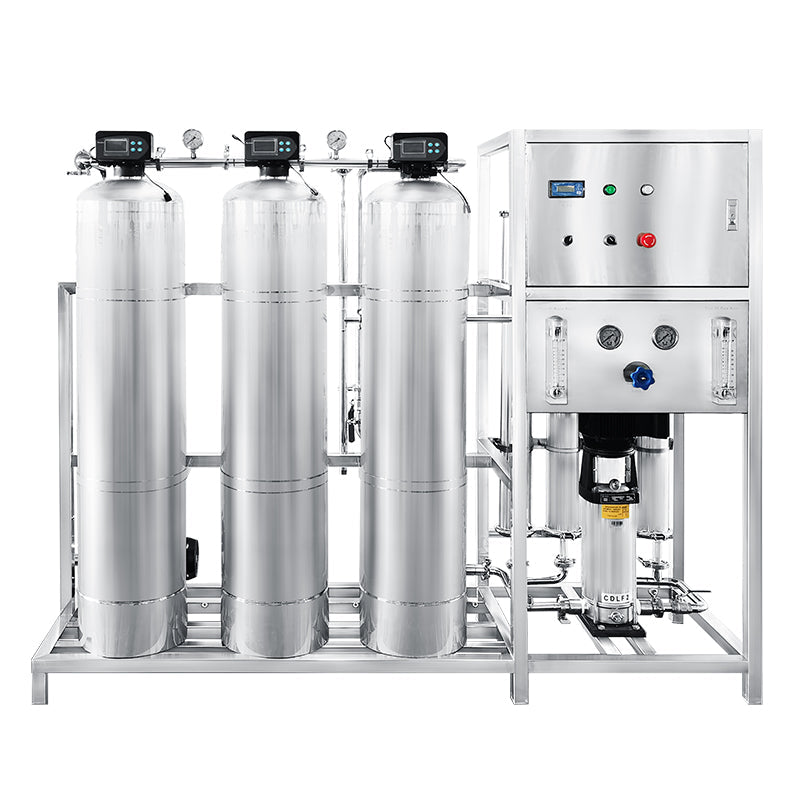

- Name: Reverse Osmosis Water Purifier
- Model: ZS-WP500L
- Power Supply: (3-phase) 380V, 50Hz, 2.1KW
- Raw Water Quality: Conductivity≤400μS/cm, flow rate: 1 ton per hour
- Produced water Quality: Conductivity ≤ 10μS/cm(Subject to in-line analyzer, 25 ℃)
- Production Capacity: 500L/H, 25 ℃
- Recovery Rate: Primary reverse osmosis: 65%-70%
- Membrane Quantity: ESPA 4040*2
- Filter Process: Quartz sand filter,activated carbon filter, cation filter, precision filter, Primary reverse osmosis filter
- Sterilization method: Ozone Sterilization
- Covered Equipment: From raw water inlet through pure water outlet (Terminal piping is not included)
- Size (L*W*H): 1550*900*1820(mm)
- Weight: About 250kg
The ZONESUN Reverse Osmosis Water Purifier is an advanced RO filtration system engineered for reliable removal of dissolved salts, organic impurities, heavy metals, bacteria, and viruses by applying high-pressure reverse osmosis purification. This industrial‑grade water purification solution delivers consistent high‑quality water suitable for laboratories, industrial processes, potable water production, and other professional applications.
Key Functional Highlights
- Advanced RO Technology: Uses high‑pressure reverse osmosis membranes to separate unwanted ions, colloids, and contaminants from feed water for purified output.
- Wide Application: Ideal for laboratories, industrial cleansing, beverage and potable water processing, and any scenario requiring reliable water purity.
- Flexible Production Capacity: Models available in multiple output capacities (e.g., 500 L/H, 1000 L/H, 2000 L/H) to match your workflow.
- Robust Filtration Path: Including quartz sand filter, activated carbon filter, water softener, precision filter and RO membrane for thorough impurity removal.
- Consistent Water Quality: Controlled process ensures permeate conductivity ≤ 10 µS/cm, suitable for high‑purity water requirements.
Typical Use Cases
This RO water purifier is especially suited for:
- Laboratory water supply where high purity water is required for testing and analysis.
- Industrial water treatment in food & beverage, chemical processing, and raw material cleaning.
- Commercial potable water generation for facilities that require stable, purified water streams.
Reliable & Scalable Design
The system’s modular approach — from multi‑stage pre‑filtration to final reverse osmosis — delivers high stability and operational reliability. It can be integrated into larger water processing lines or standalone systems depending on operational demand.
Why Choose This RO System?
Industrial reverse osmosis systems from ZONESUN are engineered for consistent performance, robust construction, and long service life. Whether you need water for laboratory instruments or large‑scale processing, this RO purifier provides high‑efficiency purification with minimal maintenance.
