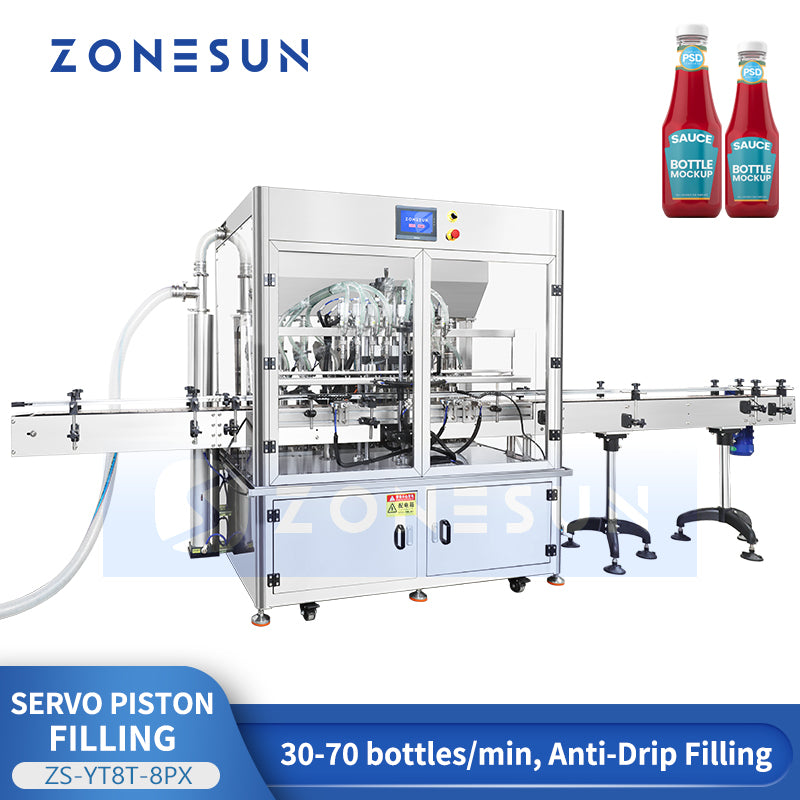

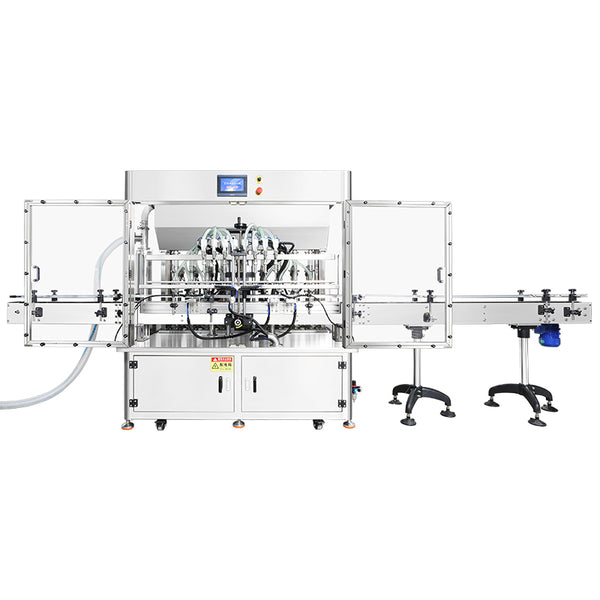

ZONESUN ZS-YT8T-8PX Automatic 8-Head Servo Piston Filling Machine
The ZONESUN ZS-YT8T-8PX automatic 8-head servo piston filling machine is designed for pastes and viscous liquids such as ketchup and shampoo. Eight servo-controlled piston filling heads with an anti-drip design support consistent filling within the specified 100–1000 ml range. Filling speed is approximately 30–70 bottles per minute, depending on bottle size and filling material.
A 250 L hopper, automatic material feeding pump, touchscreen control and drip collection tray reduce manual material handling and support continuous production. The hopper supports heating up to 80°C. The number of filling nozzles and hopper capacity can be customized to suit production requirements.
Technical Specifications
| Model | ZS-YT8T-8PX |
|---|---|
| Power | 6 kW |
| Power Supply | 220 V, 50 Hz |
| Number of Filling Nozzles | 8 (Customizable) |
| Filling Speed | About 30–70 bottles/min (depending on bottle size and filling material) |
| Filling Range | 100-1000ml |
| Max. Heating Temperature | 80°C |
| Material Hopper Capacity | 250 L (Customizable) |
| Air Pressure | 5–6 kg/cm² |
| Air Compressor Connector Size | Φ10 mm |
Applications
Designed for filling pastes and viscous liquids, including ketchup and shampoo, into compatible containers. Share the product viscosity, filling temperature, any particle content and bottle dimensions so the filling configuration can be checked for your application.
Key Features
- Eight servo-controlled piston filling heads for paste and viscous-liquid filling
- Anti-drip nozzles and a drip collection tray to help manage residual product
- Touchscreen adjustment of filling volume, speed and operating parameters
- 250 L material hopper with heating up to 80°C
- Automatic feeding pump to reduce manual hopper refilling
- Customizable filling-nozzle quantity and hopper capacity
Machine Details

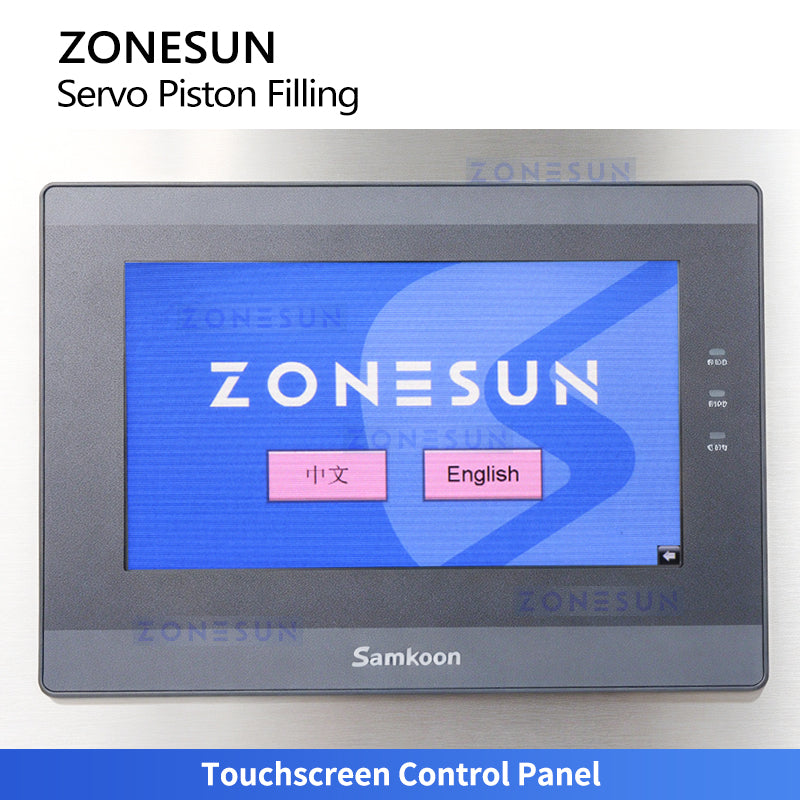

Touchscreen Control Panel
Allows operators to set filling volume, speed and other operating parameters while monitoring machine status.

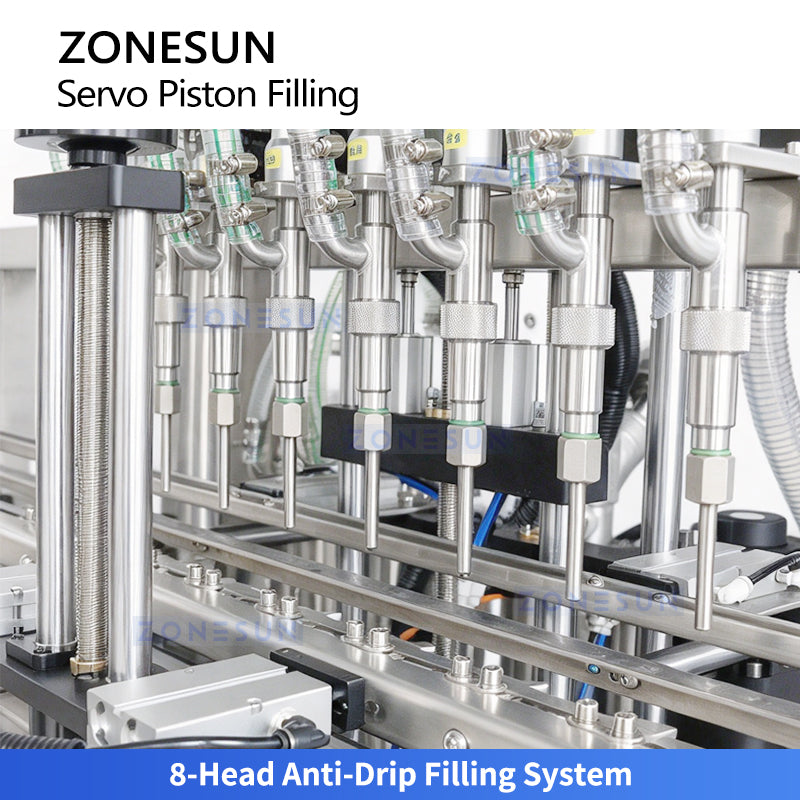

8-Head Anti-Drip Filling System
Eight filling nozzles operate simultaneously for efficient filling, with an anti-drip design to help reduce product dripping after each cycle.

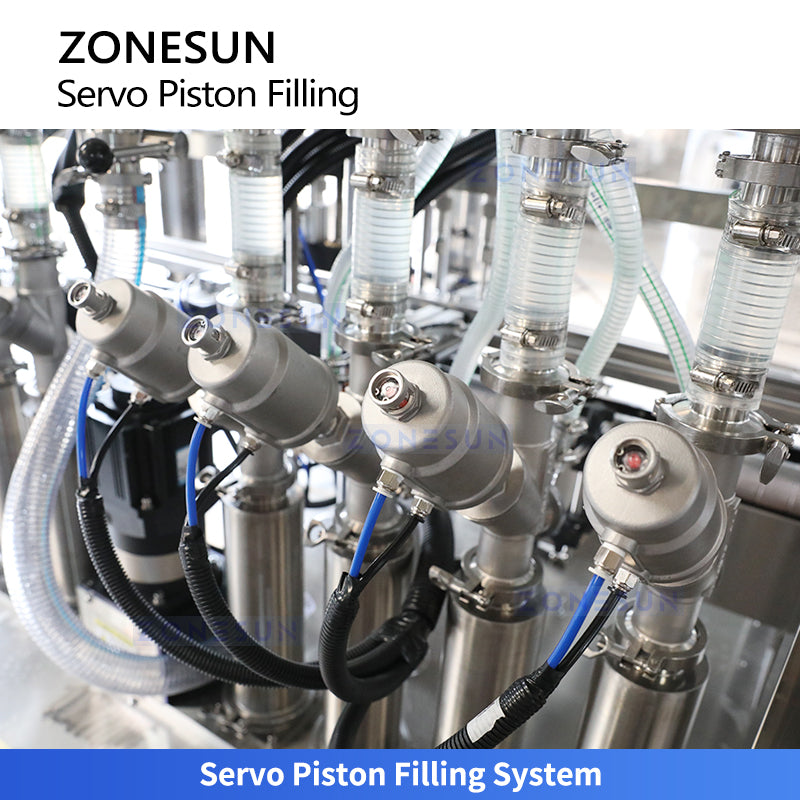

Servo Piston Filling System
Servo-controlled piston filling provides precise control of filling volume and speed for consistent filling of viscous products.

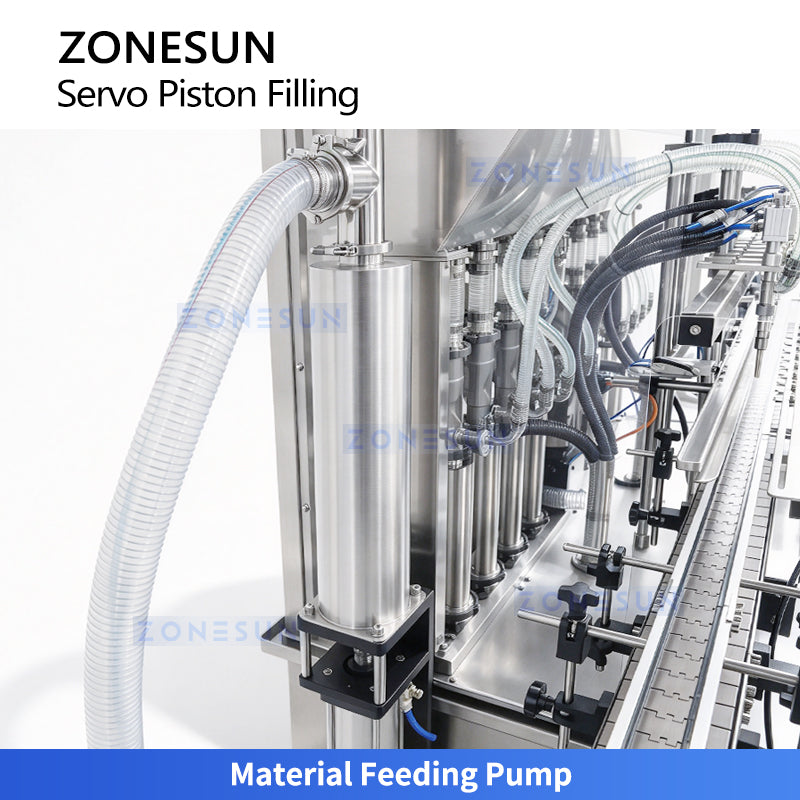

Material Feeding Pump
Automatically transfers paste from an external supply container to the hopper, reducing manual refilling during continuous production.

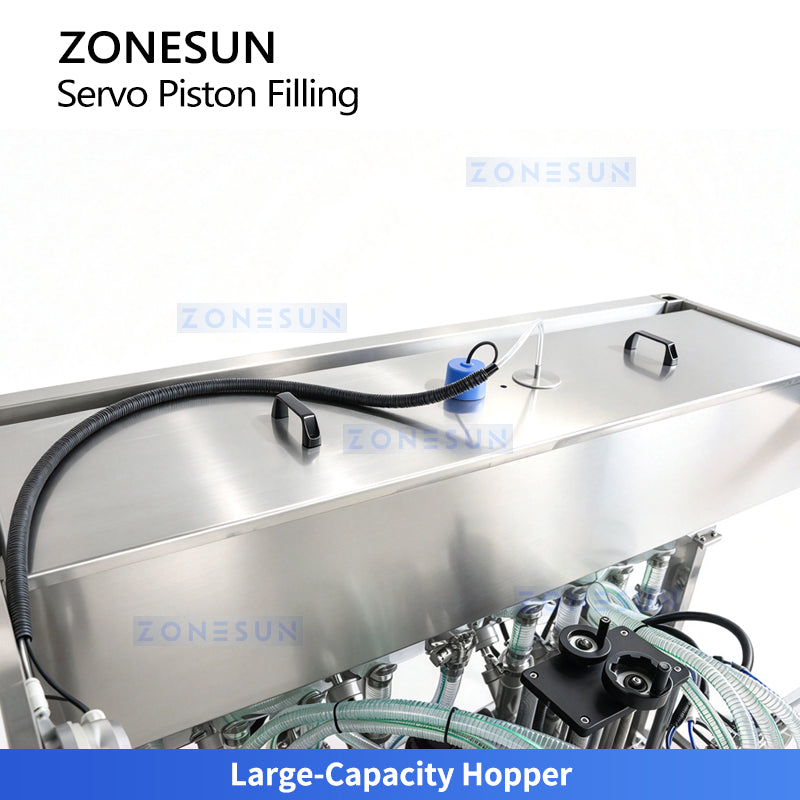

Large-Capacity Hopper
Stores and continuously supplies product to the filling system, reducing frequent material refilling during production.
Drip Collection Tray
Collects residual product beneath the filling nozzles to help keep the conveyor and working area clean.
Electrical Control System
Neatly integrates and protects the main electrical and control components for stable machine operation.
How the Filling Process Works
- Confirm product and container compatibility, utilities and the required filling volume before setup.
- Set the bottle guides and filling-nozzle positions to suit the containers, following the operating manual.
- Supply material from the external container to the hopper using the feeding pump. Set hopper heating only as required for the product and confirmed configuration.
- Set the filling volume, speed and other available parameters on the touchscreen.
- Run a test batch and check fill volume, nozzle alignment and dripping; fine-tune the settings before continuous operation.
- During production, monitor material supply and the drip tray, and follow the specified cleaning and maintenance procedures.
How to Choose the Right Filling Configuration
Provide your product name, viscosity or a sample, filling temperature, particle content if any, target fill volume, bottle dimensions and required output. Confirm nozzle quantity, hopper capacity, heating requirements and the available power and compressed-air supply. For a complete packaging line, also provide cap and label details so downstream equipment compatibility can be assessed.
Frequently Asked Questions
What products can the ZS-YT8T-8PX fill?
It is designed for pastes and viscous liquids, with ketchup and shampoo as example applications. Actual suitability depends on the product characteristics and filling configuration; sample testing is recommended.
What is the filling volume range?
The specified filling range is 100–1000 ml. Share the target volume and bottle dimensions to confirm the appropriate setup.
What is the production speed?
The specified speed is approximately 30–70 bottles per minute, depending on bottle size and filling material. Confirm output using your product, fill volume and container rather than assuming the maximum speed for every application.
Does the hopper support heating?
Yes. The listed maximum hopper heating temperature is 80°C, and the hopper capacity is 250 L. The operating temperature should be selected according to the product and confirmed machine configuration.
Can the filling heads and hopper capacity be customized?
Yes. The standard listed setup has eight filling nozzles and a 250 L hopper; both nozzle quantity and hopper capacity can be customized according to production requirements.
What power and air supply does it require?
The listed power supply is 220 V, 50 Hz, with 6 kW power. The specified air pressure is 5–6 kg/cm² and the air compressor connector size is Φ10 mm. Confirm site utilities and compressor requirements before installation.
