Description

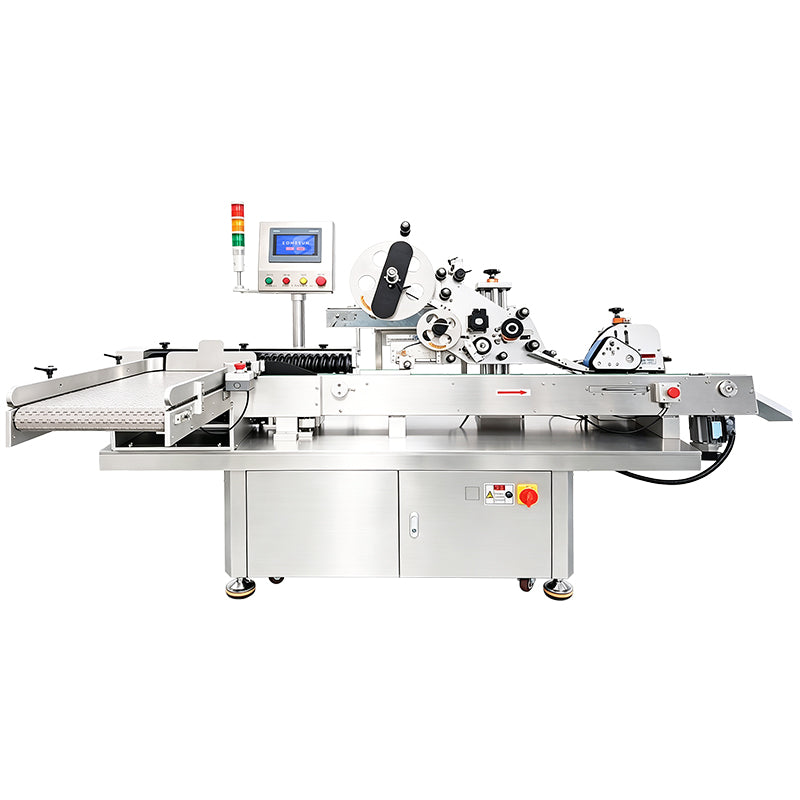

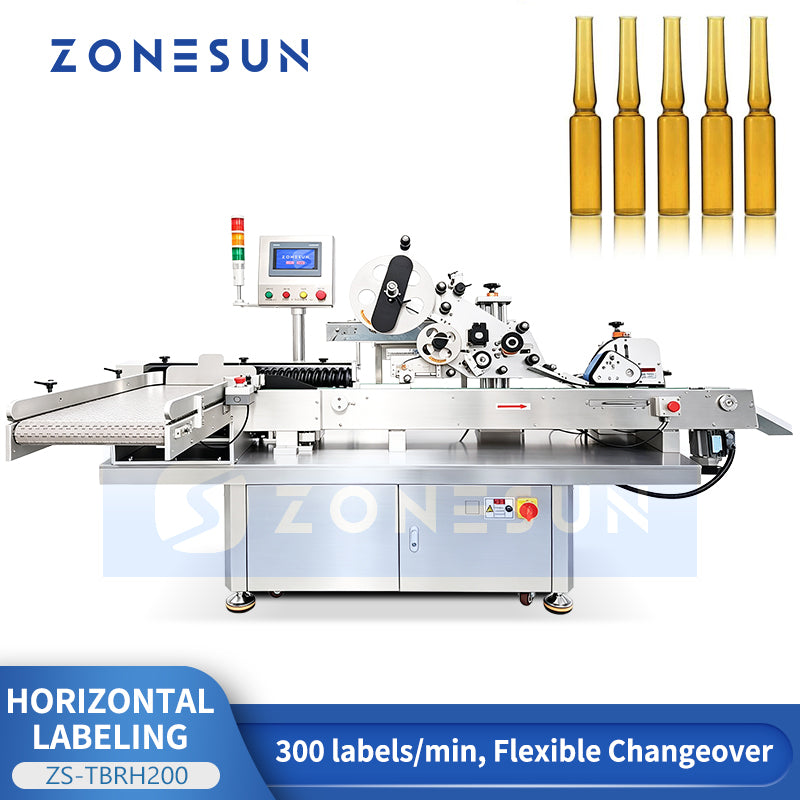

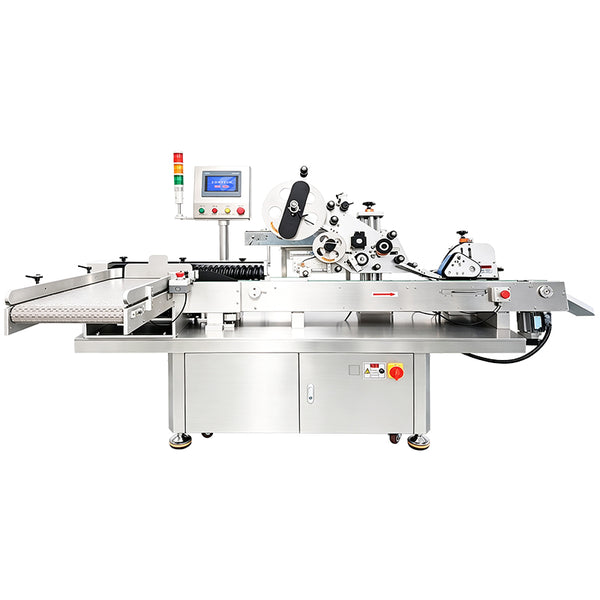

The ZONESUN ZS-TBRH200 is an automatic horizontal labeling machine designed for ampoules, vials and other small-diameter round bottles. Upright containers are guided into a horizontal position before labeling, helping stabilize slender products during high-speed label application.
The machine reaches up to 300 labels/min with specified labeling accuracy of ±0.5 mm. It supports containers approximately 10–30 mm in diameter and 20–95 mm in length, with touchscreen control, photoelectric detection and adjustable labeling components.
Technical Specifications
| Model | ZS-TBRH200 |
|---|---|
| Power Supply | AC 220V, 50/60Hz, Single Phase |
| Power Consumption | 2.4 kW |
| Labeling Speed | 300 labels/min |
| Labeling Accuracy | ±0.5 mm (excluding errors from product and label) |
| Applicable Container Size | Length: 20–95 mm; Diameter: 10–30 mm |
| Applicable Label Size | Height: 20–95 mm; Length: 25–90 mm |
| Maximum Label Roll | OD: 420 mm; Core ID: 76 mm |
| Printer Air Pressure | 5 kgf/cm² |
| Printing Speed | 350 times/min |

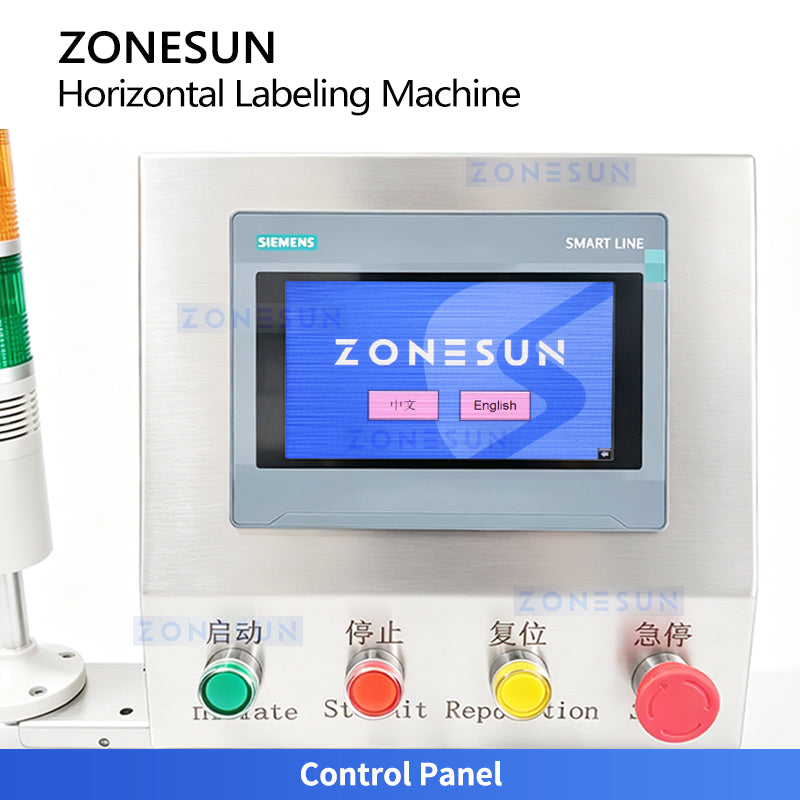

Control Panel
Centralized touchscreen control makes operating parameters and production adjustments easier to manage during daily operation and product changeovers.

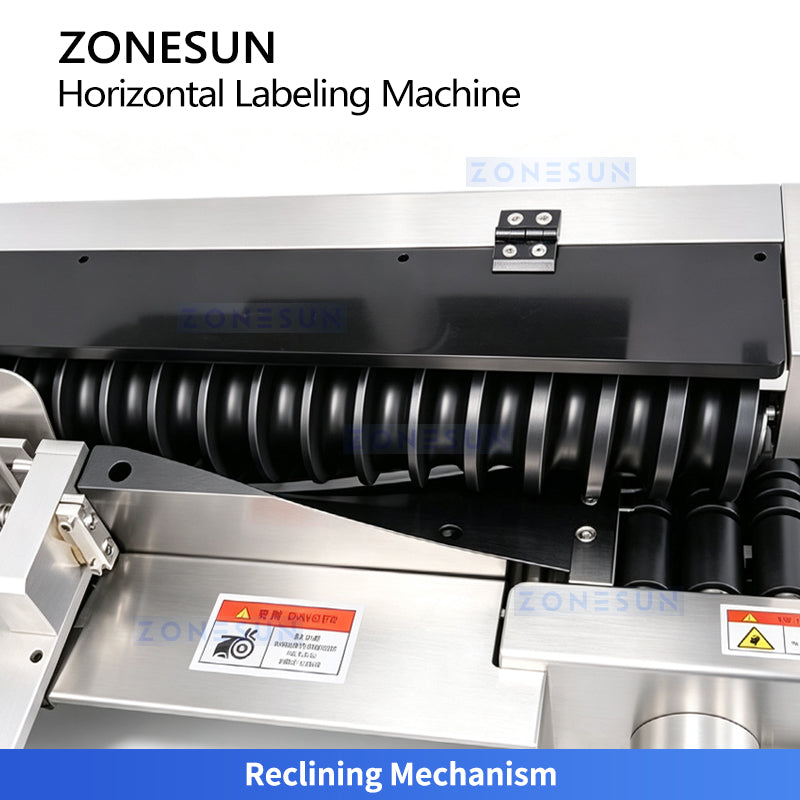

Reclining Mechanism
The guide and separating mechanism smoothly changes upright slender bottles into a horizontal conveying position before labeling, helping maintain stable bottle orientation through the labeling process.

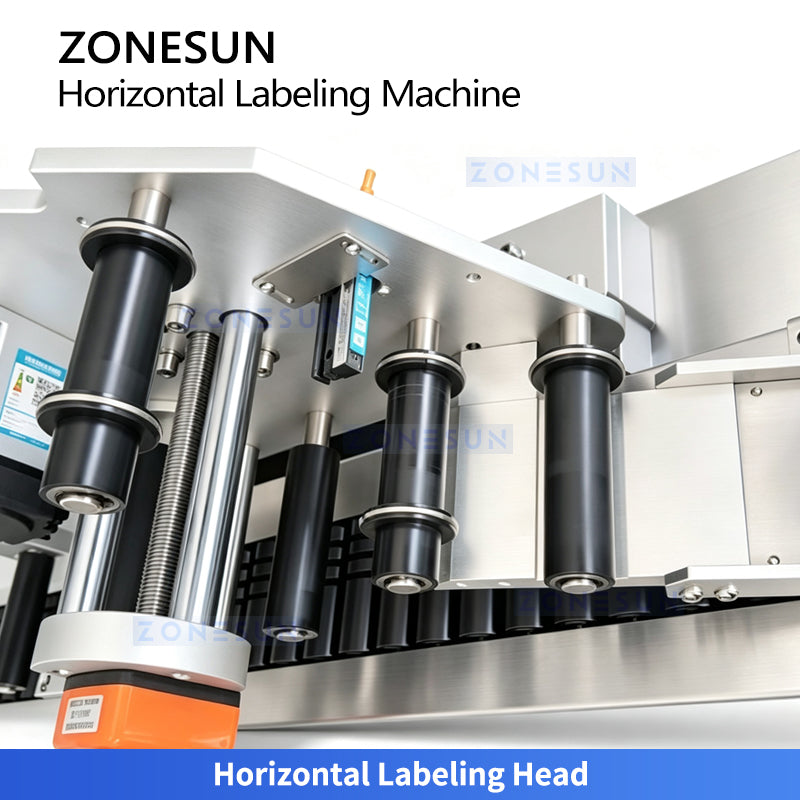

Horizontal Labeling Head
Dispenses and applies labels precisely onto horizontal rolling products via a multi-roller guiding system, eliminating bubbles to ensure wrinkle-free packaging results.

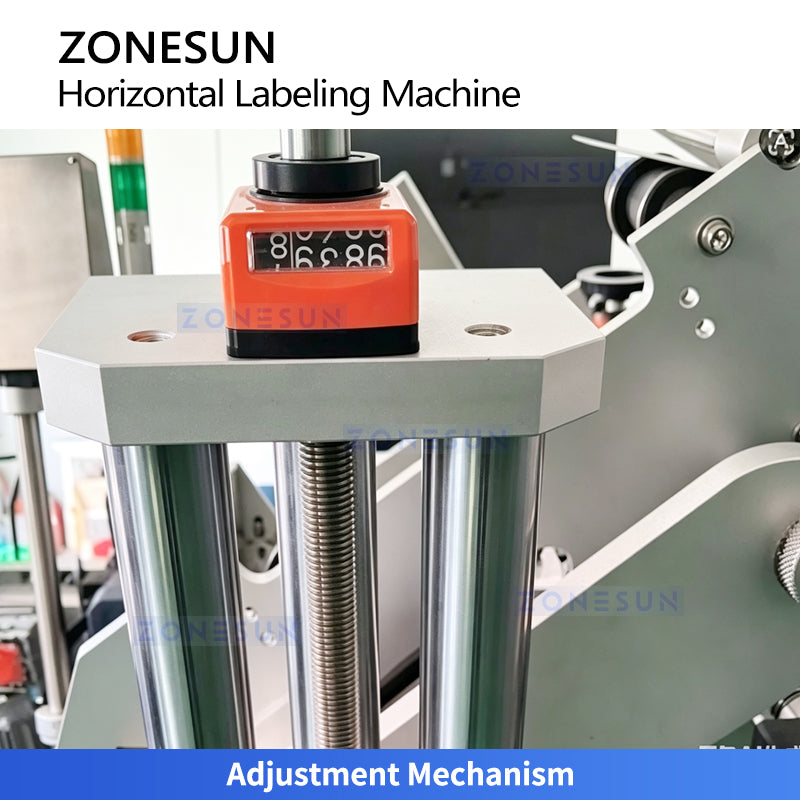

Adjustment Mechanism
Handwheel adjustment allows the labeling assembly to be fine-tuned for compatible bottle diameters and labeling positions, simplifying changeovers between products.

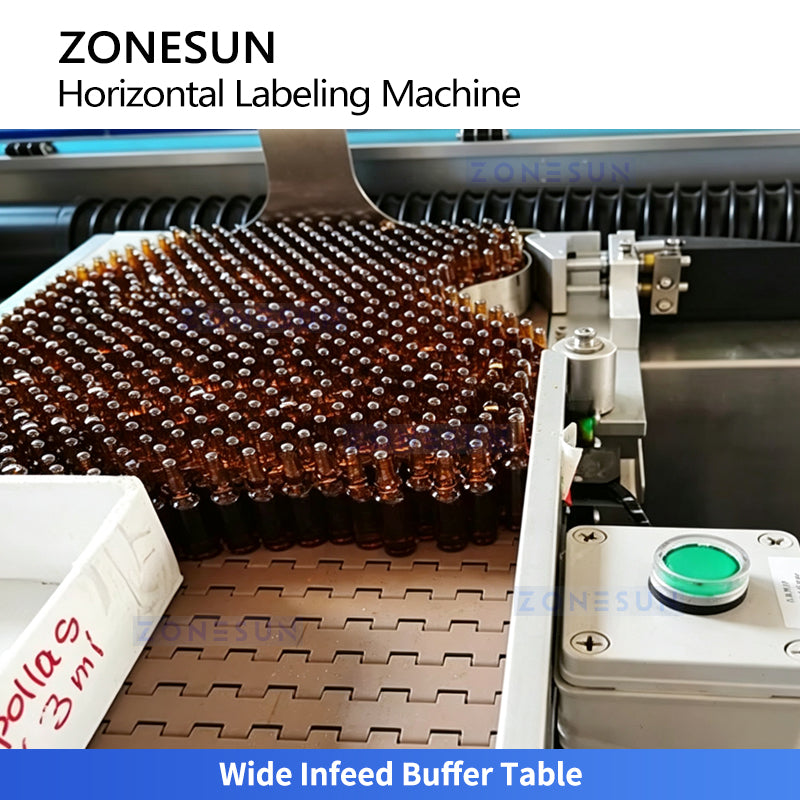

Wide Infeed Buffer Table
The wide flat-belt infeed area provides bottle loading and accumulation space, helping maintain smooth and continuous feeding into the labeling section.
Smart Photoelectric Detection
Photoelectric sensors coordinate bottle detection and label dispensing. Label output pauses when no bottle is detected, helping reduce unnecessary label consumption.
Best-Suited Applications
- Ampoules and small glass bottles
- Cosmetic serum and essence vials
- Laboratory and reagent containers
- Small-diameter round bottles
- Other 10–30 mm diameter cylindrical containers
Container & Label Compatibility
The listed container range is 20–95 mm in length and 10–30 mm in diameter. Label height is 20–95 mm and label length is 25–90 mm.
What Should Be Confirmed Before Ordering?
- Container diameter and length
- Container material and surface
- Label width and length
- Label roll core and outside diameter
- Required labeling position
- Target labels per minute
- Whether printing is required
- Upstream and downstream line requirements
Frequently Asked Questions
Why are bottles turned horizontal before labeling?
Horizontal conveying provides more stable support for slender, small-diameter containers during label application.
What is the maximum labeling speed?
Up to 300 labels/min.
What is the specified labeling accuracy?
±0.5 mm, excluding product and label errors.
Can it connect to a filling or packing line?
Yes. It can operate independently or integrate with compatible upstream and downstream equipment.
Need Help Confirming Bottle & Label Compatibility?
Send us your container sample, dimensions, label size, roll specification and target speed.
