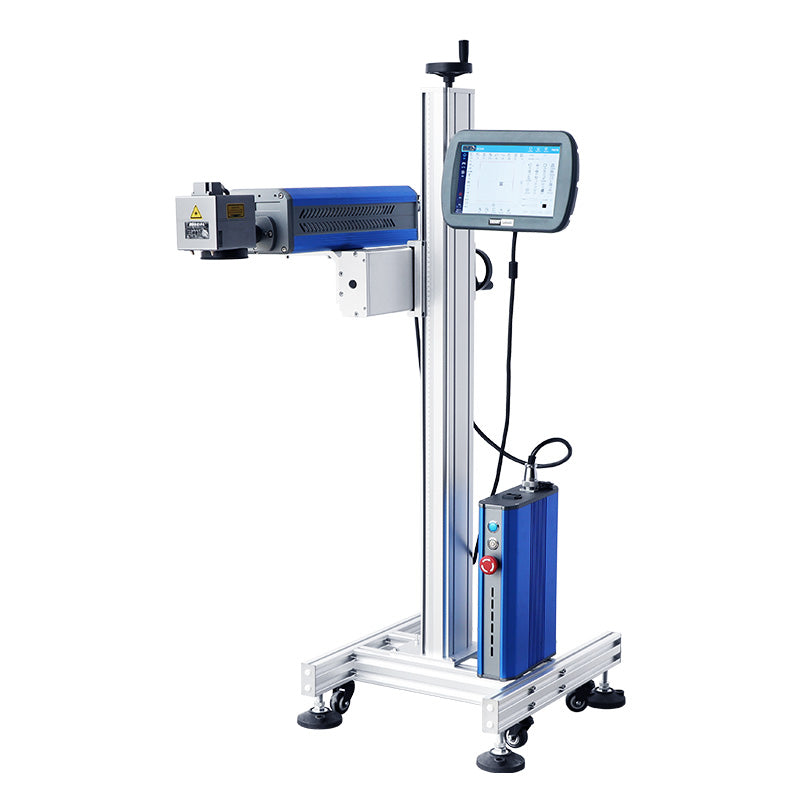

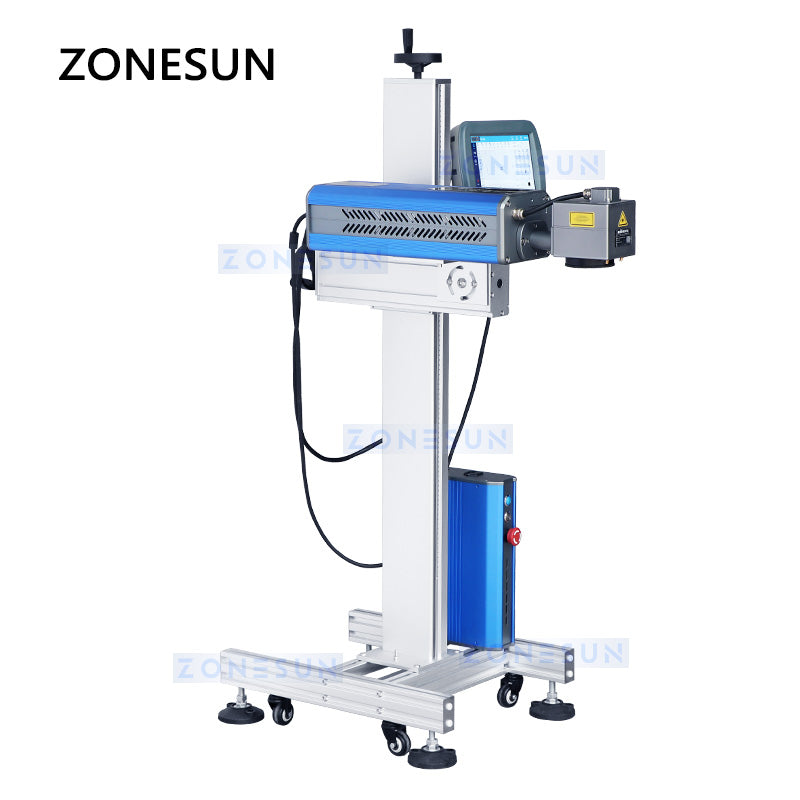

ZONESUN ZS-LM1 CO₂ Laser Marking Machine for Packaging Production Lines
- Prix
- $4,299
Please click "Buy It Now". Shipping will be calculated at checkout.
Shipping Information
Shipping methods and costs vary depending on the machine model, package size, destination, and delivery method. ZONESUN offers multiple shipping options, including express delivery, air freight, sea freight, and other available logistics services. Large machines and production lines are typically packed in export-standard wooden cases for safer transportation.
To check available shipping options and estimated shipping costs, add the product to your cart and enter your delivery address during checkout. The available shipping methods for your destination will be displayed automatically.
DDP (Delivered Duty Paid) shipping options may also be available for selected destinations. Where DDP is available and selected, the applicable duties, taxes, customs clearance, and delivery arrangements will be handled according to the terms of the quoted DDP shipping service. Please contact us if you would like to confirm DDP availability for your destination before ordering.
For large machines, customized equipment, or complete production lines, we recommend contacting us before placing an order so our team can confirm the most suitable shipping method, packaging requirements, estimated freight cost, and delivery schedule.
For non-DDP shipping methods, import duties, customs clearance fees, local taxes, and other destination charges may apply and are generally determined by local customs authorities.
About Us
ZONESUN specializes in automated packaging machinery and integrated production line solutions, including filling, capping, labeling and sealing equipment. We provide standalone machines and customized packaging lines for different products, containers and production requirements.
ZONESUN is operated by Guangdong Shanghang Technology Limited, with engineering, manufacturing and technical support capabilities for global customers.

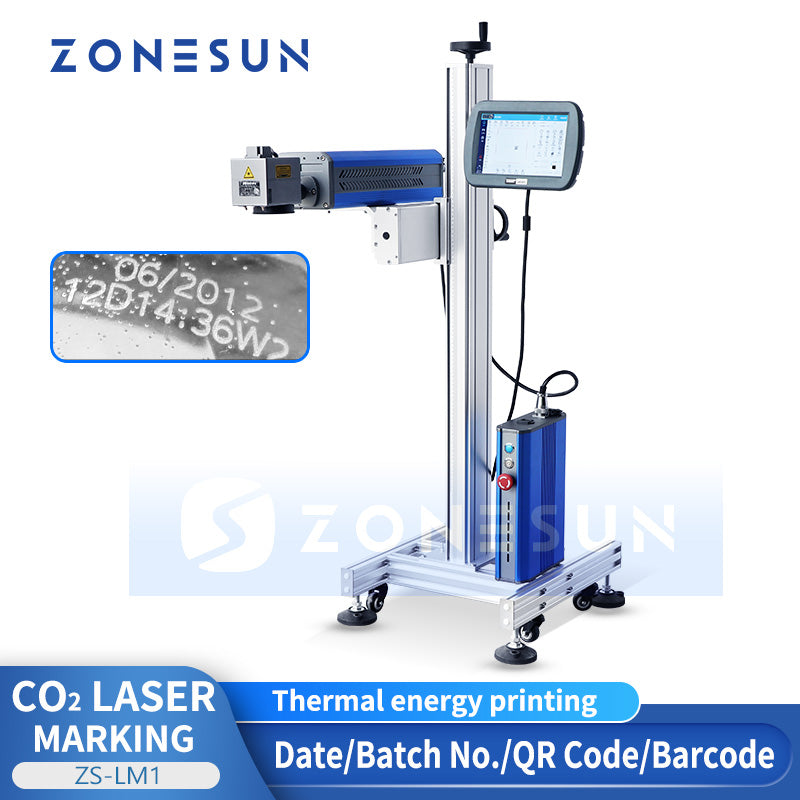

The ZS-LM1 is a CO₂ laser marking machine designed for high-speed, ink-free printing of dates, batch numbers, QR codes, and barcodes. It supports a wide range of materials including PET, HDPE, coated paper, glass, leather, and cloth. Using spectral thermal energy, it eliminates the need for consumables, making it a cost-effective solution for food, cosmetics, chemical, and electronics packaging lines. ZONESUN delivers precision with zero waste.
ZONESUN ZS-LM1 CO₂ Laser Marking Machine – Technical Specifications
Parameter Specification
Machine Model ZS-LM1
Power Supply 110/220V, 50–60Hz, 30W
Cooling Method Air cooling
Laser Type CO₂
Supported Ports SD card, USB 2.0, RS232

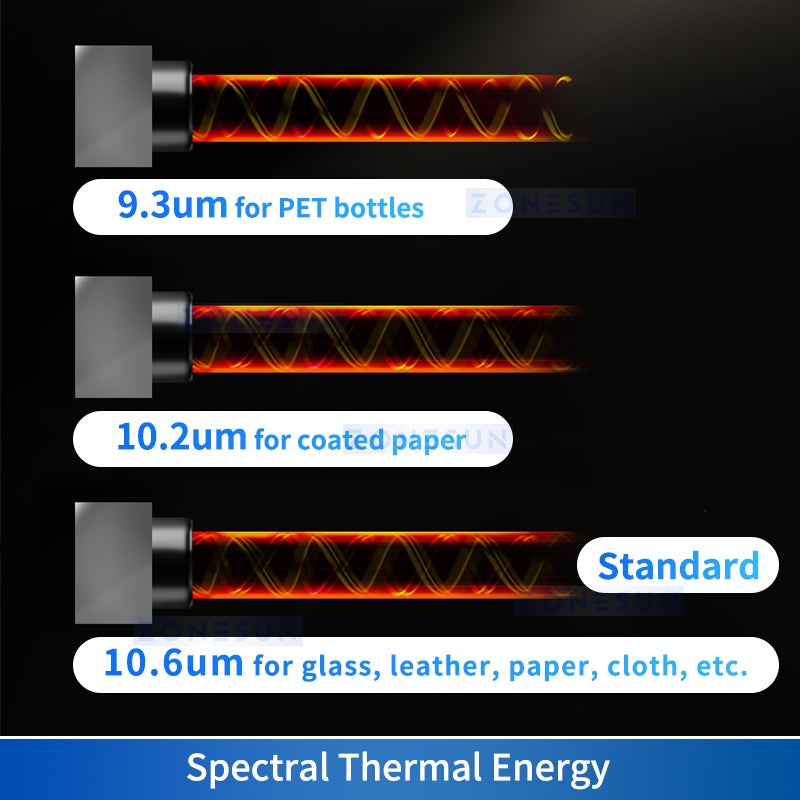

Wavelength Options 9.3 / 10.2 / 10.6 μm
Marking Speed PVC Tubes: 40 m/min<br>PET Bottles: 20,000 bottles/hour<br>Coated Cartons: 35 m/min
Marking Range 70×70 / 90×90 / 110×110 / 140×140 mm
Applicable Materials PET, Acrylic, Glass, Leather, Plastic, Cloth, Rubber
Net Weight Approx. 110 kg
Machine Dimensions Approx. 1430 × 565 × 930 mm

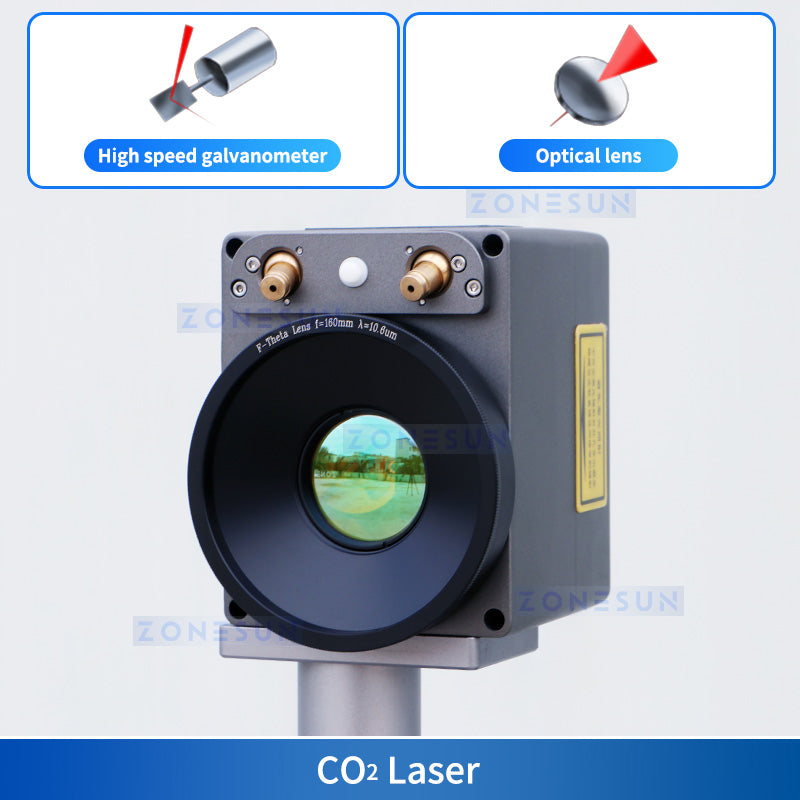

Laser Scanning System
The optical scanner and servo controller use dynamic magnetic deflection to provide a large scanning angle, high load capacity, and fast operation.

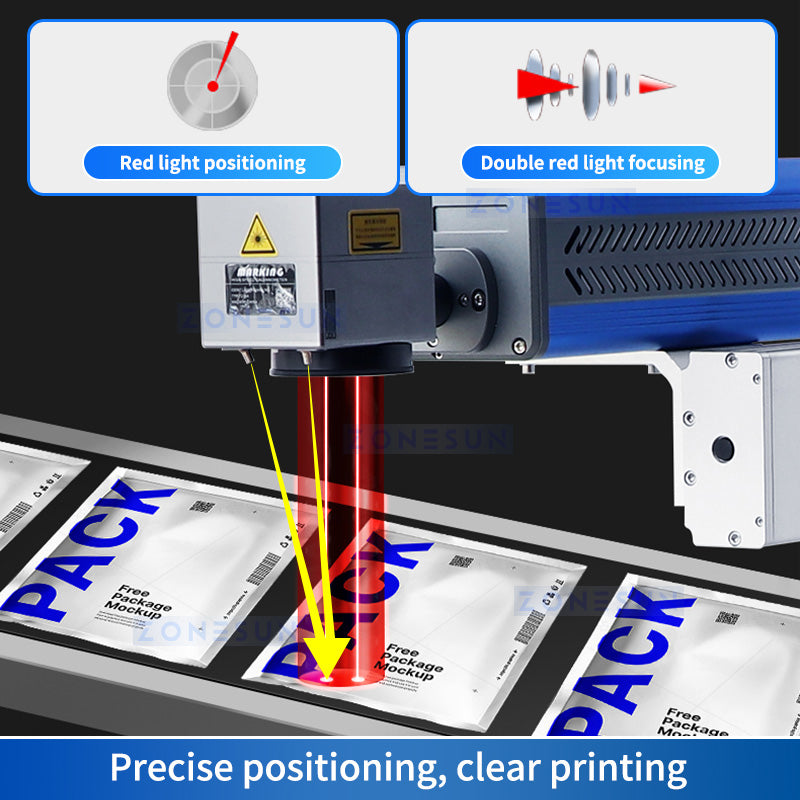

Red-Light Positioning and Focusing
Red-light positioning and focusing support fast, accurate alignment before laser marking.

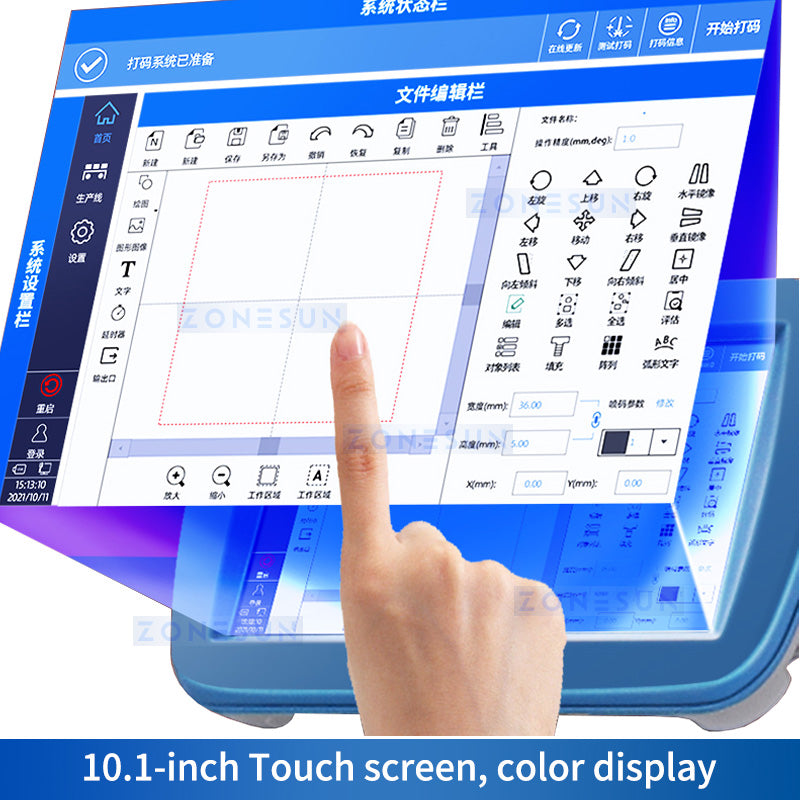

10.1-Inch Touchscreen Control
The 10.1-inch color touchscreen provides access to marking content and machine operating settings.
Spectral Thermal-Energy Marking
The CO₂ laser uses spectral thermal energy to create durable marks without consumables such as ink cartridges.
