DESCRIPTION

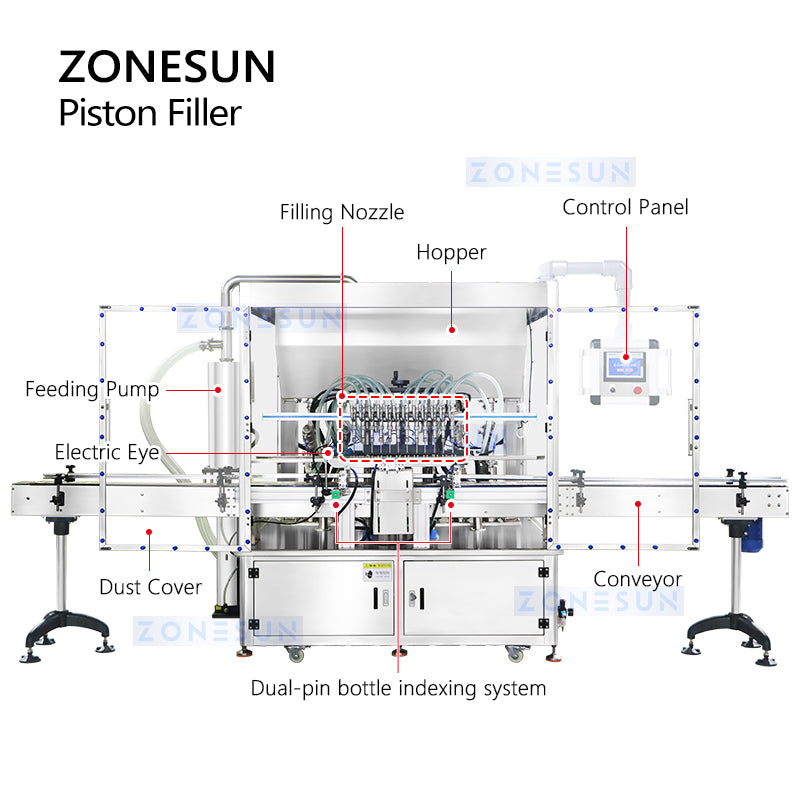

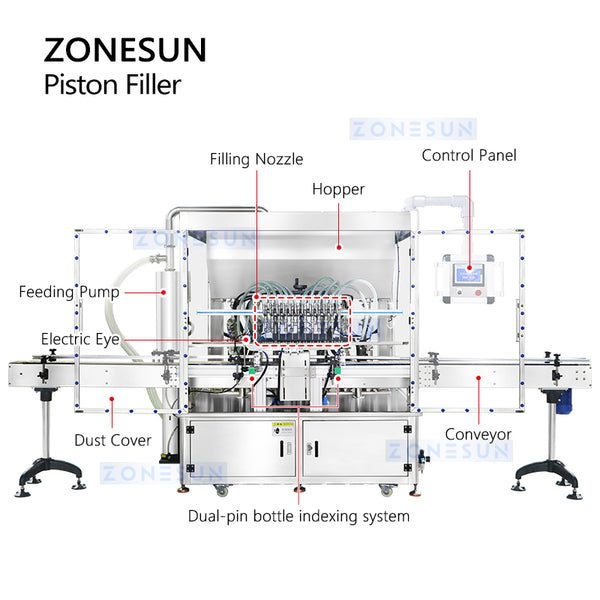

Zonesun Automatic Linear Piston filler is an extremely flexible filler capable of filling accurately and rapidly any viscous liquids. Product delivery from your bulk tank to the pistons can be configured with a buffer tank utilizing a level-sensing float, a manifold with direct draw, or re-circulation methods. The Zonesun Automatic Linear Piston Filler is manufactured with a 304 stainless steel frame and is capable of supporting 1 to 12 fill heads. PLC controls, touch screen HMI, food grade contact parts, stainless steel, and anodized aluminum construction and many more features come standard. Zonesun Automatic Piston Fillers are designed to add efficiency to any production line used in the cosmetic, food service, specialty chemical, pharmaceutical, and personal care industries. Additional options are available for sanitary, hazardous, flammable, and corrosive environments.
Whatever your packaging needs are, you can rely on ZONESUN.
Parameter
| Model: | ZS-YT12T-12PX |
| Voltage: | 220V/110V 50–60Hz |
| Power: | 2kW |
| Filling Heads: | 12 (customizable) |
| Filling Range: | 100–1000ml (customizable) |
| Filling Speed: | Approx. 30–70 bottles/min (varies by material and bottle size) |
| Filling Accuracy: | ±1% |
| Air Pressure: | 0.5–0.8MPa |
| Memory Function: | Available |
| Package Size: | Approx. 2240 × 1390 × 2270mm |
| Package Weight: | Approx. 950kg |

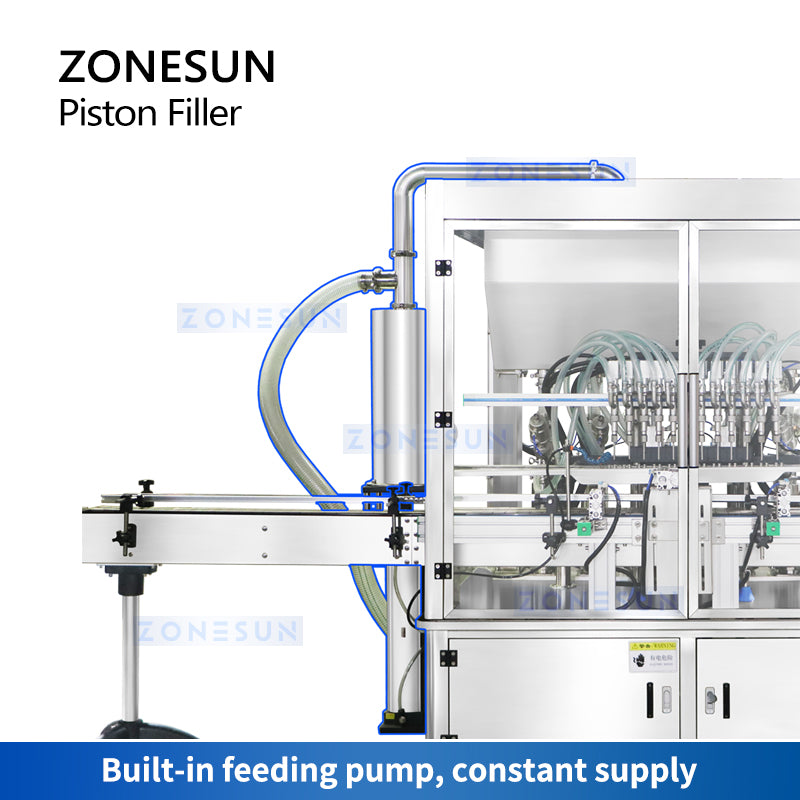

Automatic Material Feeding
The feeding pump supplies paste continuously to the multi-nozzle filling system.

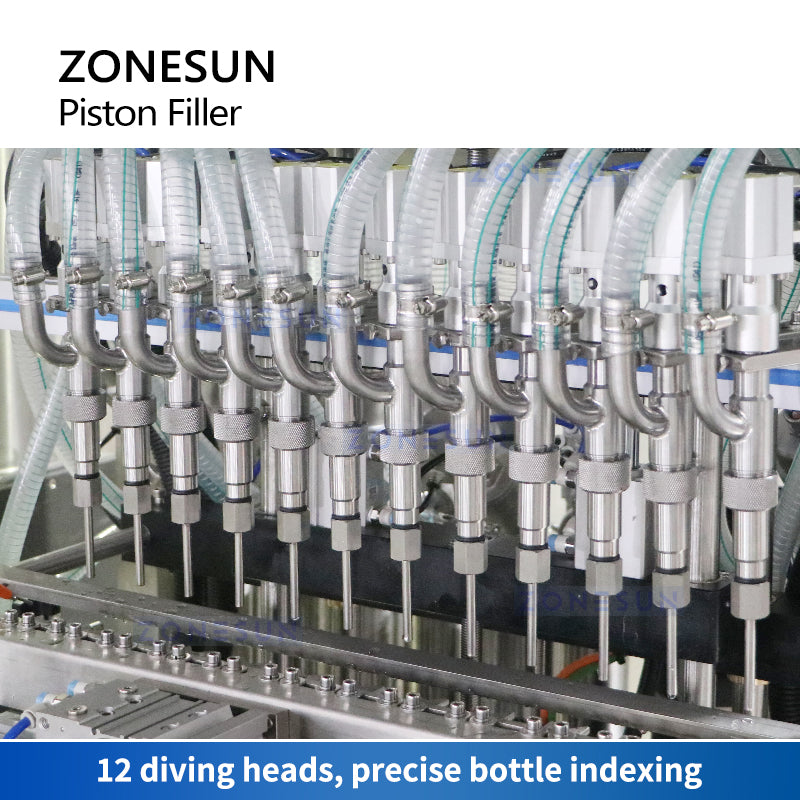

Diving Filling Nozzles
The nozzles descend during filling to reduce splashing and improve filling quality.

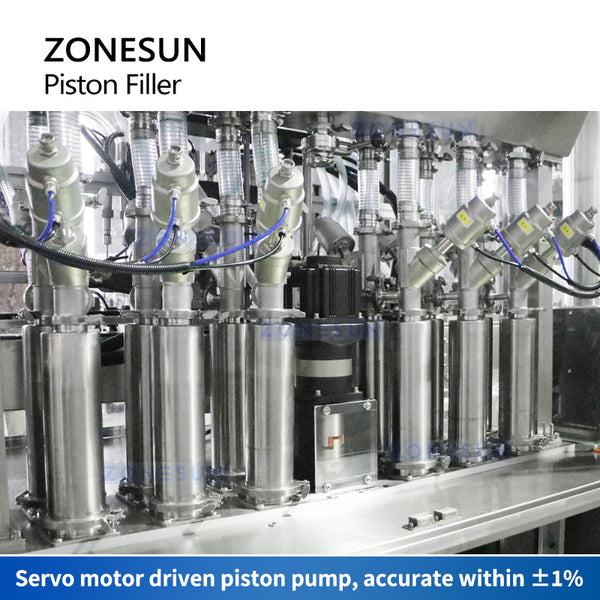

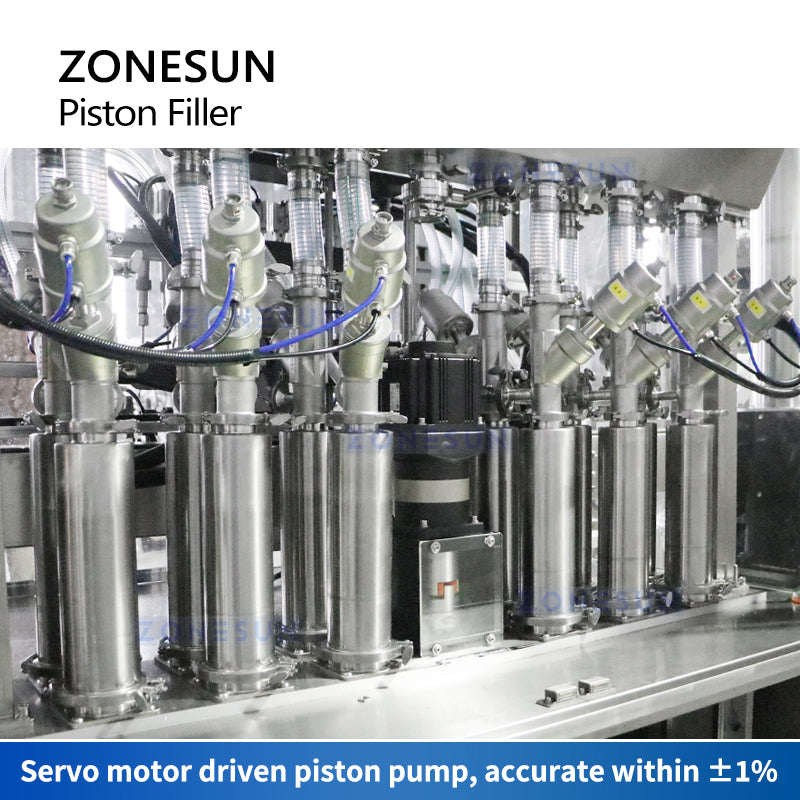

Servo Piston System
Servo-driven pistons provide controlled dosing across multiple filling heads.

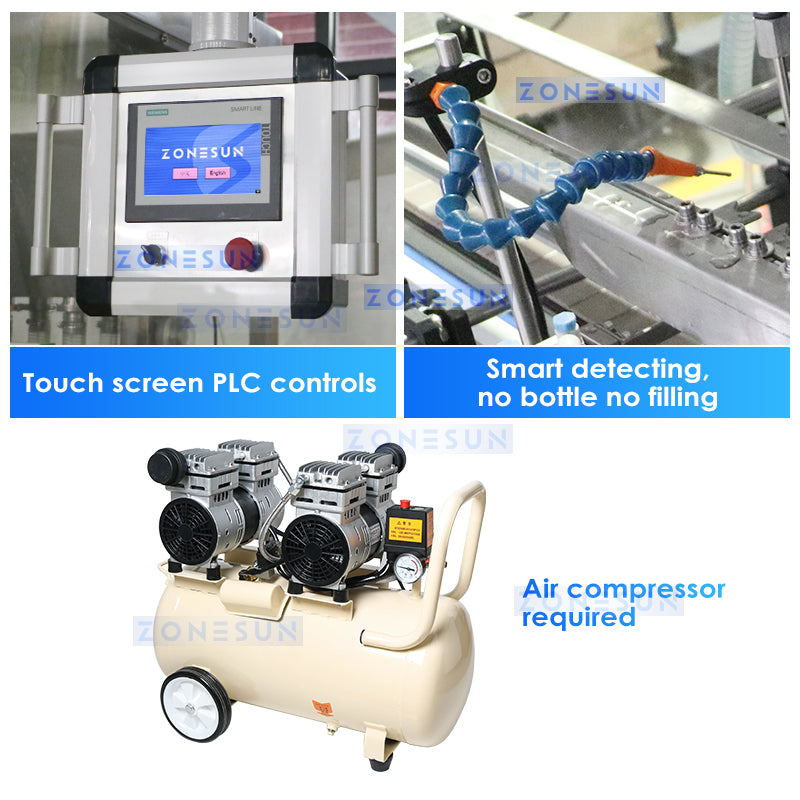

Touchscreen Control
The touchscreen provides centralized adjustment of filling parameters.
Applications and Configuration Guide

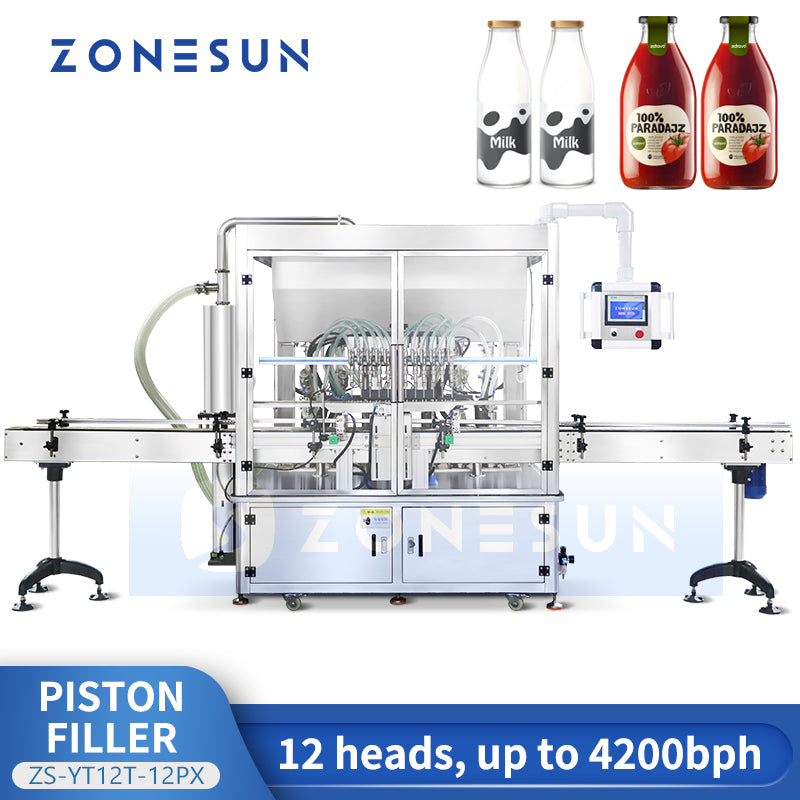

The ZONESUN ZS-YT12T-12PX is a 12-nozzle servo piston paste filling machine with a feeding pump for transferring material to the filling system. It is intended for viscous liquid and paste filling in cosmetic, food, and personal care production, with applications such as cream, lotion, shampoo, honey, and sauce subject to material testing.
Confirm the actual material, target fill volume, container opening, and required output when choosing the filling and feeding configuration. The listed filling range is 100–1000ml (customizable). Product viscosity, flow behavior, and bottle size affect filling performance. Any special material or operating environment requires configuration confirmation.
Frequently Asked Questions
How many filling heads does this model have?
The specified configuration has 12 filling heads, with customization available.
What is the filling range?
The listed range is 100–1000ml (customizable). Confirm the required volume with the actual product and container samples.
What does the feeding pump do?
It supplies paste to the multi-nozzle filling system, supporting automatic material feeding.
How is the filling controlled?
Servo-driven pistons control dosing, while the PLC and touchscreen HMI provide filling parameter adjustment. The listed memory function is available.
What are the specified speed and accuracy?
The listed speed is approximately 30–70 bottles/min and varies by material and bottle size. The listed filling accuracy is ±1%. Confirm the actual result with the intended material, fill volume, and containers.
What utilities are required?
The specified voltage is 220V/110V, 50–60Hz; power is 2kW; and air pressure is 0.5–0.8MPa. Select the appropriate voltage variant and confirm the installation requirements.
