Description

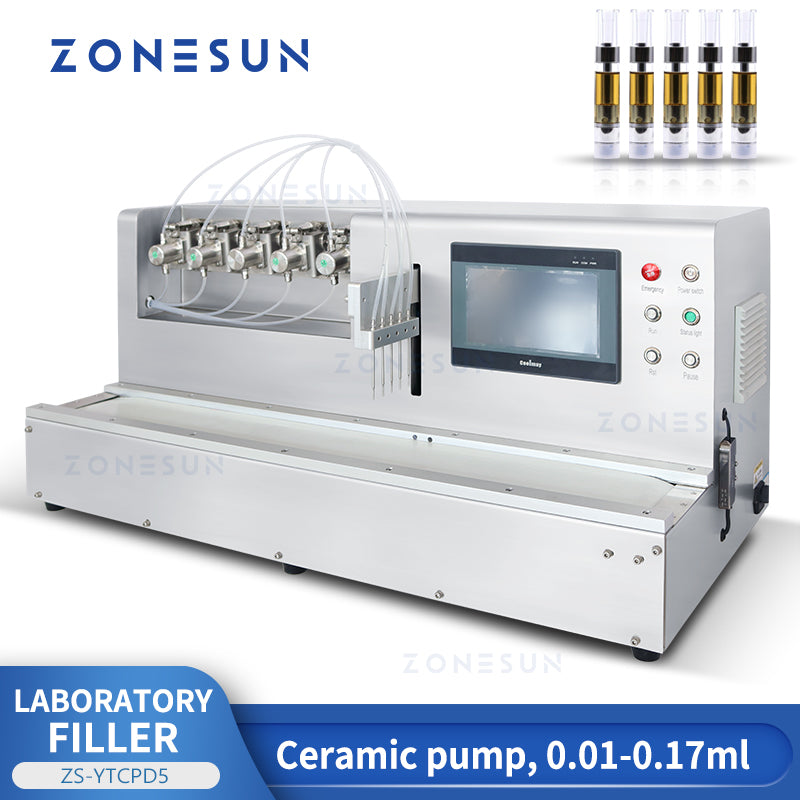

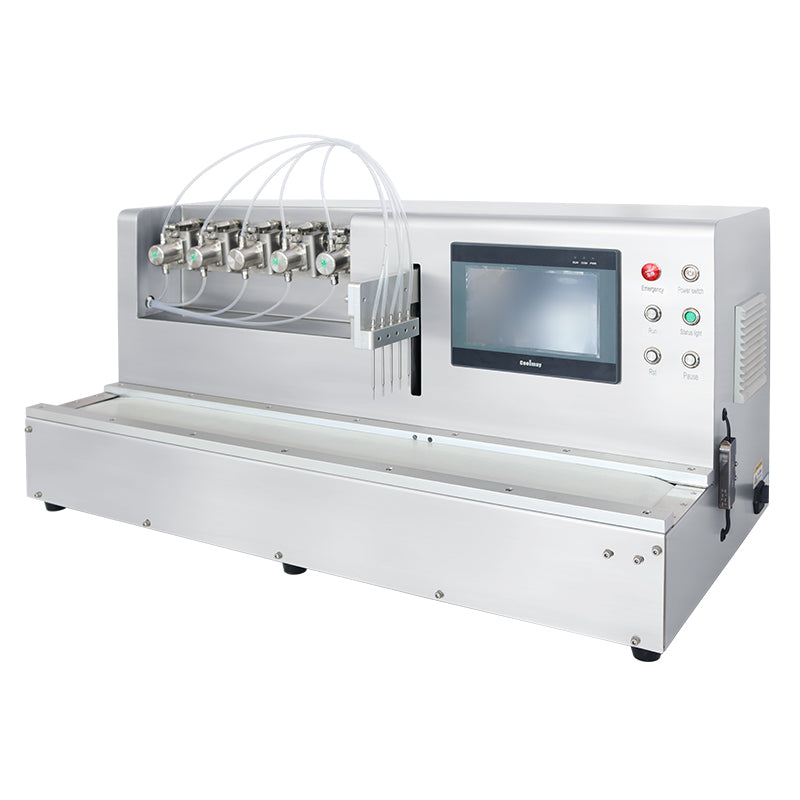

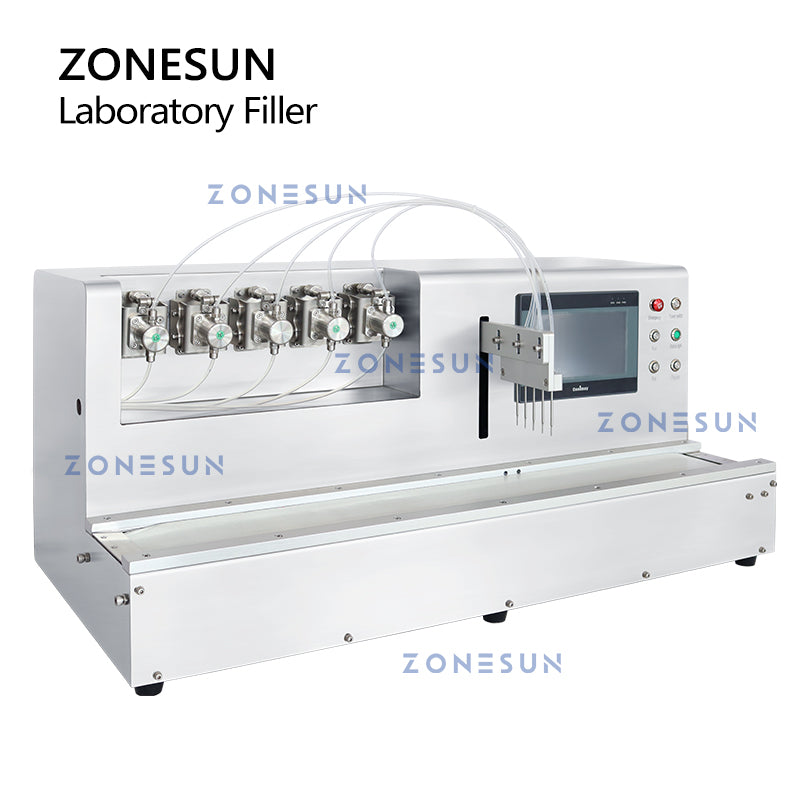

The ZONESUN ZS-YTCPD5 is a five-nozzle ceramic plunger pump liquid filling machine for micro-volume dispensing. Its listed filling range is 0.01–0.17 mL per pump, with five ceramic pumps serving separate filling channels. Designed for compatible small-volume cosmetic and specialty liquid applications, it combines touchscreen operation with selectable dispensing modes. Confirm liquid compatibility, nozzle configuration, and container handling for your application.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZS-YTCPD5 |
| Voltage | 220V / 110V, 50–60Hz |
| Power | 800W |
| Filling Pump Type | Ceramic Plunger Pump |
| Nozzles ID: | Φ0.5 mm × 5 (customizable) |
| Filling Range (per pump) | 0.01–0.17 mL |
| Filling Accuracy | ≥99.5% |
| Machine Dimensions | Approx. 860 × 410 × 405 mm |
| Machine Weight | Approx. 44 kg |
| Package Dimensions | Approx. 950 × 520 × 570 mm |
| Package Weight | Approx. 63 kg |
PLC Control Panel
The color touchscreen provides centralized operation, with language selection and warning functions shown on the interface.

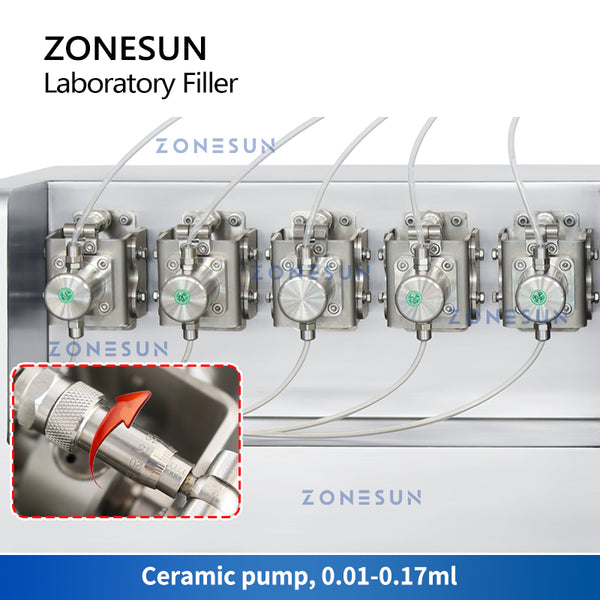

Ceramic Plunger Pumps
Five ceramic plunger pumps meter small liquid volumes through independent filling channels.
PLC Control and Ceramic Pumps
The color touchscreen supports PLC control and recipe saving, while five ceramic pumps provide precise micro-volume liquid dosing.
Selectable Working Modes
The machine supports liquid outflow, back suction, continuous outflow, and timed liquid outflow modes.
Bottle Transport
The conveyor guides containers beneath the filling nozzles during production.
Filling Principle and Transport
The ceramic plunger pump draws in liquid and dispenses the set volume, while the transport section positions containers beneath the filling heads.
Five Filling Nozzles
Five nozzles dispense liquid into multiple containers in one filling cycle. The image specifies a 1.5 mm inner nozzle diameter.
Fine Filling Nozzles
The five filling nozzles have a 0.5 mm inner diameter, with custom sizes available for suitable applications.
Micro-Volume Liquid Filling: Application Guide
Match the Dose to the Pump Range
The listed 0.01–0.17 mL per-pump range equals 10–170 microliters. This is the dispensing-volume range, not the filling error or a guaranteed minimum dose for every liquid. Confirm the target dose for each channel, liquid behavior, and calibration procedure through a sample test.
Confirm the Liquid and Container
Provide the liquid composition, viscosity at filling temperature, and any tendency to foam, crystallize, or contain particles. Ceramic pump construction alone does not establish compatibility of every wetted component. Check the tubing, seals, nozzle, and cleaning method as well as the pump.
Send the container dimensions, opening diameter, target fill volume, and loading method. A five-nozzle configuration requires confirmation of nozzle spacing and container positioning for your actual packs.
Frequently Asked Questions
What type of pump does the ZS-YTCPD5 use?
It uses five ceramic plunger pumps for small-volume liquid metering. The listed configuration has five filling nozzles.
Does 0.01 mL describe the accuracy?
No. It is the lower end of the listed 0.01–0.17 mL per-pump filling range. Accuracy is listed separately as ≥99.5%; confirm how that figure is measured and request test results at your intended dose and liquid conditions.
What is the production speed?
No bottles-per-minute figure is provided in the specifications. Output depends on dosing time, liquid behavior, container positioning, and handling. Request a timed test with your containers rather than calculating throughput from nozzle count alone.
Is it a complete filling and capping line?
This listing describes liquid filling. It does not specify integrated cap feeding, cap tightening, or labeling. Confirm any upstream or downstream equipment separately when planning a complete packaging line.
What should I send for a quotation?
Send the target dose per container, liquid details or a sample, filling temperature, container drawing, opening diameter, required output, power supply, nozzle requirements, and cleaning procedure. The listing offers separate 110V and 220V variants.
