The ZONESUN ZS-FAL180C4 is a compact, high-efficiency desktop production line integrating liquid filling, bottle capping, and round bottle labeling. Equipped with four independently controlled peristaltic pump nozzles, it ensures precise and flexible filling for small-volume liquids. The capping unit handles a wide range of bottle heights and cap sizes, while the positioning labeling machine supports single or double-sided labeling with high accuracy. Ideal for pharmaceuticals, cosmetics, beverages, and daily chemical industries, this system boosts productivity and simplifies packaging operations.
Liquid Filling Machine Specifications – Model ZS-DTPP4M
Specification Details
Model ZS-DTPP4M
Power Supply AC 110V / 220V, 50Hz–60Hz
Power Consumption 60W × 4
Filling Range ≤50 ml
Max Flow Rate 650 ml/min per nozzle (based on water)
Filling Nozzles 4 (customizable based on user requirements)
Working Speed 20–40 bottles/min (depends on bottles and liquid)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤±1% (for water)
Nozzle Diameter 4 mm
Bottle Capping Machine Specifications
Specification Details
Bottle Height 60–270 mm
Cap Diameter 18–70 mm
Working Speed 20–40 bottles/min (depends on bottle & cap size)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Conveyor Length 1117 mm
Machine Size Approx. 1120 × 580 × 1110 mm
Package Size Approx. 1160 × 610 × 1140 mm
Net/Gross Weight Approx. 65.5 kg / 97.5 kg
Air Compressor Connector Outer Diameter 8 mm
ZS-TB500A Labeling Machine Specifications
Specification Details
Machine Model ZS-TB500A
Voltage 110V–60Hz / 220V–50Hz
Working Speed Approx. 20–60 times/min
Labeling Size 15–140 mm (W) × 25–300 mm (L)
Roll Inner Diameter φ76 mm
Roll Outer Diameter φ250 mm
Suitable Bottle Diameter Approx. 30–130 mm
Conveyor Size Approx. 1310 × 100 mm
Package Size Approx. 1460 × 940 × 1060 mm
Package Weight Approx. 125 kg

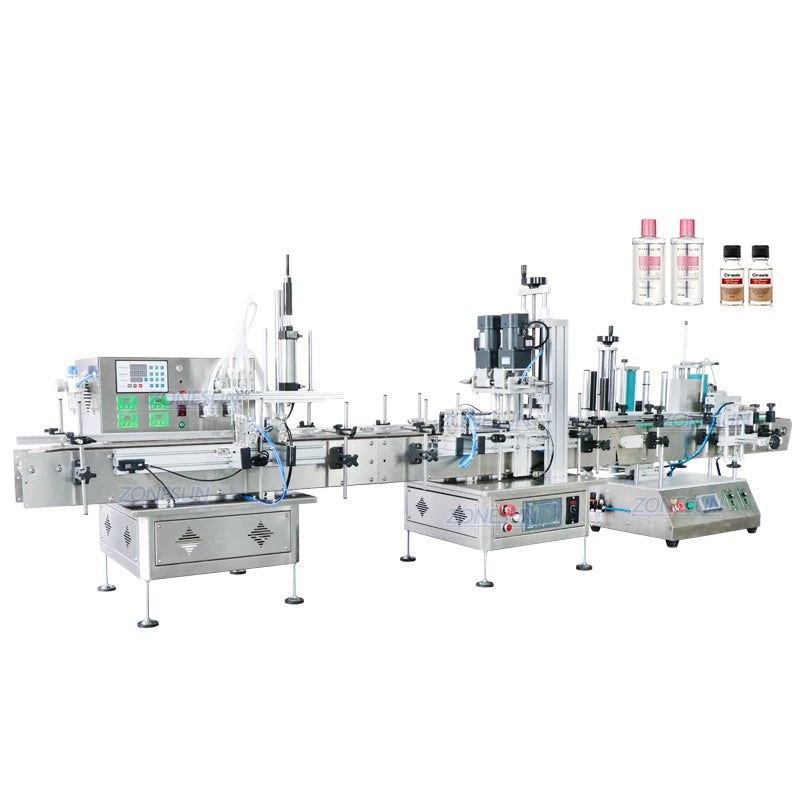

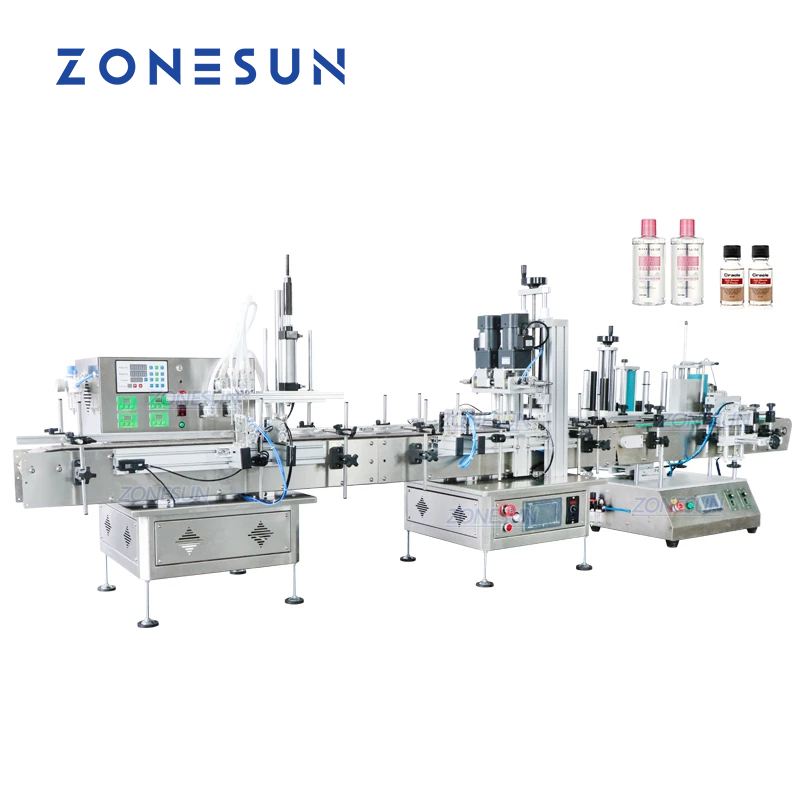

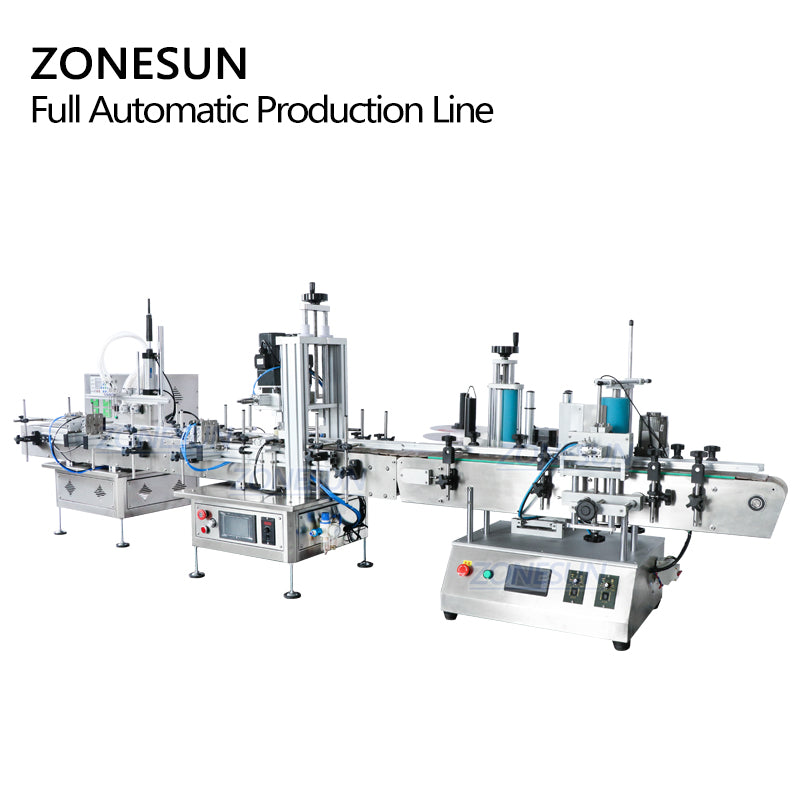

Compact Automatic Production Line
This desktop line combines liquid filling, capping, and labeling. It is suitable for small bottles and supports single- or double-sided labeling.
Suitable Applications
Suitable for liquids such as eye drops, essential oils, cosmetics, reagents, and similar products shown in the image.

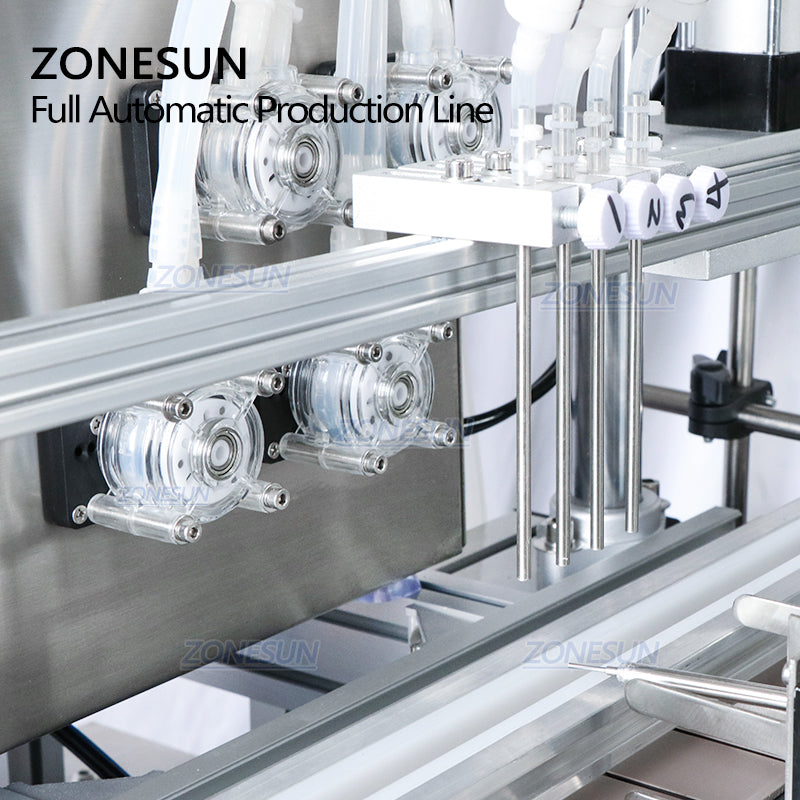

Peristaltic Pump Filling
The peristaltic pumps provide high-precision filling while keeping liquid out of the pump interior.

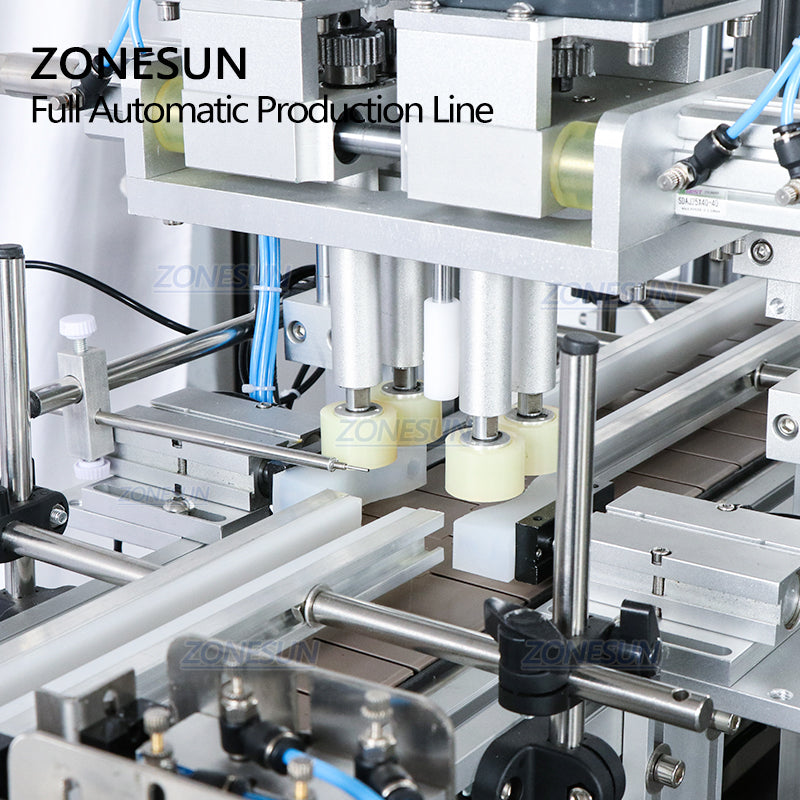

Automatic Capping
The capping unit handles different cap shapes and automatically presses and tightens caps.

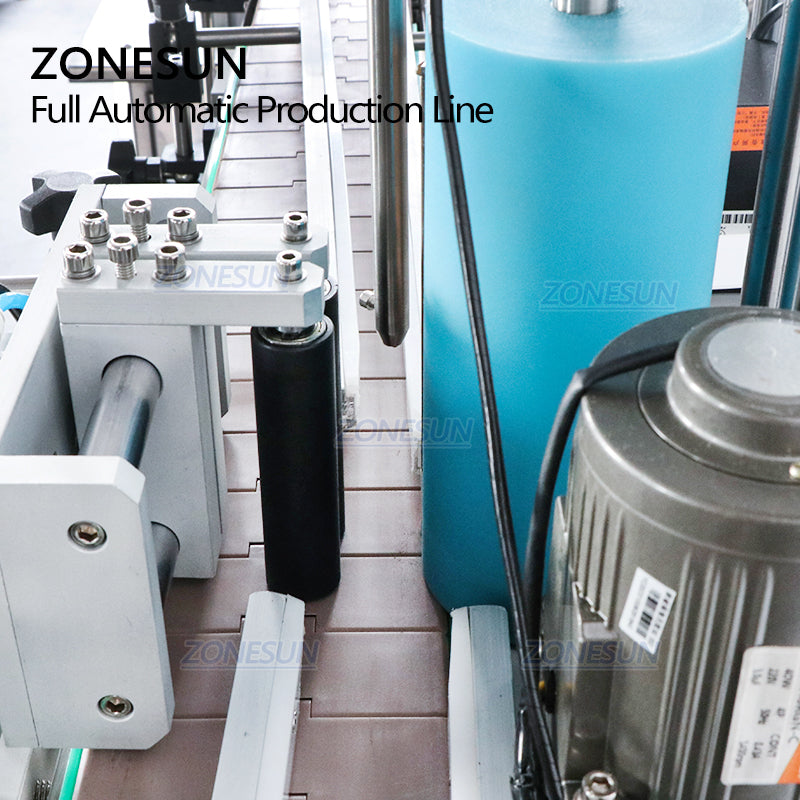

Three-Wheel Labeling
Three labeling wheels rotate the bottle for stable single- or double-sided label application.
Heavy-Duty Chain Conveyor
The chain conveyor supports heavier products and can work independently as part of a production line.
Adjustable Labeling Position
Rotary knobs adjust the label-separating and winding components to improve labeling quality.
