Oils & Industrial Liquids
Suitable for lubricating oil, engine oil, hydraulic oil, silicone oil and other smooth, particle-free industrial liquids.
Controlled Continuous Filling

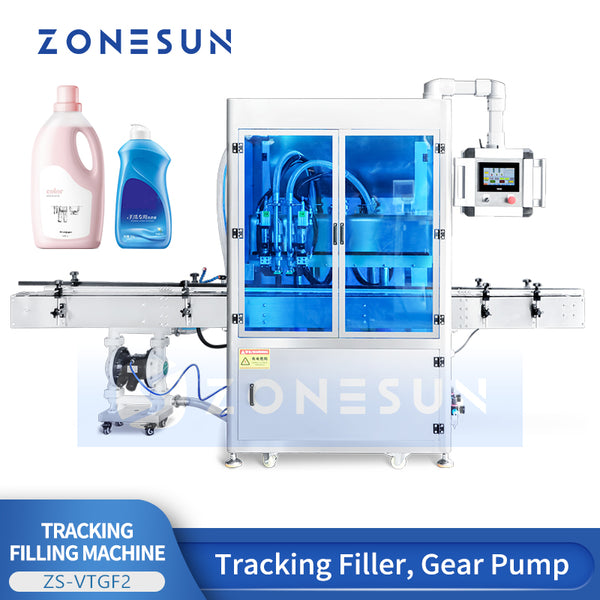

Gear Pump Filling Machines
Controlled filling systems for oils, detergents, shampoos, syrups, waxes and other smooth, particle-free liquids. Choose from semi-automatic fillers, servo-driven multi-head machines, weighing systems and complete automatic filling lines.
Controlled Filling for Smooth and Viscous Liquids
Gear pump fillers provide continuous, controllable product transfer without requiring compressed air for the pumping process. Machine configuration should be selected according to viscosity, filling volume, product compatibility and production requirements.
Personal Care Products
Configurable for shampoo, conditioner, body wash, detergent and selected flowable cosmetic products.
Syrup, Oil & Wax
Available for flowable syrup, edible oil and heated wax products when the pump, seals and temperature-control system are compatible.
How to Configure a Gear Pump Filler
The correct pump size, gear material and filling nozzle depend on the product's flow characteristics and target volume. Servo control can improve adjustability and support single-head or multi-head automatic filling systems.
Products containing particles, fibers or abrasive solids require additional evaluation and may be better suited to another pump technology. Chemical and solvent applications also require confirmation of pump, seal and electrical compatibility.
- Confirm product viscosity and temperature
- Check pump, gear and seal compatibility
- Select filling range and nozzle quantity
- Evaluate particles and product abrasiveness
- Choose semi-automatic or automatic operation
Compare Common Filling Pump Types
Different products may require different pumping technologies. Product testing is recommended when viscosity or formulation varies.
| Pump type | Typical applications | Selection notes |
|---|---|---|
| Gear Pump | Oils, detergents, shampoo, syrup and smooth liquids | Best for particle-free products with controllable flow |
| Piston Pump | Thick sauces, creams, honey and viscous pastes | Suitable for repeatable volumetric filling |
| Rotary Lobe Pump | Viscous foods and selected products with soft particles | Useful where gentle product handling is important |
| Magnetic Pump | Low-viscosity, particle-free liquids | Common for small-volume and clean liquid filling |
Frequently Asked Questions
Can a gear pump fill high-viscosity products?
It can handle many flowable viscous liquids, but suitability depends on viscosity, temperature, pump size and required output.
Can it fill products containing particles?
Gear pumps are generally better suited to smooth, particle-free products. Products with particles should be tested before machine selection.
Are heated filling systems available?
Yes. Heated hoppers, pipelines and nozzles can be configured for waxes and products that require temperature-controlled flow.
Can the filler be integrated into a production line?
Yes. Gear pump filling systems can be integrated with bottle feeding, capping, sealing, labeling and conveying equipment.
