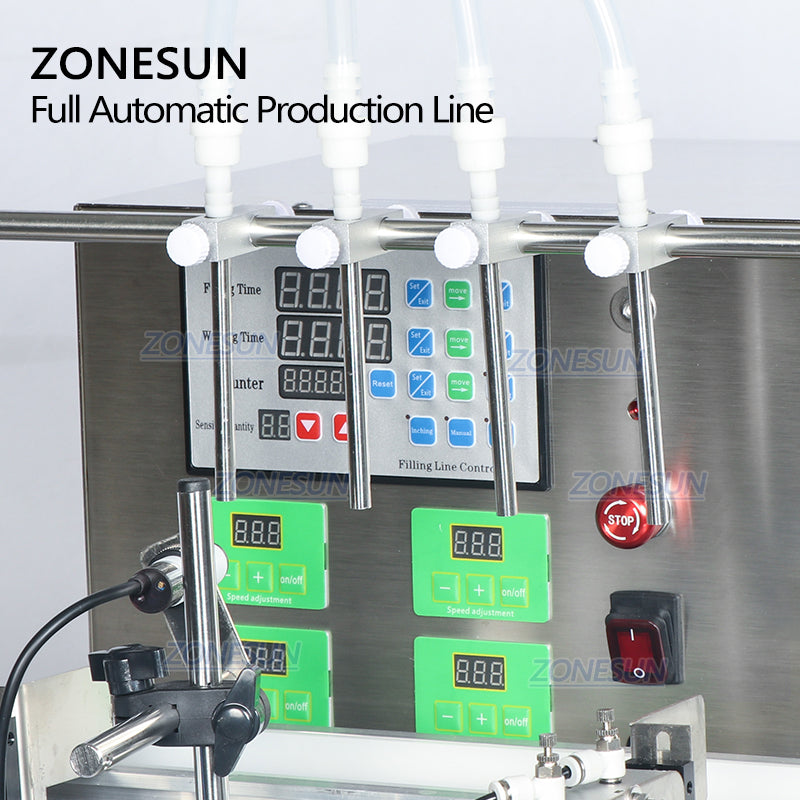

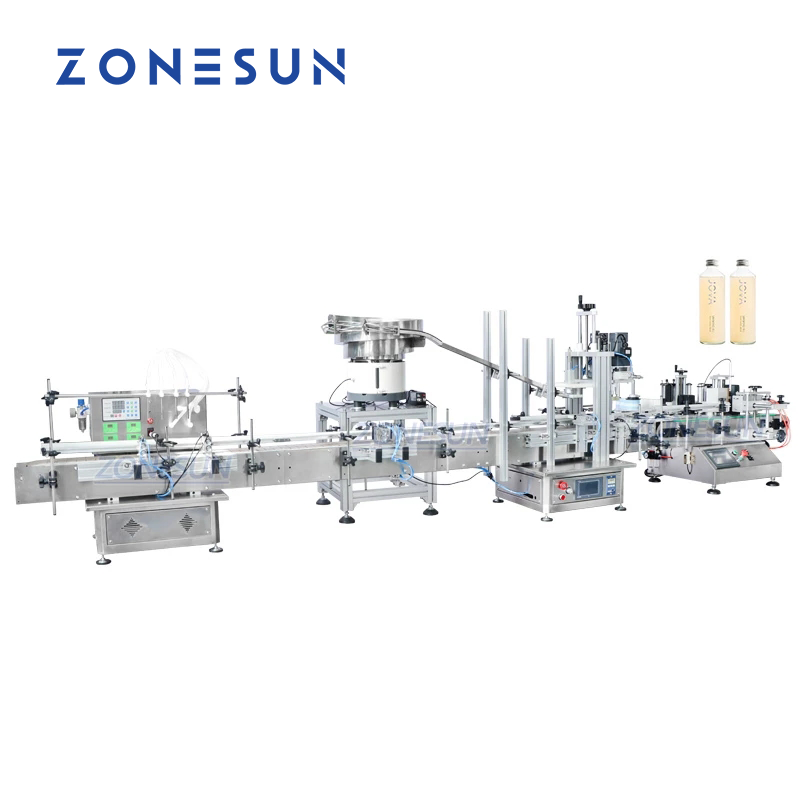

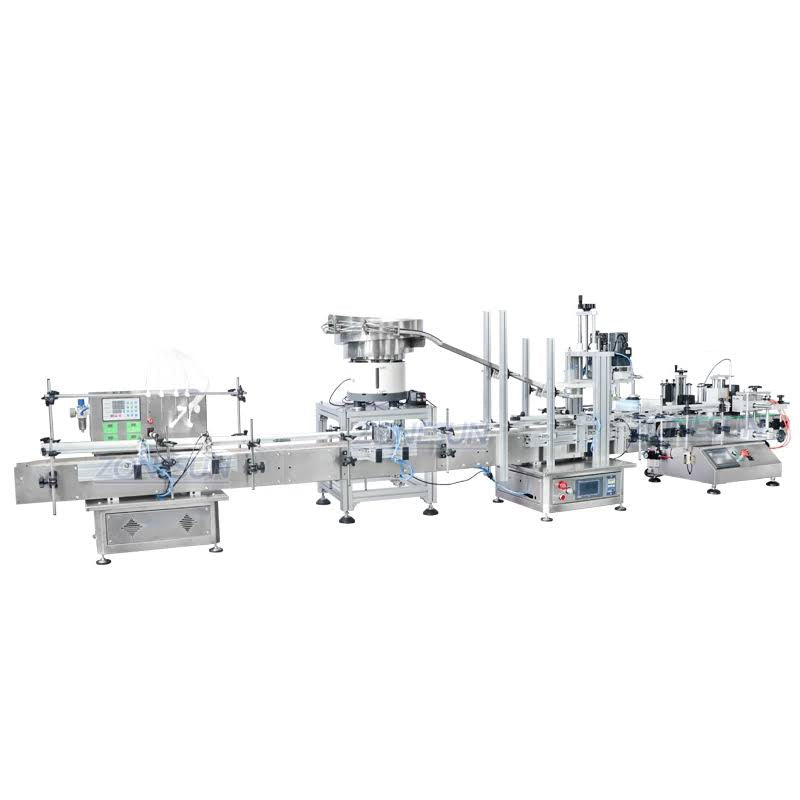

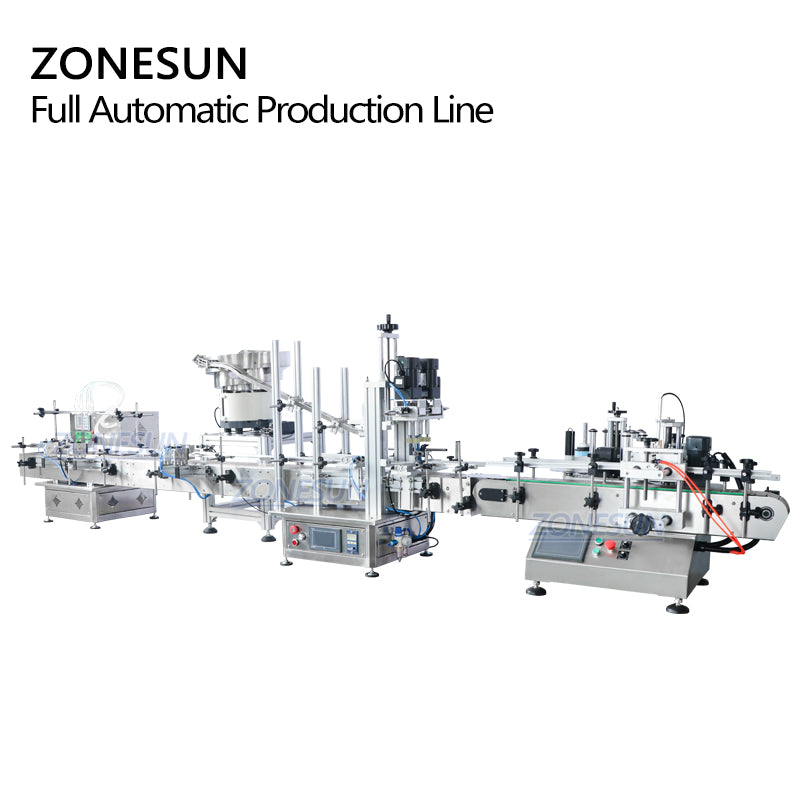

This compact desktop production line integrates liquid filling, cap feeding, capping, and labeling into one streamlined system. Each filling nozzle operates independently for precise control, while the vibratory bowl automates cap feeding to reduce labor. The capping unit accommodates various cap shapes, and the labeling system supports single or double-sided application on round bottles. With intelligent sensors and a heavy-duty conveyor, it ensures stable, efficient, and space-saving operation—ideal for small to medium-scale production in cosmetics, beverages, and daily chemical industries.
Item Details
Machine Model ZS-DTDP-4P Filling Machine
Voltage 110/220V, 50–60Hz
Power 250W
Maximum Flow Velocity 4000 ml/min (Each nozzle, based on size & water)
Working Speed 1500–3000 bottles/hour (depends on bottle & liquid)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Bottle Height < 220 mm (customizable, max height 300 mm)
Diameter of Filling Nozzle 6 mm
Conveyor Size 1003 × 115 mm (L × W)
Air Compressor Connector OD 8 mm
Machine Size About 1105 × 560 × 765 mm
Package Size About 1145 × 610 × 800 mm
Net/Gross Weight About 50 kg / 78 kg
Product Specification – Vibratory Bowl
Item Details
Machine Power 110/220V, 50–60Hz
Material Stainless Steel
Suitable Caps Diameter Customized
Working Speed Customized

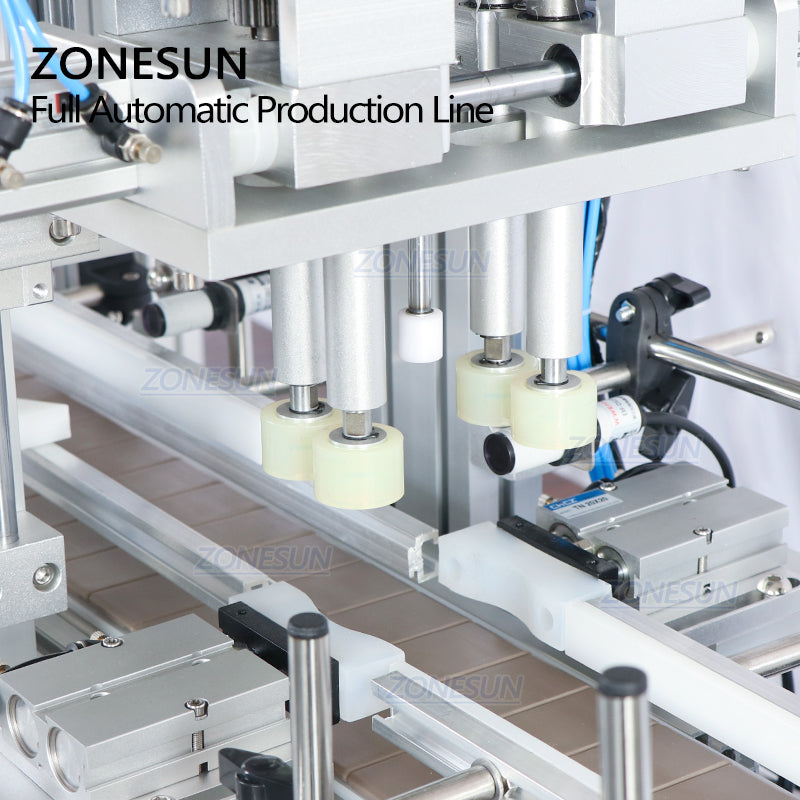

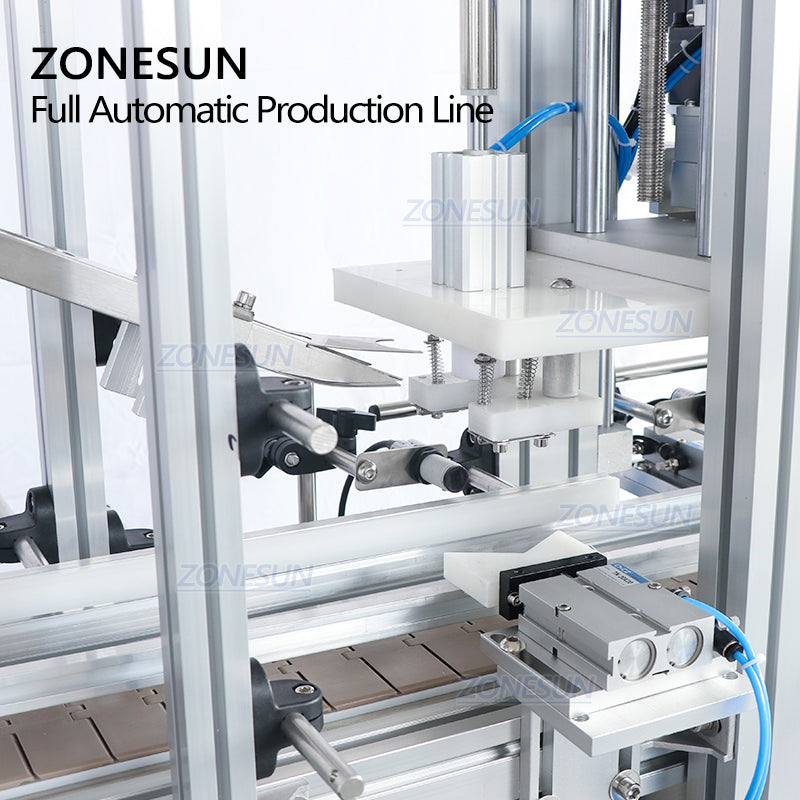

Capping Machine
Item Details
Bottle Height 60–270 mm
Bottle Caps Diameter 18–70 mm
Working Speed 20–40 bottles/min (depends on bottle and caps)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Machine Size About 1390 × 1040 mm
Package Size About 1160 × 610 × 1140 mm
Package Weight About 97.5 kg
Conveyor Length 1117 mm
Air Compressor Connector OD 8 mm

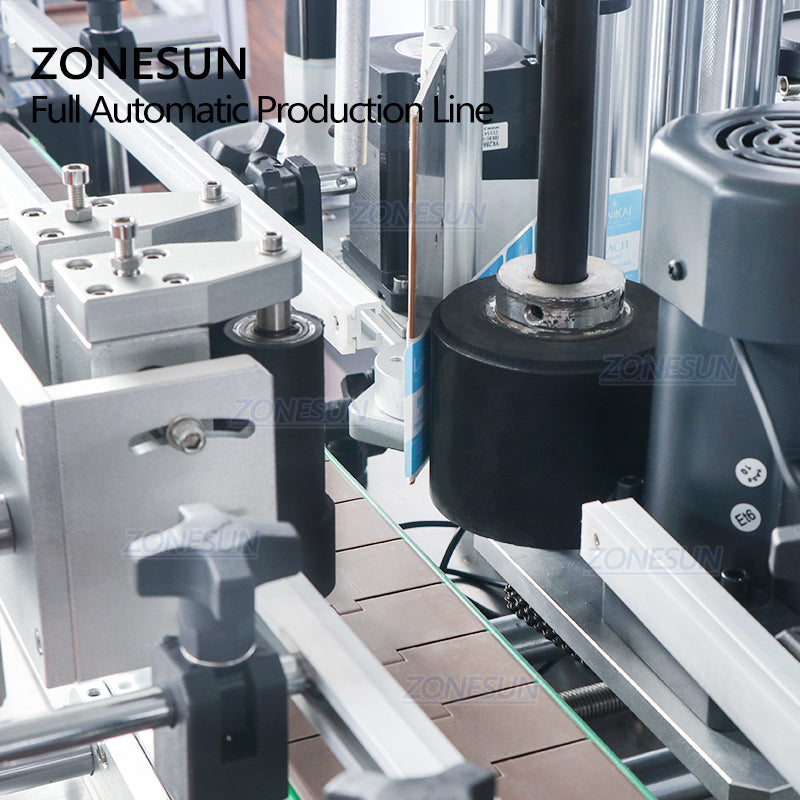

Product Specification – Labeling Machine
Item Details
Voltage 110V–60Hz / 220V–50Hz
Working Speed About 20–50 bottles/min
Suitable Labeling Size 15–140 mm (W) × 25–300 mm (L)
Roll Inside Diameter φ76 mm
Roll Outside Diameter φ350 mm
Suitable Bottle Diameter ≤ 100 mm
Package Size About 1270 × 530 × 820 mm
Package Weight About 125 kg
