Description

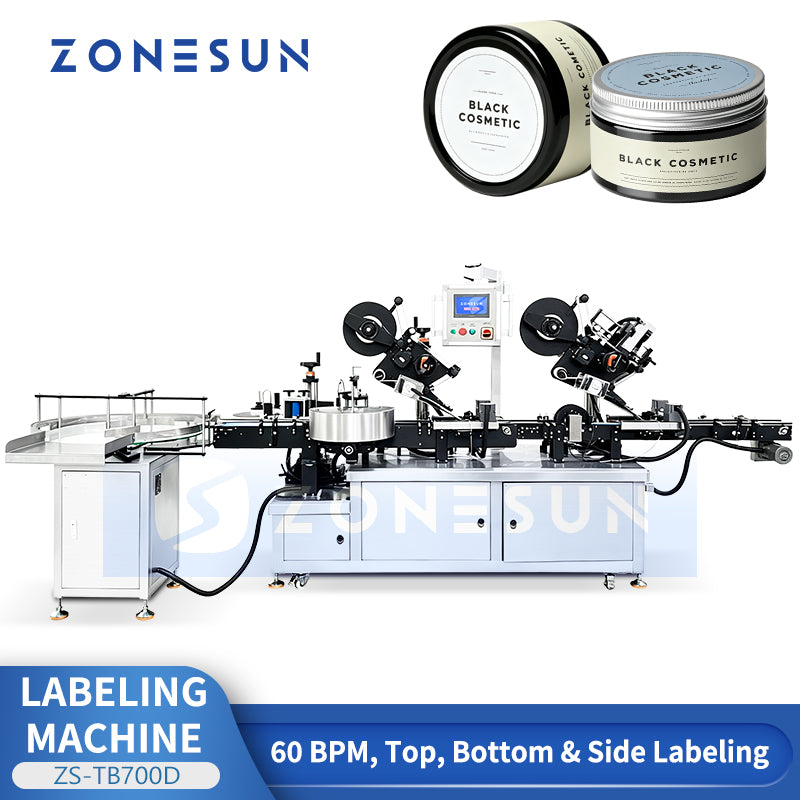

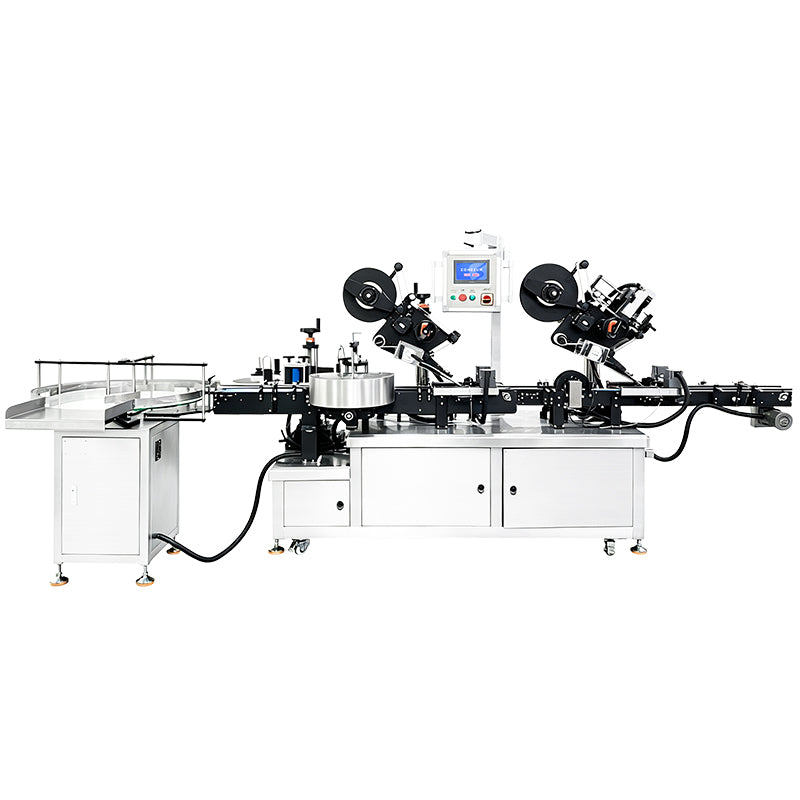

The ZONESUN ZS-TB700D Automatic Top, Bottom & Side Labeling Machine is designed for continuous multi-surface labeling of compatible round jars, bottles and rigid containers. It integrates automatic bottle feeding, side labeling, top labeling, automatic bottle turnover and bottom labeling in one production flow.
With a reference speed of up to 60 bottles/min, the system is suitable for applications that need labels on multiple surfaces without manually turning the container between stations. Bottle handling parts, label positions and machine settings can be customized according to the actual container and label.
Working Process
Bottle Feeding → Side Labeling → Top Labeling → Automatic Turnover → Bottom Labeling → Finished Product
The turnover mechanism changes the container orientation during conveying so the bottom surface can be labeled automatically.
Technical Specifications
-
Machine Model: ZS-TB700D
-
Power Supply: 110/220 V, 50 Hz
-
Power: 2.5 kW
-
Labeling Speed: 60 bottles/min (depending on bottle size)
-
Labeling Accuracy: ±1 mm (excluding label error)
-
Suitable Bottle Size: Customizable
-
Suitable Label Size (W × H): 10–210 × 15–70 mm
-
Label Roll Outer Diameter: ≤300 mm
-
Label Roll Inner Diameter: Φ76 mm
-
Air Pressure: 0.4–0.6 MPa
- Machine Dimensions (L × W × H): Approx. 3200 × 1300 × 1500 mm (Labeling Machine)

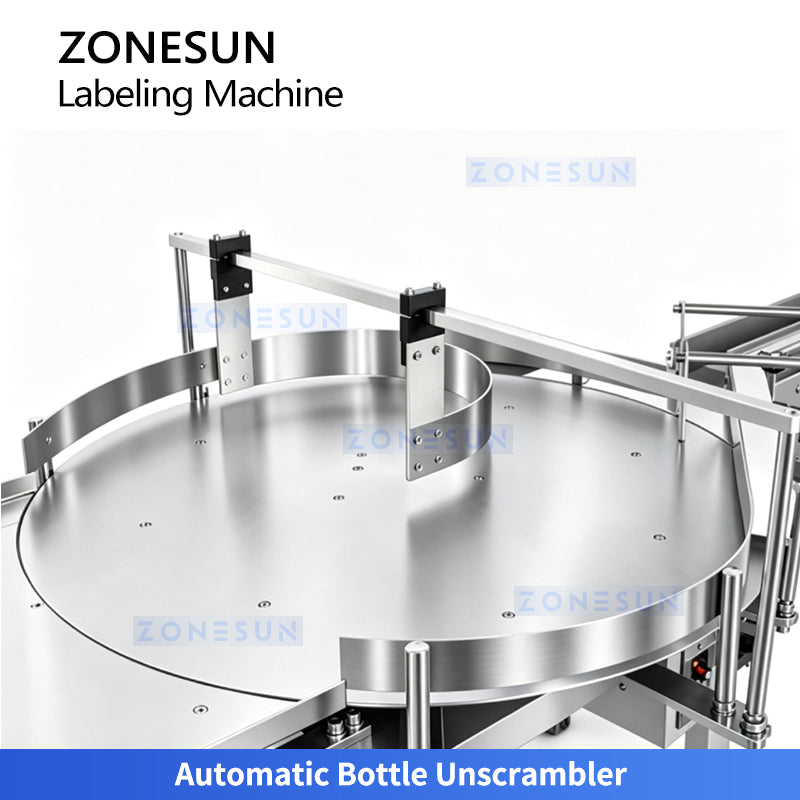

Automatic Bottle Unscrambler
Automatically organizes and feeds bottles into the labeling line for smooth, continuous production with reduced manual handling.

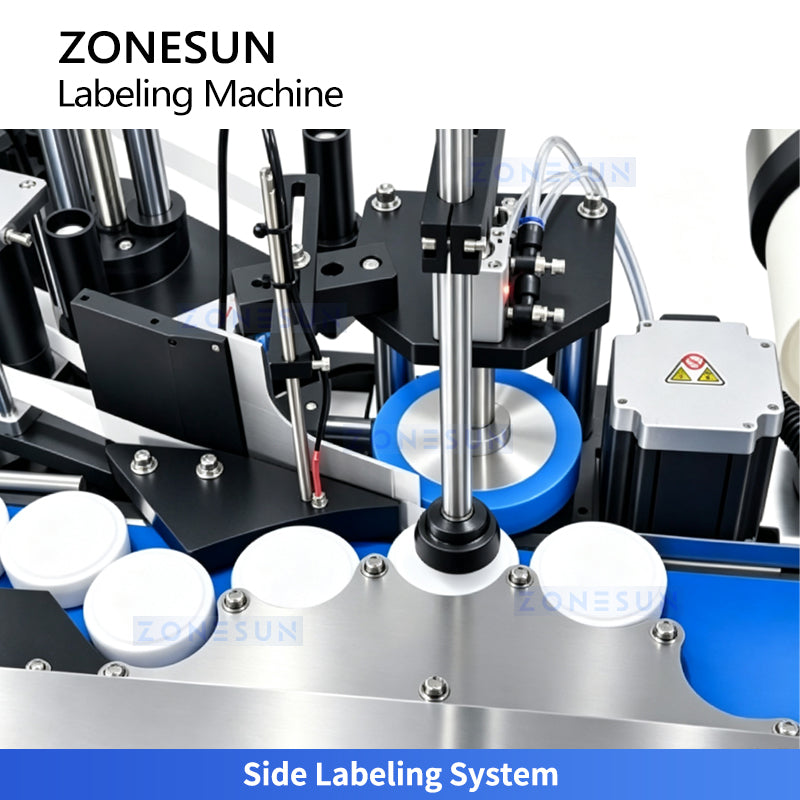

Side Labeling System
Accurately applies labels to one or both sides of bottles, with adjustable positioning to accommodate different bottle shapes and sizes.

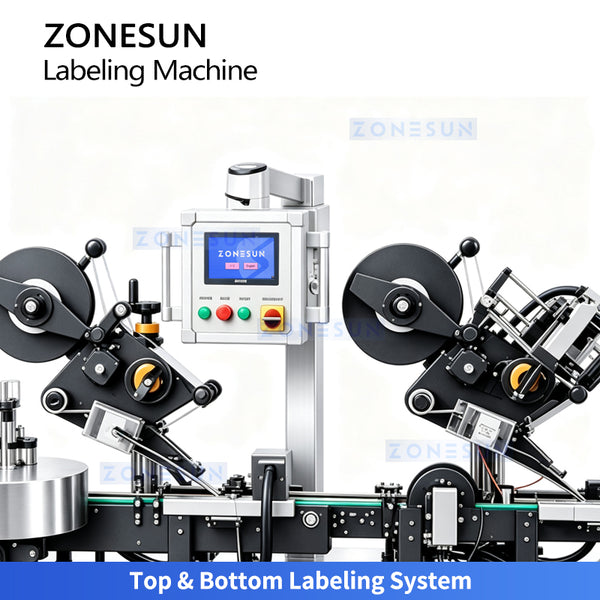

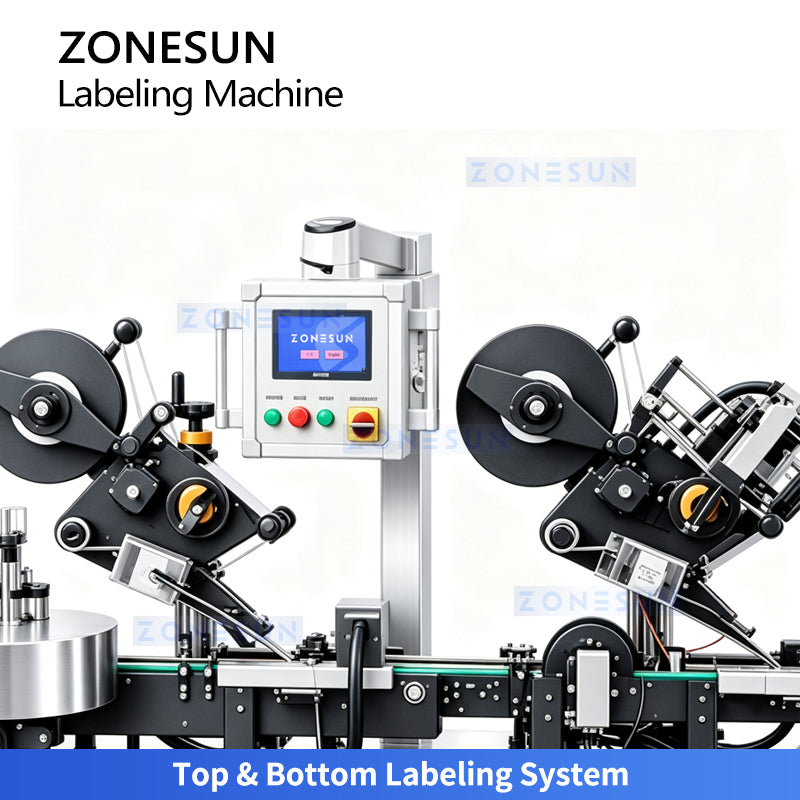

Top & Bottom Labeling System
Independent labeling heads apply labels to the top and bottom surfaces, with adjustable positions for different container sizes and labeling requirements.

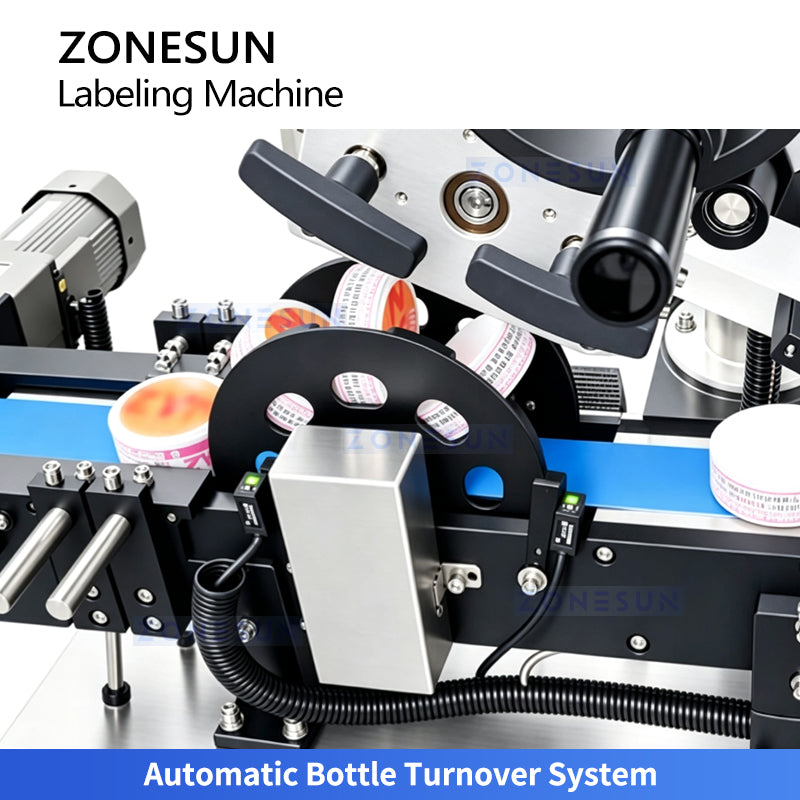

Automatic Bottle Turnover System
Automatically flips containers for bottom labeling, enabling continuous top-and-bottom labeling without manual handling.

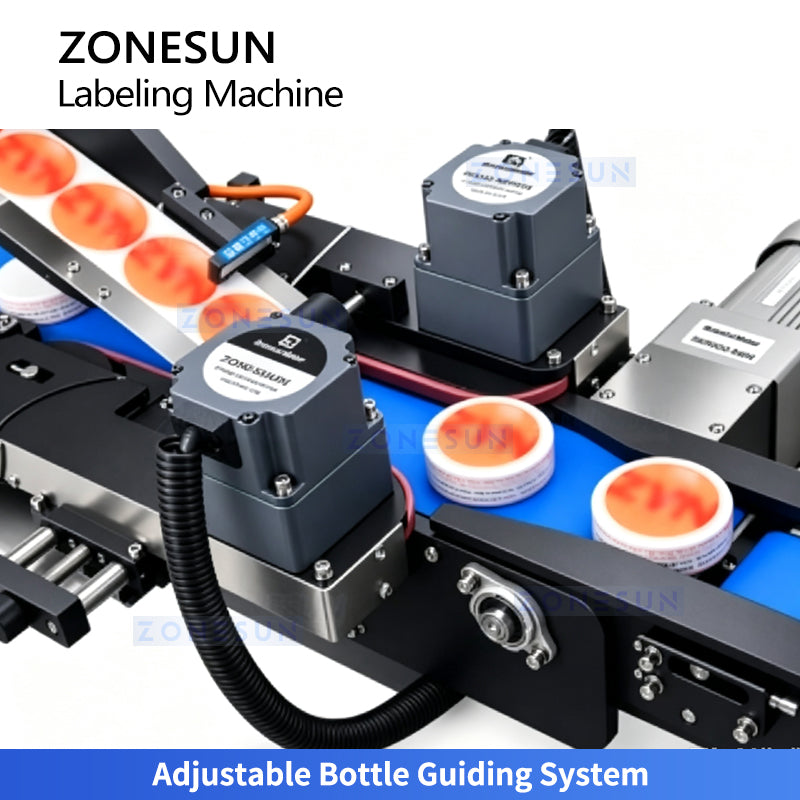

Adjustable Bottle Guiding System
Adjustable guides keep containers aligned and stable during conveying, helping improve labeling accuracy and ensure consistent label placement.
Why Choose the ZS-TB700D?
- Top, bottom and side labeling in one line: Reduces the need for separate machines or manual turning between labeling steps.
- Automatic bottle turnover: Presents the bottom surface to the labeling head automatically during conveying.
- Independent labeling heads: Side, top and bottom labeling positions can be adjusted separately for different compatible packages.
- Automatic bottle feeding: The unscrambling and guiding system helps maintain a continuous production flow.
- Expandable configuration: Optional coding and integration with compatible filling or capping equipment can be evaluated for complete packaging lines.
Best-Suited Containers
This model is best suited to rigid round jars, bottles and containers that can remain stable during side labeling and automatic turnover. Typical applications include cosmetic jars, cream containers, shoe-care containers and other round packages that require labels on multiple surfaces.
Needs separate evaluation: soft pouches, flexible containers, strongly tapered bottles, oval containers, irregular shapes, unstable lightweight packages or products with recessed labeling surfaces.
What Needs to Be Customized?
| Part | Information Required |
|---|---|
| Bottle Feeding | Container diameter, height, shape, material and stability |
| Side Labeling | Side label size, position and whether one-side or multiple-side labeling is required |
| Top Labeling | Top label size, position and available flat labeling area |
| Turnover & Bottom Labeling | Container shape, center of gravity, bottom surface and bottom label size |
| Coding | Required batch/date content, coding position and printing method |
Before Ordering, Please Confirm
- Clear product photos or video
- Container diameter, height and weight
- Top, bottom and side label dimensions
- Exact label application positions
- Label material and roll dimensions
- Required production speed
- Whether variable coding is required
- Available voltage and compressed-air supply
- Whether the machine must connect with existing filling, capping or conveying equipment
Performance Note: The listed speed and accuracy are reference values. Actual performance depends on container stability, label size and material, turnover reliability, conveyor speed and the final customized configuration.
Frequently Asked Questions
Can it apply top, bottom and side labels in one process?
Yes. The machine is designed to complete side labeling, top labeling, automatic turnover and bottom labeling within one continuous workflow.
Can it label only one or two surfaces?
Yes. The labeling sections can be configured according to the required process, but the final control logic should be confirmed before production.
Can it handle different jar or bottle sizes?
Yes, within the machine's adjustment and customization range. Significant size changes may require different guides, turnover parts or other change parts.
Why is sample testing recommended?
The turnover process depends heavily on container shape, center of gravity and surface geometry. Testing with actual containers helps confirm stable conveying and label placement.
Can it be integrated into an existing packaging line?
Yes. Conveyor height, speed, product spacing and signal connection should be checked against upstream and downstream machines.
Need Help Confirming Your Labeling Application?
Send us your container dimensions, container photos, top/bottom/side label sizes, label positions and target speed. We can evaluate the bottle feeding, turnover and labeling configuration before production. Use the chat window on this page to contact ZONESUN.
