ZONESUN ZS-90 Manual Hot Foil Stamping Machine
The ZONESUN ZS-90 manual hot foil stamping machine is used for bronzing, indentation, and branding on compatible leather, rubber, plastic, paper, and other suitable surfaces.
Product Parameters
| Model | ZS-90 |
|---|---|
| Power Supply | 110V / 220V / 380V |
| Stamping Area | 5 × 7 cm, 8 × 10 cm, 10 × 13 cm |
| Temperature Range | 0 – 350 °C |
| Net Weight | 8 kg |
Temperature / Stamping Time Reference
| Paper Bronzing | 100 °C / 1 s |
|---|---|
| Paper Embossing | 300 °C / 3 s |
| Leather Bronzing | 100 °C / 1 s |
| Leather Embossing | 180 °C / 3 s |
| PVC Bronzing | 100 °C / 1 s |
| Food Embossing | 250 °C / 3 s |
| Leaves Embossing | 320 °C / 1 s |
| Wood Embossing | 350 °C / 3 s |
These settings are reference values. Test on a sample of the actual material and foil before production.
Packing List
| Hot Foil Stamping Machine | 1 |
|---|---|
| Spanner | 1 |
| Allen Key | 1 |
| High-Temperature Tape | 1 |
| Foil for Testing | Gold ×1, Silver ×1 |
| Set of Positioning Slider | 1 |
| User Manual | 1 |
Applications
- Paper bronzing and embossing: Decorative foil marks or impressions on compatible paper surfaces.
- Leather stamping: Branding, indentation, or foil work on suitable surfaces, with the stated restriction for uneven leather.
- Compatible rubber and plastic products: Marking applications after confirming material response and tooling.

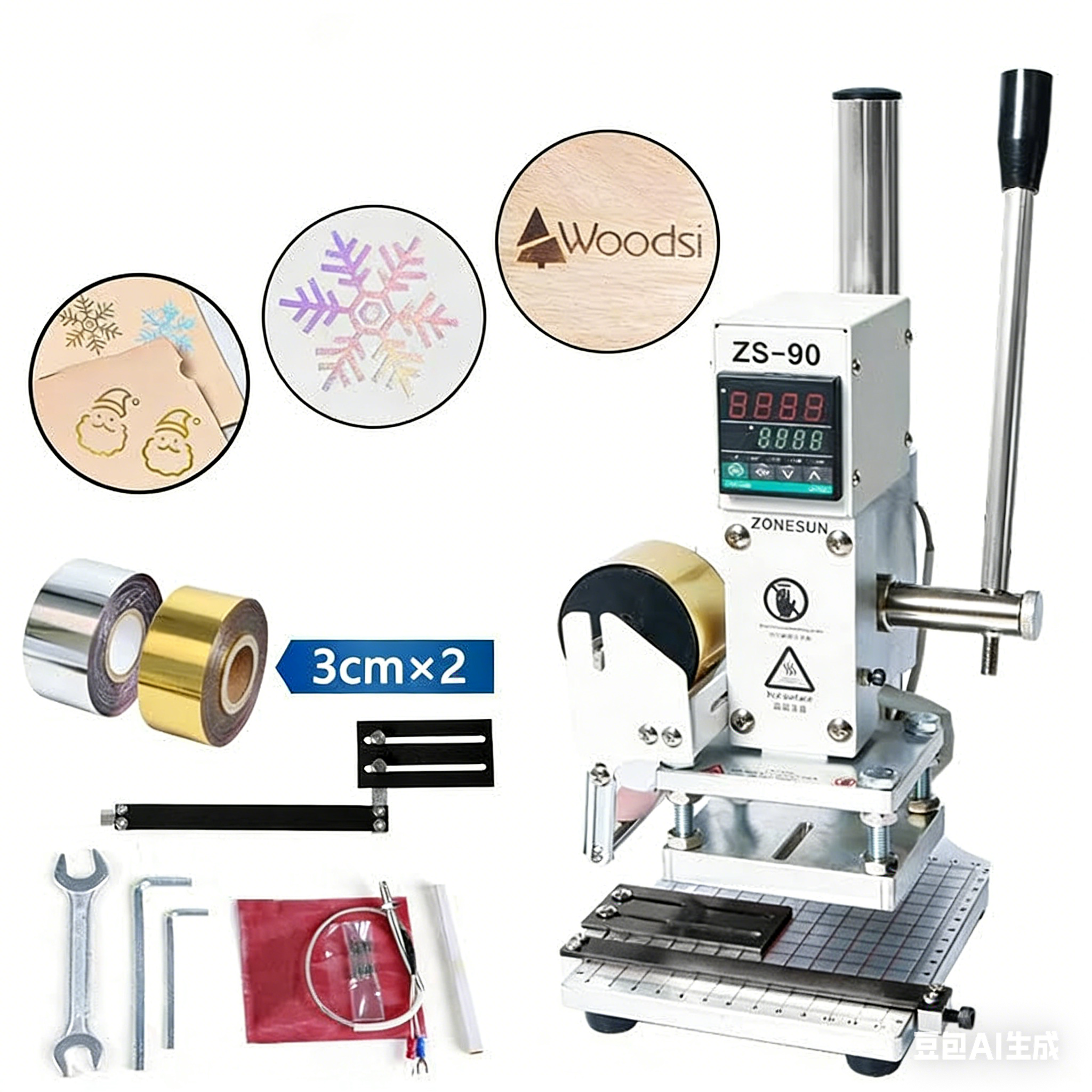

Product Images
Key Features
- Manual stamping operation: Supports operator-controlled hot stamping and impression work.
- Three listed stamping areas: Select a plate configuration suited to the artwork.
- Heated marking process: The original table provides temperature and contact-time references for different materials.
- Positioning accessories: A set of positioning sliders is included in the packing list.
- Test foil supplied: Gold and silver foil for testing are listed.
Operating Process
- Confirm the material, intended finish, and artwork dimensions, then select the appropriate plate and tooling.
- Install the compatible die or stamping tooling according to the machine instructions.
- Position the workpiece and prepare suitable foil when a foil finish is required.
- Use the reference settings as a starting point and allow the machine to reach the selected condition.
- Operate the manual press for the trial impression.
- Inspect alignment and finish, then adjust the setup based on sample results before continuing.
Selection and Configuration
Provide the artwork size, workpiece dimensions, substrate, surface texture, and desired effect. Confirm the selected plate area, suitable foil, and die mounting arrangement. Check the voltage available in the chosen product option and confirm the supplied tools and any artwork-specific stamping die. For uneven leather or an unfamiliar material, request a sample assessment before ordering.
Frequently Asked Questions
What is the ZONESUN ZS-90 used for?
The ZS-90 is a manual hot foil stamping machine for bronzing, indentation, and branding on compatible leather, rubber, plastic, paper, and other suitable surfaces.
What stamping areas are listed?
The original specification lists 5 × 7 cm, 8 × 10 cm, and 10 × 13 cm. Select the required plate option and confirm that the artwork and tooling fit the selected configuration.
Can it be used on uneven leather?
The original description limits uneven leather to hot stamping rather than foil transfer. Share material samples and the intended finish so the application can be confirmed.
Which temperature and stamping time should I use?
The page retains the original material-specific reference settings. Actual results depend on the substrate, foil, tooling, and operating conditions; verify the result on samples before production.
What does the packing list include?
The original packing list includes one hot foil stamping machine, one spanner, one Allen key, one high-temperature tape, gold and silver foil for testing, one set of positioning sliders, and one user manual. Confirm any artwork-specific die or accessory separately.
What should I provide before selecting a machine?
Share your artwork dimensions, material, desired foil or embossed finish, and workpiece shape. Confirm the plate size, die mounting compatibility, and voltage of the selected product option.
