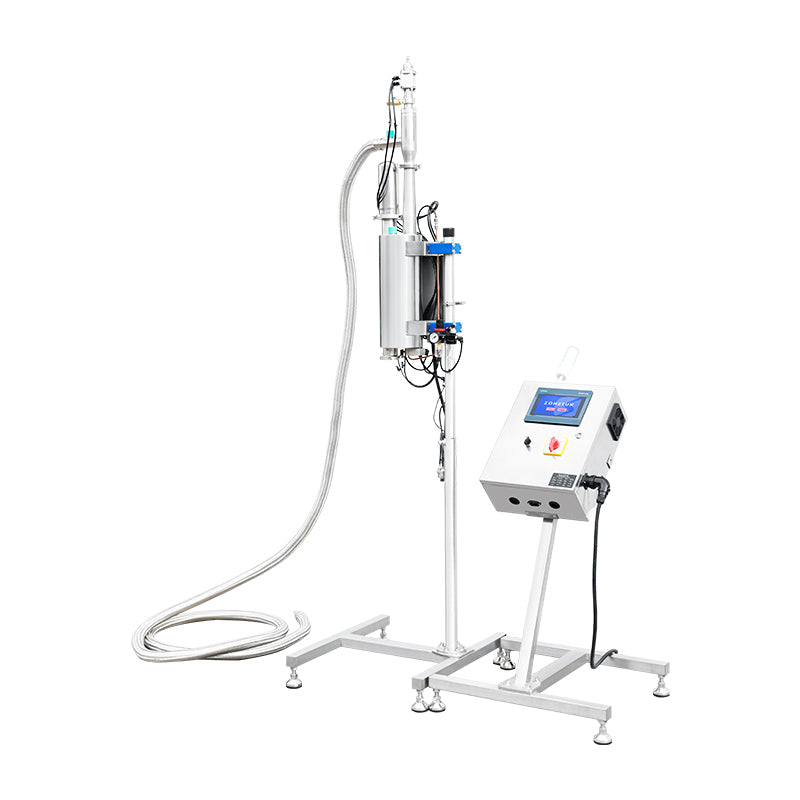

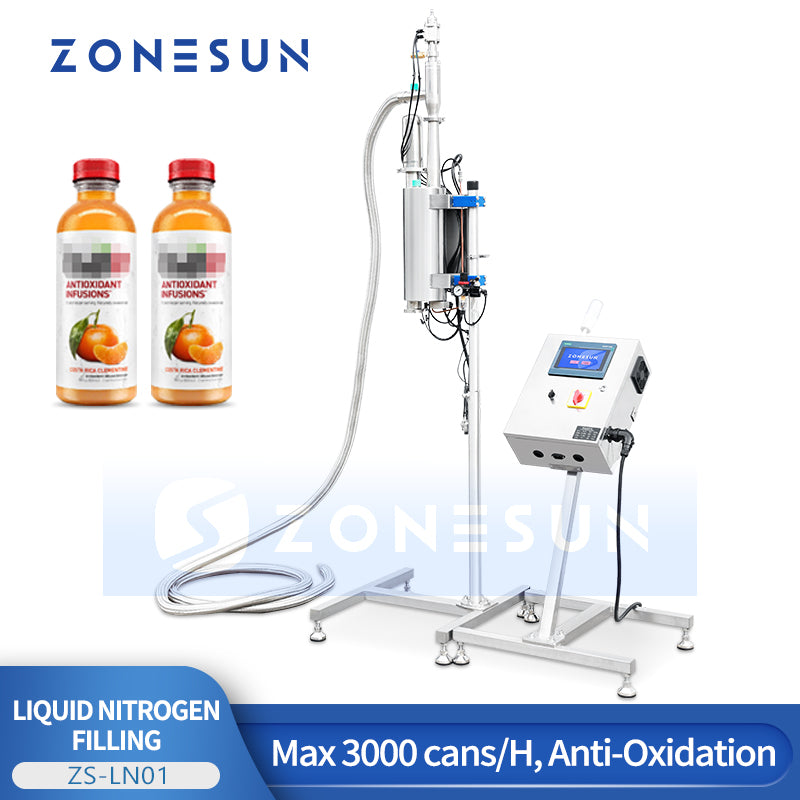

The ZONESUN ZS-LN01 Liquid Nitrogen Filling Machine is designed for high-speed bottle and can packaging lines. By injecting precise amounts of liquid nitrogen before sealing, it prevents container deformation during transport and extends product shelf life while preserving taste. With a maximum output of 3000 cans per hour, it integrates seamlessly into conveyor-based production lines. Built for the food and beverage industry, this compact and efficient machine operates quietly and reliably under a wide range of humidity conditions.
PARAMETER
-
Machine Model：ZS-LN01
-
Voltage：110V AC, 60Hz / 220V AC, 50Hz
- Current：≤5A
- Applicable Bottle Height: 100-200mm
- Applicablt Bottle Diameter: 40-70mm
-
Working Speed：Max 3000 cans/hour
-
Humidity Range Relative humidity: 0%–100%
-
Noise Level Continuous noise：≤78 dB(A)
-
Machine Weight Approx.：50 kg
-
Package Size Approx.：1220 × 770 × 470 mm
- Package Weight Approx. ：94 kg

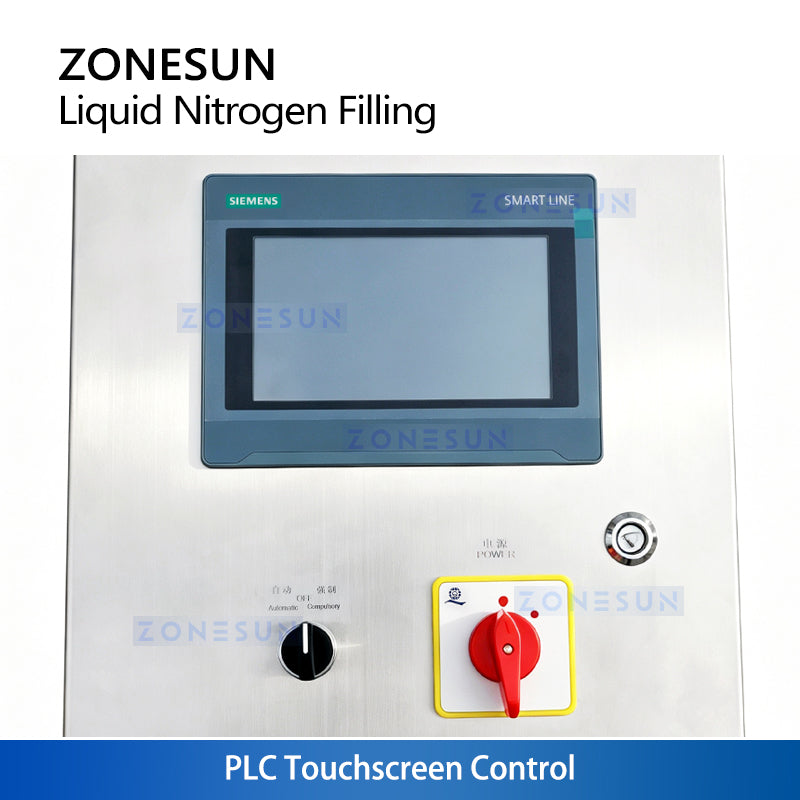

PLC Touchscreen Control
Siemens PLC and touchscreen provide centralized control for easy parameter setting, operation and monitoring.

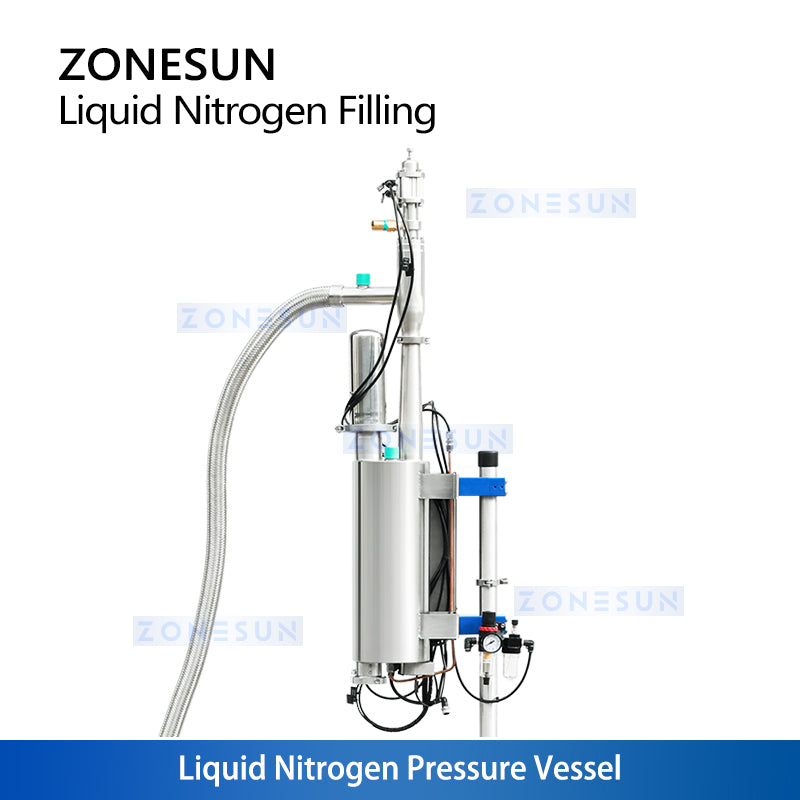

Liquid Nitrogen Pressure Vessel
Maintains a stable liquid nitrogen supply and operating pressure for consistent and continuous dosing.
Automatic Liquid Nitrogen Filling
The system automatically supplies and dispenses liquid nitrogen, with temperature monitoring for stable filling operation.
Photoelectric Bottle Detection
The photoelectric sensor detects incoming containers and coordinates automatic liquid nitrogen dispensing.

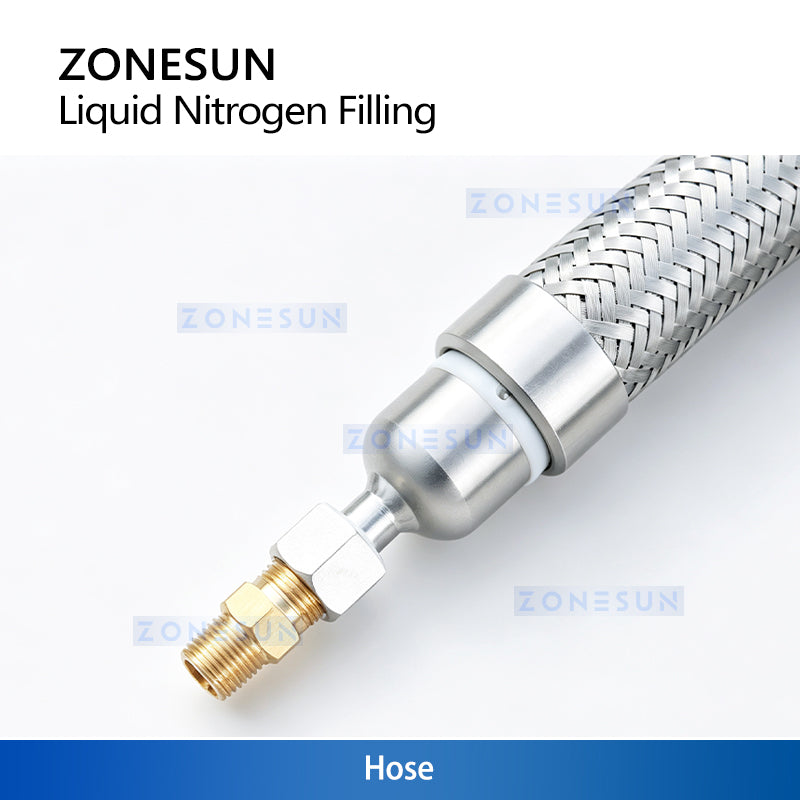

HOSE
The vacuum-insulated hose reduces heat transfer and liquid nitrogen evaporation during delivery.
