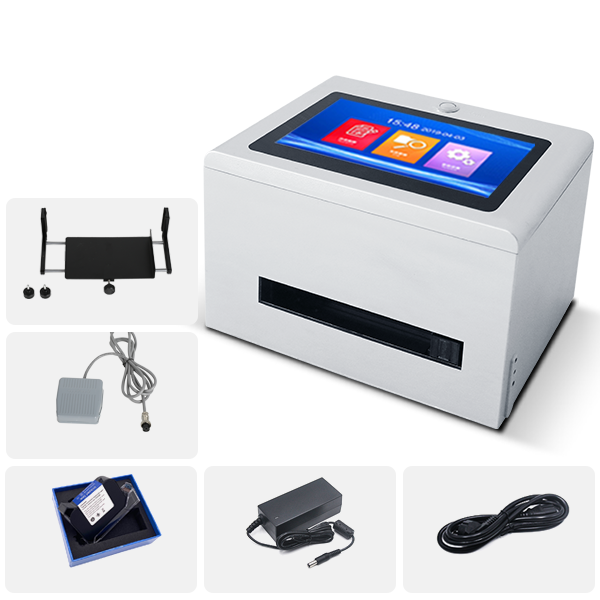

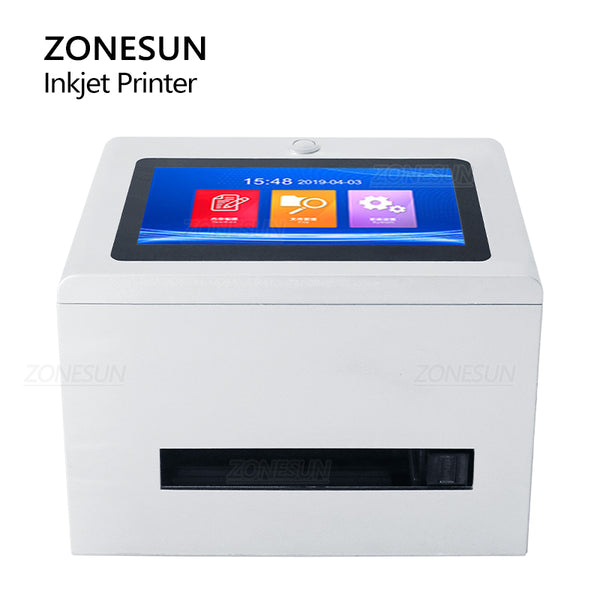

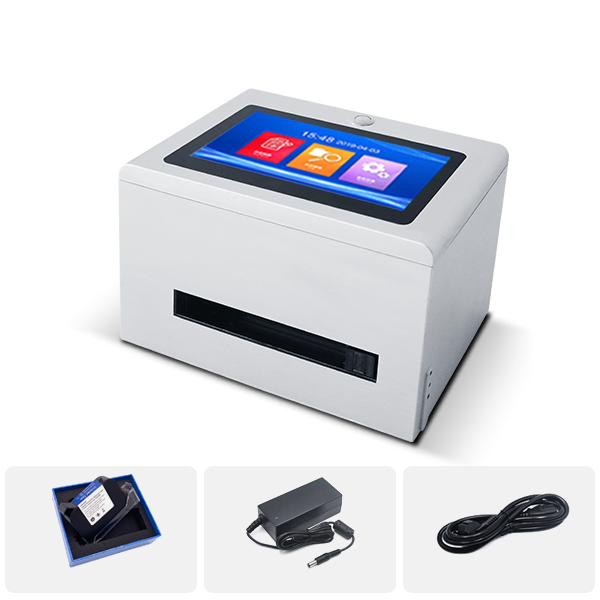

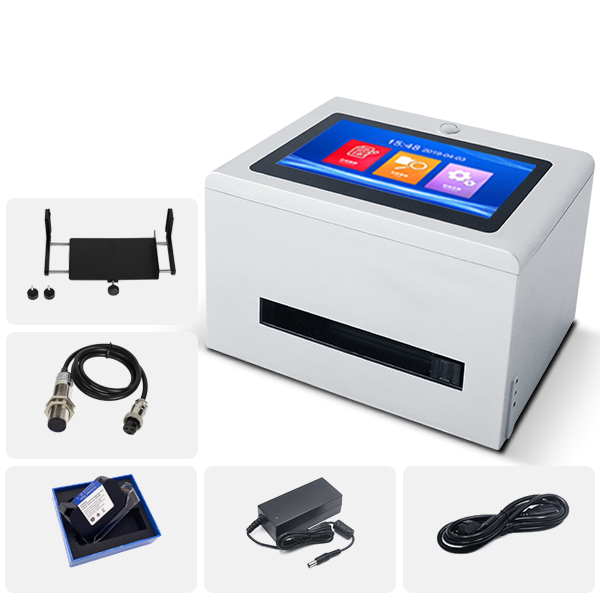

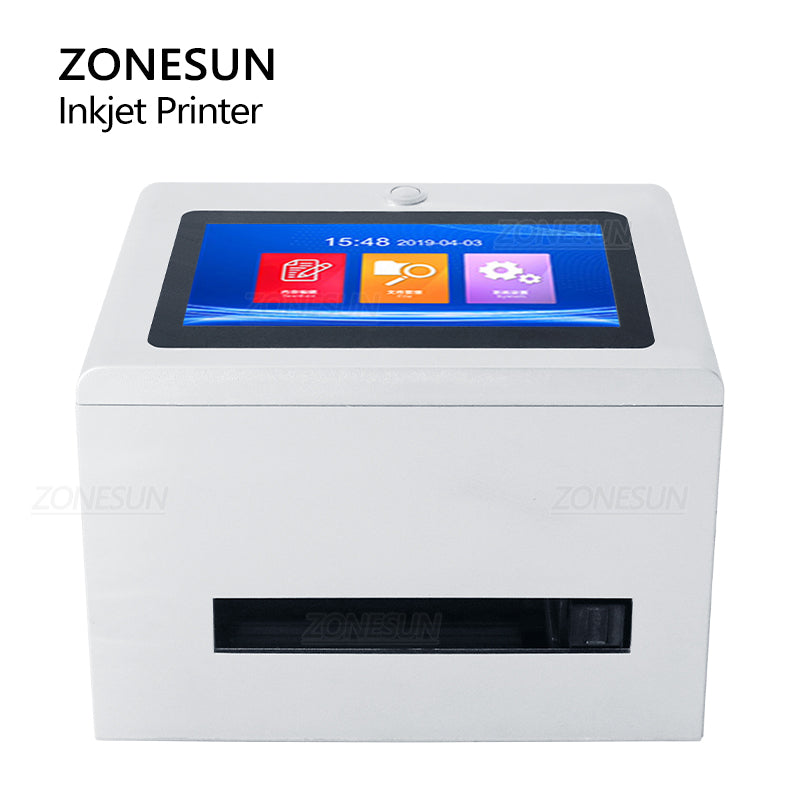

The ZS-TIP127 is a versatile tabletop inkjet printer designed for industrial marking. It prints barcodes, QR codes, logos, and dates on flat or curved surfaces across a wide range of materials including metal, plastic, paper, and fabric. With a 7-inch touch screen, users can easily edit files directly or import them via USB. Compatible with locally sourced cartridges, it’s ideal for both manual and automated production lines.
Product Parameters – ZS-TIP127 Inkjet Coding Printer
Item Specification
Model ZS-TIP127
Display 7-inch Touch Screen
USB Port Type-A
Applications Barcode, QR Code, Date, Image, Logo, Character
Supported Code Types EAN8, UPCA, INT25, UPCE, CODE39, EAN13, CODE128, QRCODE, PDF417, DATAMATRIX
Resolution (DPI) 300–600
Printing Height 2–12.7 mm
Number of Rows 1–8
Languages Supported Chinese / English
Printing Distance 1–5 mm
Operating Environment 0–40℃, 10–80% Humidity
Ink Colors Available Red, Yellow, Blue, Green, Black
Machine Size 280 × 175 × 220 mm
Packing Size 310 × 260 × 260 mm
Net Weight 2.2 kg
Gross Weight 3.8 kg

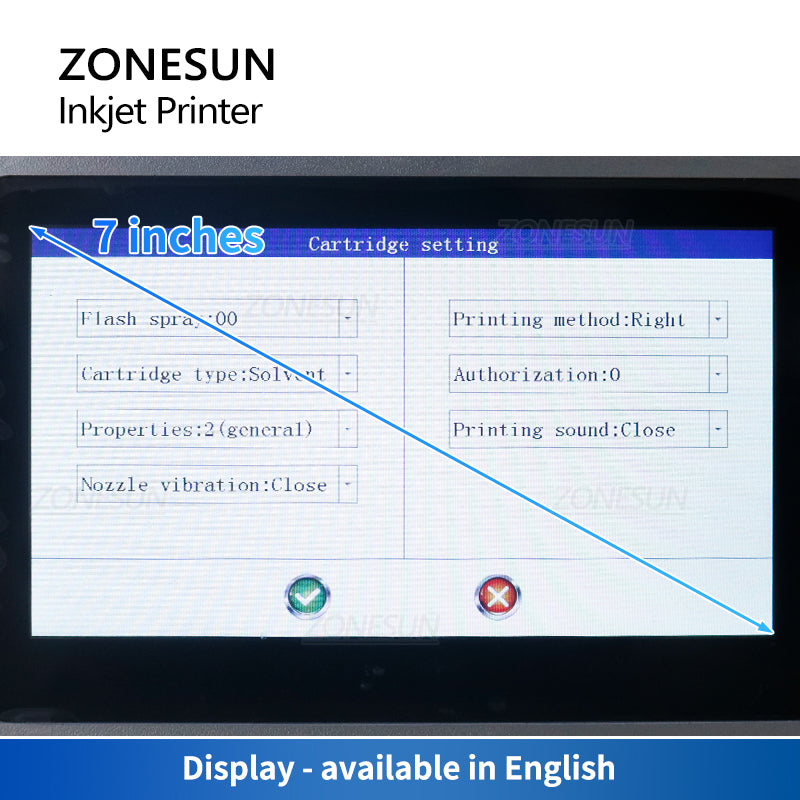

Touchscreen Editing Interface
The 7-inch touchscreen is used to edit and manage printing content.
Integrated Printing Mechanism
The internal printing mechanism drives the cartridge across the print area.

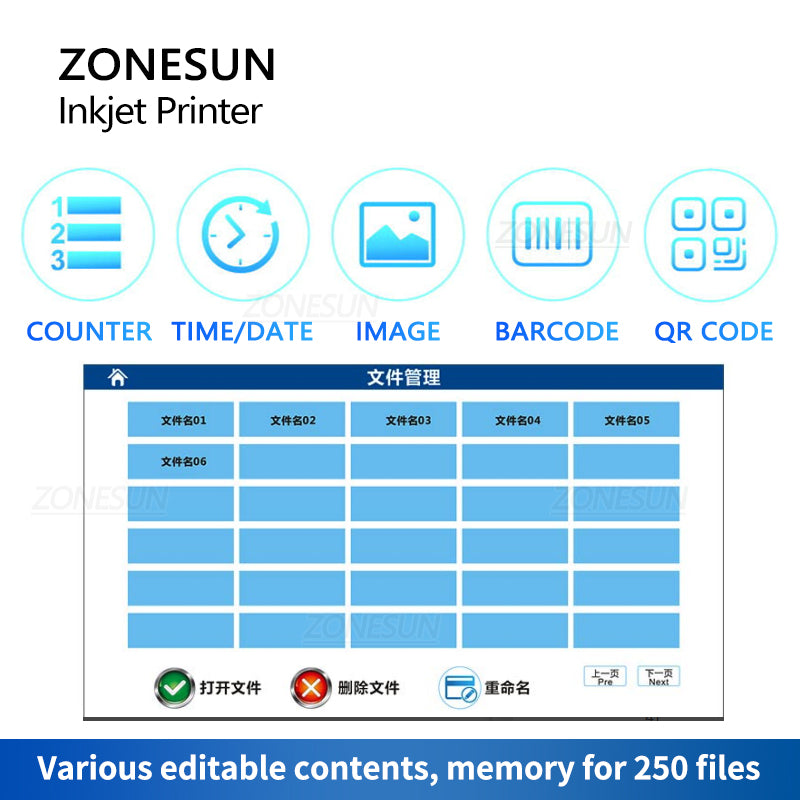

Editable Printing Content
The system supports editable counters, time and date, images, barcodes, and QR codes.

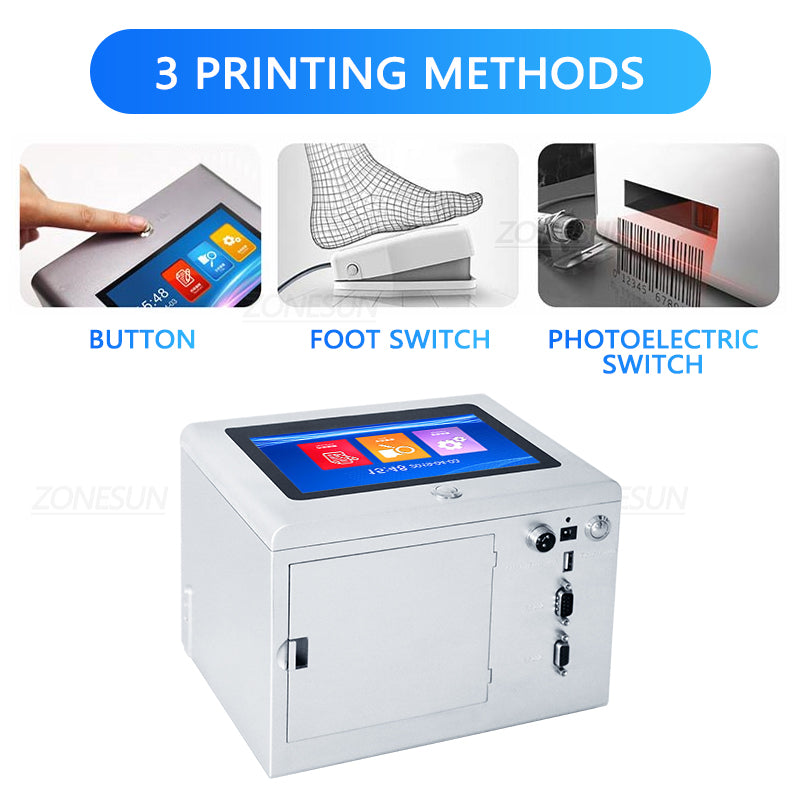

Three Printing Trigger Methods
Printing can be triggered by the on-screen button, foot switch, or photoelectric sensor.

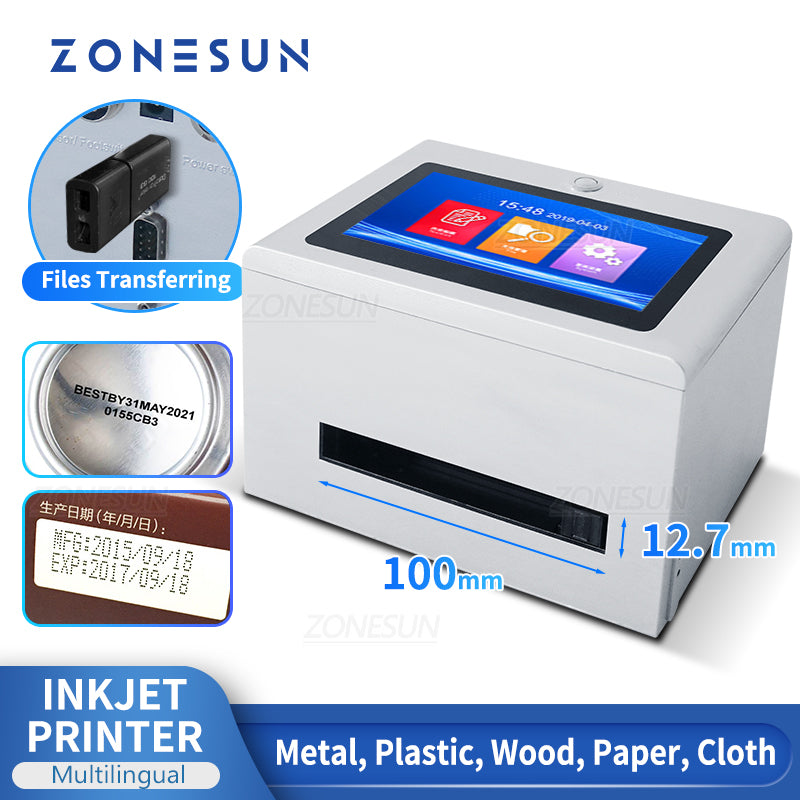

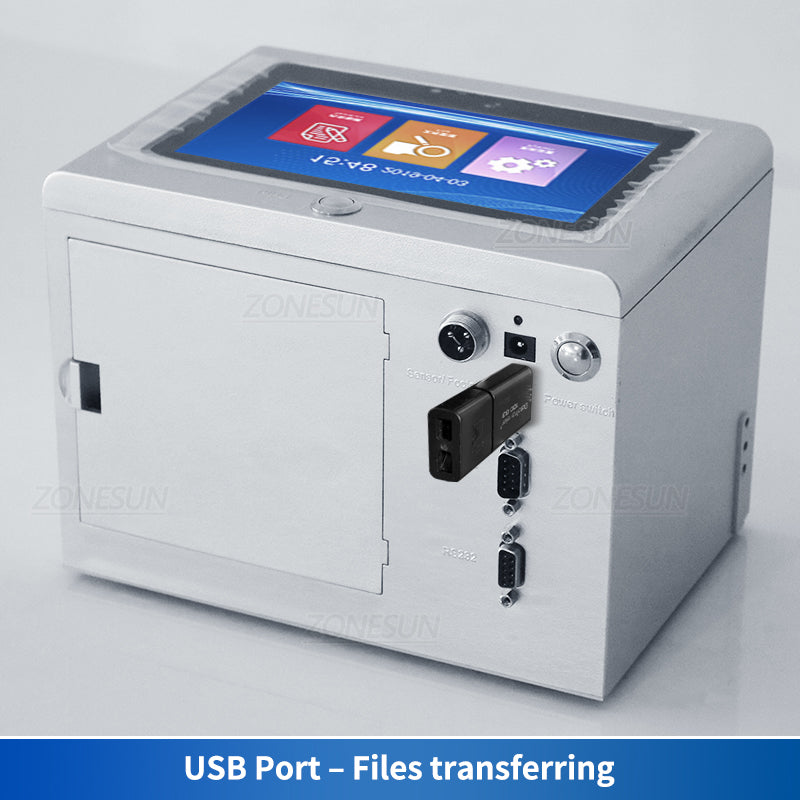

USB File Transfer
Images and printing files can be transferred through a USB drive.
Quick-Dry Ink Cartridge
The cartridge uses quick-dry ink and supports multiple colors for clear printed results.
