DESCRIPTION

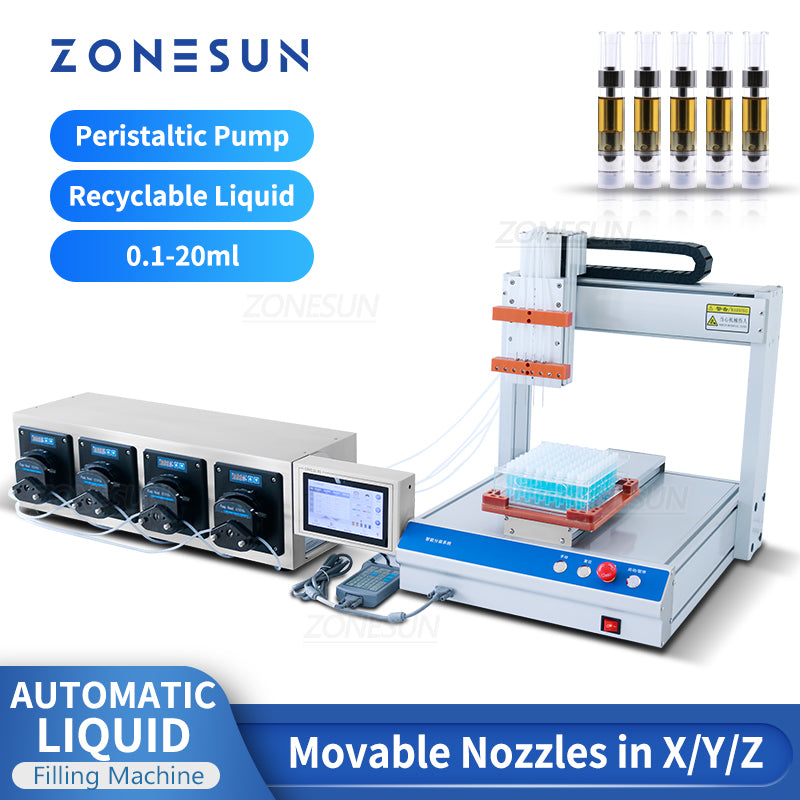

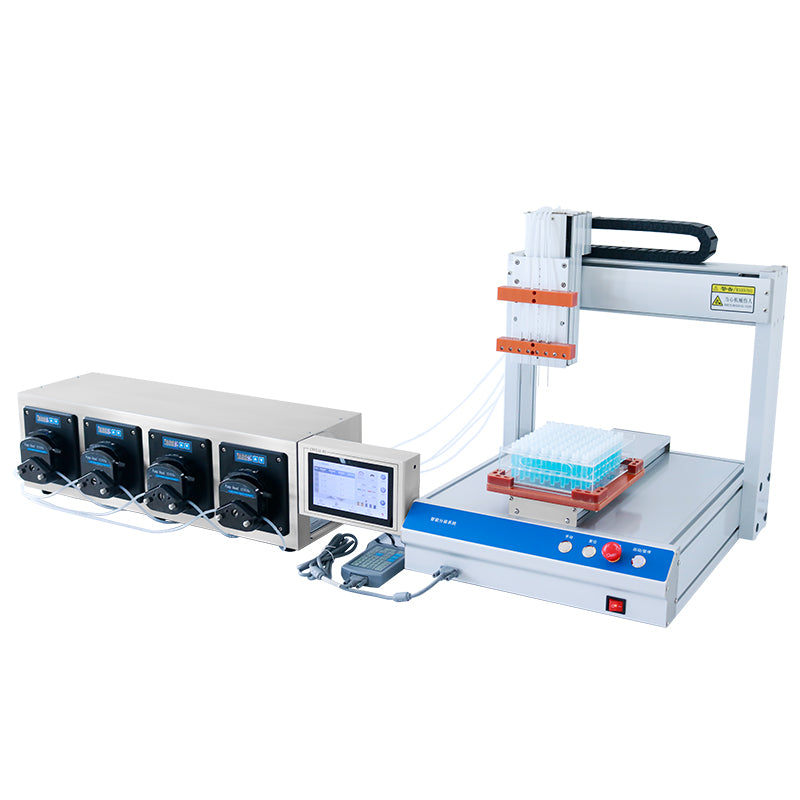

This filling machine is equipped with 4 peristaltic pumps and multiple filling nozzles. The nozzles can move along the X/Y/Z axis. It is suitable for vials or small tubes.
PARAMETER
Machine Model
|
ZS-XYZ4A
|
Voltage
|
110/220V 50-60HZ
|
Power
|
400W
|
Filling Range
|
0.1-20ml
|
Filling nozzle quantity
|
1/2/3/4
|
Filling Speed
|
About 60-120 bottles/min
(based on filling volume and liquid)
|
Filling Pump
|
Peristaltic Pump
|
Machine Size
|
About 720*250*210mm
|
Machine Weight
|
About 17kg
|
PRODUCT DETAILS

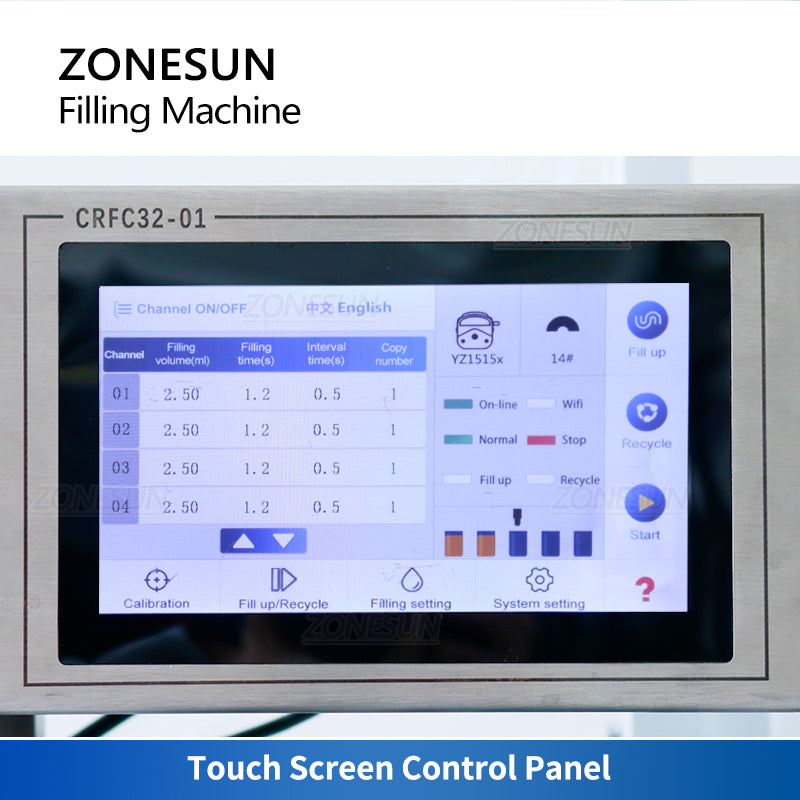

CONTROL PANEL
PLC, separately controls the pumps and nozzles.

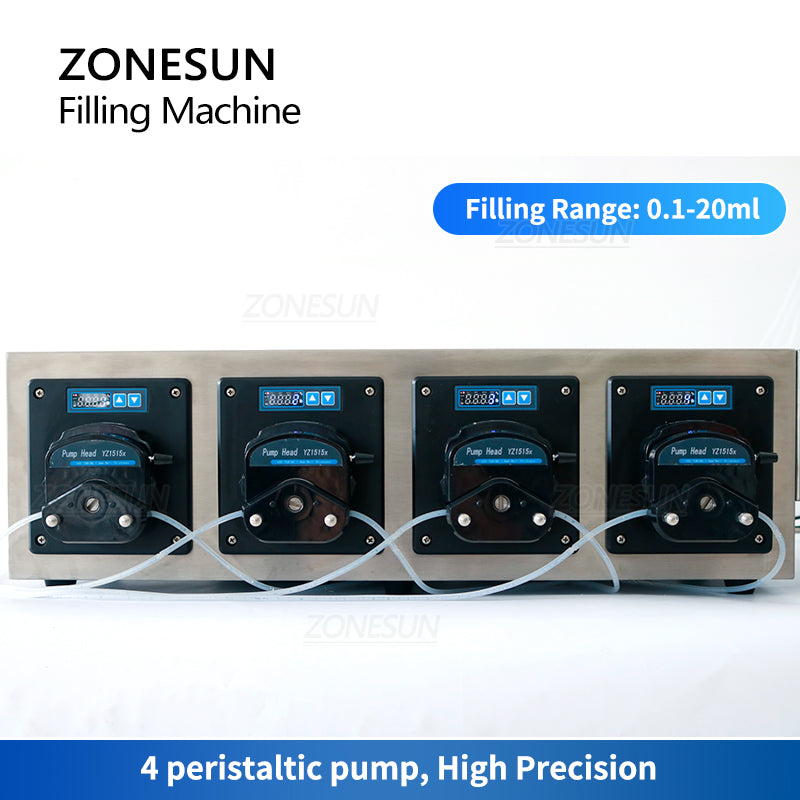

PERISTALTIC PUMP
Modular design, high filling accuracy, easy to replace the hoses.

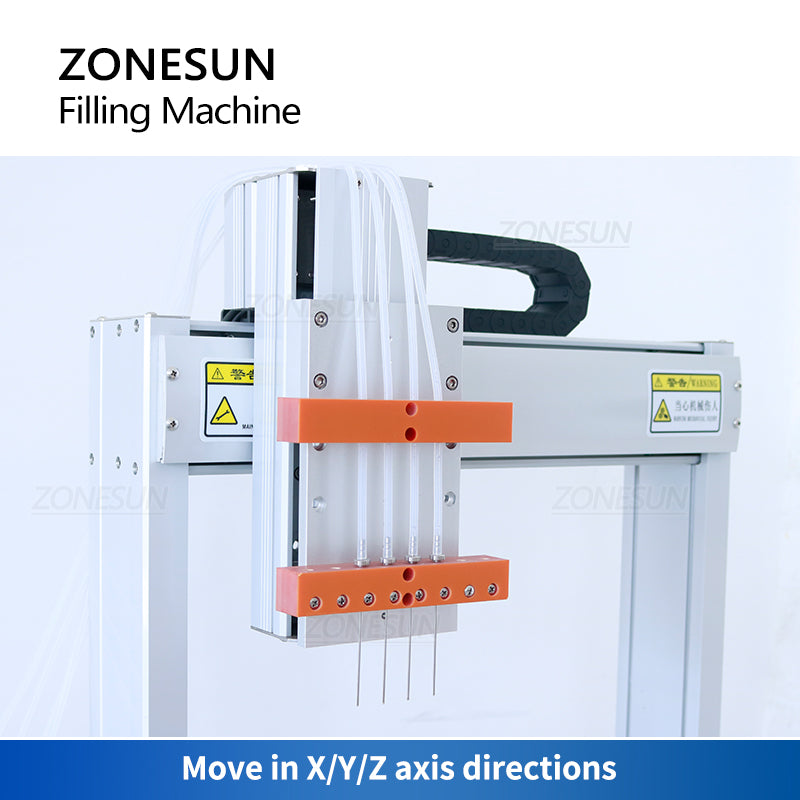

FILLING NOZZLE
Small-volume filling, movable along X/Y/Z axis.

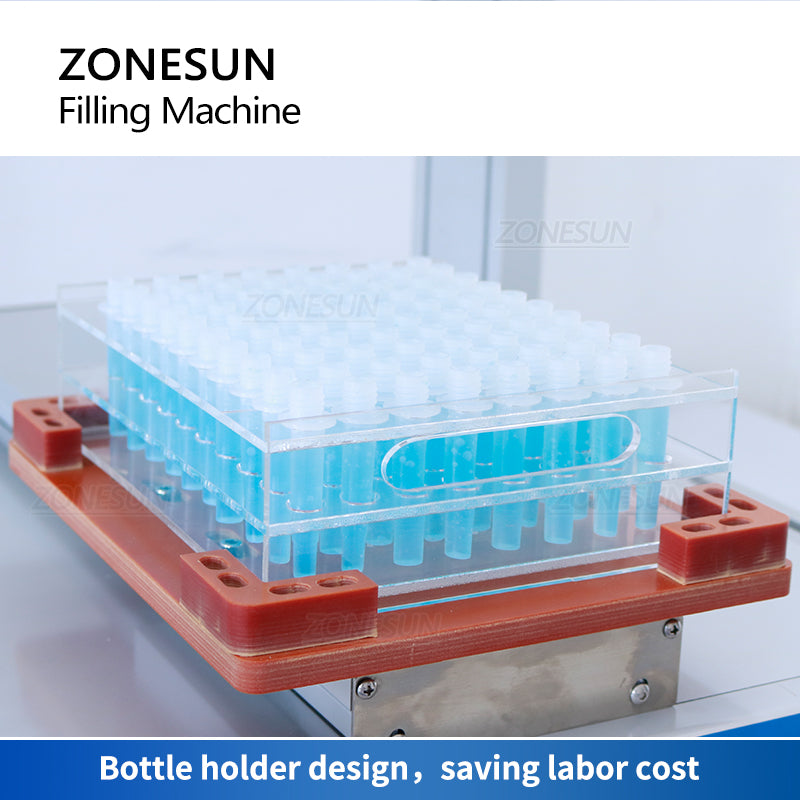

JIG
Custom jig for vials or tubes.
