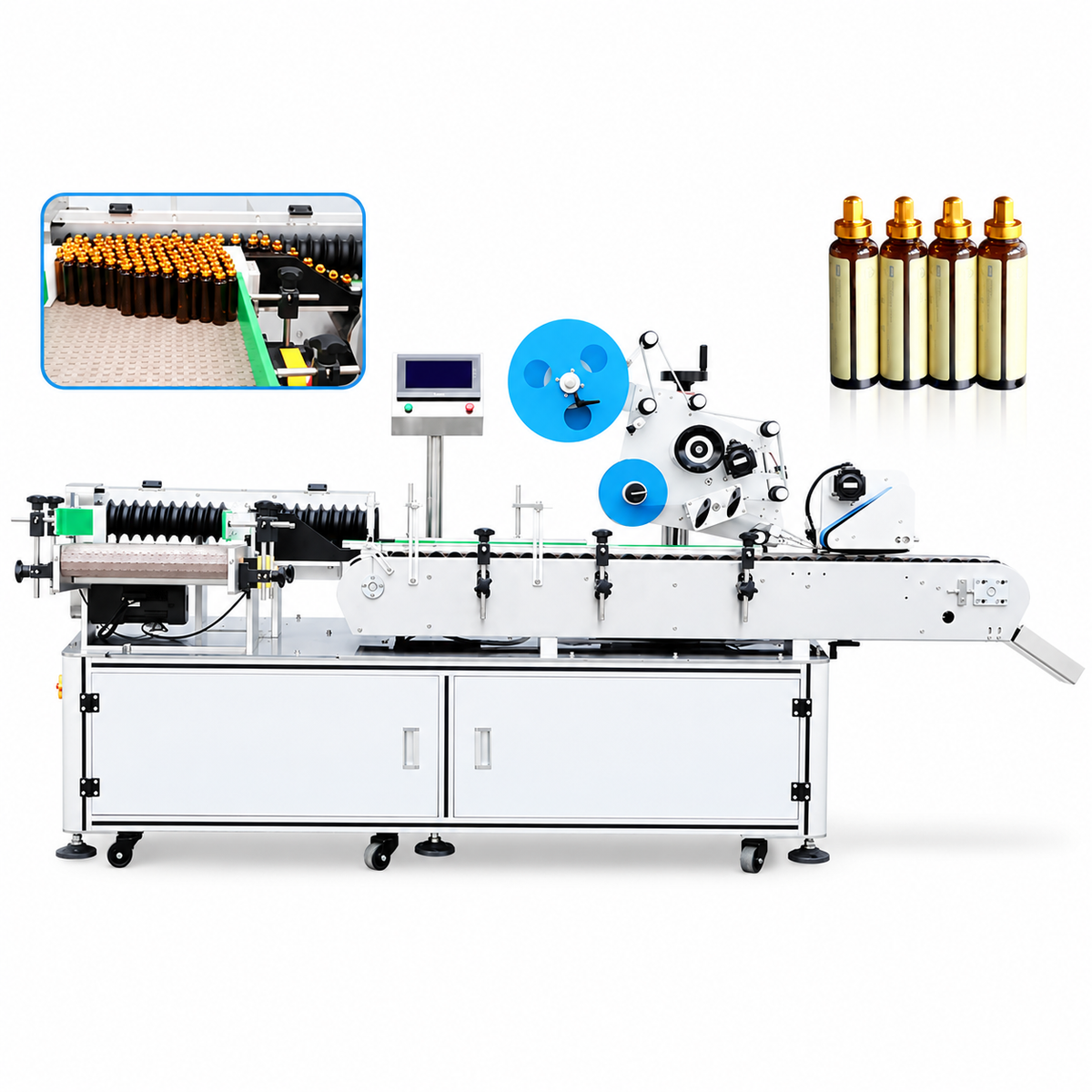

This horizontal vial labeling machine is designed for small round bottles like essential oil, ampoule and vials. With a timing screw conveyor, it smoothly transitions bottles from upright to horizontal for precise labeling. This labeling system features a bottle accumulation table, high labeling speed, and can be integrated with filling and capping machines for an efficient production line.
Horizontal Vial Labeling Machine Parameter
- Machine Model: ZS-HTB832
- Machine Voltage: 220V 50HZ 4000W
- Working Capacity: 80-100 BPM(based on label length)
- Labeling Accuracy: ±1 mm
- Bottle Size: Customizable
- Label Size: W=20-100 mm*H=20-150 mm
- Label Roll Inner Diameter: φ=76 mm
- Label Roll Outer Diameter: φ=300 mm
- Conveyor Width: Customized
- Machine Size: About 2730*1200*1400 mm
- Machine Weight: About 260 kg
- Package Size: About 2750*1350*1670 mm
- Package Weight: About 515 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Touch Screen Control Panel
User-friendly interface for easy parameter setting and monitoring.
User-friendly interface for easy parameter setting and monitoring.
Bottle Accumulation Table
Automatically arranges bottles for continuous feeding.
Automatically arranges bottles for continuous feeding.
Timing Screw Conveyor
Converts upright bottles to horizontal position for stable labeling.
Converts upright bottles to horizontal position for stable labeling.
Horizontal Labeling Structure
Suitable for single side labeling, it ensures smooth and accurate label application on bottle body.
Suitable for single side labeling, it ensures smooth and accurate label application on bottle body.
Label Winding Structure
Provides tight and wrinkle-free label attachment for a professional finish.
Provides tight and wrinkle-free label attachment for a professional finish.
