Parameter
Container size
|
φ20-160mm H 30-300mm
|
Filling range
|
3-4000ml (We also have 3-2500ml and 10-12000ml)
|
Max flow rate
|
4000m/min for each nozzle(based on water)
|
Filling accuracy
|
≤±1%( for water)
|
Filling speed
|
30-50 pcs/ min(depending on bottles and filling liquid)
|
Power supply
|
220V-50HZ/110V-60HZ
|
The pump power
|
60W(For Each Nozzle)
|
Net weight
|
About 128Kg
|
Packing weight
|
About 150Kg
|
Packing size
|
About 2000*820*1570mm
|
Description

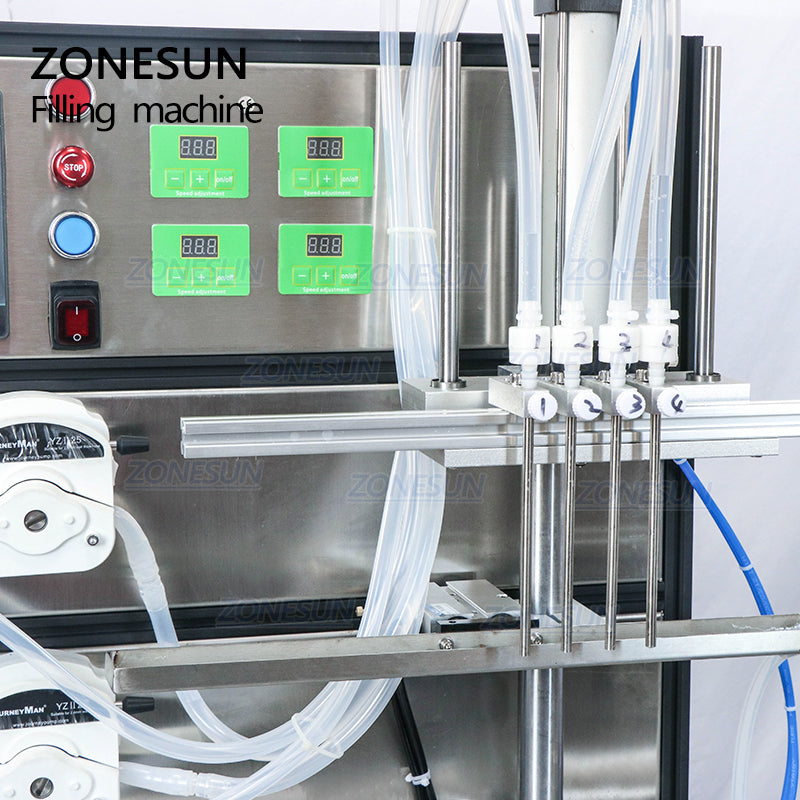

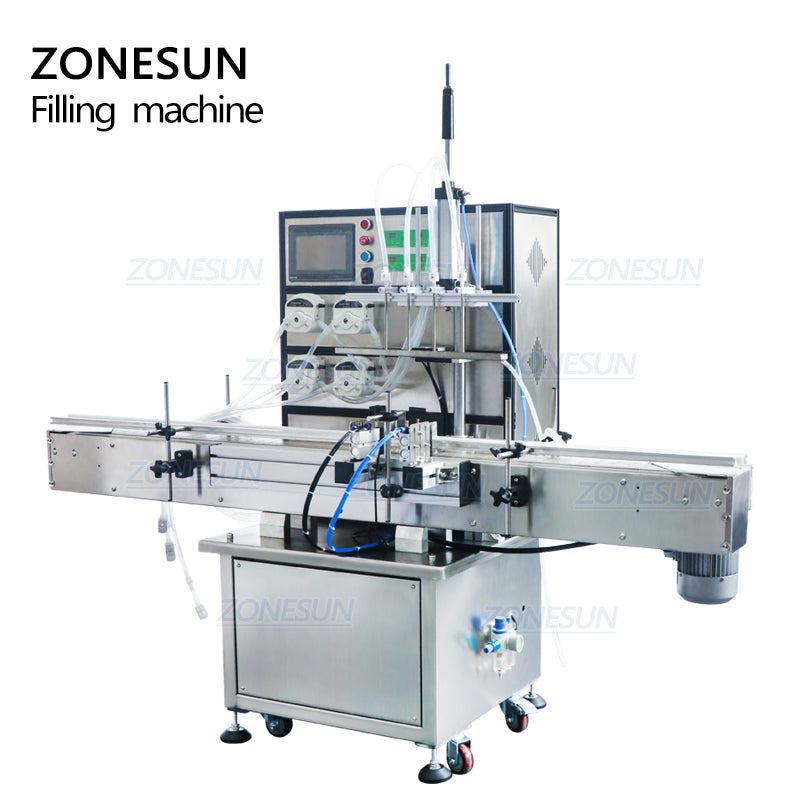

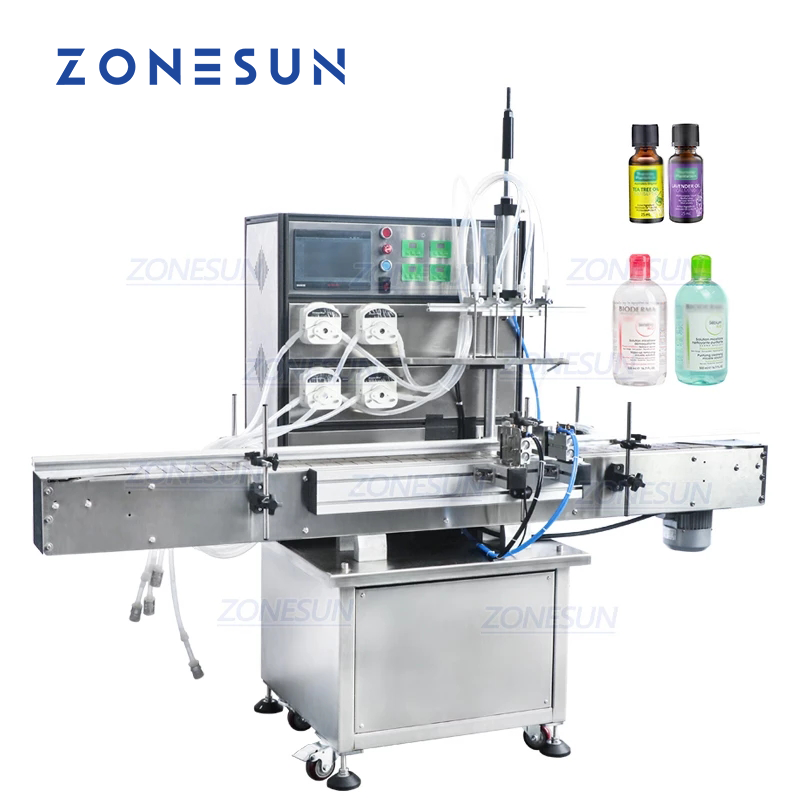

Equipped with peristaltic pump,this liquid filling machine can work automatically,it can fill about 30-50 bottles/min. Each filling nozzle of this machine can be controlled separately,additionally the liquid will not pass through the pump during filling,ensure the liquid is clean after filling.
