DESCRIPTION

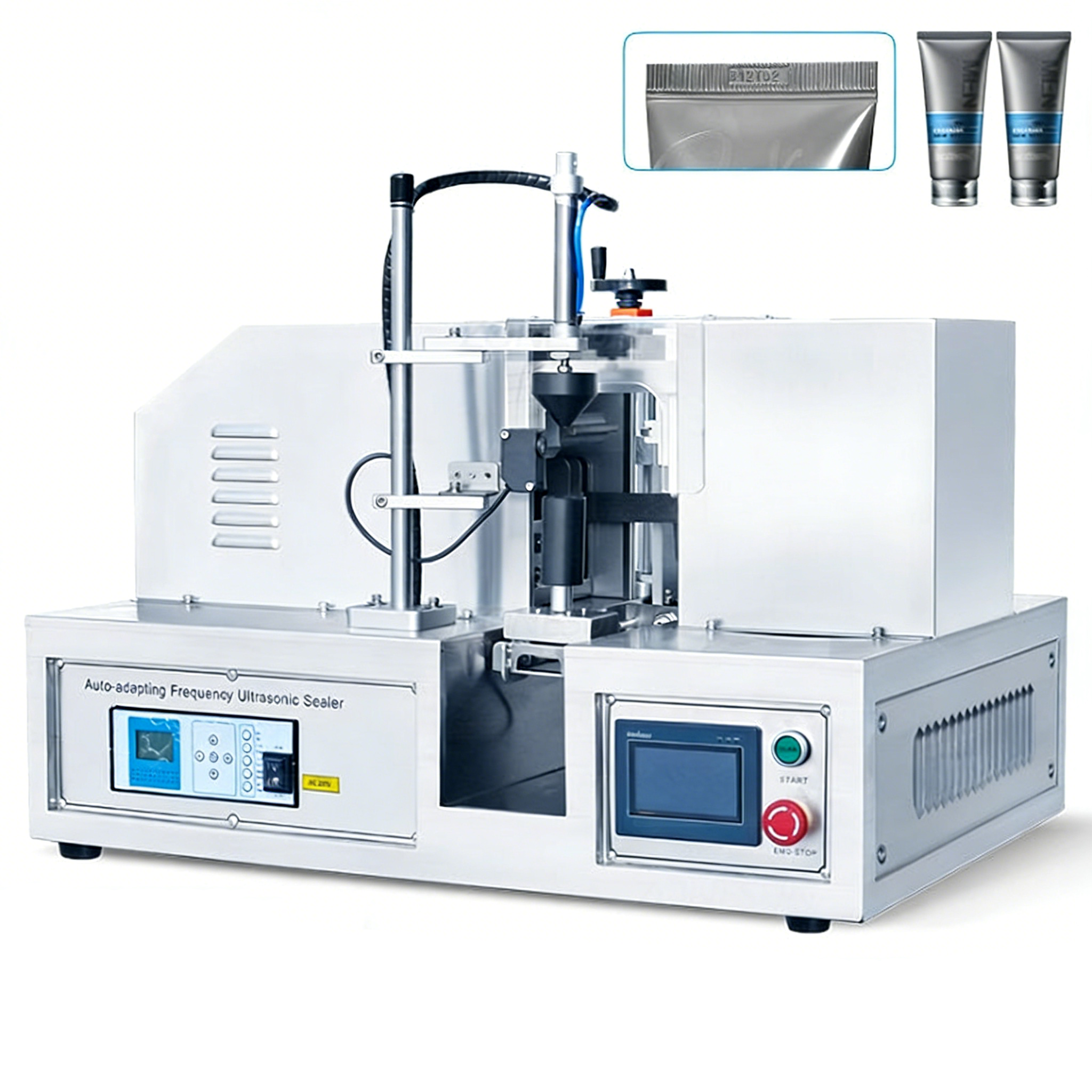

This is a tube sealing machine. It adopts ultrasonic waves to seal the plastic, aluminum-plastic, and soft compound tubes. It is available to stamp an 8-digit date on the seal with a set of number dies. It is widely used in the daily chemical, food, and cosmetics industries.
PARAMETER
Machine Model
|
QDFM-125P
|
Voltage
|
220V/110V 50-60Hz
|
Power
|
2.6kW
|
Sealing Height
|
50-220mm
|
Sealing Width
|
15-50mm (Max 60mm can be customized)
|
Sealing Speed
|
10-13pcs/min
|
Sealing Way
|
Ultrasonic Sealing
|
Air Pressure
|
0.5MPa
|
Frequency
|
20KHz
|
Application
|
Plastic Tube/Aluminum-plastic Tube
|
Machine Body
|
304 Stainless Steel
|
Machine Weight
|
About 86.5kg
|
Machine Size
|
About 855*600*500mm(L*W*H)
|
Package Weight
|
About 110KG
|
Package Size
|
About 960*720*830mm(L*W*H)
|
