Description

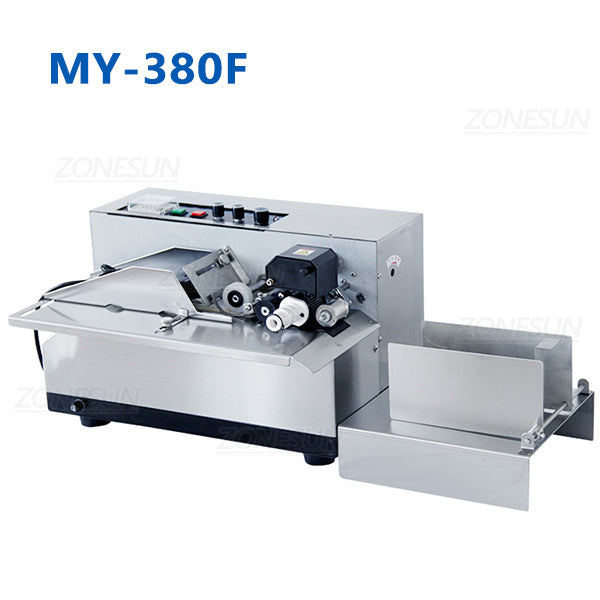

MY-380F solid-ink coding machine fit for printing label on paper, thin cardboard, plastic film and aluminum foil. Adopt solid-ink coding, characterized by high definition, instant printing & instant dry, various colors selectable and strong adhesion.
Characteristic
- Adopt photoelectric mechanism technology, automatic temperature control, auto counting, adjustable print position.
- The printing position can be adjusted by rotating the knob, easy to operate.
- Work efficiently and automatically at high speed, up to 30pcs per minute.
- The thickness can be adjusted as needed, making it suitable for products of different thickness.
- With the function of paging and printing date at one machine, saving labor cost and improving efficiency.
Parameter
Machine Model
|
MY-380F
|
MY-380FW
|
Feature
|
Standard
|
Wider Type
|
Voltage
|
AC 220V/110V 50-60Hz
|
Power
|
180W
|
Solid InkRollSize(OD*H)
|
φ36×32MM(default),φ36*16MM,φ36*32MM,φ36*36MM,φ36*40MM
|
ApplicableFont Size
|
2*3.5*6.8mm(T, default)3*3.5*6.8mm(T)
|
Attention
|
Please remark which ink roll and letters you want in the order, or we’ll ship the defaulted one.(One machine is only with one type of letters and ink roll)
|
Working Speed
|
12.5m/min
|
Printing Speed
|
≤300 times/min
|
Printing Lines
|
Max 11 Lines, 15pcs letters(based on2*3.5*6.8mm)
|
Minimum Product Size(L*W)
|
55*30MM
|
50*30MM
|
Maximum Product Size(L*W)
|
500*190MM
|
500*300MM
|
Product’s Thickness
|
10-25MM
|
Print Position
|
Unilateral 60-250mm
|
Font
|
Number 0-9, Alphabet A-Z
|
Machine Size
|
440*365*260mm
|
440*465*300mm
|
Machine Weight
|
22kg
|
24kg
|
Package Size
|
510*410*340mm
|
560*510*340mm
|
Package Weight
|
23kg
|
25kg
|
Notice
STANDARD MACHINE is 220V, if you need 110V. PLS contact to us or leave message, or we will ship 220V in Euro Plug Directly. Thank you!
