Description

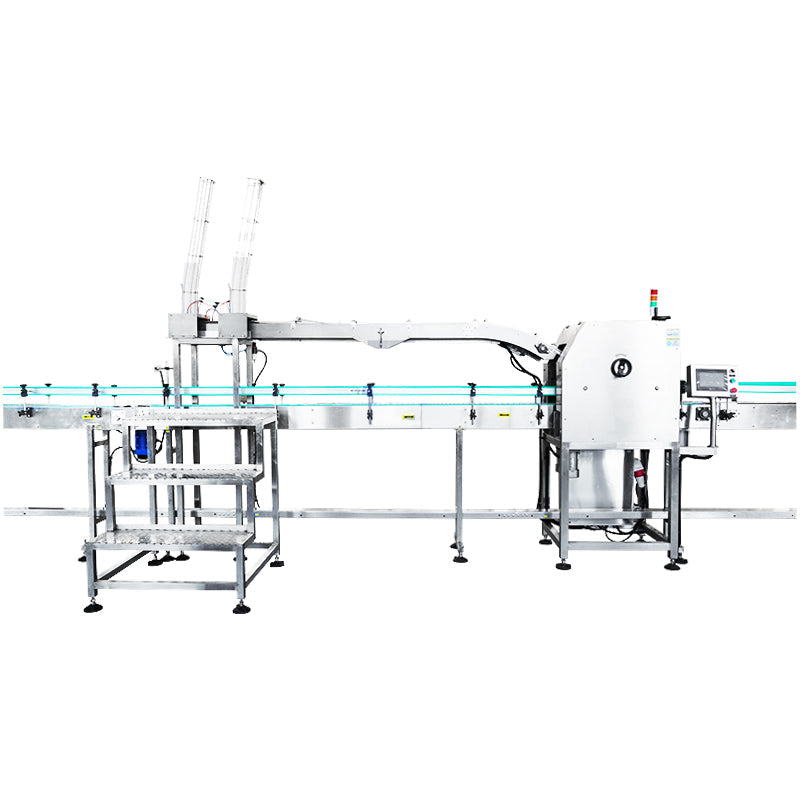

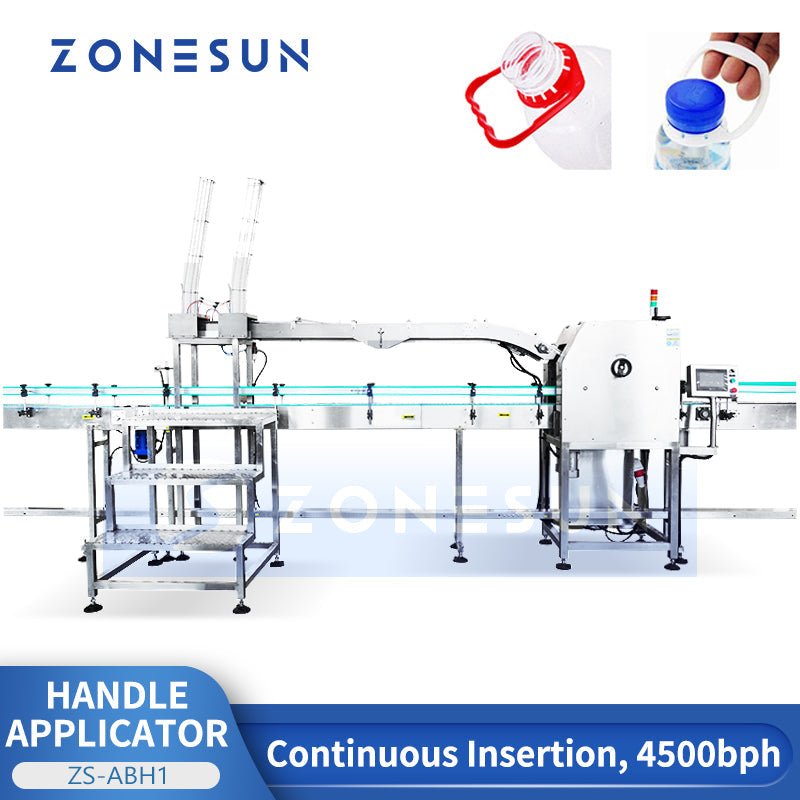

This automatic handle applicator machine is designed for fast and precise plastic handle insertion on PET and water bottles. With a high output of up to 4500 bottles per hour, it supports continuous handle application, improving efficiency in bottle packaging lines. Ideal for beverage, dairy, and bottled water industries, this bottle handle applicator ensures consistent, reliable performance with minimal downtime.
Parameters
- Model: ZS-ABH1
- Power Consumption: 4.8 kW
- Heating Speed: 4,500 bottle preforms/hour
- Air Source Requirement: 0.6–0.8 MPa
- Air Consumption: 50 L/min
- Machine Dimensions: 5562 × 1700 × 2924 mm
- Machine Weight: 800 kg

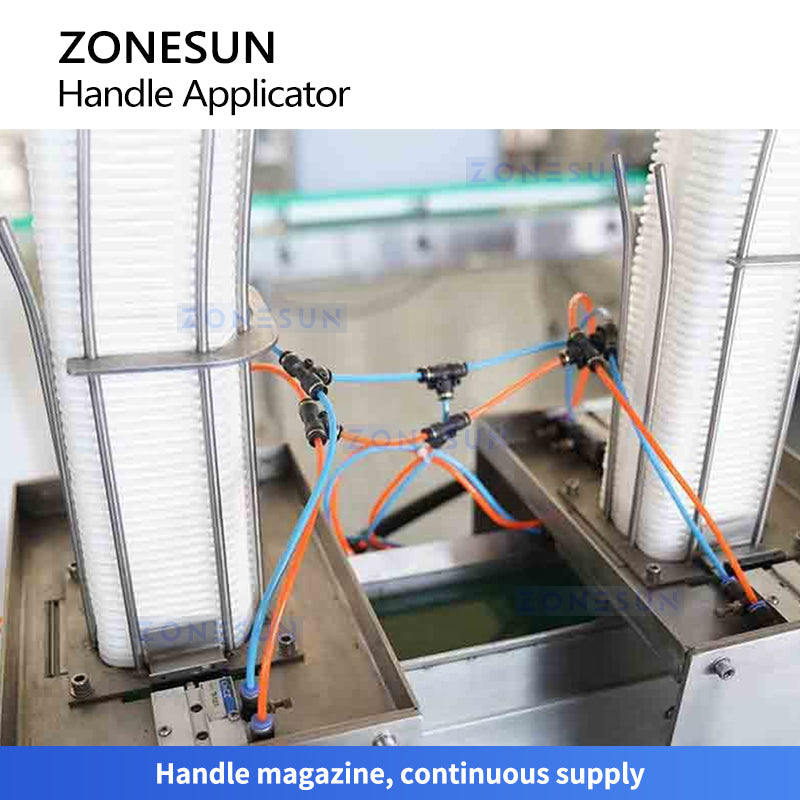

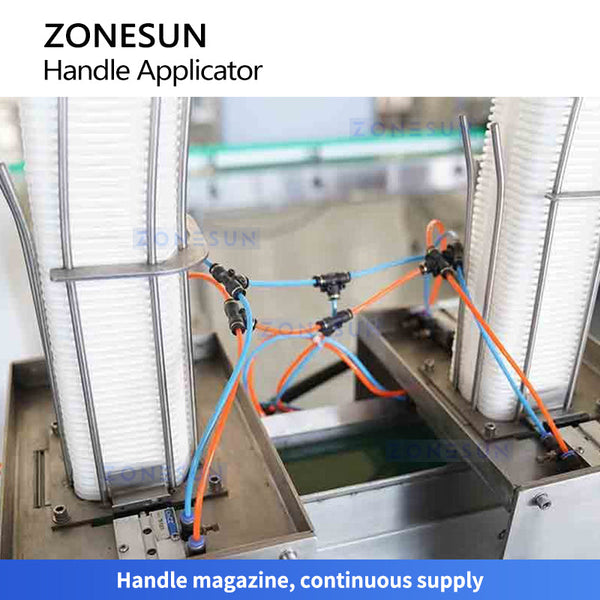

MAGAZINE
It ensures a continuous supply of handles to the applicator, minimizing the need for frequent refills. The magazine is engineered for easy loading and can accommodate various handle sizes and styles.

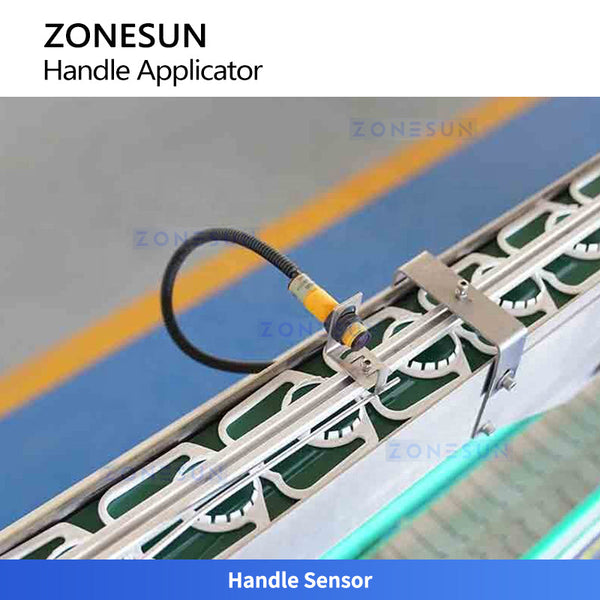

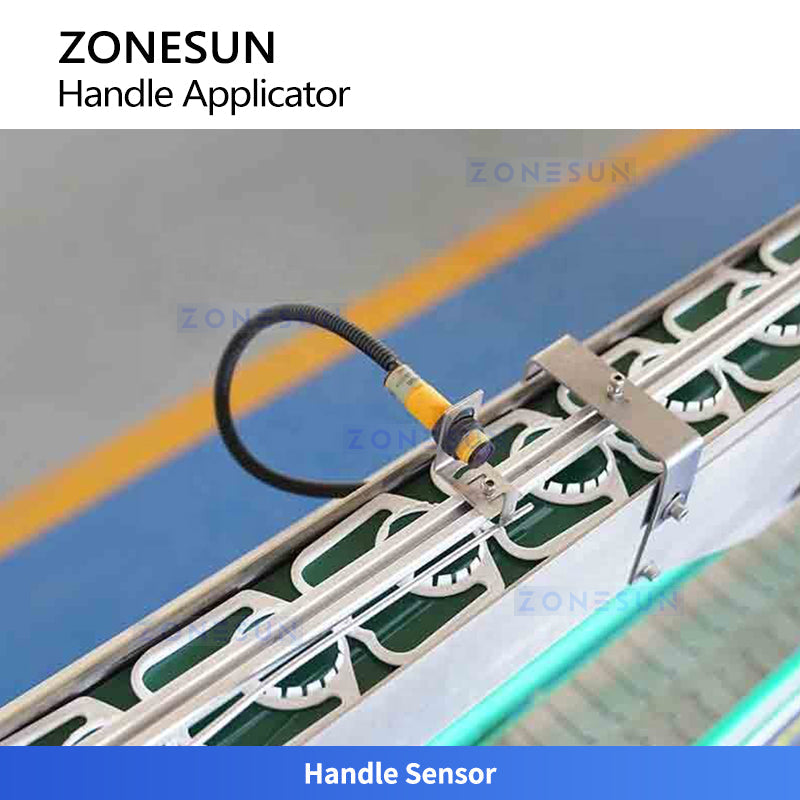

SENSOR
The handle sensor plays a crucial role in maintaining a continuous supply of handles within the handle placing station. It constantly monitors the availability of handles.

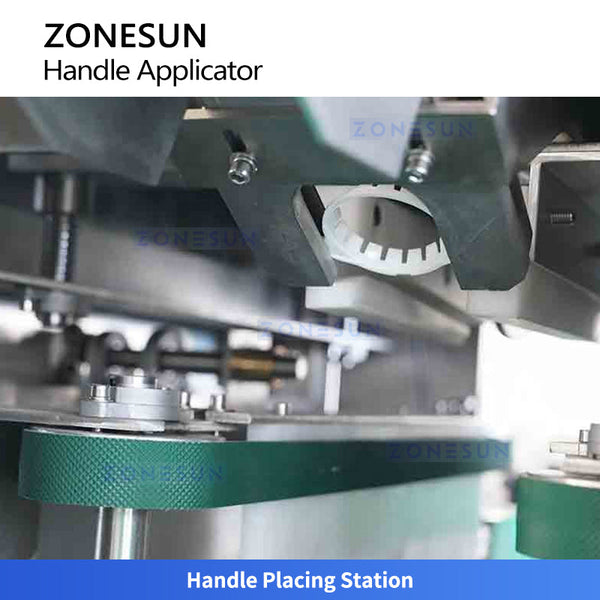

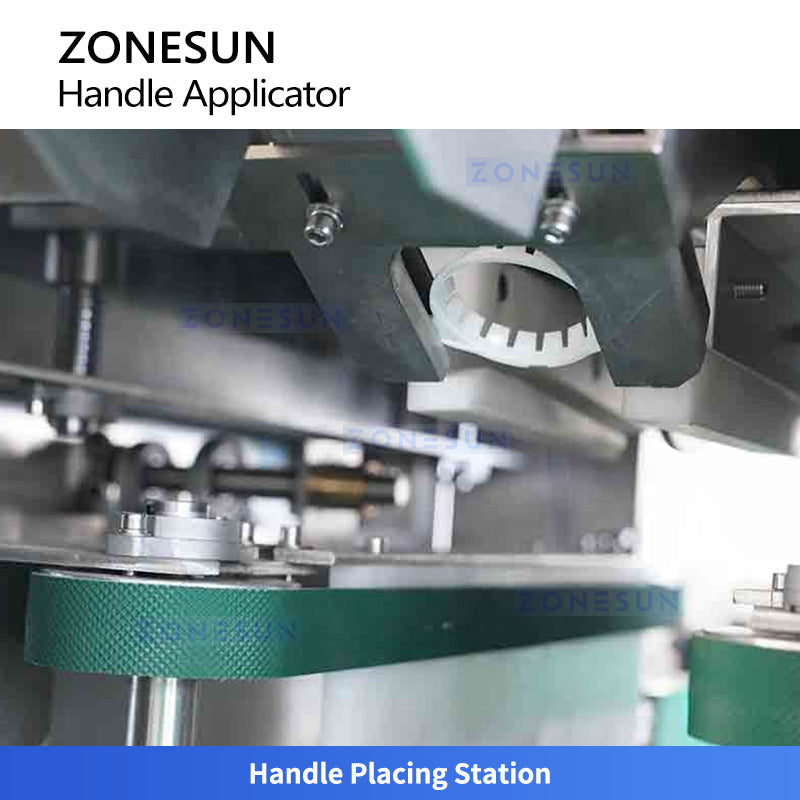

PLACING
It ensures the handles are positioned in such a way that the bottle's neck naturally engages with and picks up a handle as it moves along the conveyor.

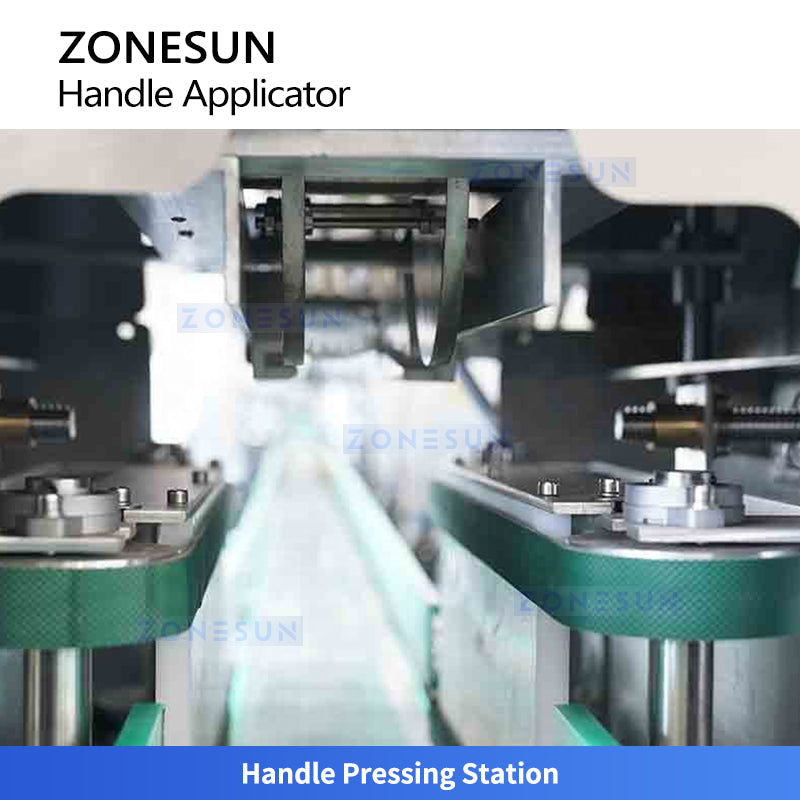

PRESSING
Following the handle placing station, the handle pressing station securely fastens the handle around the bottle neck. This station typically employs a set of precisely engineered rollers or pressing plates that apply controlled pressure to snap the handle into place.

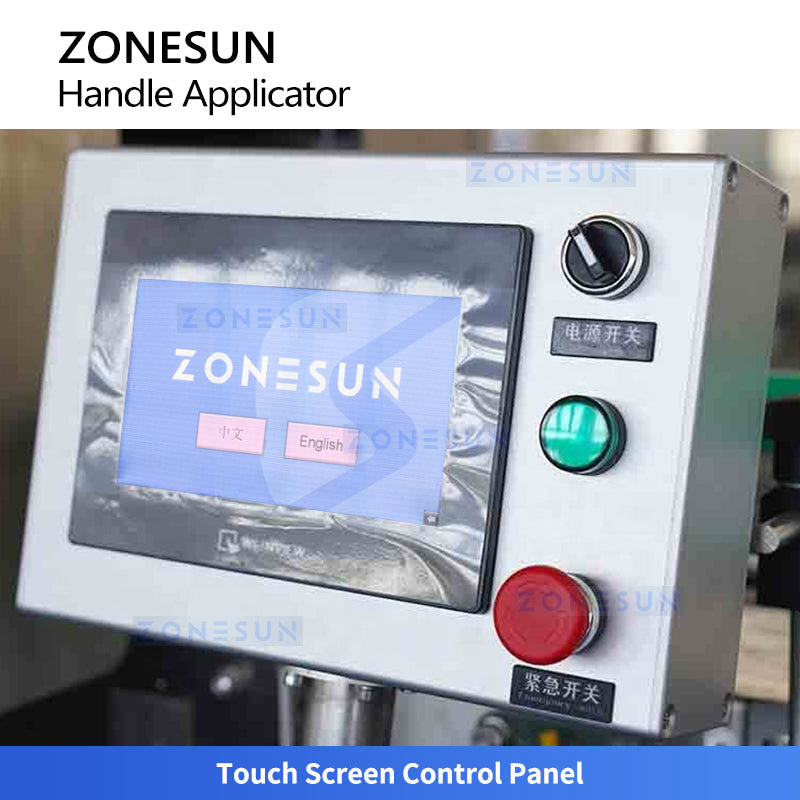

CONTROL PANEL
The touch screen control panel provides a user-friendly interface for operators to monitor and control all aspects of the bottle handle applicator.
