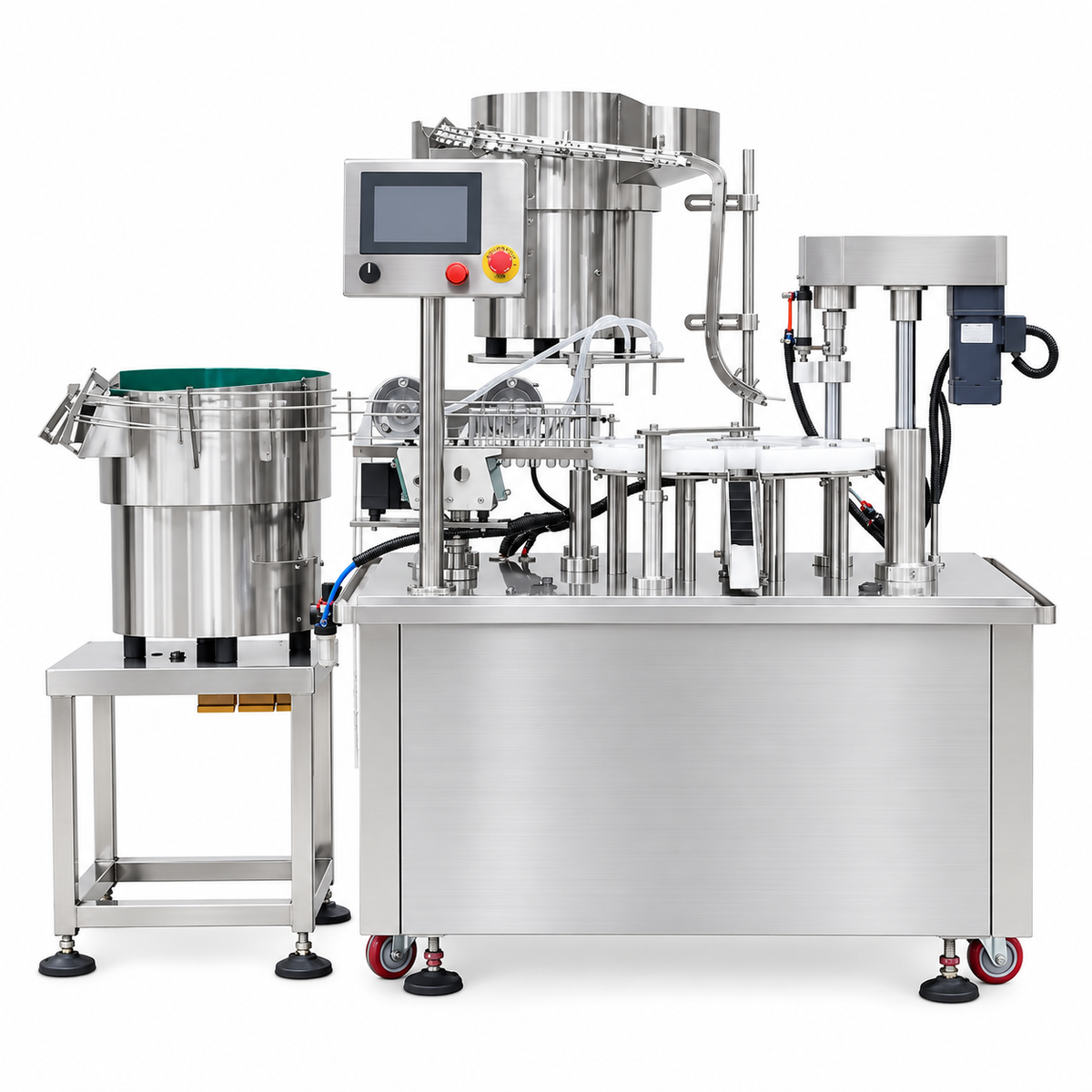

ZONESUN ZS-AFC10 Rotary Tube Filling and Chuck Capping Machine
- Price
- $18,069
Please click "Buy It Now". Shipping will be calculated at checkout.
Shipping Information
Shipping methods and costs vary depending on the machine model, package size, destination, and delivery method. ZONESUN offers multiple shipping options, including express delivery, air freight, sea freight, and other available logistics services. Large machines and production lines are typically packed in export-standard wooden cases for safer transportation.
For large machines, customized equipment, or complete production lines, we recommend contacting us before placing an order so our team can confirm the most suitable shipping method, packaging requirements, estimated freight cost, and delivery schedule.
Depending on the selected shipping method, import duties, customs clearance fees, local taxes, and other destination charges may apply. These charges are determined by the relevant authorities and service providers at the destination.
About Us
ZONESUN specializes in automated packaging machinery and integrated production line solutions, including filling, capping, labeling and sealing equipment. We provide standalone machines and customized packaging lines for different products, containers and production requirements.
ZONESUN is operated by Guangdong Shanghang Technology Limited, with engineering, manufacturing and technical support capabilities for global customers.

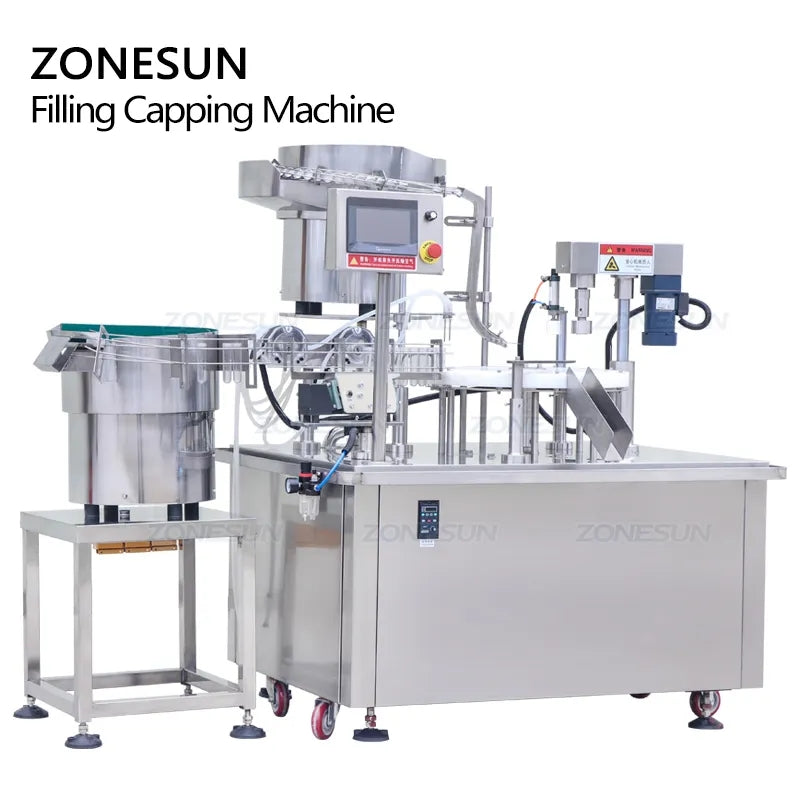

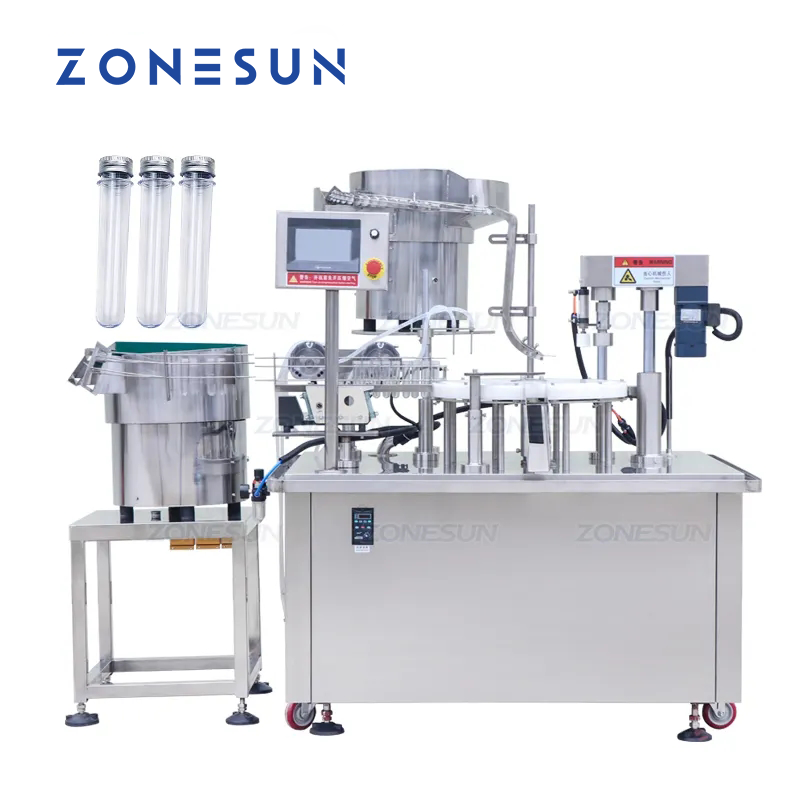

The ZS-AFC10 is a compact rotary filling and capping machine designed for small test tubes and liquid containers. Featuring dual peristaltic nozzles and customizable rotary plate sizing, it delivers high-precision filling and efficient cap placement. Ideal for labs, cosmetics, and pharmaceutical production lines seeking speed and accuracy in compact formats.
ZS-AFC10 Liquid Filling Machine Specifications
Parameter Specification
Model ZS-AFC10
Voltage 110/220V, 50–60Hz
Power 2KW
Filling Range 20ml (customizable upon request)
Working Speed Approx. 30 bottles/min (based on filling volume)
Filling Accuracy ±2%
Air Consumption 0.8–2 m³/h
Air Pressure 0.3–0.8 MPa
Packing Dimensions Approx. 1560 × 1460 × 1600 mm
Packing Weight Approx. 562 kg

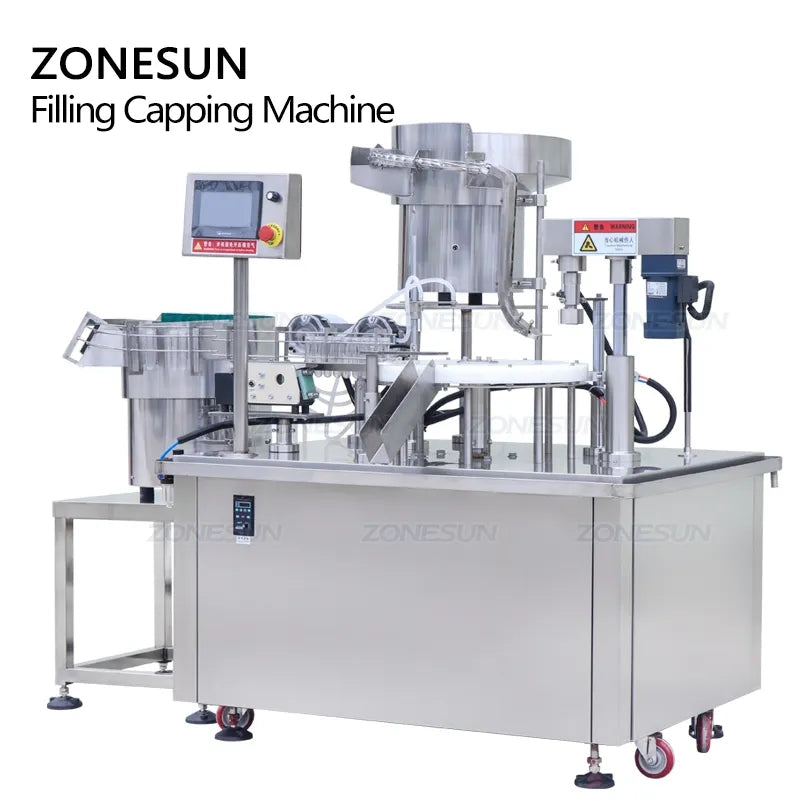

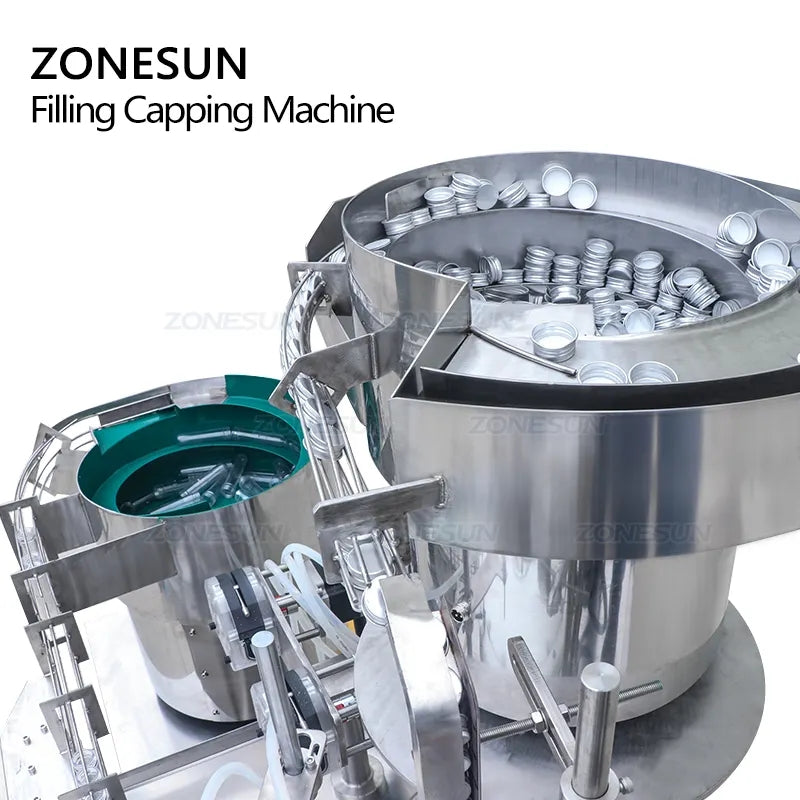

Touchscreen and Cap Sorting
The control panel and vibratory bowl coordinate automatic filling and cap feeding.

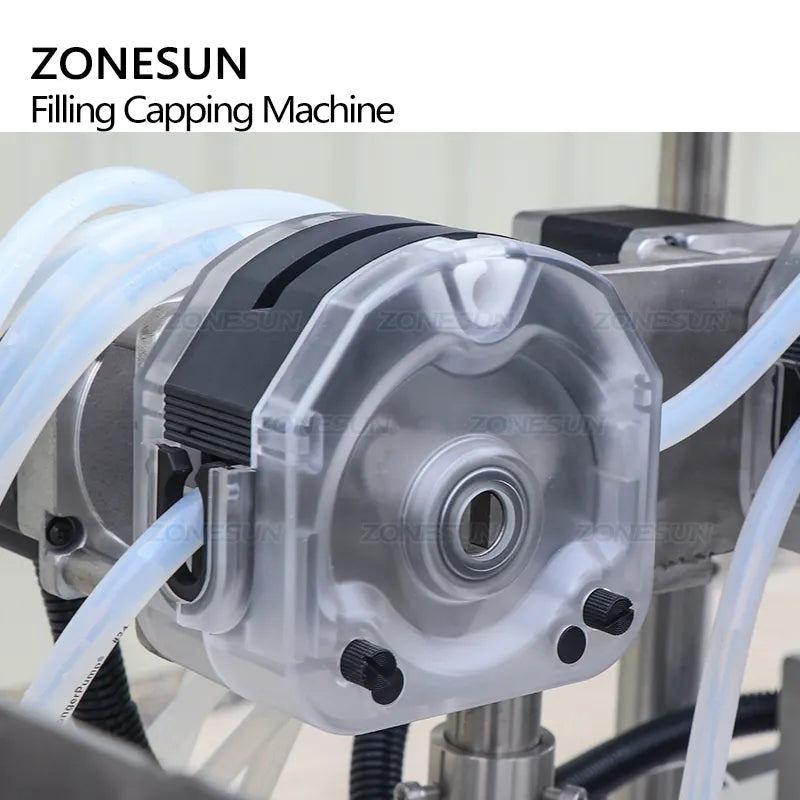

Peristaltic Pump Filling
The pump delivers liquid through the filling nozzle, while sensors coordinate bottle movement.
