Description

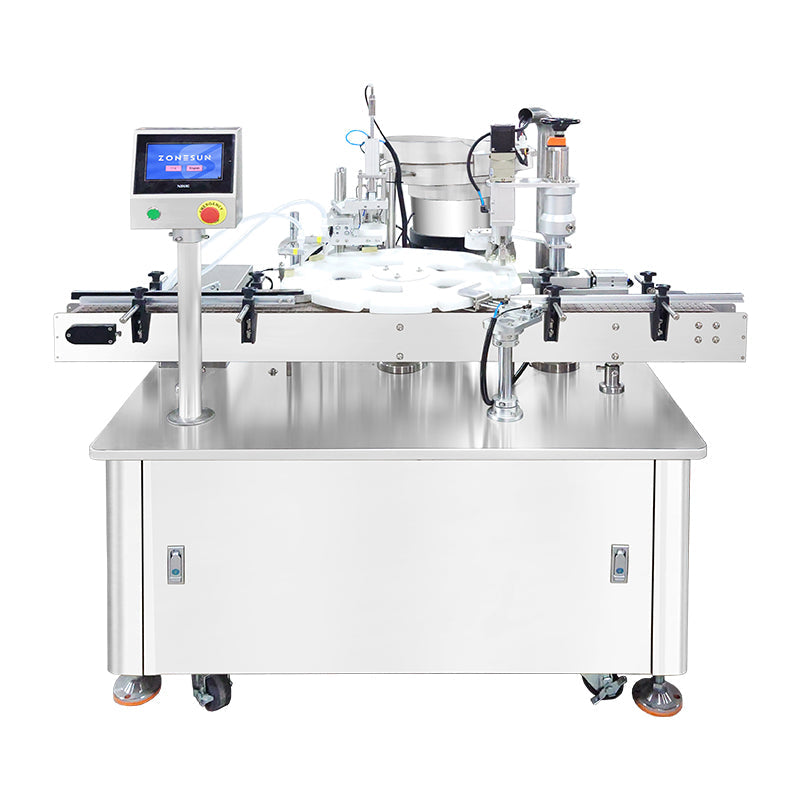

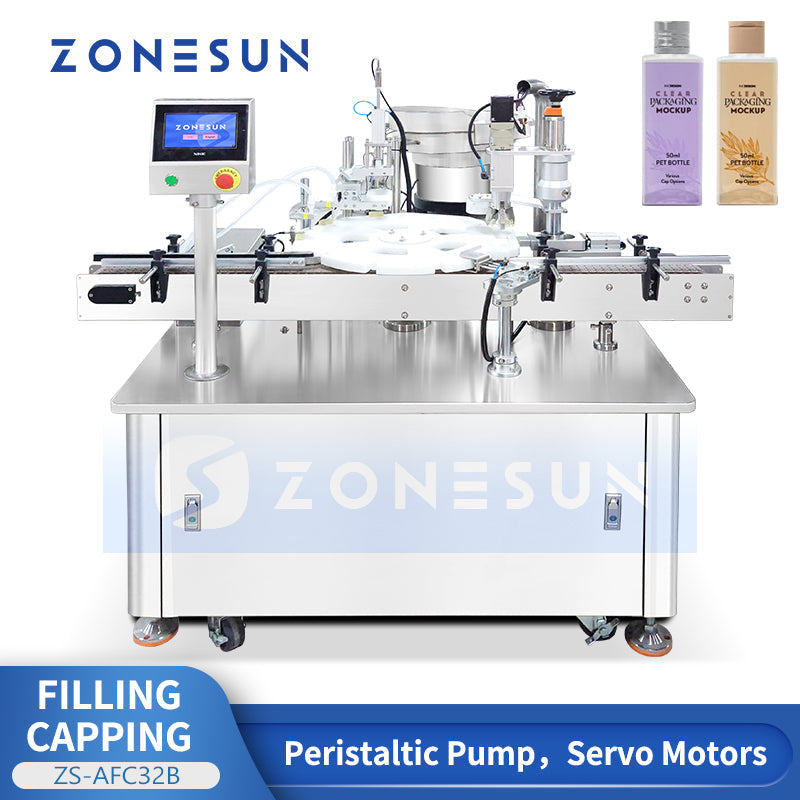

The ZONESUN ZS-AFC32B is an automatic liquid filling and capping machine that integrates peristaltic pump filling with cam-driven motion control. Equipped with dual peristaltic pumps, servo motors, and a rotary starwheel, it ensures precise, contamination-free filling and stable cap placement. The machine features a vibratory bowl for automatic cap feeding, a press-capping and screw-capping assembly for consistent torque control, and a conveyor system for smooth bottle transfer. Built with SUS304 stainless steel and customizable components, it is ideal for essential oils, eye drops, solvents, and other small-volume liquid products.
Parameter
- Model: ZS‑AFC32B
- Voltage: 110/220 V, 50–60 Hz
- Filling Pump: Peristaltic pump
- Hose Size: #17
- Nozzles: 2
- Filling Range: 10–60 ml (customizable)
- Filling Accuracy: ±1%
- Working Capacity: About 30 BPM
- Nozzle Material: SUS304
- Vibratory Bowl Material: SUS304
- Machine Size: About 1800 × 1670 × 1450 mm
- Package Size: About 2490 × 960 × 1670 mm
- Package Weight: About 632 kg

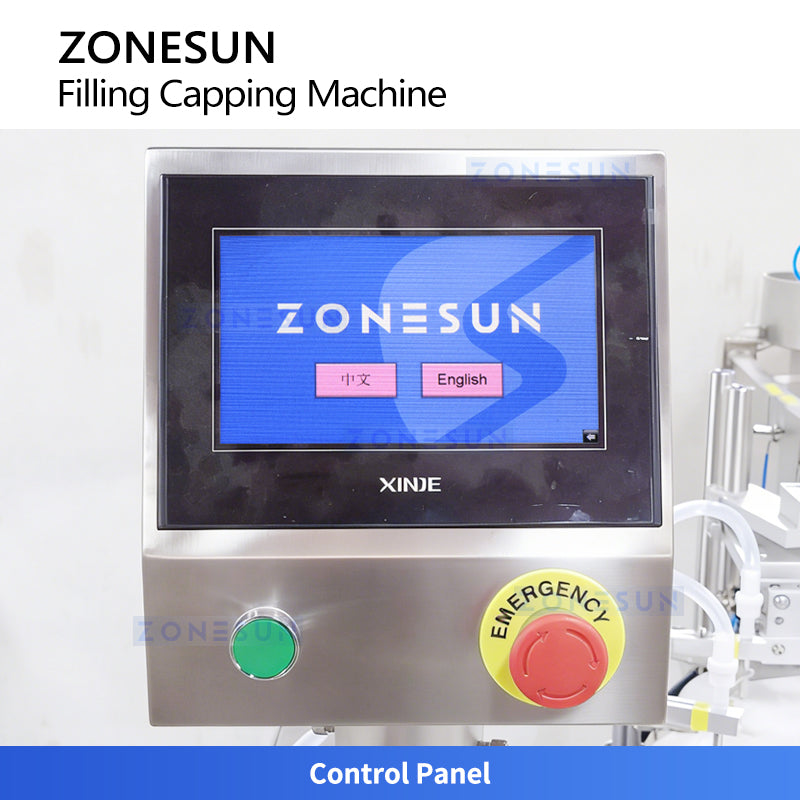

CONTROL PANEL

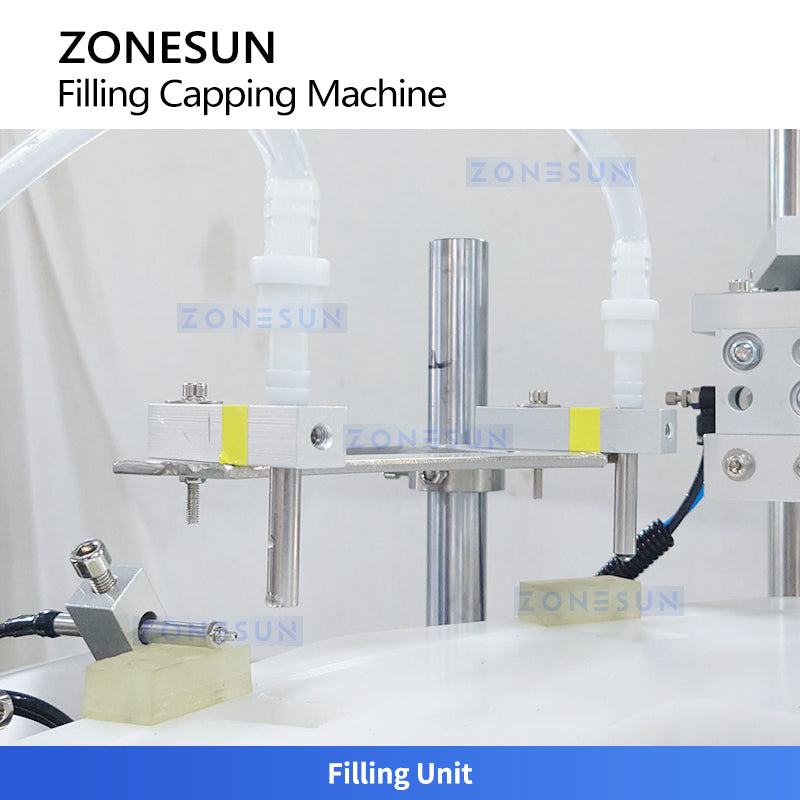

FILLING UNIT
Delivers precise dual-head peristaltic pump filling to ensure contamination free liquid dosing, maintaining product purity and preventing cross-contamination.

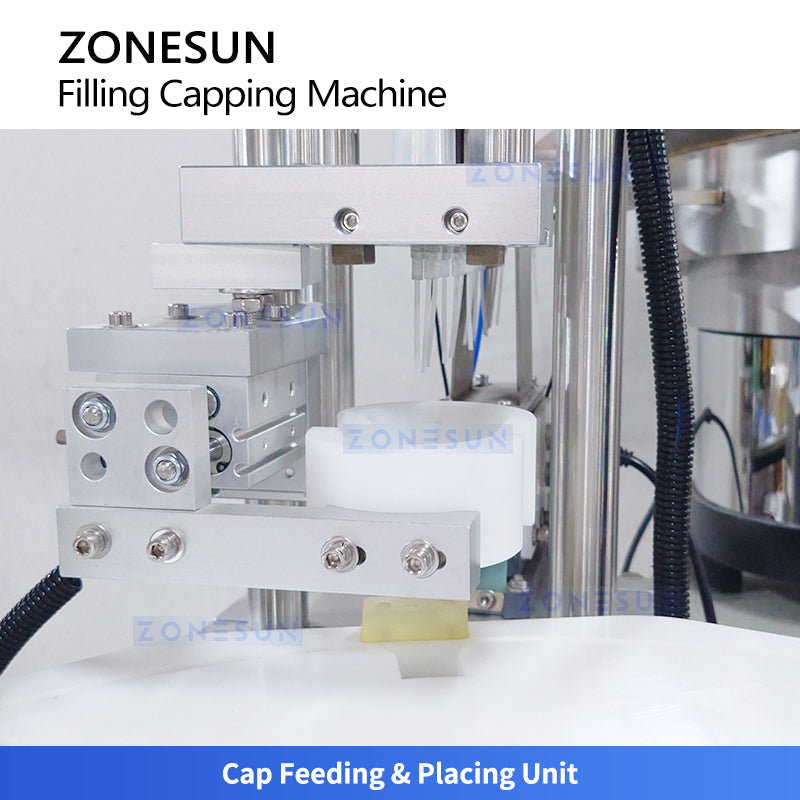

CAP FEEDING & PLACING
Feeds caps through a vibrating bowl and positions them accurately above each bottle for stable, aligned cap placement.
PRESSING & SCREWING
Performs sequential press-capping and screw-capping with servo-controlled torque to ensure accurate, consistent tightening without over or under tightened caps.

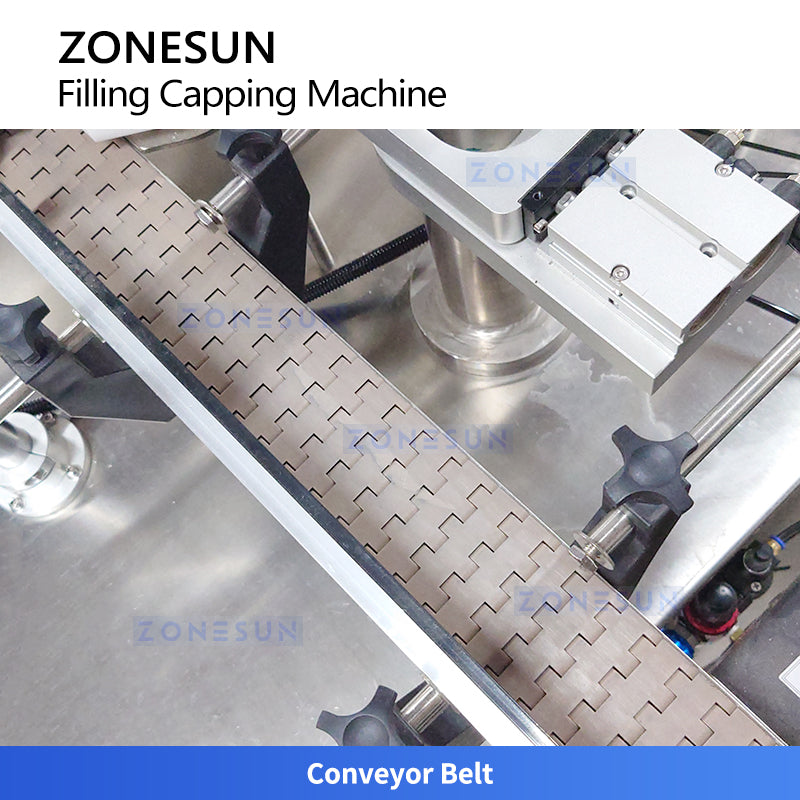

CONVEYOR BELT
Transfers bottles into the starwheel for filling and capping, then moves finished bottles out and guides them to the next stage.
STARWHEEL
Provides positive bottle transfer for smooth, accurate movement through the filling and capping stations, with changeover for different bottle sizes.
