DESCRIPTION

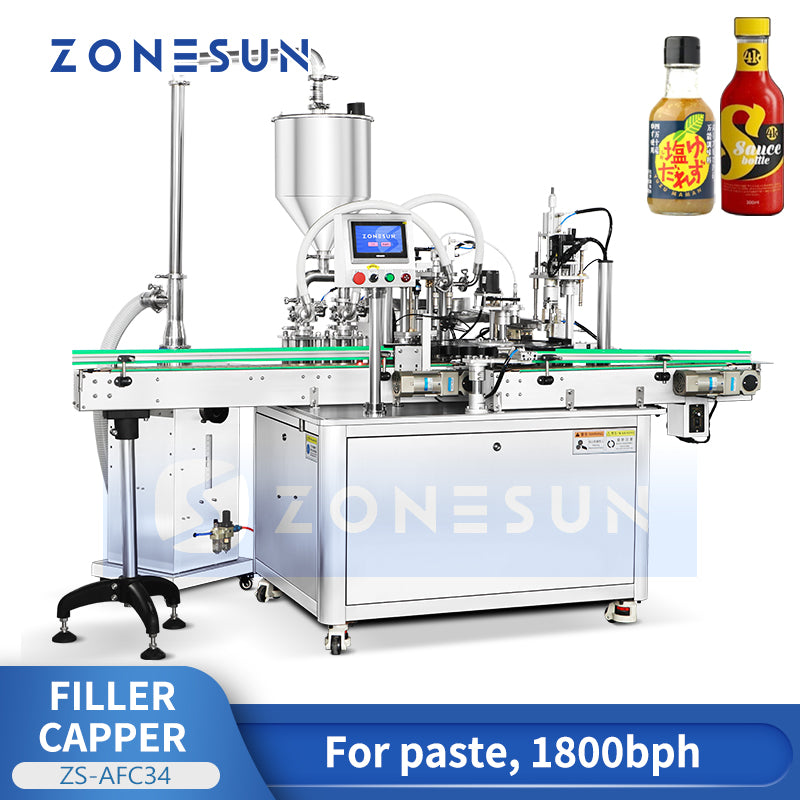

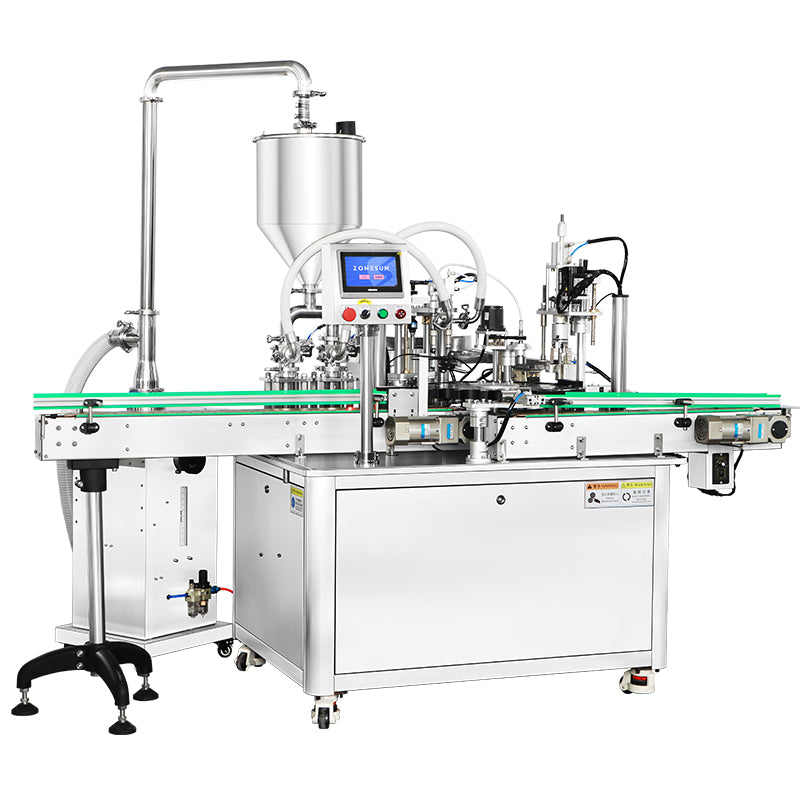

This innovative machine combines precision filling and capping in a single, efficient process. Featuring a double-head servo piston pump for accurate dispensing and a vibratory feeder for smooth cap placement, this machine delivers exceptional performance and reliability. The servo motor-driven capping system ensures secure closures, while the no-bottle-no-fill function eliminates waste. Ideal for filling and capping liquid products, this machine is perfect for various industries.
Parameter
- Machine model: ZS-AFC34
- Power: About 4.2kW (220V 50Hz)
- Cover size: Customized
- Bottle size: Customized
- Filling capacity: 200–300ml (based on syrup)
- Filling pump: Double-head servo piston filling
- Filling accuracy: About ±2%
- Production efficiency: 30BPM (based on filling volume and filling material)
- Working air pressure: 0.6–0.8MPa
- Machine size: About 2300×1500×1700mm
- Machine weight: About 800kg

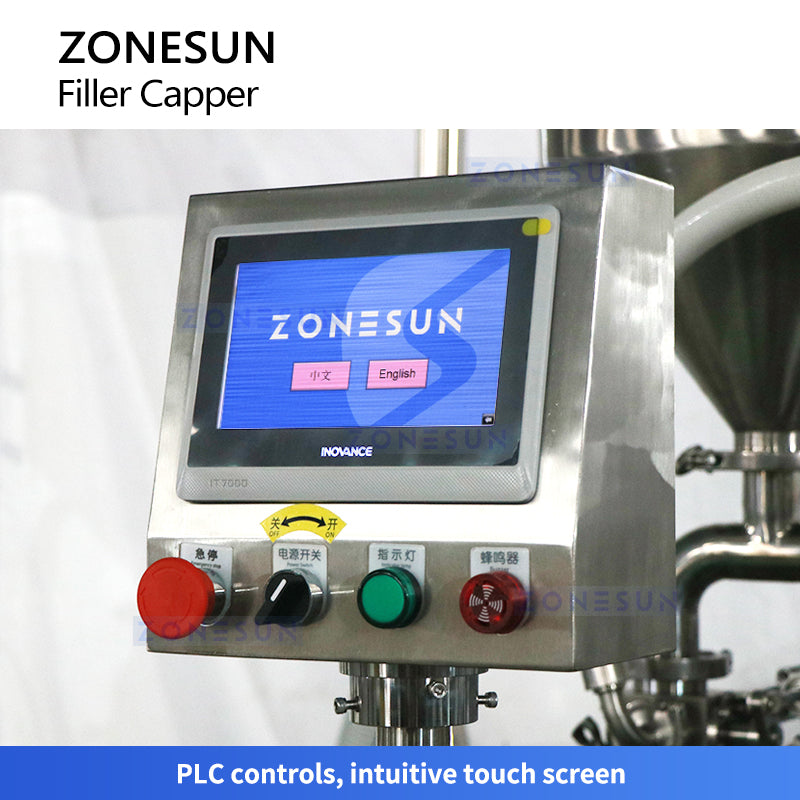

Touchscreen Control
The touchscreen panel provides convenient control of filling and capping parameters.

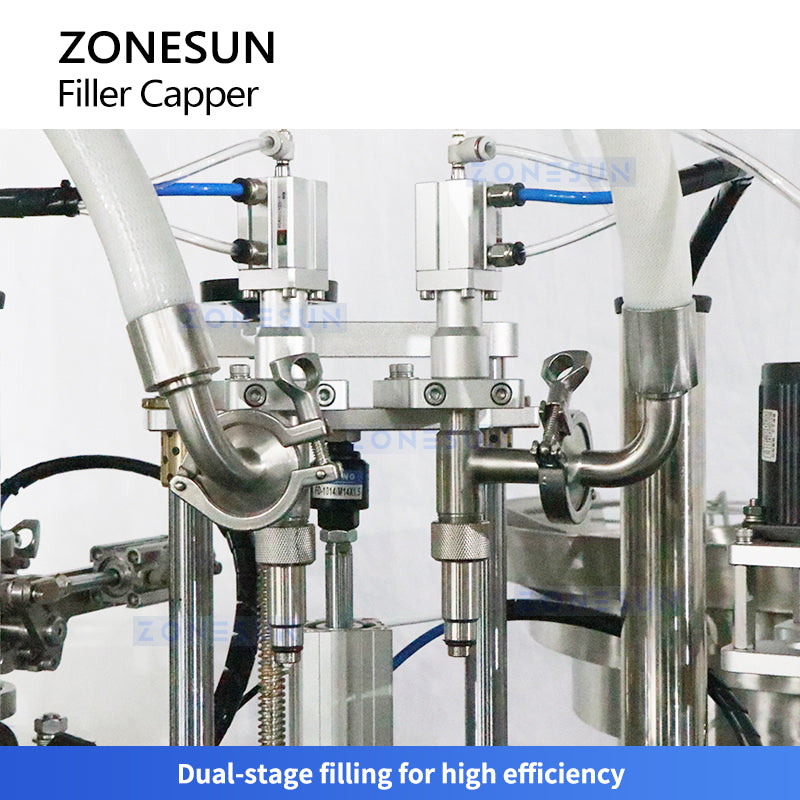

Viscous Product Filling
The filling nozzles dispense compatible thick liquids accurately and consistently.

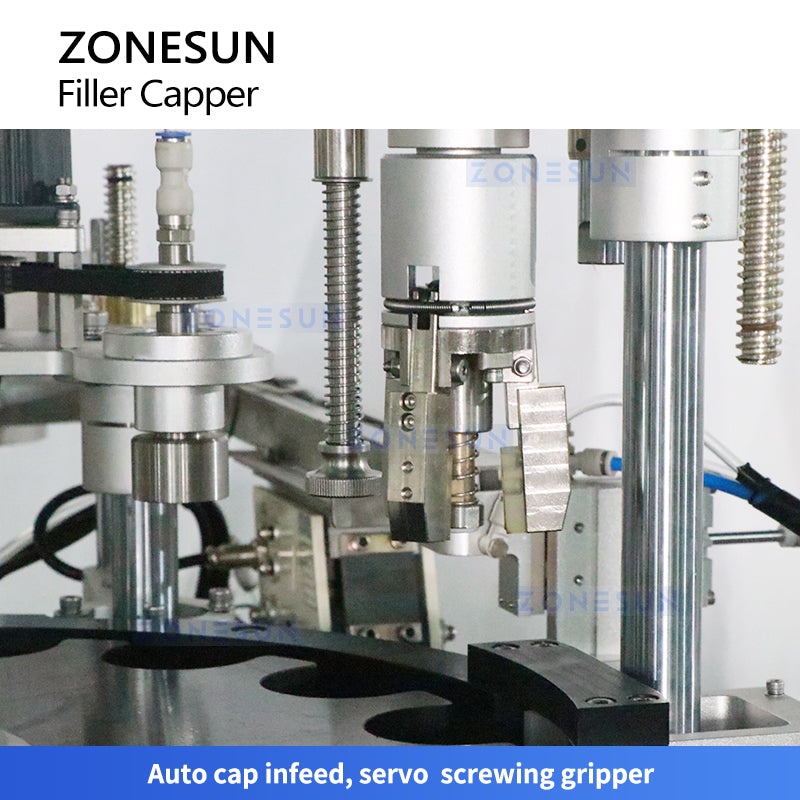

Automatic Cap Tightening
The capping station tightens caps reliably after the filling step.

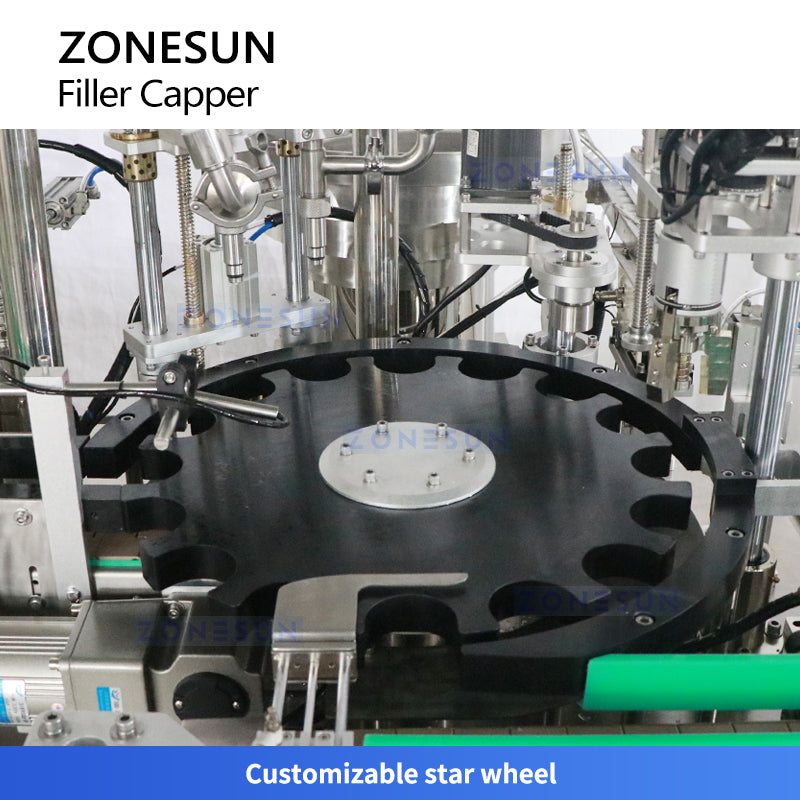

Rotary Starwheel
The starwheel keeps containers positioned correctly through each workstation.

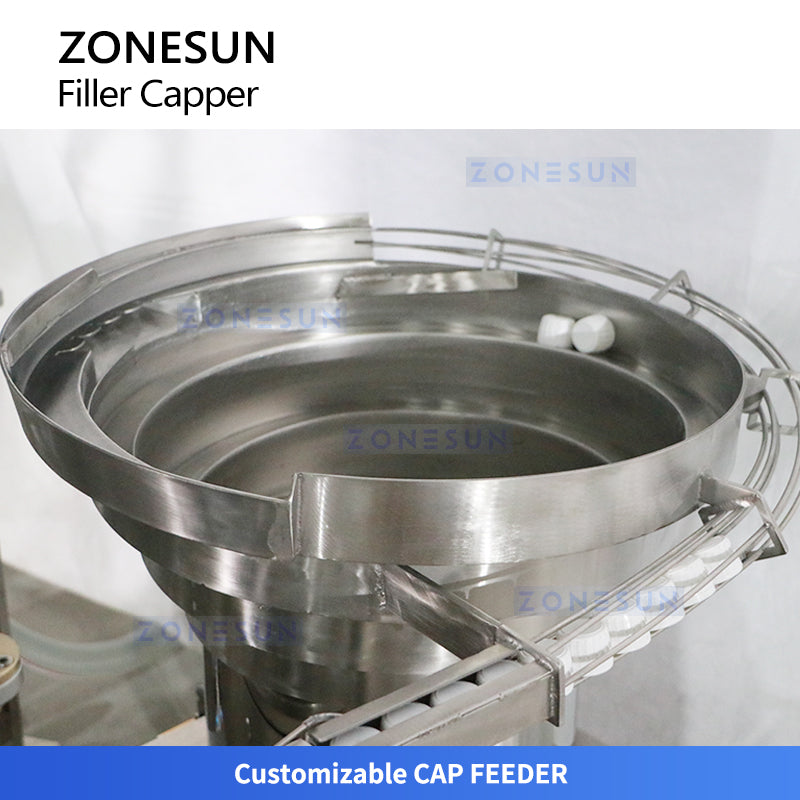

Cap Sorting Bowl
The vibratory bowl sorts and feeds caps continuously to the capping station.
