ZONESUN ZS-AFCL10 Automatic Honey Spoon Filling Sealing Machine Packaging Line

Description

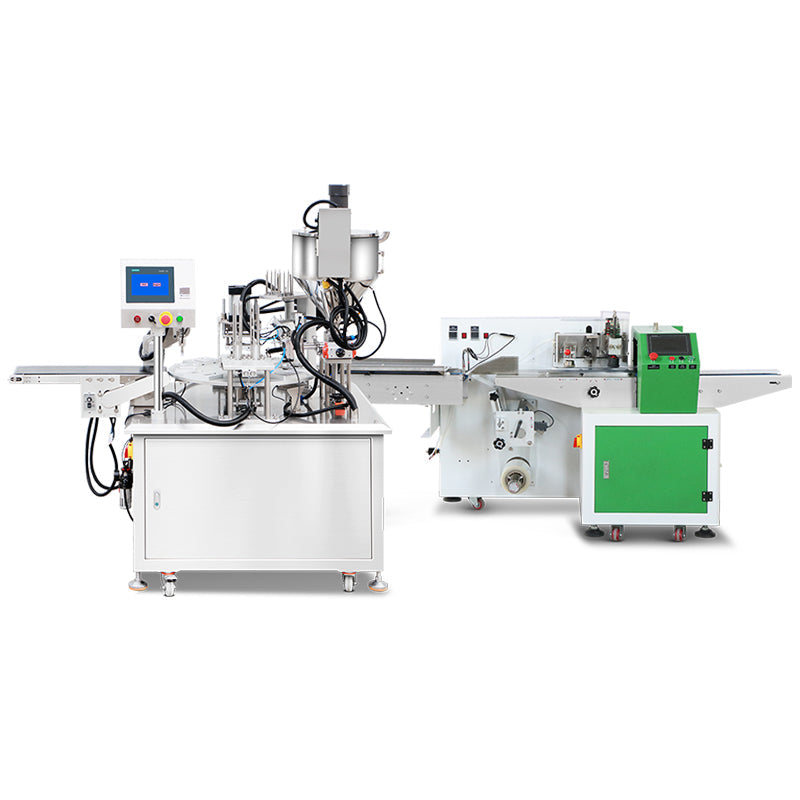

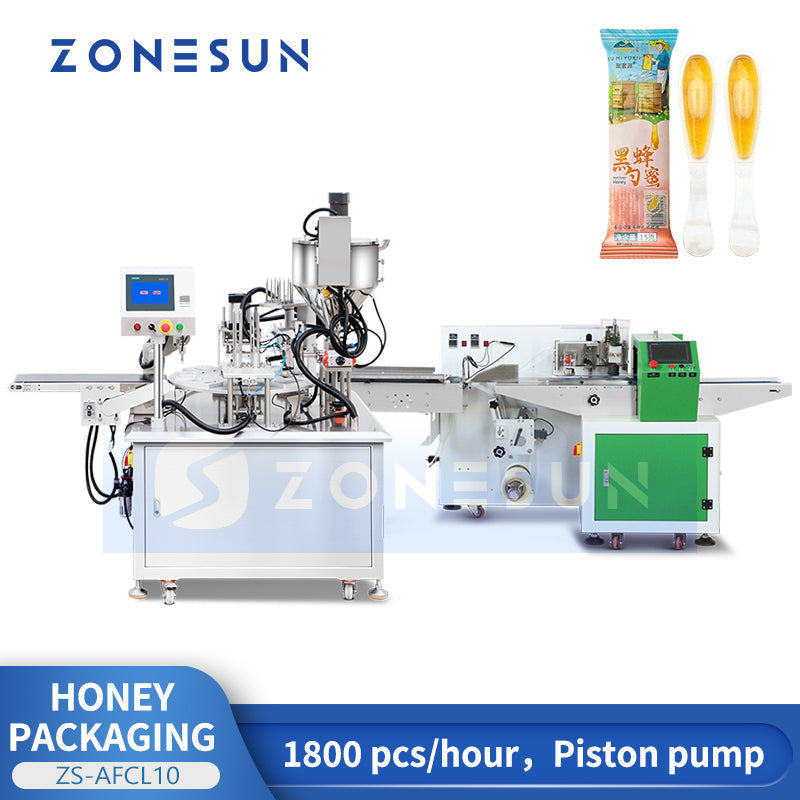

The ZONESUN ZS-AFCL10 is a full-automatic servo honey spoon filling and sealing production line designed for efficient and hygienic honey packaging. Operating at up to 1800 pcs/hour, it integrates spoon feeding, film feeding, filling, sealing, and cutting into a compact rotary system. Equipped with a piston pump, heating-mixing hopper, servo sealing structure, and customizable cutting blades, the machine ensures accurate filling, clean sealing, and neat cutting results. It can also be paired with a flow wrapping machine for complete downstream packaging automation.

ZS‑FSHS20

• Model: ZS‑FSHS20
• Type: Honey Spoon Filling Sealing Machine
• Power Supply: 110 V / 220 V, 50–60 Hz, 3.5 kW
• Production Speed: About 1000–1800 pcs/hour (depending on filling range)
• Filling Range: 5–300 ml (customizable)
• Filling Accuracy: ±1%
• Filling Pump: Piston pump
• Hopper Capacity: 30 L
• Sealing Temperature: 0–400 °C
• Suitable Product Size: Customizable
• Air Pressure: 0.5–0.8 MPa
• Machine Size: About 1806 × 1117 × 1722 mm
• Packing Size: About 1750 × 1120 × 1610 mm
• Package Weight: About 520 kg

ZS‑ZB350X

• Model: ZS‑ZB350X
• Type: Flow Wrapping Machine
• Power: 110 / 220 / 380 V, 50–60 Hz, 2.4 kW
• Film Width: Max. 350 mm (customizable)
• Bag Length: 90–6000 mm (customizable)
• Bag Width: 30–160 mm (customizable)
• Product Height: Max. 55 mm (customizable)
• Film Roll Diameter: Max. 320 mm
• Sealing Type: Top side sealing
• Packaging Speed: 30–120 bags/min
• Packaging Materials: OPP, OPP/CPP, KOP/CPP, Aluminum film
• Machine Size: About 3836 × 890 × 1079 mm
• Machine Weight: About 350 kg
• Packing Size: About 1950 × 1220 × 1220 mm + 2610 × 670 × 450 mm
• Package Weight: About 415 kg + 83 kg

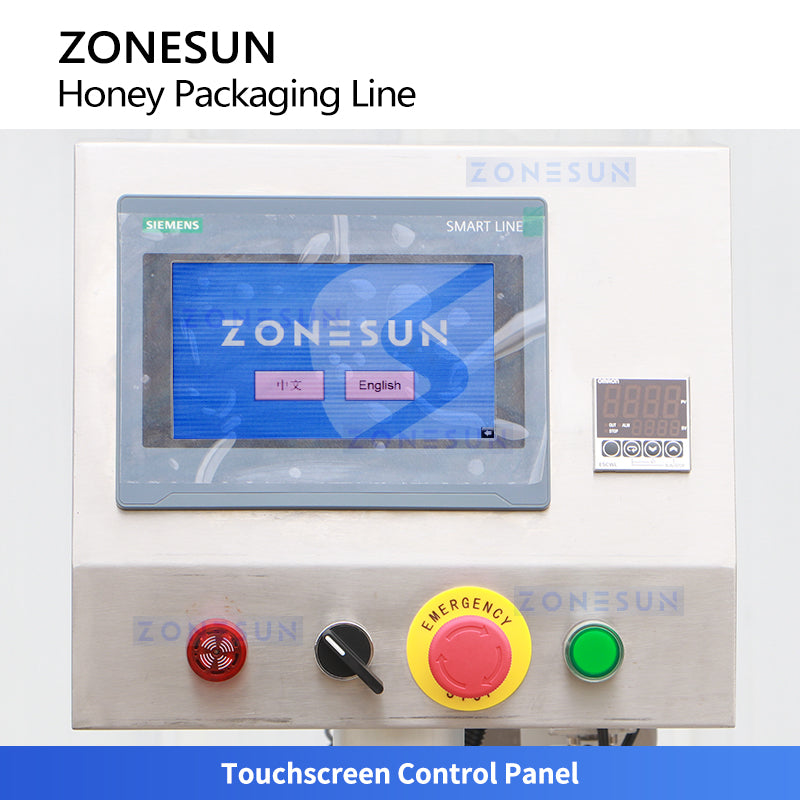

CONTROL PANEL

Controls machine operations, adjusts working parameters, and displays system status for efficient production management.

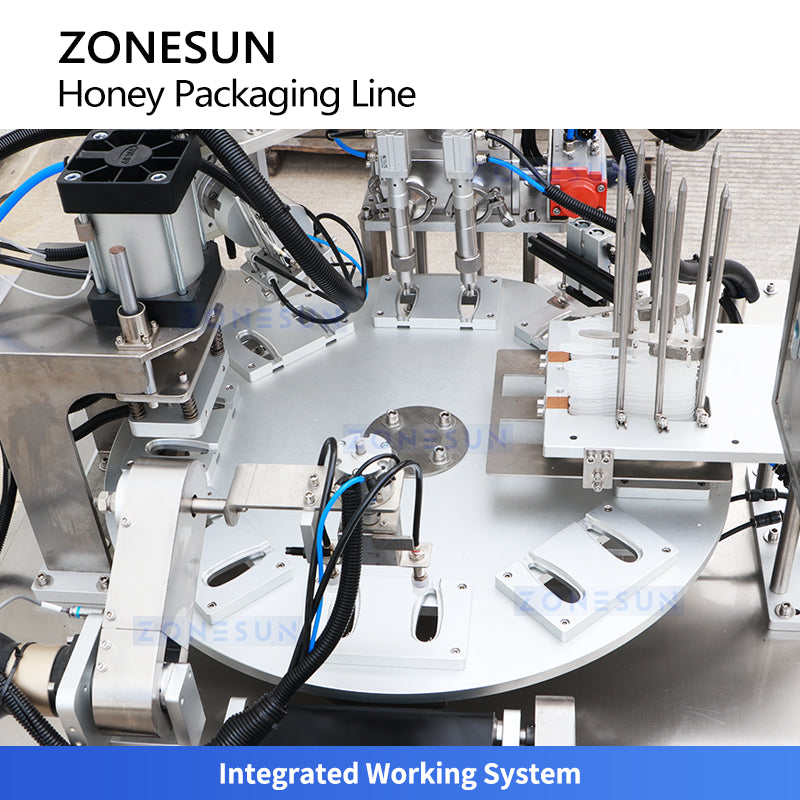

INTEGRATED WORKING

Combine spoon and film feeding, filling and sealing into a compact rotary system, enabling continuous and efficient production.

PRODUCT OUTLET

Suction cups can pick up and place spoons onto conveyor, convenient for downstream packaging.

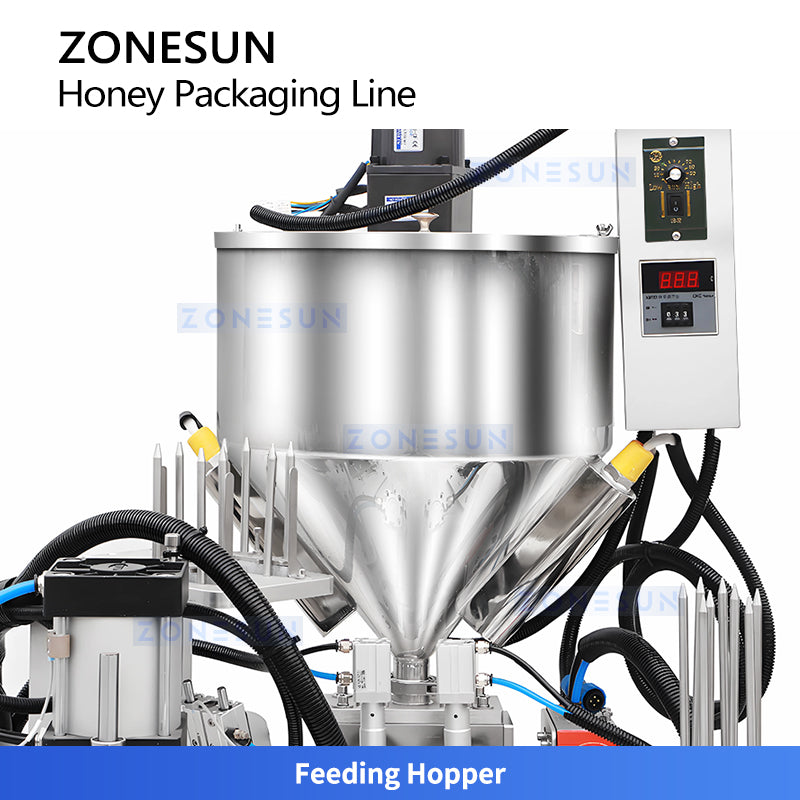

FEEDING HOPPER

 Ensuring smooth filling through mixing and heating while providing stable material storage and continuous feeding for the filling system.

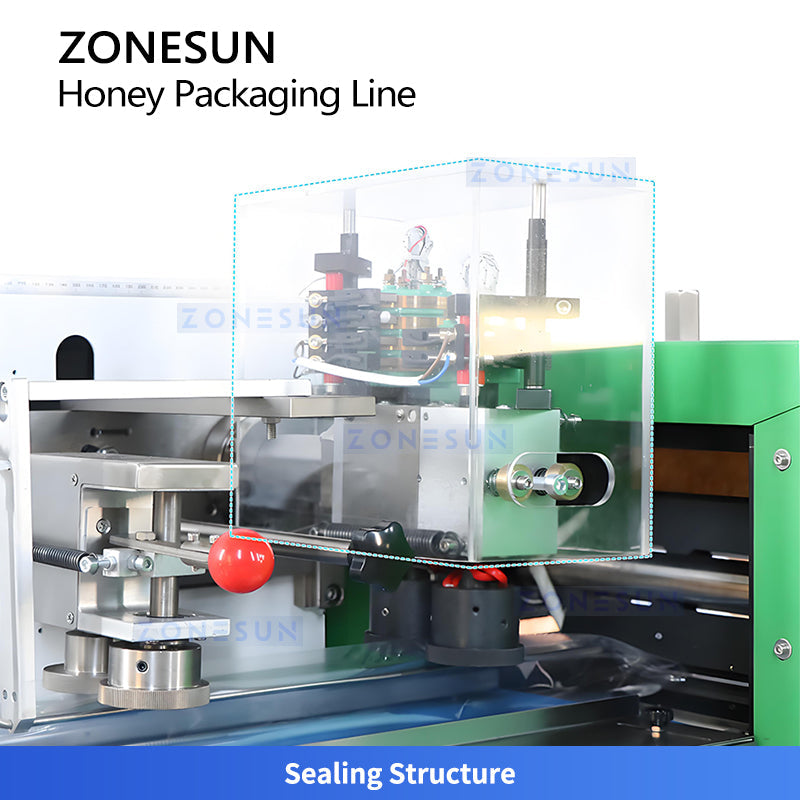

SEALING STRUCTURE

Ensuring precise sealing performance through servo-controlled motion with adjustable temperature and time settings.

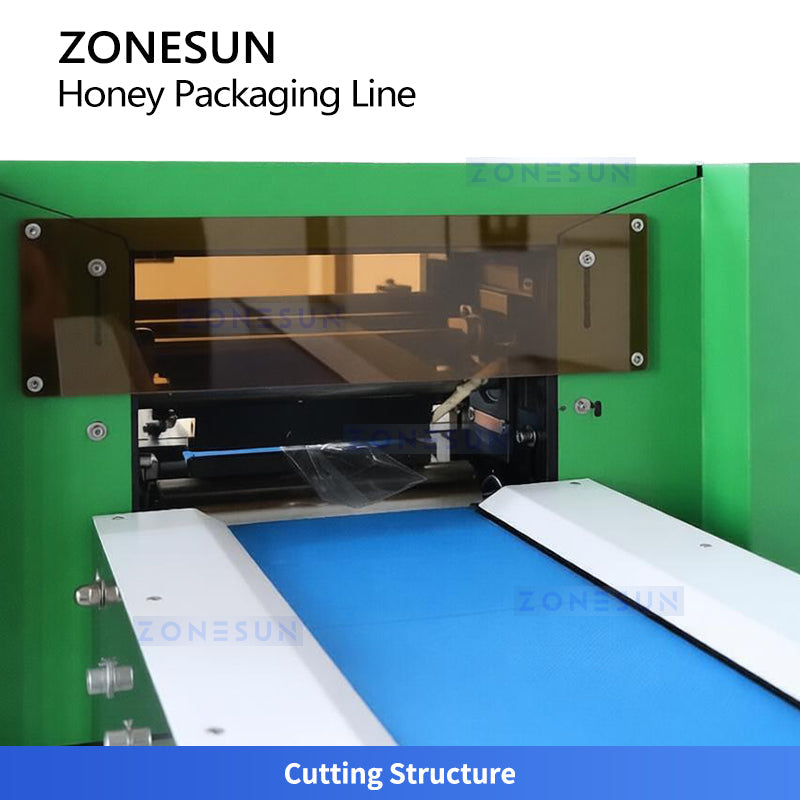

CUTTING STRUCTURE

Sharp cutting blades can make the cutting edge neatly while allowing customizable blade quantities to meet different cutting requirements.
