Description

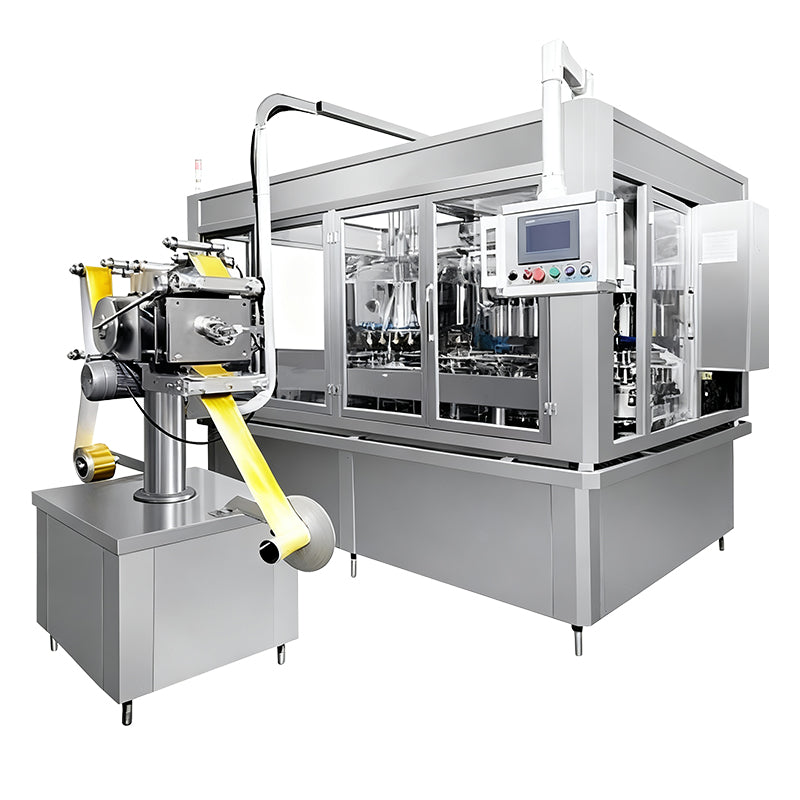

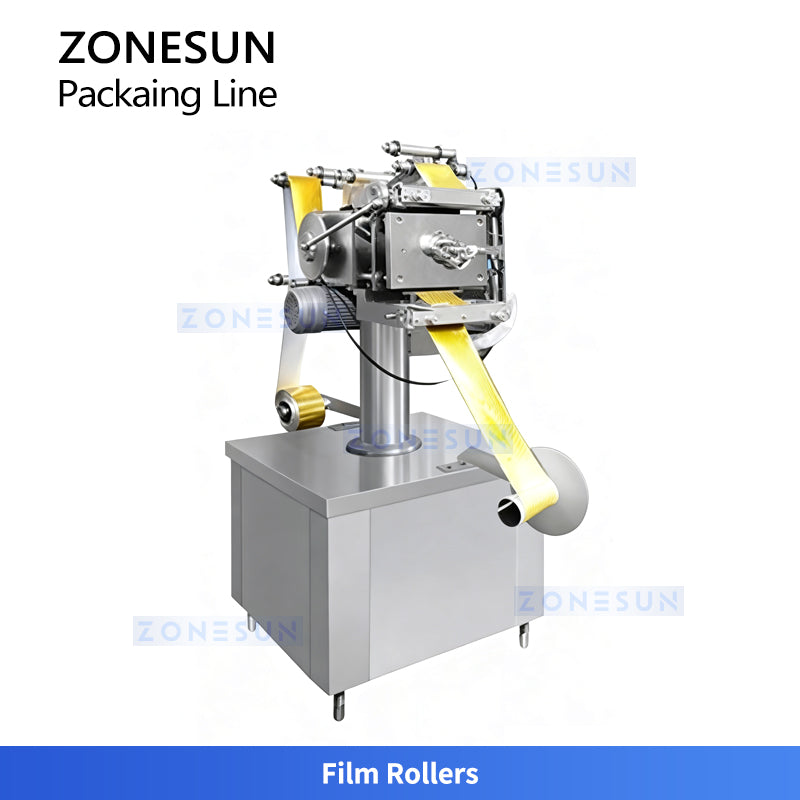

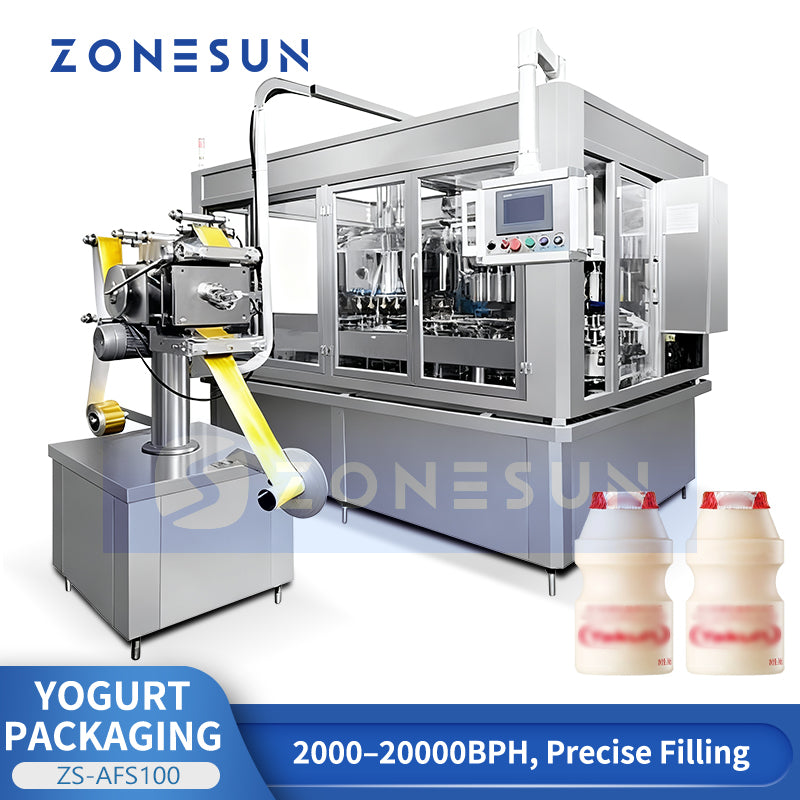

The ZONESUN ZS-AFS100 High-Speed Yogurt Filling Machine is designed for precise, automated filling of yogurt and other viscous liquids into bottles . Operating at speeds of 2,000–20,000 bottles per hour, it features a rotary platform, multi-head filling system, and electric sealing unit with temperature control. The touchscreen control panel enables real-time parameter adjustment and fault recovery. Film rollers feed sealing film with stable tension, while the modular design supports seamless integration with other production equipment. Ideal for dairy, beverage, and food packaging lines requiring high efficiency and hygiene.
Parameter
- Model Name: ZS-AFS100
- Voltage: 380V / 50 Hz
- Drive Type: Electric
- Power Consumption: 4.6 kW
- Filling Range: Yogurt / Milk / Juice / Water / Oil / Beer
- Application Fields: Food / Beverage / Chemical / Medical
- Packaging Materials: Plastic / Glass / Metal
- Applicable Bottle Diameter: 33–150 mm
- Applicable Bottle Height: 150–320 mm
- Cap Type: Plastic Screw Cap / Aluminum Seal Liner
- Material Grade: 304 Stainless Steel
- Production Capacity: 2,000–20,000 bottles/hour (BPH)
- Filling Accuracy: 100%
- Machine Dimensions: 2450 × 1650 × 2300 mm
- Machine Weight: 2500 kg

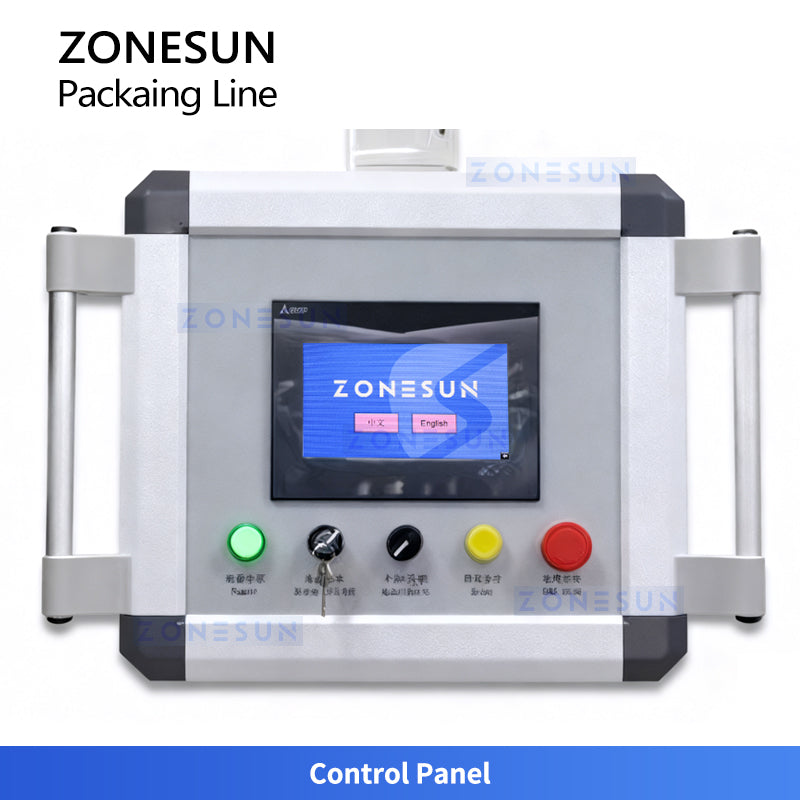

CONTROL PANEL
Controls machine operations via touchscreen and buttons. Adjusts settings, shows status, and supports quick fault recovery.

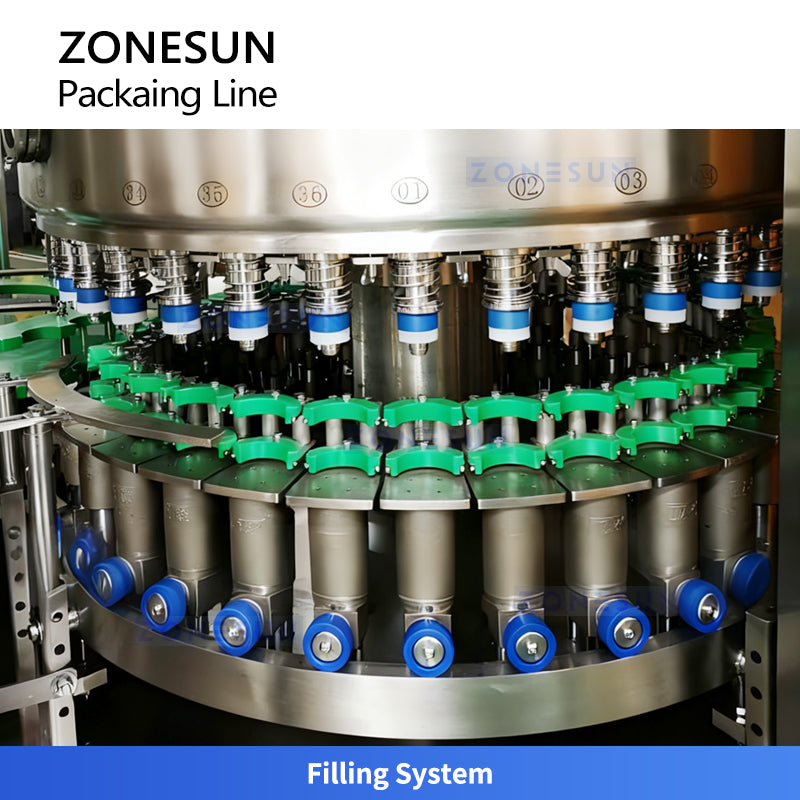

FILLING SYSTEM
Dispenses yogurt or other viscous liquids into containers with high precision and speed. Uses multiple rotary-arranged nozzles for simultaneous multi-bottle filling.

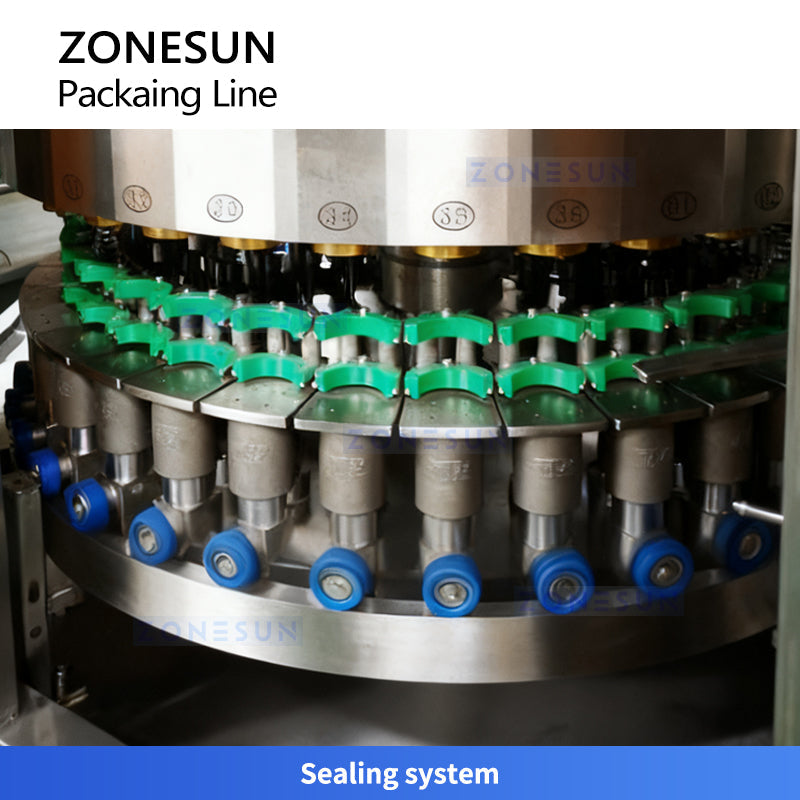

SEALING SYSTEM
Seals containers with electric heating and independent temperature control. Displays real-time heat levels; auto alarm pinpoints faults for quick repair.

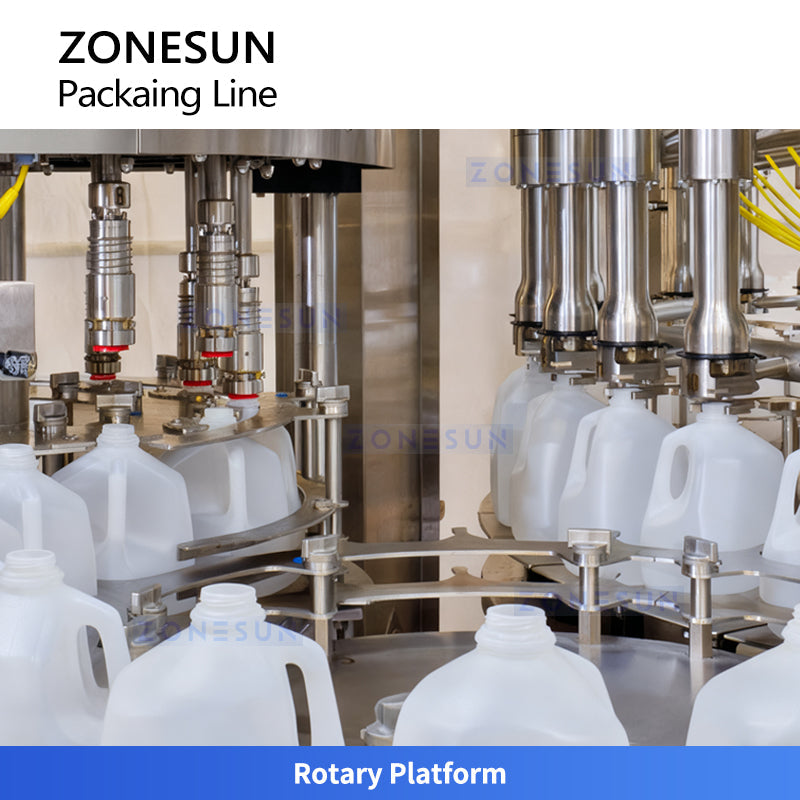

ROTARY PLATFORM
Rotates containers through filling and sealing stations with precise alignment. Supports fast, synchronized operation for efficient output.
