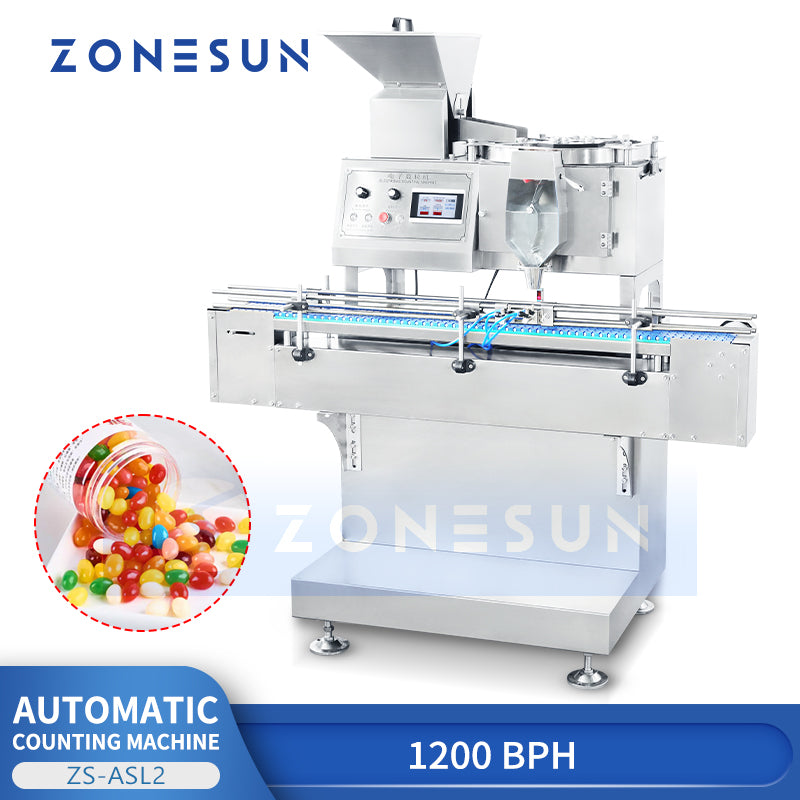

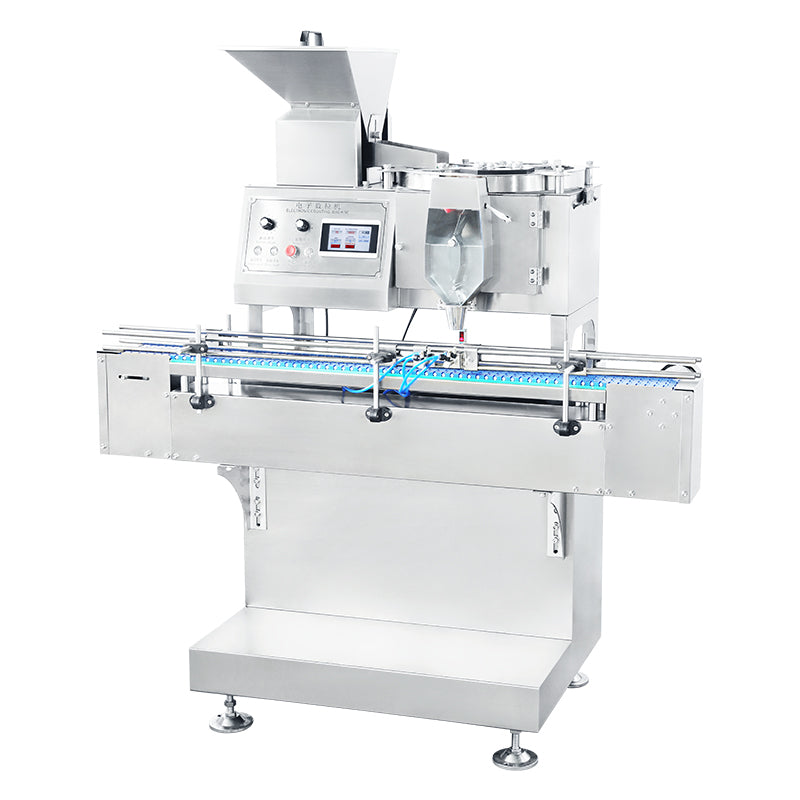

The ZONESUN ZS-ASL2 is a precision automatic counting and filling machine designed for small items like candy, gum, seeds, tablets, and capsules. Featuring a vibration channel, fiber optic sensors, and PLC touchscreen control, it ensures accurate counts and smooth operation. With a speed of 10–20 bottles per minute, it supports various bottle sizes and capsule formats (#000–#5). Built-in fault alarms, auto shutdown, and self-diagnostics enhance safety and reliability. Ideal for food and pharmaceutical industries seeking efficient, hygienic, and cost-effective packaging solutions.
TECHNICAL SPECIFICATIONS
- Model: ZS-ASL2
- Voltage: 220V / 50Hz
- Power: 0.3KW
- Application: Tablet 5–20mm, Capsule Model #000–5
- Air Consumption: 0.4–0.6Mpa / 3.8L/min
- Application Bottle Size: Diameter: 0–100mm, Height: 40–150mm
- Working Speed: 10–20 bpm
- Machine Size: 1360 × 730 × 1500mm
- Machine Weight: 100KG

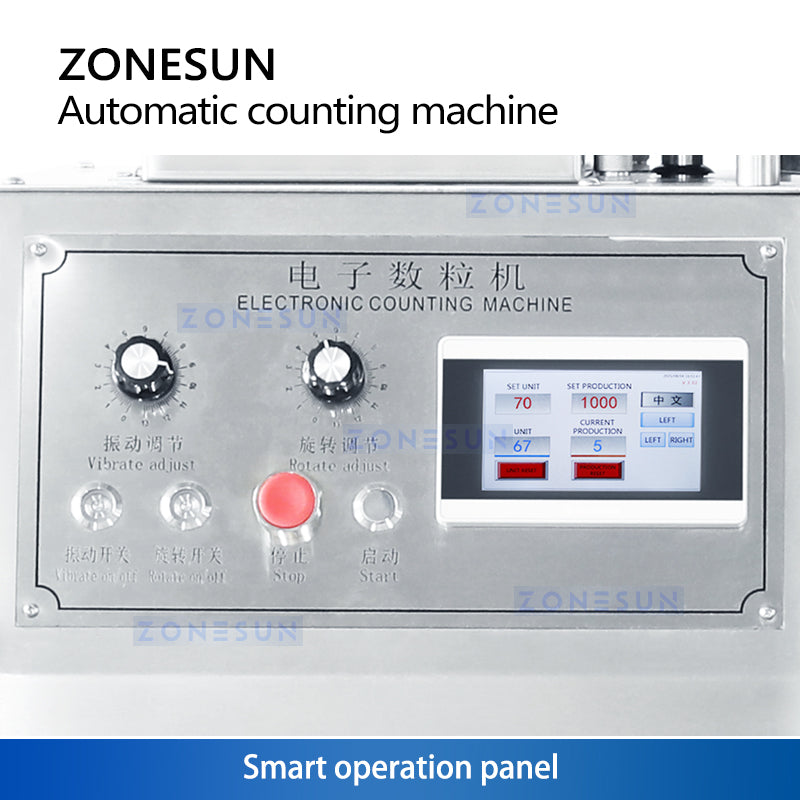

Smart Operation Panel
The touchscreen interface and PLC control technology allow parameters to be set quickly and easily.

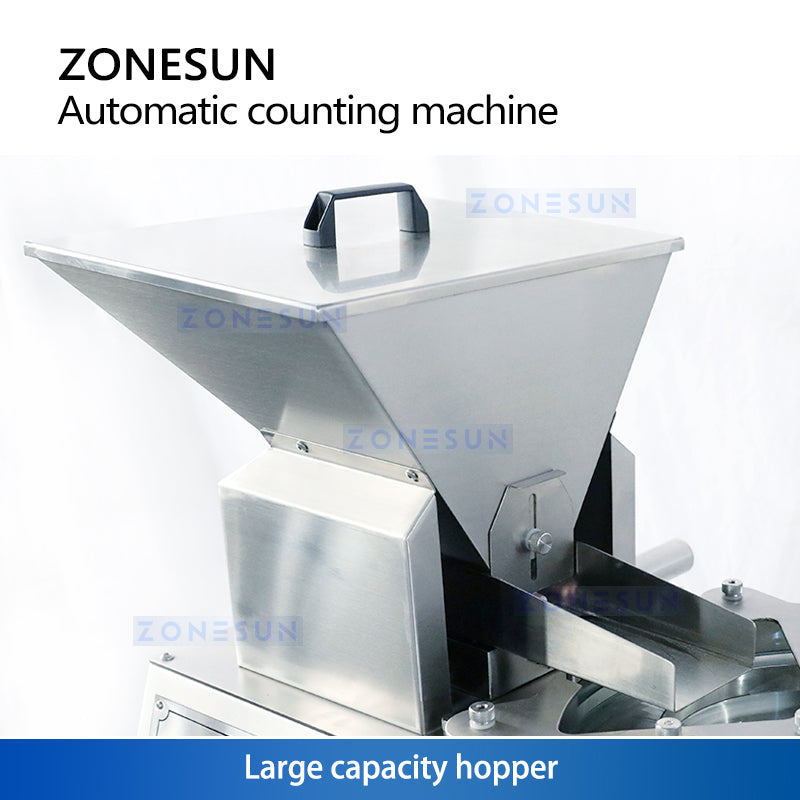

Large Capacity Hopper
Made of 304 stainless steel and designed for enclosed material conveying to reduce dust pollution. Vibratory discharge helps prevent clogging.

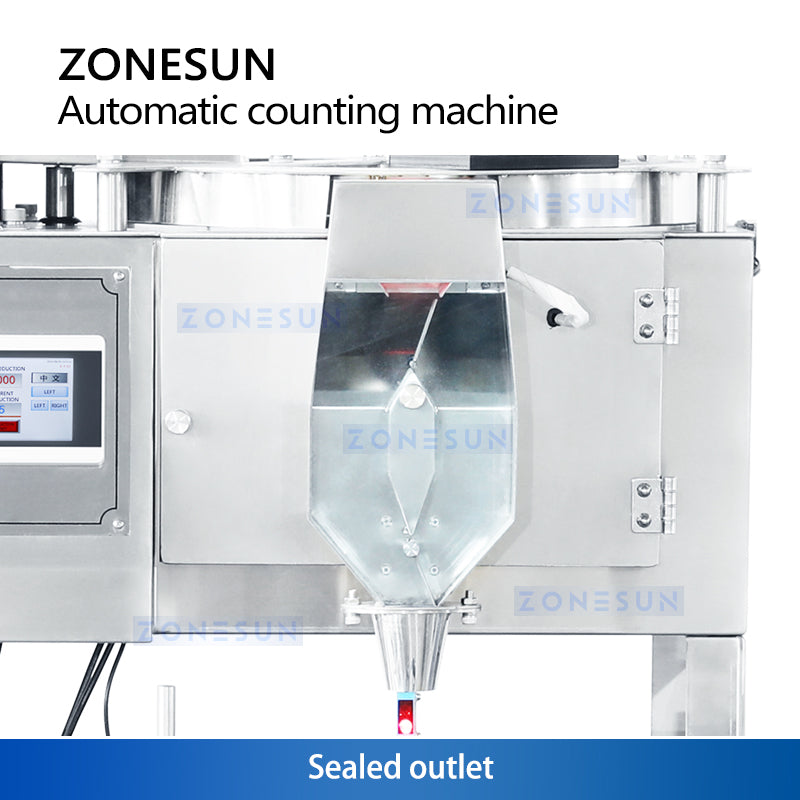

Sealed Outlet
Designed for efficient discharge, allowing counted items to be collected cleanly and easily.

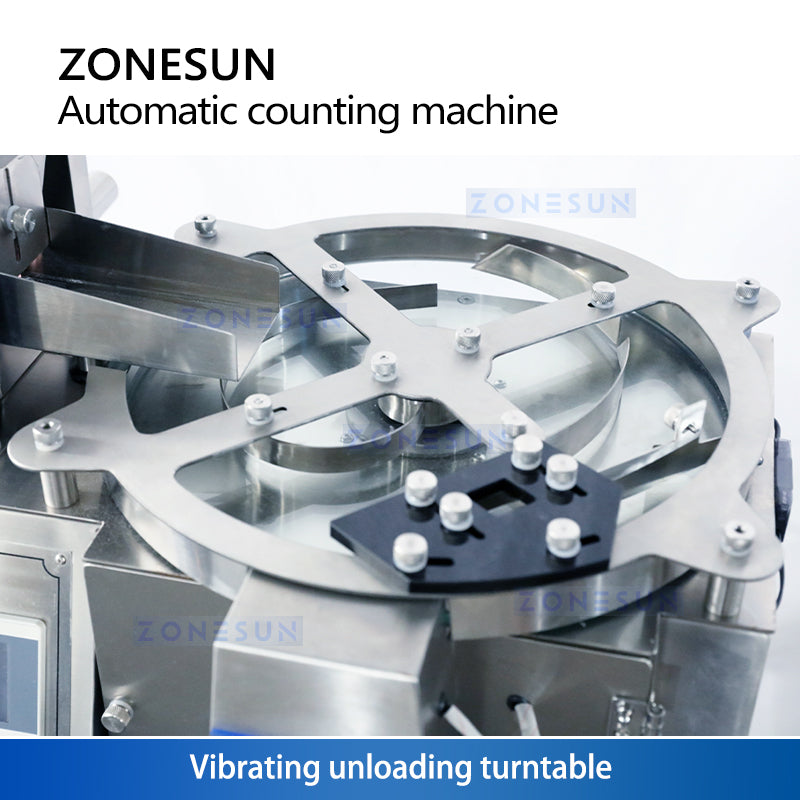

Vibrating Unloading Turntable
The glass turntable uses a rotating counting design with adjustable speed to count items quickly and accurately.

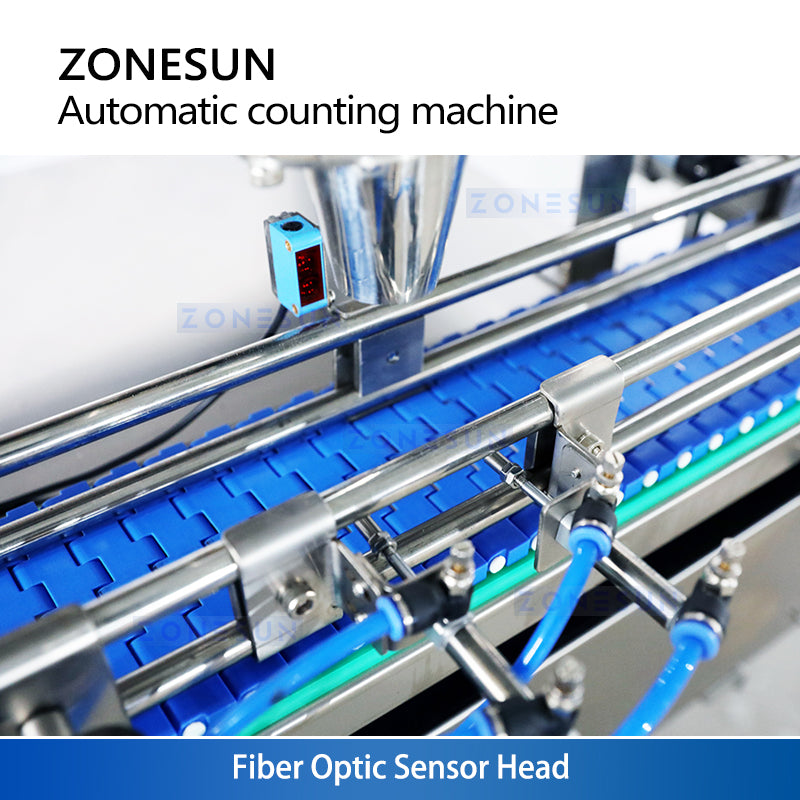

Fiber Optic Sensor Head
The fiber-optic sensor head detects bottles easily. The adjustable bottle clamp supports simple, accurate filling, and the machine is equipped with a durable chain-plate conveyor.
