Description

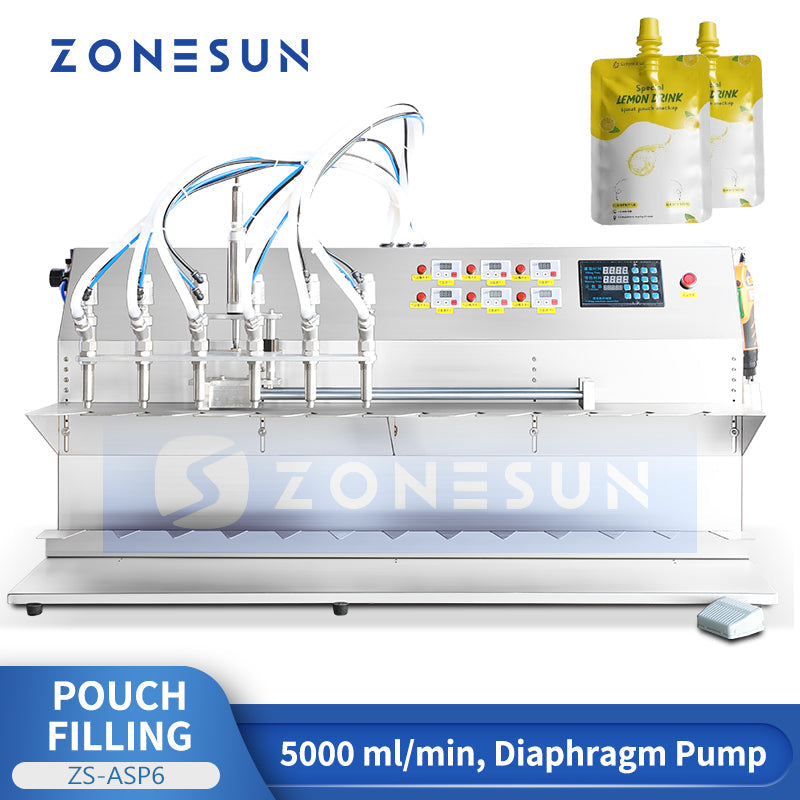

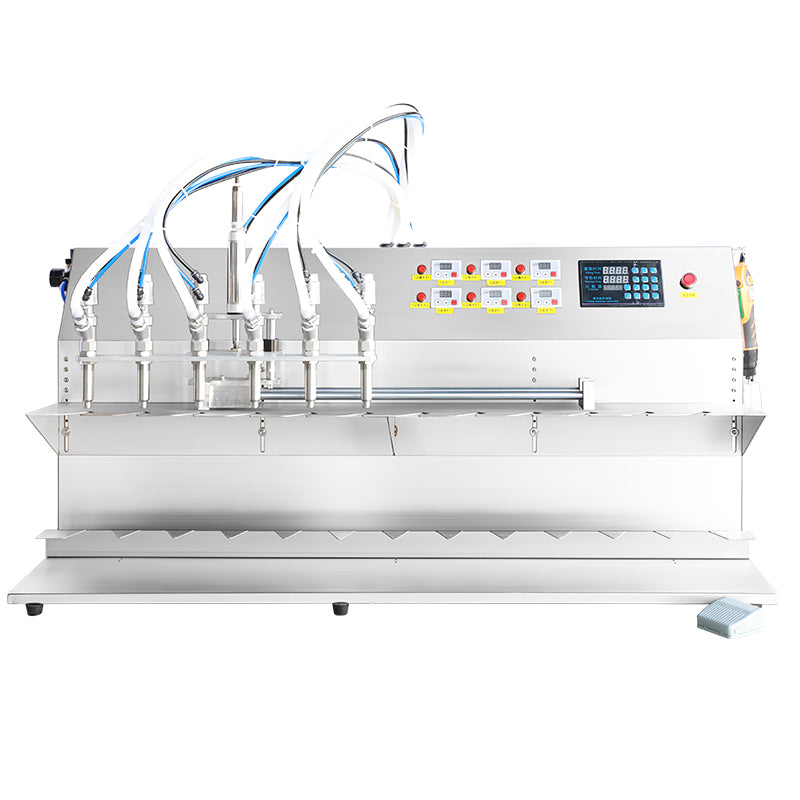

The ZONESUN ZS-ASP6 is a semi-automatic 6-head liquid filling machine designed for stand-up pouches. Equipped with a diaphragm pump, it delivers up to 5000 ml per head per minute with ±1% accuracy. The machine features stainless steel construction, digital control, and a unique filling valve design that prevents dripping. With adjustable pouch positioning, foot pedal activation, and handheld capping integration, it provides flexible, efficient, and reliable performance for small to medium-scale production lines, applied in fruit jelly, juice, sauces, condiments, edible oils, detergents, and other liquid or semi-liquid pouch products.
Parameter
- Model: ZS-ASP6
- Working Method: Manual / Foot pedal
- Air Pressure Requirement: 0.4–0.6 MPa
- Flow Rate: 5000 ml/head/min
- Power Supply: 220V, 50Hz
- Machine Material: Stainless steel
- Machine Dimensions (L×W×H): Approx. 100 × 60 × 62 cm (customizable)
- Motor Power: 380 W
- Controller: Digital control
- Machine Weight: Approx. 84 kg
- Filling Accuracy: ±1%
- Features: Unique filling valve design, no dripping

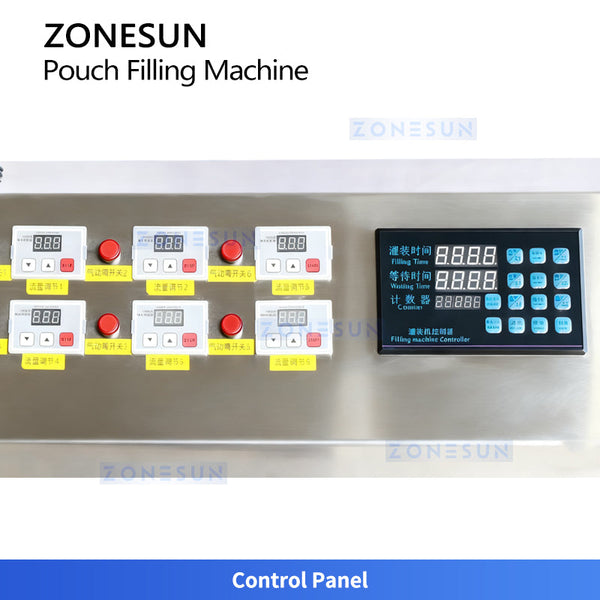

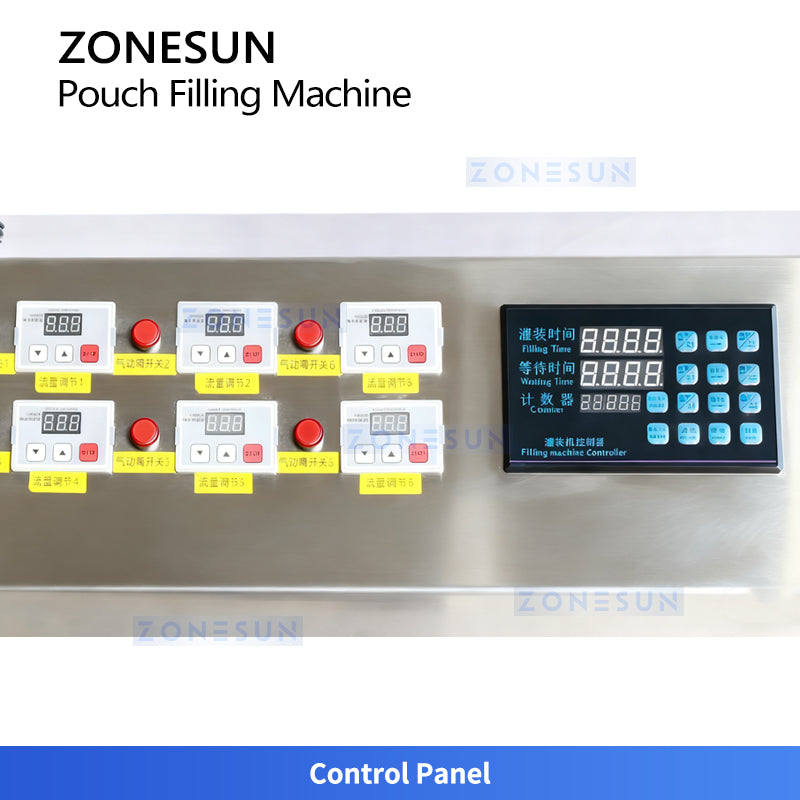

CONTROL PANEL

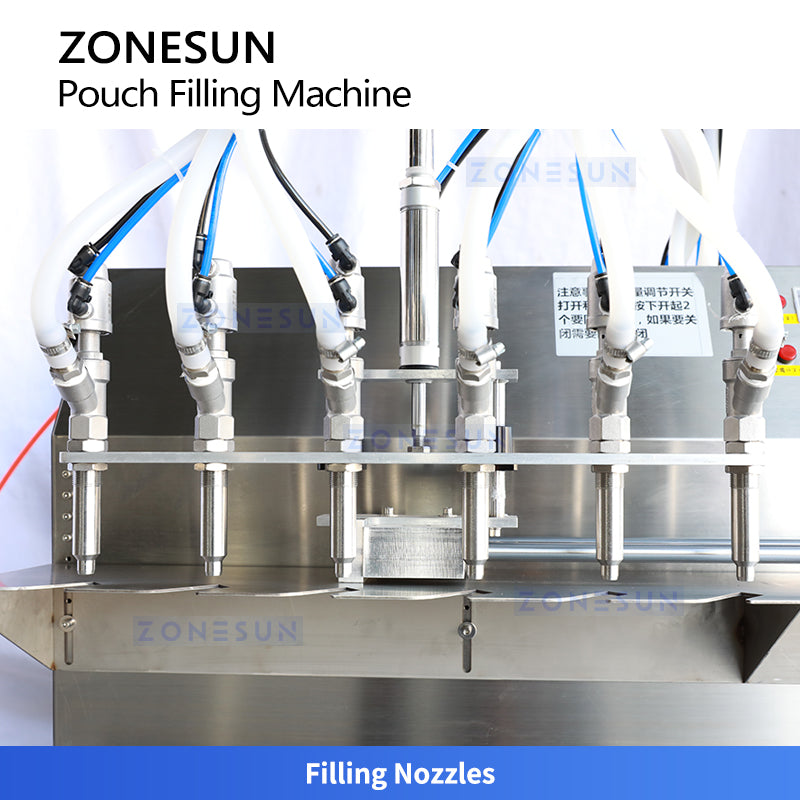

FILLING NOZZLES
Dispenses liquid from diaphragm pump through six movable nozzles, allowing flexible multi-pouch filling with precision.

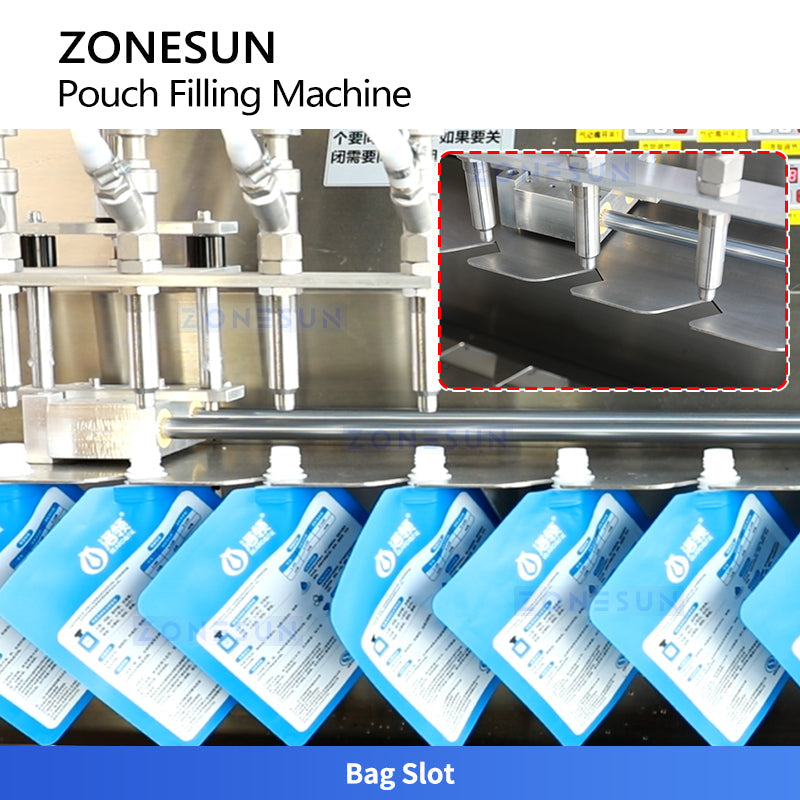

BAG SLOT
Holds stand-up pouches in place during filling to ensure accurate alignment and prevent shifting.

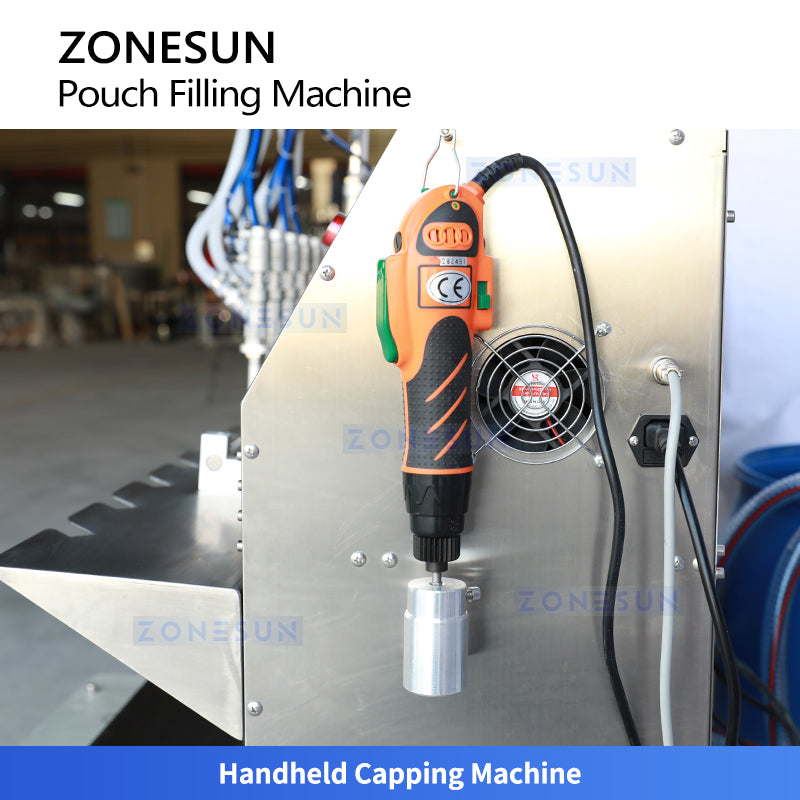

HANDHELD CAPPING
Tightens stand-up pouch caps after filling for quick sealing and reliable leak-proof closure.

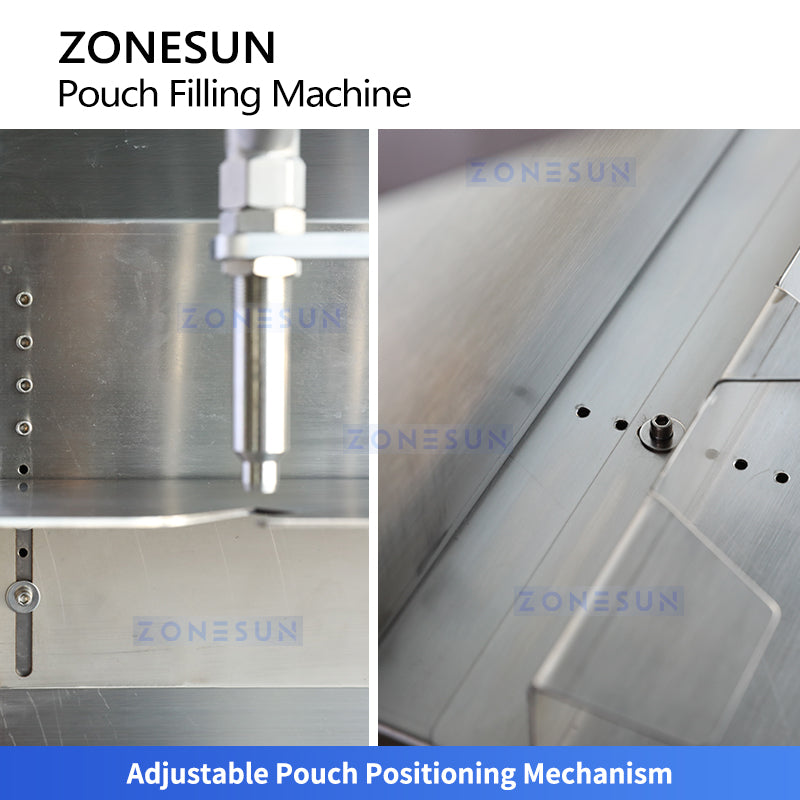

ADJUSTABLE POSITIONING
Allows height and depth adjustment of pouch position to accommodate various pouch sizes and ensure accurate filling alignment.
