Description

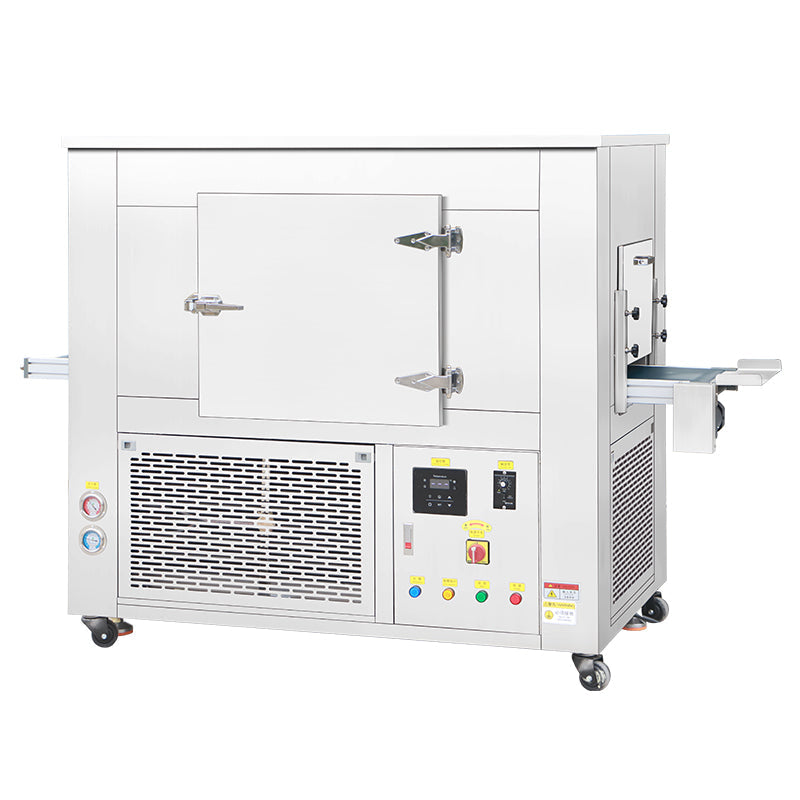

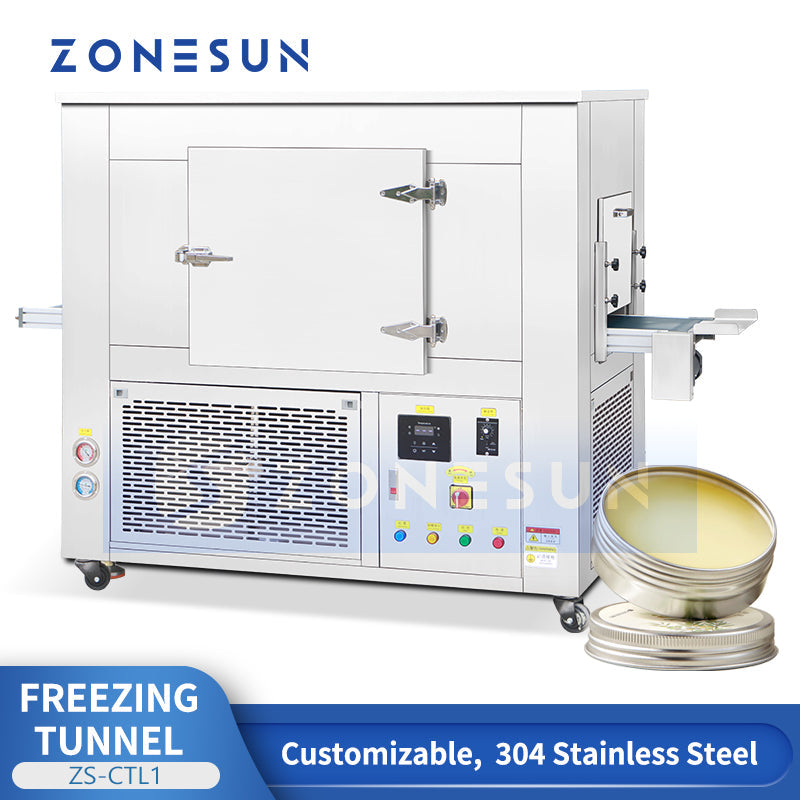

The ZONESUN ZS-CTL1 is a continuous air-cooling freezing tunnel designed for rapid chilling or surface freezing of products during conveyor transport. With a minimum temperature of -15 °C and a freezing time of 1-3 minutes, it stabilizes products quickly and consistently, improving production efficiency. Built with a durable 304 stainless steel structure, double-layer insulation, and high sealing performance, it minimizes cold loss and enhances energy efficiency. The customizable conveyor belt allows seamless integration with upstream and downstream equipment, making it suitable for automated production lines. Ideal for lotion bars, lip balms, solid deodorants, hair wax, and candles.
Parameter
- Model: ZS‑CTL1
- Power Supply: 110/220/380 V, 3‑Phase, 2.2 kW
- Minimum Freezing Temperature: −15 °C
- Freezing Time: 1–3 min (depending on product)
- Compressor Power: 2.1 kW, 3‑Phase
- Conveyor Belt Size (L×W): 2000 × 400 mm (customizable)
- Machine Body Material: 304 stainless steel
- Machine Dimensions (L×W×H): 2242 × 999 × 1440 mm

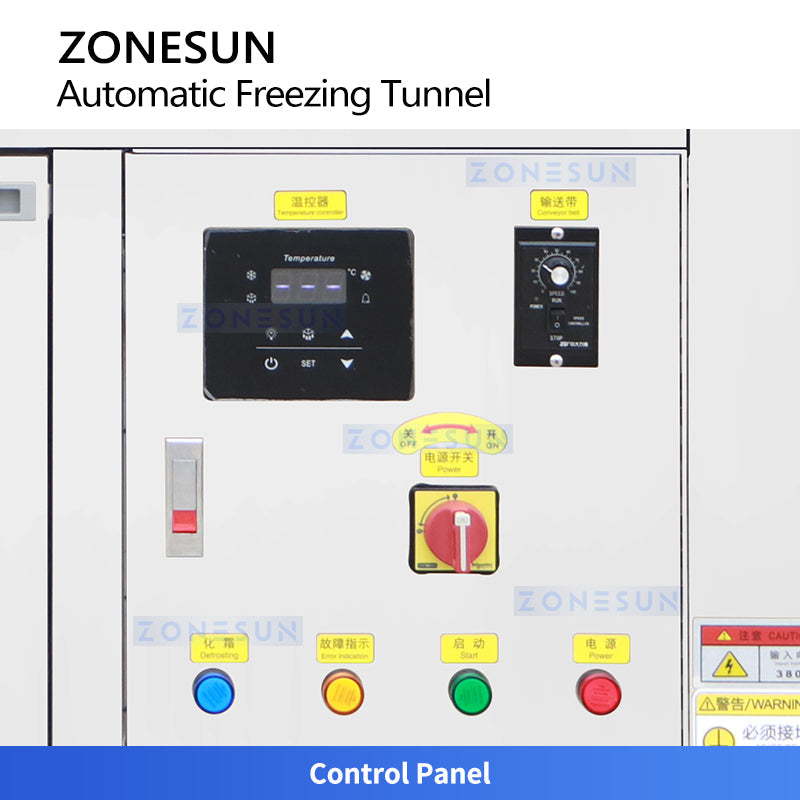

CONTROL PANEL
Enables operators to adjust working parameters and control machine operations with clear, straightforward commands, ensuring stable and efficient freezing performance.

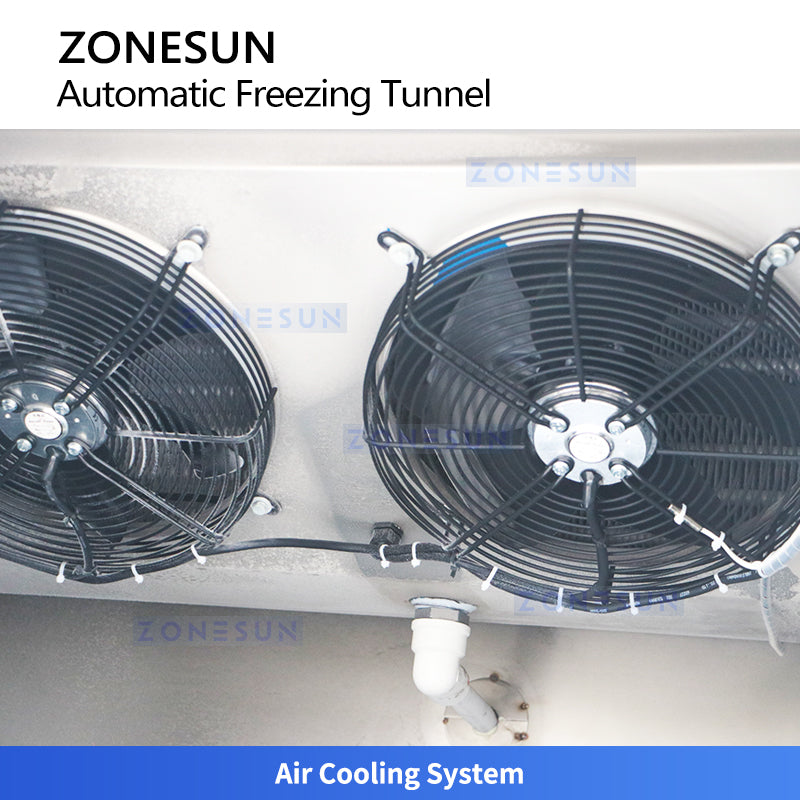

AIR COOLING
Using air cooling, it is less prone to internal condensation and delivers faster, more uniform freezing performance.

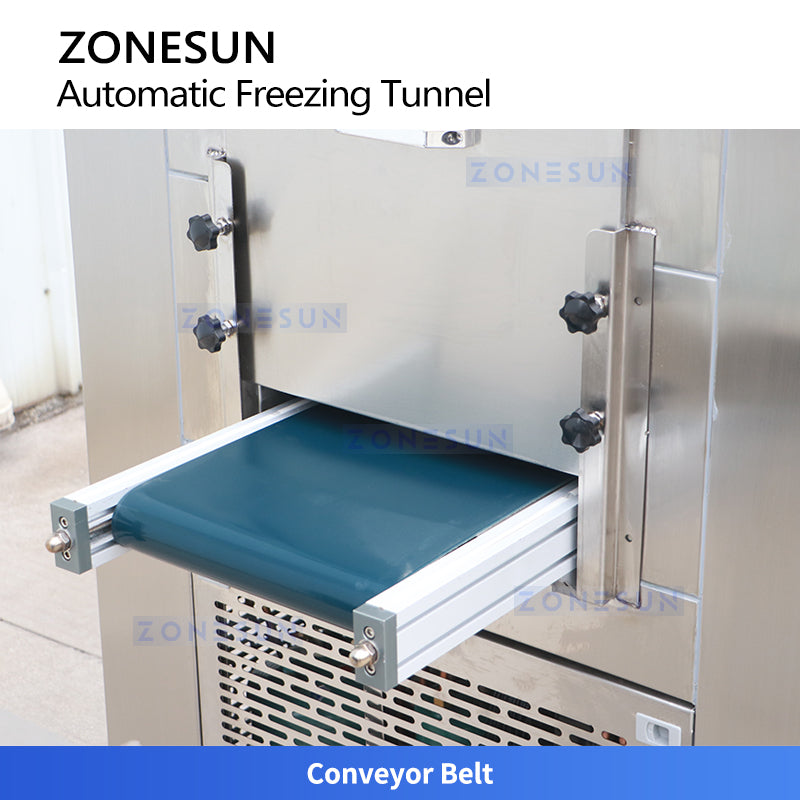

CONVEYOR BELT
Transfers products through the freezing tunnel, supports customizable belt dimensions, and enables seamless integration with other equipment for automated production.

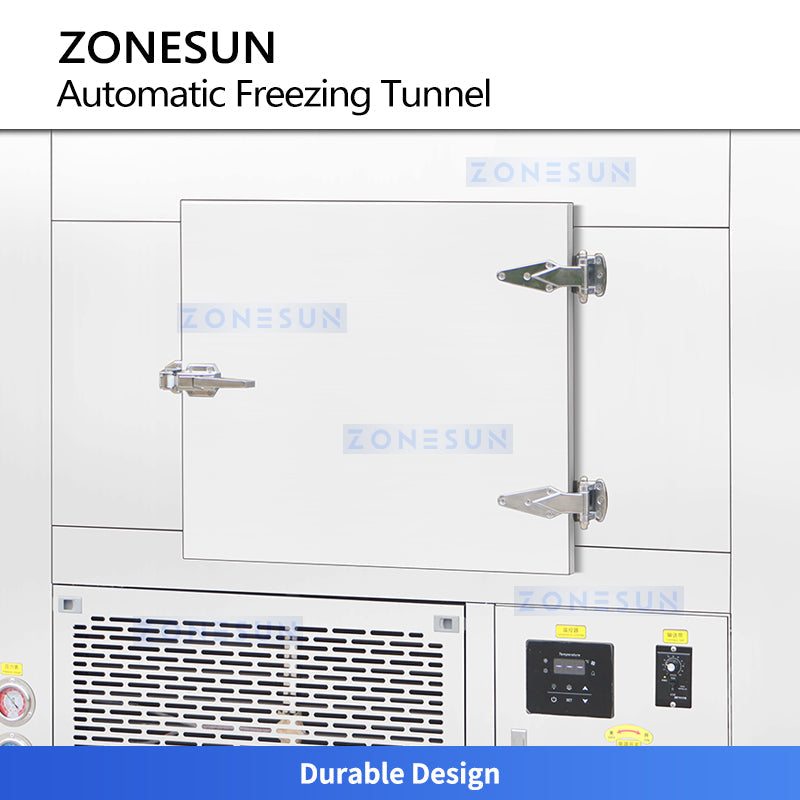

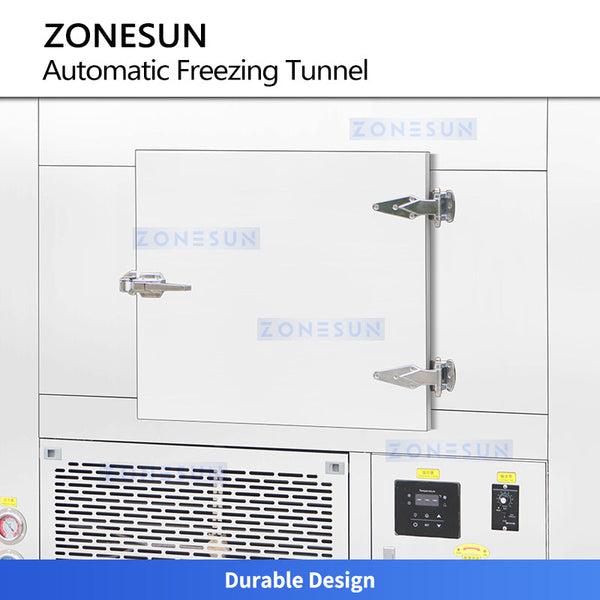

DURABLE DESIGN
Made of stainless steel, it features double-layer insulation and high sealing performance, ensuring stable operation and maintaining consistent low-temperature conditions.

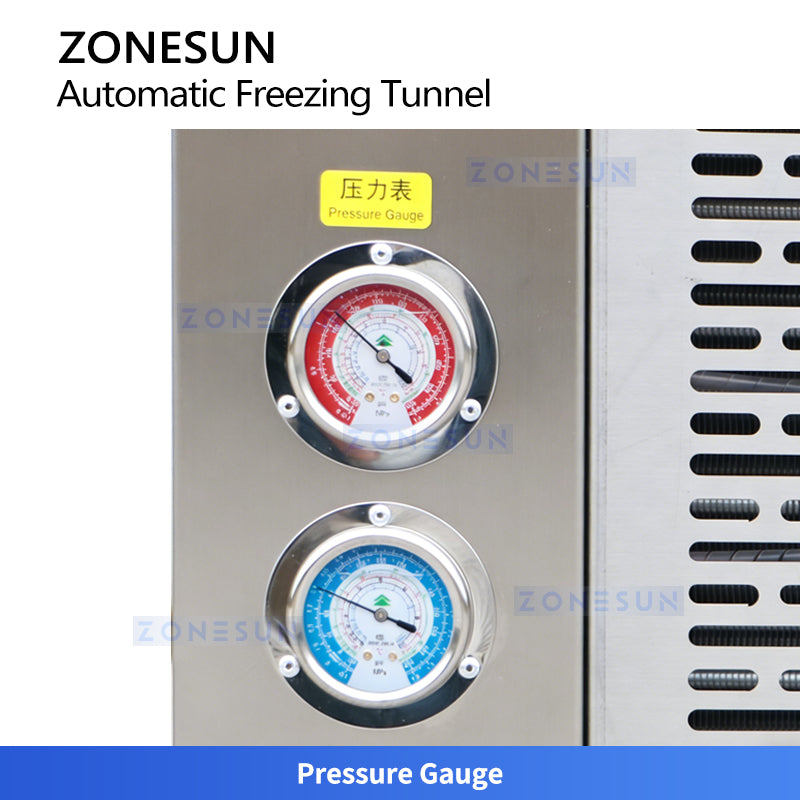

PRESSURE GAUGE
Monitors system pressure in real time to help maintain optimal refrigeration conditions and ensure stable, efficient freezing performance.
